Overview

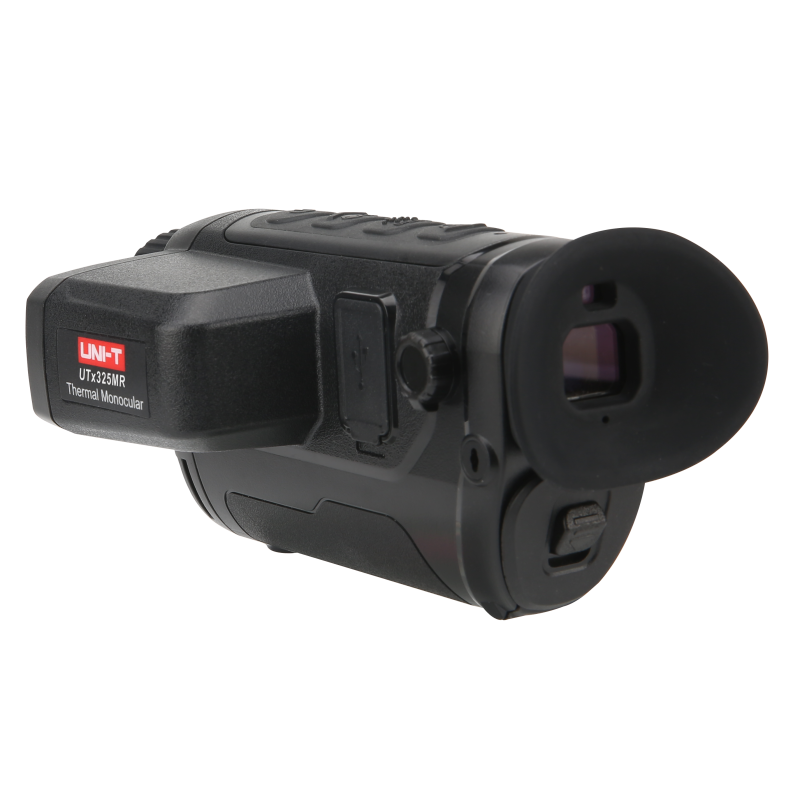

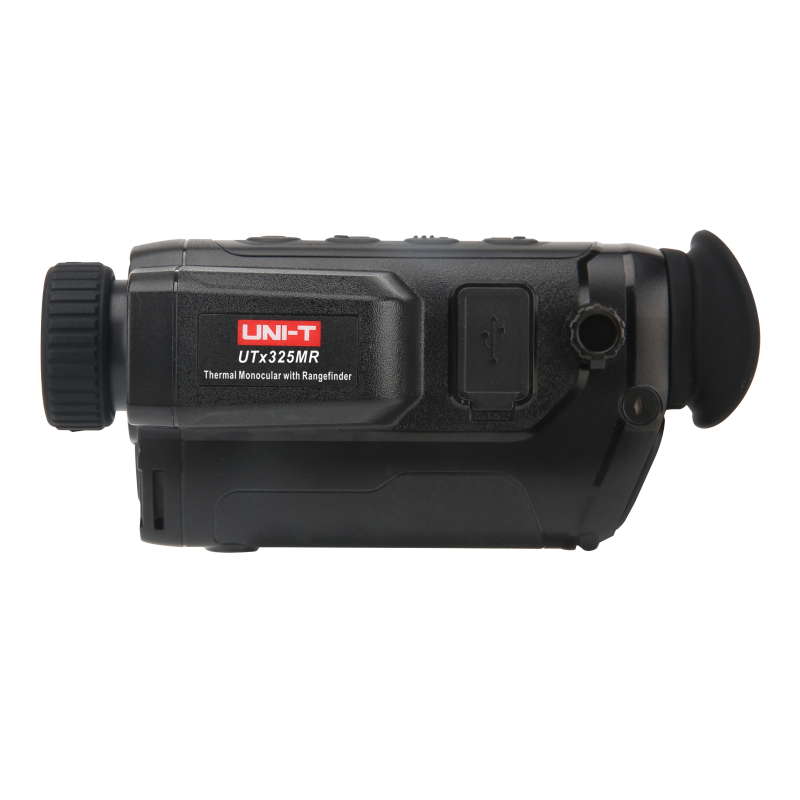

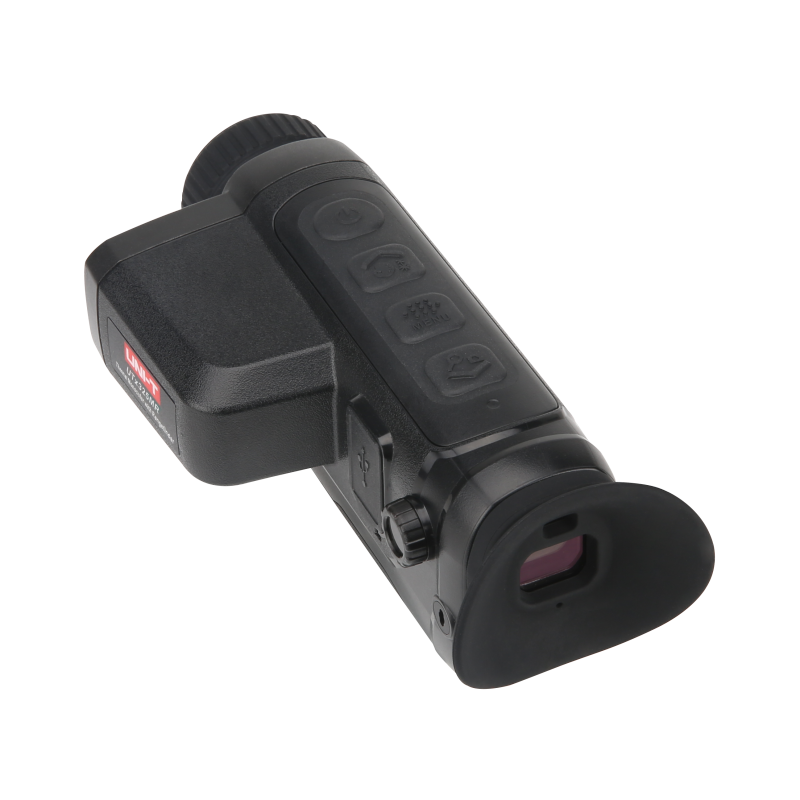

UNI-T UTx325MR
Long-Range Precision with Laser Accuracy
The UNI-T UTx325MR is built for professionals who demand unparalleled accuracy and performance for long-range thermal detection and distance measurement.
With a 25mm lens, the UNI-T UTx325MR is optimized for long-range detection, ensuring sharp imaging and reliable performance in challenging environments. It features laser range finding, which offers precision distance measurements that far surpass the speed and accuracy of stadiametric methods.
Laser range finding allows professionals to measure distances with exactitude, providing the critical information needed for time-sensitive operations such as search and rescue, wildlife monitoring, or perimeter security. Combined with its rugged durability and advanced thermal sensitivity, the UNI-T UTx325MR is the ultimate tool for demanding users.
Key Features
-
IR Resolution: 400×300 pixels for detailed thermal imaging
-
Lens Focal Length: 25mm for long-range performance
-
Thermal Sensitivity: ≤25mK for superior detection accuracy
-
Field of View (FOV): 10.5° × 7.9° for precise scanning
-
Range Finding: Laser
-
Battery Life: 6+ hours of continuous use
-
Durability: IP67 waterproof and drop-resistant up to 2 meters
-
Additional Features: Hot Trace, Wi-Fi Live Streaming
Frequently Asked Questions
What is the detection range of the UTx325MR?
Detection range depends on the target size and thermal contrast. The UTx325MR's specifications list the maximum detection range for a standard 1.7m × 0.5m target. Actual usable range for identification is typically 30-50% of the maximum detection distance.
Is the UTx325MR waterproof?
The UTx325MR carries an IP rating for dust and water resistance. Check the specifications tab for the exact IP rating. The device is designed for outdoor use in varying weather conditions.
What's included with the UTx325MR?
The UTx325MR ships with the monocular, carrying case, USB charging cable, lens cloth, and user manual. Check the specifications tab for the complete package contents.
Specifications
| IR Resolution | 400×300 |
| NETD | ≤ 25mK |
| Field of View | 10.5° × 7.9° |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 12µm |
| Refresh Rate | 50 Hz |
| Focus | Manual Focus |
| Detection Range | 1318m |
| Digital Zoom | 2x, 4x, 8x / 1.0 - 8x continuous |
| Image Modes | Thermal |
| Image Format | PNG |
| Video Recording | Yes |
| Video Format | MP4 |
| Laser LRF | Yes |
| WiFi | Yes |
| Mobile App | Thermal Xplorer (Android & iOS) |
| Interface | USB-Type-C |
| Data Storage | Built-in 16GB |
| Display Type | OLED |
| Display Size | 0.39in |
| Display Resolution | 1024×768 |
| Languages | English, French, German, Spanish, Italian, Russian |
| Battery | 3250 mAh detachable Li-ion battery (UT-M21) |
| Battery Life | ≥ 4h (with Wi-Fi off) |
| Weight | 357 g |
| Dimensions | 160 × 71.5 × 38.5 mm |
| IP Rating | IP67 |
| Drop Rating | 2m |
