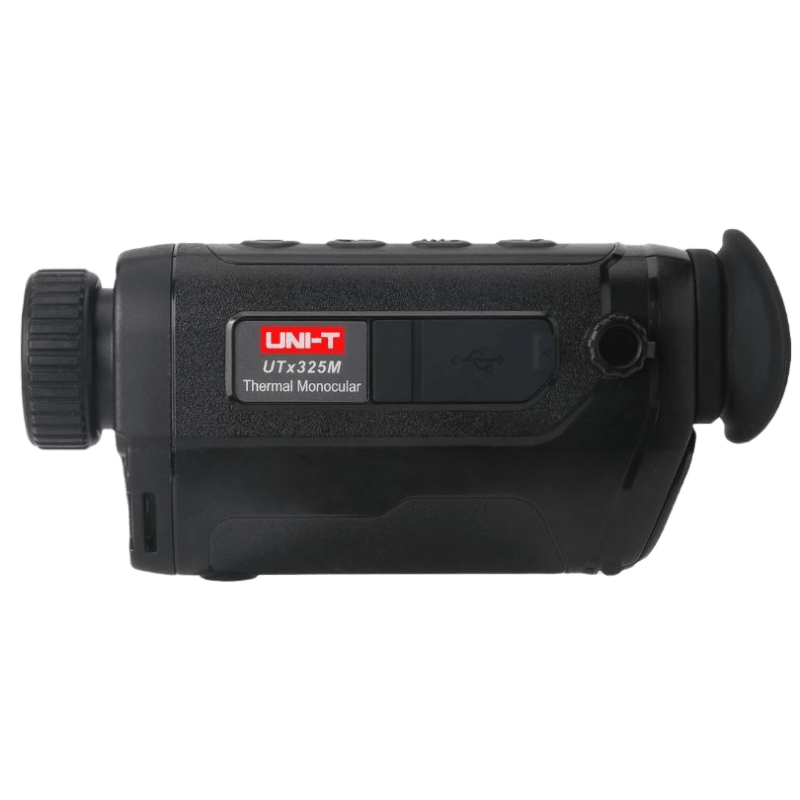

UTx325M Infrared Long-Distance Thermal Monocular
UTx325M Infrared Long-Distance Thermal Monocular
Couldn't load pickup availability
Overview
UTx325M
Long-Range Precision for Professionals
Meet the UTx325M—an advanced thermal monocular built for professionals who demand the best. From long-range wildlife tracking to high-stakes search and rescue missions, this device offers unmatched accuracy and performance.
The UTx325M is equipped with a 25mm lens, making it ideal for long-distance detection and identification. Its precision thermal imaging ensures you can detect heat signatures even in challenging conditions, whether it's navigating dense forests or monitoring expansive perimeters.
The UTx325M features stadiametric ranging for estimating distances quickly and accurately. Unlike laser range finding, which provides exact measurements, stadiametric ranging relies on an intuitive scaling method for objects of known size, offering speed and convenience without additional hardware. This feature is invaluable for professionals needing rapid situational awareness in dynamic scenarios.
Key Features
- IR Resolution: 400×300 pixels for crystal-clear imaging
- Lens Focal Length: 25mm for superior long-range performance
- Thermal Sensitivity: ≤25mK for detecting subtle temperature variations
- Field of View (FOV): 10.5° × 7.9° for precise long-range scanning
- Range Finding: Stadiametric
- Battery Life: 6+ hours for extended use
- Durability: IP67 waterproof and drop-resistant up to 2 meters
- Additional Features: Hot Trace, Wi-Fi Live Streaming
Frequently Asked Questions
What is the detection range of the UTx325M?
Detection range depends on the target size and thermal contrast. The UTx325M's specifications list the maximum detection range for a standard 1.7m × 0.5m target. Actual usable range for identification is typically 30-50% of the maximum detection distance.
Is the UTx325M waterproof?
The UTx325M carries an IP rating for dust and water resistance. Check the specifications tab for the exact IP rating. The device is designed for outdoor use in varying weather conditions.
What's included with the UTx325M?
The UTx325M ships with the monocular, carrying case, USB charging cable, lens cloth, and user manual. Check the specifications tab for the complete package contents.
Specifications
| IR Resolution | 400×300 |
| NETD | ≤ 25mK |
| Field of View | 10.5° × 7.9° |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 12µm |
| Refresh Rate | 50 Hz |
| Focus | Manual Focus |
| Detection Range | 1318m |
| Digital Zoom | 2x, 4x, 8x / 1.0 - 8x continuous |
| Image Modes | Thermal |
| Image Format | PNG |
| Video Recording | Yes |
| Video Format | MP4 |
| WiFi | Yes |
| Mobile App | Thermal Xplorer (Android & iOS) |
| Interface | USB-Type-C |
| Data Storage | Built-in 16GB |
| Display Type | OLED |
| Display Size | 0.39in |
| Display Resolution | 1024×768 |
| Languages | English, French, German, Spanish, Italian, Russian |
| Battery | 3200 mAh detachable Li-ion battery (UT-M20) |
| Battery Life | ≥ 4h (with Wi-Fi off) |
| Weight | 357 g |
| Dimensions | 160 × 71.5 × 38.5 mm |
| IP Rating | IP67 |
| Drop Rating | 2m |
