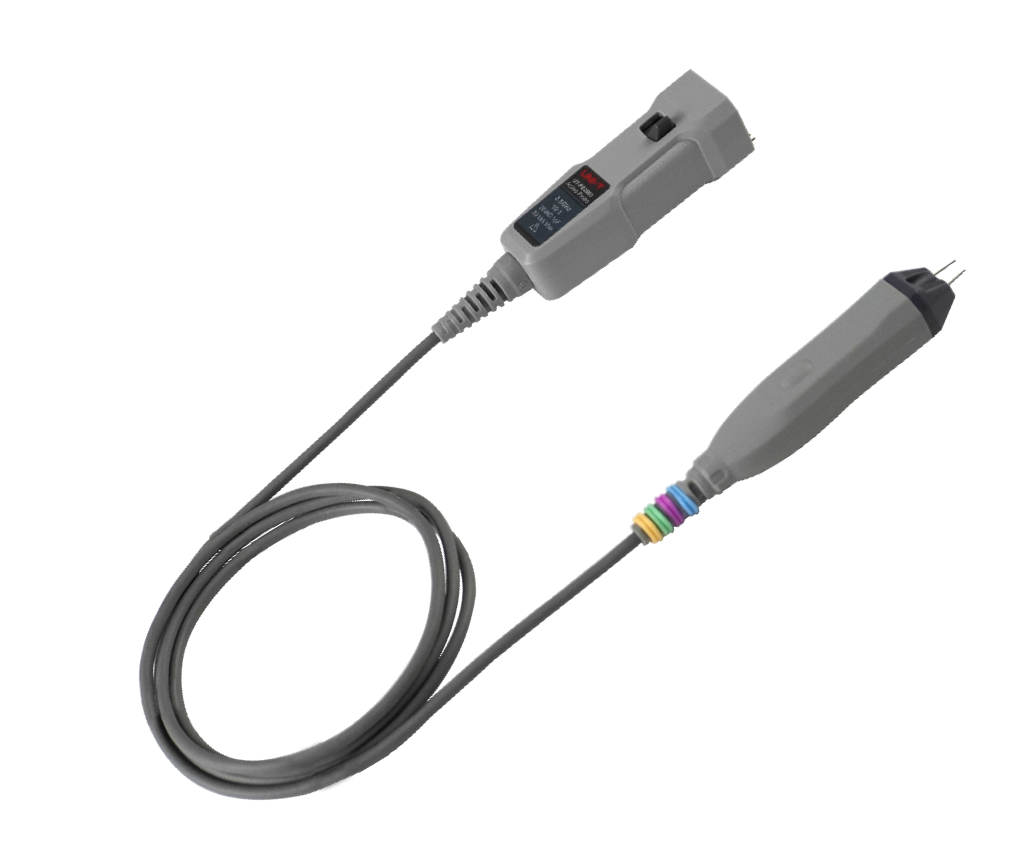

UT-PD1500 1.5 GHz Active Differential Probe

UT-PD1500 1.5 GHz Active Differential Probe

$2,845.00 USD
$2,845.00 USD
Sale Sold out
Shipping calculated at checkout.

Overview

1.5 GHz active differential oscilloscope probe with 10:1 attenuation and ±4V dynamic range. Safely measures floating voltages across motor drives, power converters, and bridge circuits without ground referencing. Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

Key Features

  • 1.5GHz Bandwidth — Captures signal content up to 1.5GHz for accurate waveform measurement.
  • 10:1 Attenuation — Divides the input signal for measuring higher-voltage circuits.
  • ±4 V Maximum Input Voltage — Rated input voltage for safe operation.

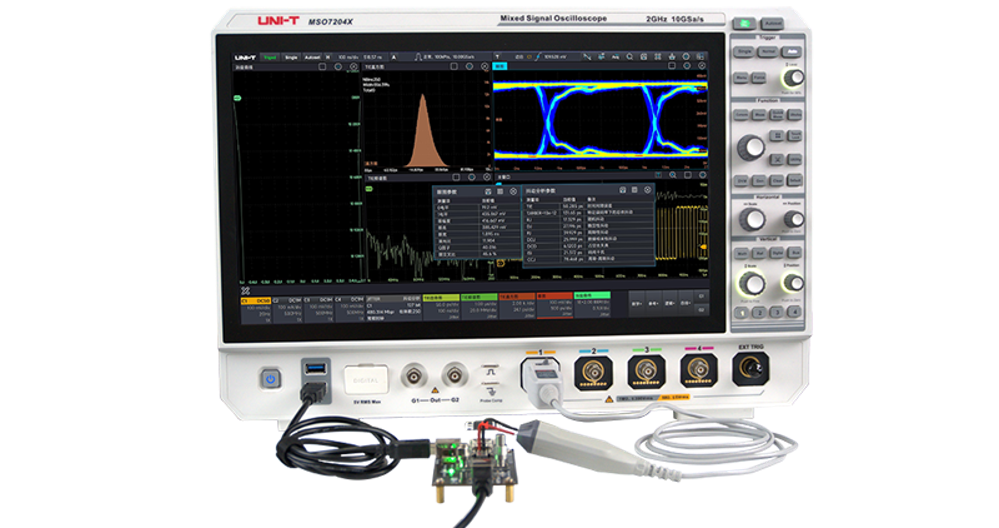

  • Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

Specifications

Bandwidth 1.5 GHz
Probe Attenuation 10:1
Probe Max Voltage ±4 V
