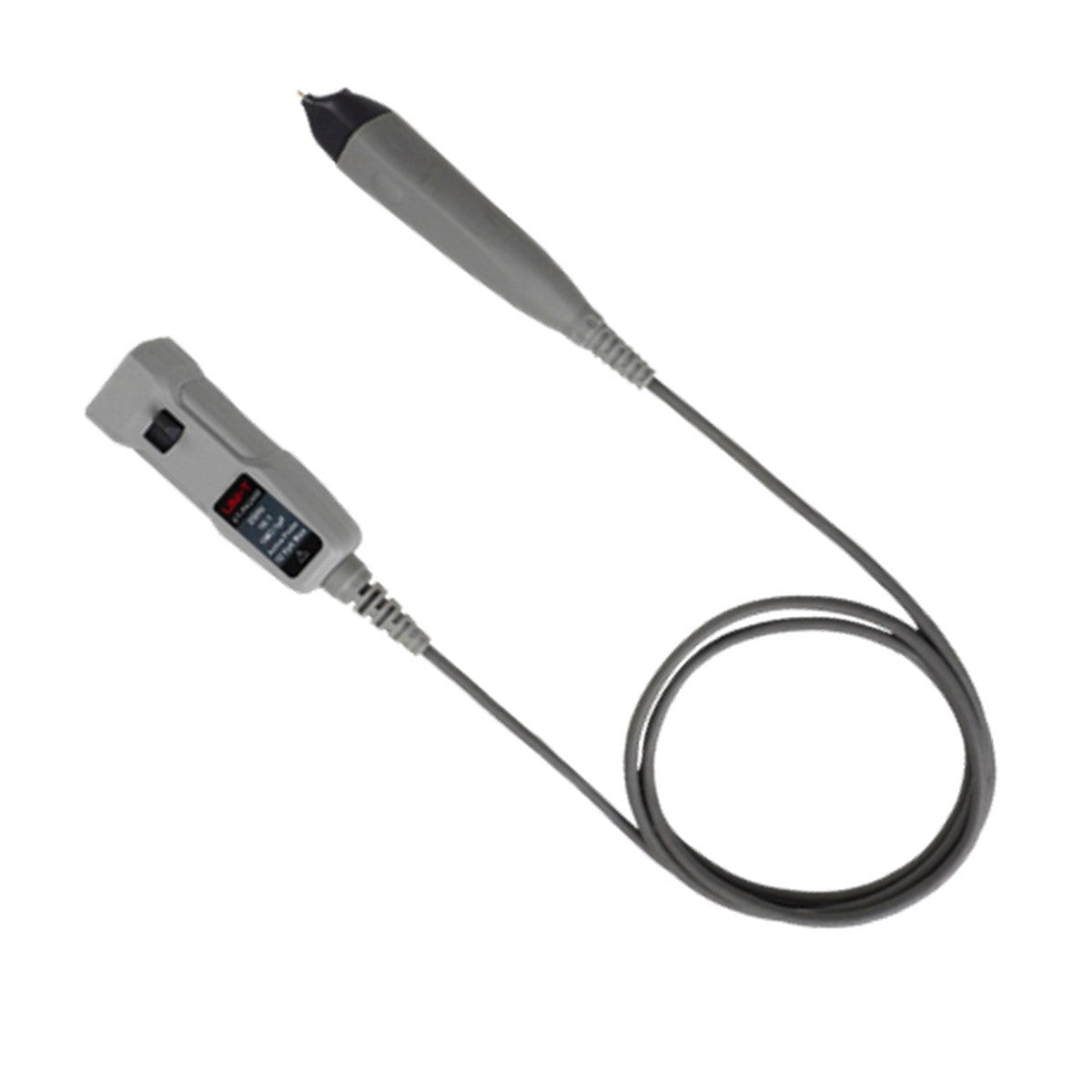

UT-PA1000 1 GHz Active Single-Ended Probe

UT-PA1000 1 GHz Active Single-Ended Probe

$1,365.00 USD
$1,365.00 USD
Sale Sold out
Shipping calculated at checkout.

Overview

1 GHz active single-ended oscilloscope probe with ≤1.3 pF input capacitance and ±4V dynamic range. Designed for high-speed digital and RF signal integrity measurements on UNI-T MSO/UPO oscilloscopes. Connects to UNI-T oscilloscopes and other oscilloscopes via BNC.

Key Features

  • 1GHz Bandwidth — Captures signal content up to 1GHz for accurate waveform measurement.
  • 10:1 Attenuation — Divides the input signal for measuring higher-voltage circuits.
  • ±4 V Maximum Input Voltage — Rated input voltage for safe operation.
  • Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

Specifications

Bandwidth 1 GHz
Probe Attenuation 10:1
Probe Max Voltage ±4 V
