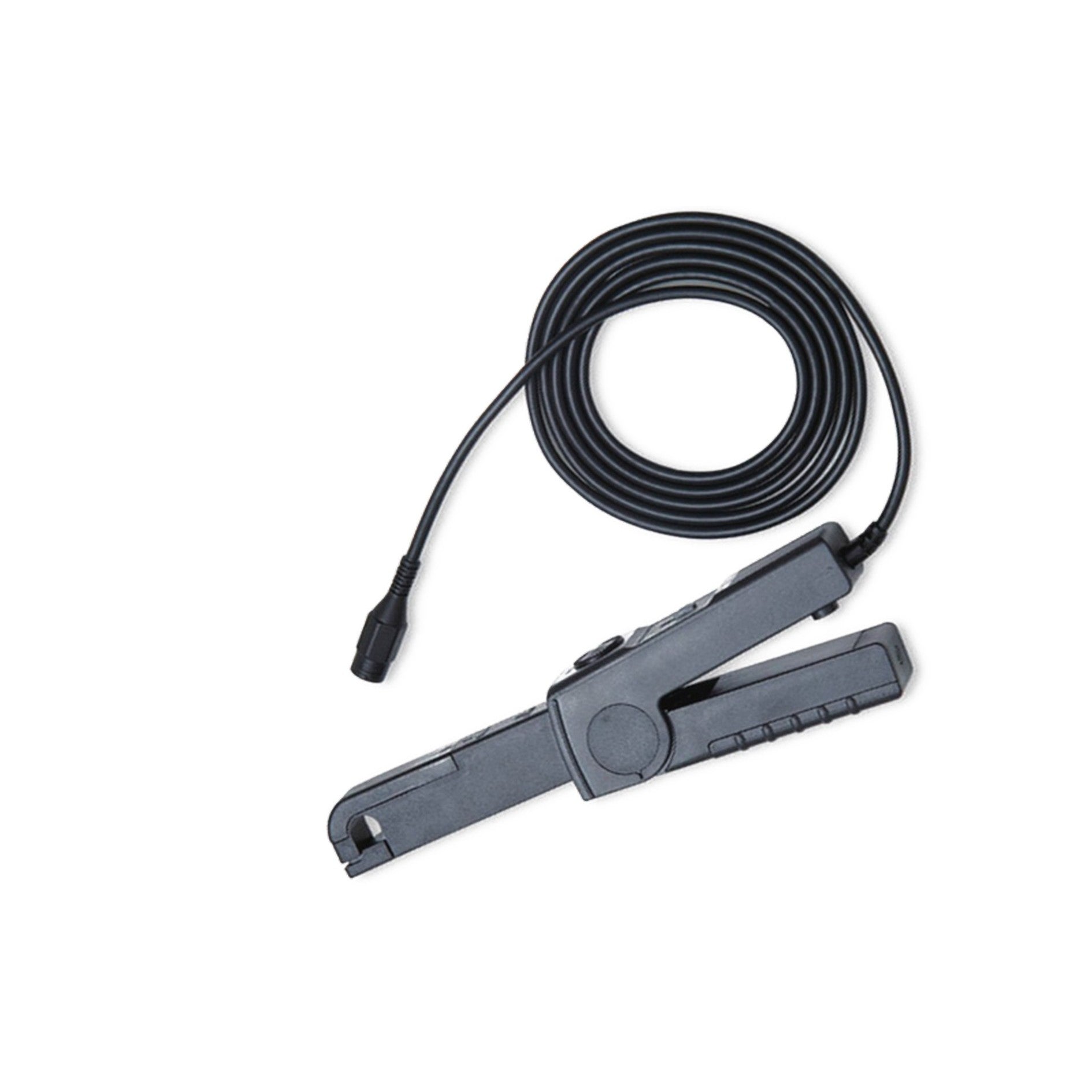

UT-P40 DC-100 kHz 60A AC/DC Current Probe
UT-P40 DC-100 kHz 60A AC/DC Current Probe
Regular price
$452.00 USD
Regular price
Sale price
$452.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Overview
100kHz bandwidth, 60A AC/DC current probe for oscilloscopes. Measures current waveforms non-invasively in power electronics, motor drives, and switch-mode circuits. Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Key Features
- Non-Invasive Measurement — Clamp-on design requires no circuit interruption.
- BNC Connection — Standard BNC connector for direct connection to UNI-T oscilloscopes and other oscilloscopes.
Specifications
| CAT Rating | CAT III 600 V |
| Battery | 9 V |
| Weight | 310 g |
| Dimensions | 231 × 67 × 36 mm |
| Storage Temperature | -20 °C - 80 °C |
| Bandwidth | 100 kHz |
| Rise Time | 2.5µs |
| Cable Length | 200cm |
| Operating Temperature | 0 °C - 50 °C |
| Output Sensitivity | 5 mV/A / 50 mV/A |
| Max Current | 60 A |
| DC Accuracy | ±2% ±0.4 A (50 mV/A range); ±2% ±1 A (5 mV/A range) |
| Noise | 2mVpp |
| Max Conductor Size | 10.3mm |
