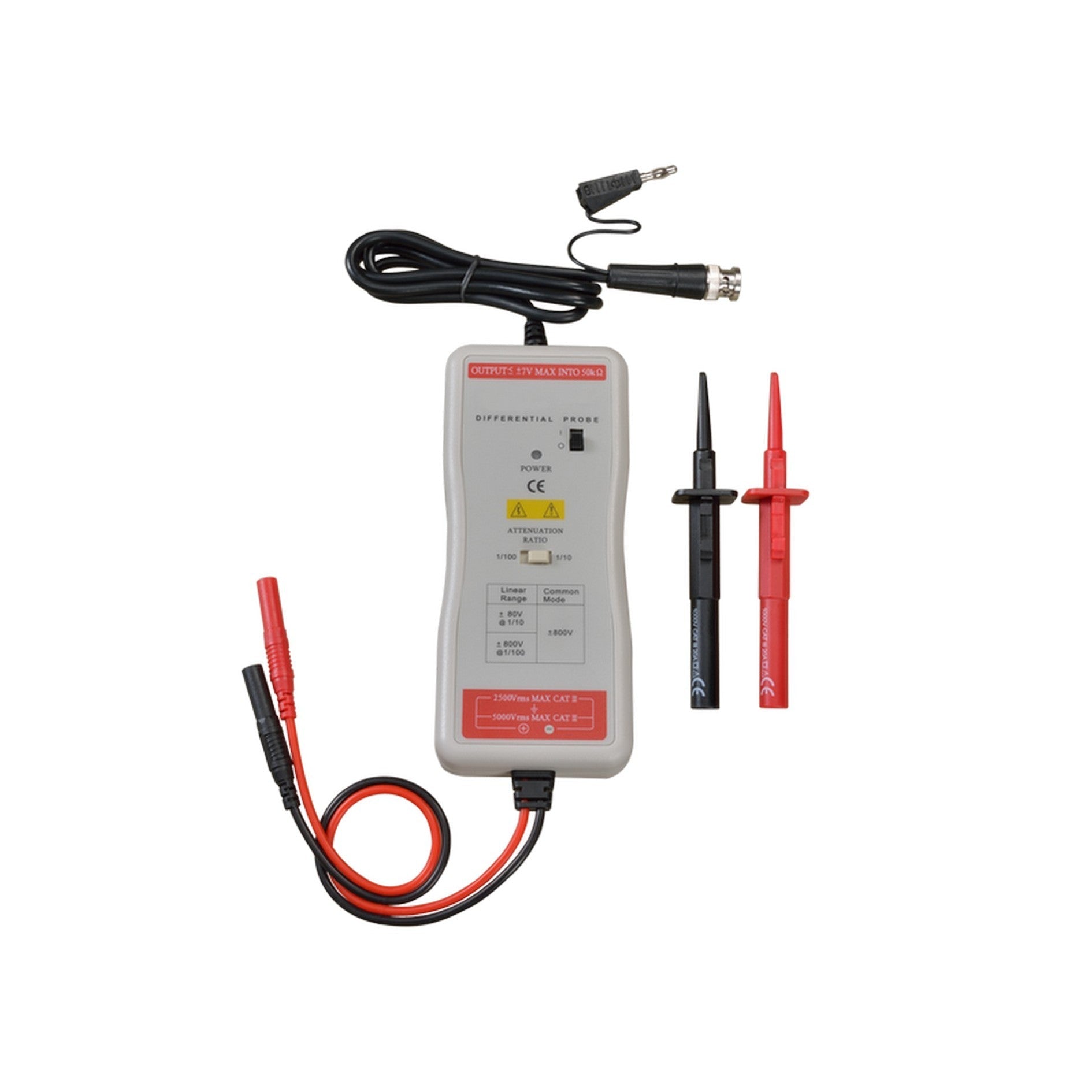

UT-P30 100 MHz 10:1/100:1 Differential Oscilloscope Probe

UT-P30 100 MHz 10:1/100:1 Differential Oscilloscope Probe

$399.00 USD
$399.00 USD
Sale Sold out
Shipping calculated at checkout.

Overview

100 MHz differential oscilloscope probe (10:1/100:1 attenuation) for safely measuring floating voltages across motor drives, power converters, and bridge circuits. Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

Key Features

  • 100MHz Bandwidth — Captures signal content up to 100MHz for accurate waveform measurement.
  • 10:1/100:1 Attenuation — Divides the input signal for measuring higher-voltage circuits.
  • 800Vpp Maximum Input Voltage — Rated input voltage for safe operation.
  • Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

Specifications

CAT Rating CAT III
Dimensions 69 × 26 × 165 mm
Bandwidth 100 MHz
Probe Attenuation 10:1, 100:1
Probe Max Voltage 800Vpp
Rise Time 3.5ns
Input Capacitance 1.3 pF
Input Impedance 4 MΩ / 1.3 pF
Operating Temperature 0 °C - 50 °C
Differential Input Voltage 800Vpp
Common Mode Voltage 5kVrms
CMRR > 80 dB @ 60 Hz, > 60 dB @ 100 Hz, > 50 dB @ 1 MHz
