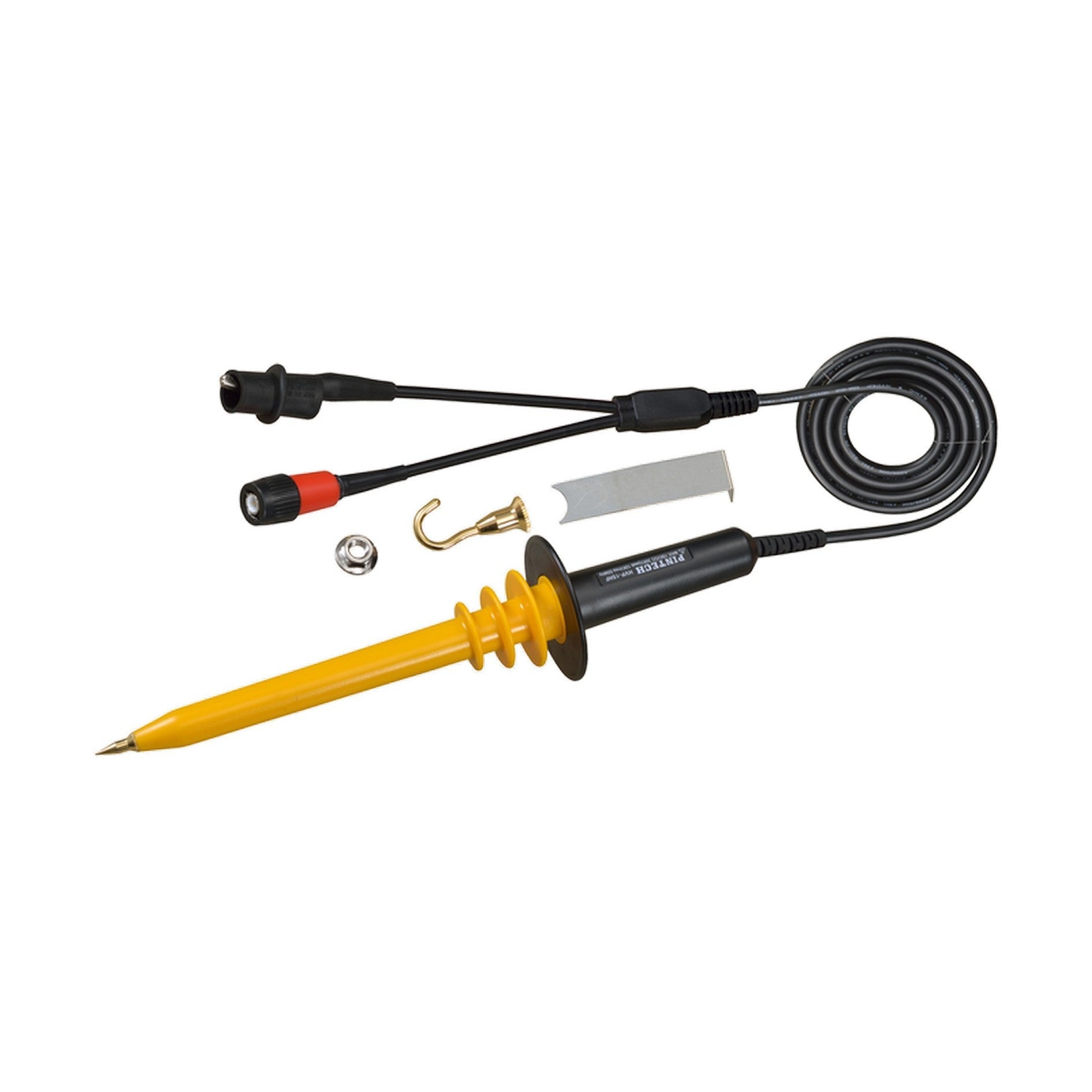

UT-P21 50 MHz 1000:1 High Voltage Oscilloscope Probe
UT-P21 50 MHz 1000:1 High Voltage Oscilloscope Probe
Regular price
$430.00 USD
Regular price
Sale price
$430.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Overview
40MHz (-3dB) high-voltage passive probe (1000:1 attenuation) for measuring power supply rails, inverters, and high-voltage circuits up to several kV. Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Key Features
- 40MHz (-3dB) Bandwidth — Captures signal content up to 40MHz for accurate waveform measurement.
- 1000:1 Attenuation — Attenuation ratio suited to the probe measurement range.
- DC 15kVrms/AC 10kV Maximum Input Voltage — Rated input voltage for safe operation.
- Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
| Weight | 250 g |
| Dimensions | Φ80mm×340mm |
| Storage Temperature | -20 °C - 70 °C |
| Bandwidth | 40 MHz |
| Probe Attenuation | 1000:1 |
| Probe Max Voltage | DC 10 kV / AC 7kVrms |
| Rise Time | ≤ 8.8ns |
| Connector Type | BNC |
| Cable Length | 200cm |
| Input Capacitance | 3.0 pF |
| Input Resistance | 100 MΩ |
| Compensation Range | 5 pF-50 pF |
| Operating Temperature | 0 °C - 50 °C |
