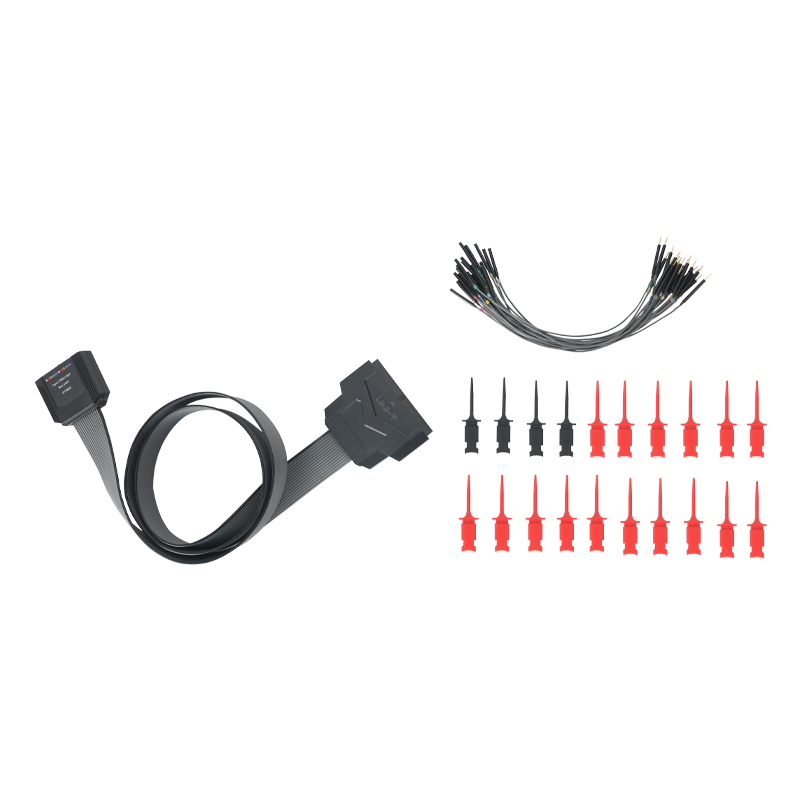

UT-M26 16Ch Logic Analyzer Probe for MSO1000HD Series
UT-M26 16Ch Logic Analyzer Probe for MSO1000HD Series
Regular price
$419.00 USD
Regular price
Sale price
$419.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Overview
16-channel logic analyzer probe pod for MSO1000HD Series. Adds digital bus visibility for mixed-signal debugging of embedded, automotive, and industrial protocols. Connects to compatible UNI-T oscilloscopes via the dedicated logic analyzer port.
Key Features
- Standard BNC Connection — Connects to compatible UNI-T oscilloscopes via the dedicated logic analyzer port.
- 16 Digital Channels — Adds digital bus visibility for debugging embedded, automotive, and industrial communication protocols.
- Compatibility — Compatible with UNI-T MSO1000HD ONLY.
Specifications
| Channels | 16 |
| Storage Temperature | -20 °C - 60 °C |
| Cable Length | 100cm |
| Input Capacitance | 9 pF ±1 pF |
| Input Impedance | 101 kΩ ±1% |
| Operating Temperature | 0 °C - 40 °C |
| Min Pulse Width | 5ns |
| Swing Voltage Range | 500 mV - ±20 V |
