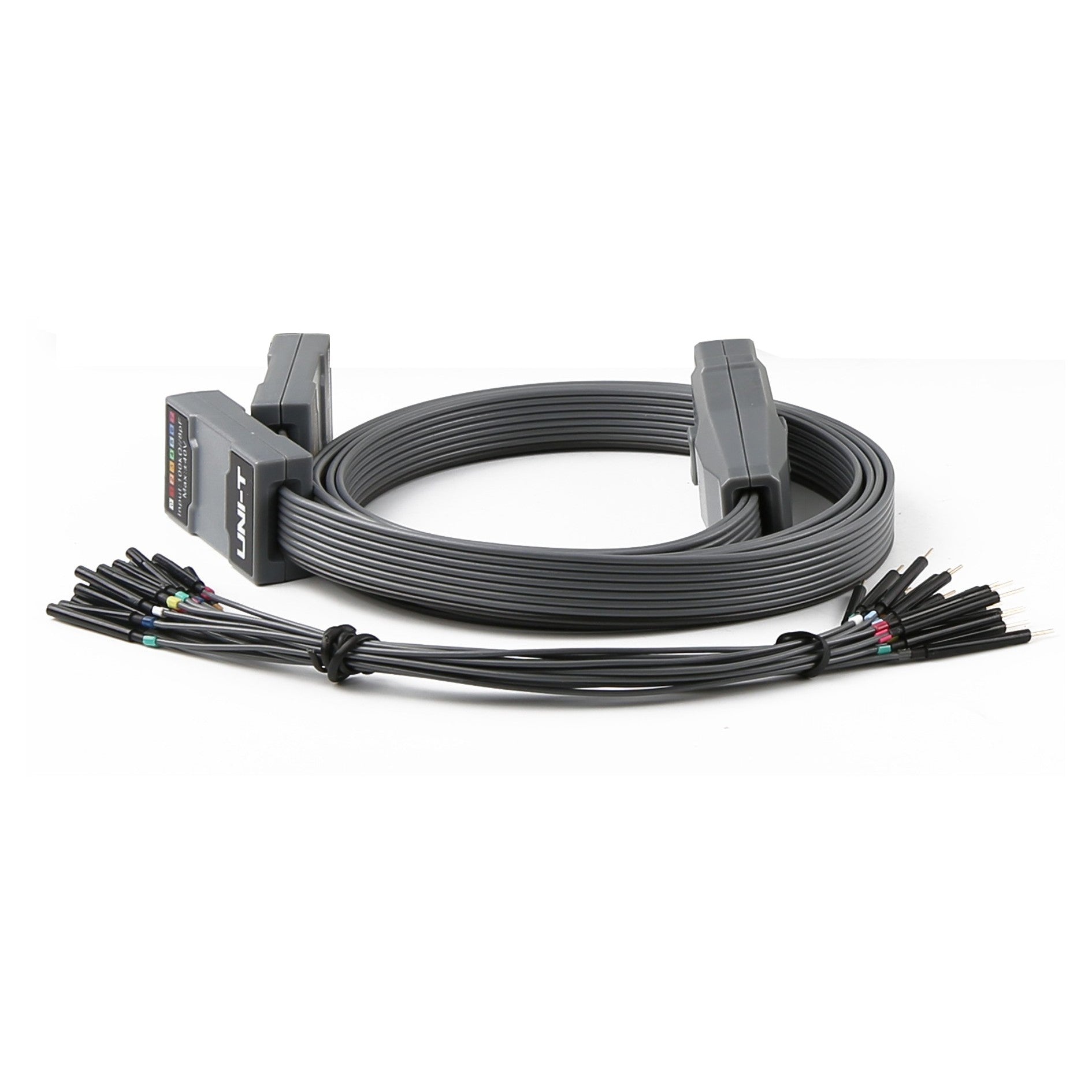

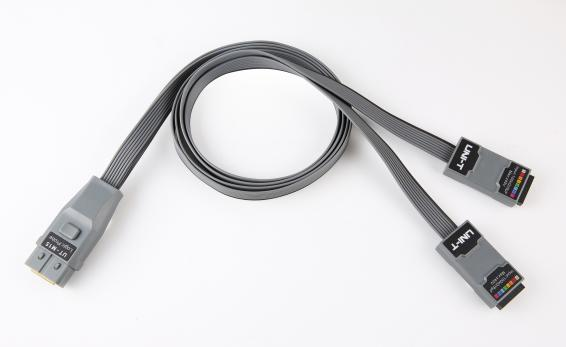

UT-M15 Logic Pod for UPO/MSO Oscillosocopes

UT-M15 Logic Pod for UPO/MSO Oscillosocopes

$332.00 USD
$332.00 USD
Sale Sold out
Shipping calculated at checkout.

Overview

16-channel logic analyzer probe pod for UPO/MSO Oscillosocopes. Adds digital bus visibility for mixed-signal debugging of embedded, automotive, and industrial protocols. Connects to compatible UNI-T oscilloscopes via the dedicated logic analyzer port.

Key Features

  • Standard BNC Connection — Connects to compatible UNI-T oscilloscopes via the dedicated logic analyzer port.
  • 16 Digital Channels — Adds digital bus visibility for debugging embedded, automotive, and industrial communication protocols.
  • Compatibility — Compatible with UNI-T MSO/UPO2000, MSO2000X, MSO/UPO3000, MSO3000X, MSO3000HD, MSO5000D, MSO8000HD.

Specifications

Channels 16
Connector Type 8×2 square pin, 2.54mm
Input Capacitance 9.0 pF
Input Impedance 101 Ω ±1%
Min Pulse Width 800ps
