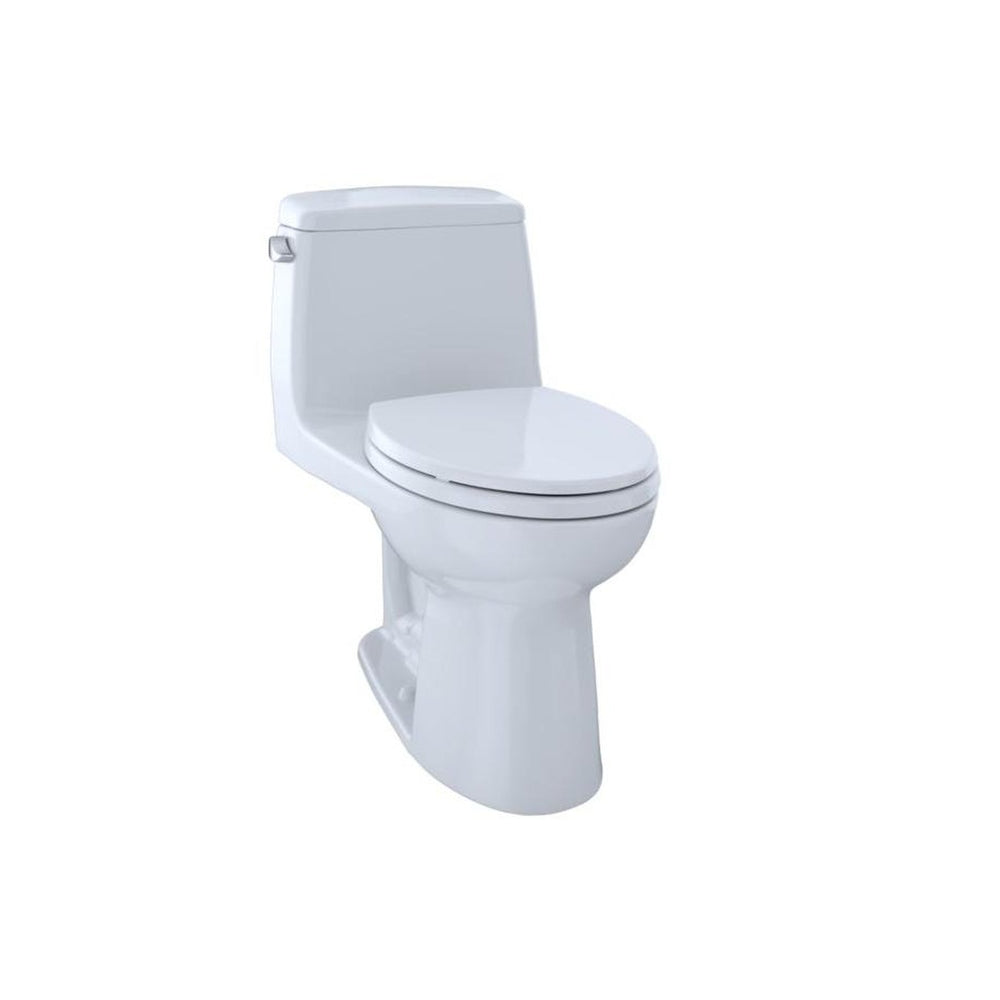

TOTO UltraMax One-Piece Elongated Front Bowl with 1.6 GPF Single Flush and Right Hand Trip Lever MS854114SLR#01
TOTO UltraMax One-Piece Elongated Front Bowl with 1.6 GPF Single Flush and Right Hand Trip Lever MS854114SLR#01
Regular price
$1,103.00 USD
Regular price
$1,153.00 USD
Sale price
$1,103.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
This sleek, elongated one-piece toilet features TOTO's industry-leading G-Max flushing system, which draws water into the bowl more rapidly and expels it with greater force for an efficient, powerful flush. The one-piece design not only enhances the toilet's aesthetic appeal but also simplifies cleaning by eliminating the gap between the tank and bowl where dirt and debris often collect. This seamless construction also reduces the risk of leaks that can occur from bolts or gaskets in traditional two-piece toilets, offering enhanced durability and ease of maintenance.
Features
- G-Max® flushing system, low consumption (1.6GPF/6.0LPF)
- Computer Designed, Fully Glazed Trapway
- Chrome Trip Lever Included
- ADA compliant (when installed with trip lever located on the approach side)
- 12" Rough-in
- One-piece decorative toilet with high-profile tank
- Elongated front bowl with SoftClose® seat (SS114)
Technology & Innovation Highlights
G-MAX
People Planet Water Certifications & Compliance
ADA Compliant |
![]() |
TOTO PEOPLE-CENTERED DESIGN SMART FACT:The Ultramax Toilet is an example of TOTO's dedication to ADA standards, serving people of every age and capability, without additional adaptation or specialization. TOTO products are more than useful. They can be enjoyed by everyone and are always optimized for the best experience possible. |
Specifications
| Water Use | 1.6 GPF/6.0 LPF |
| Flush System | G-Max® |
| Min. Water Pressure | 8 psi (static) |
| Water Surface | 10-5/16" x 8-1/4" |
| Trap Diameter | 2-1/8" |
| Rough In | 12" |
| Trap Seal | 2-3/8" |
| Material | Vitreous china |
| Shipping Weight | 99 lbs. |
| Shipping Dimensions | 32"L x 20"W x 17-3/4" H1 x 28-3/4" H2 |
| Color | Cotton |
Technical Drawing

Warranty

One Year Limited Warranty
Downloads
Share

ADA Compliant
