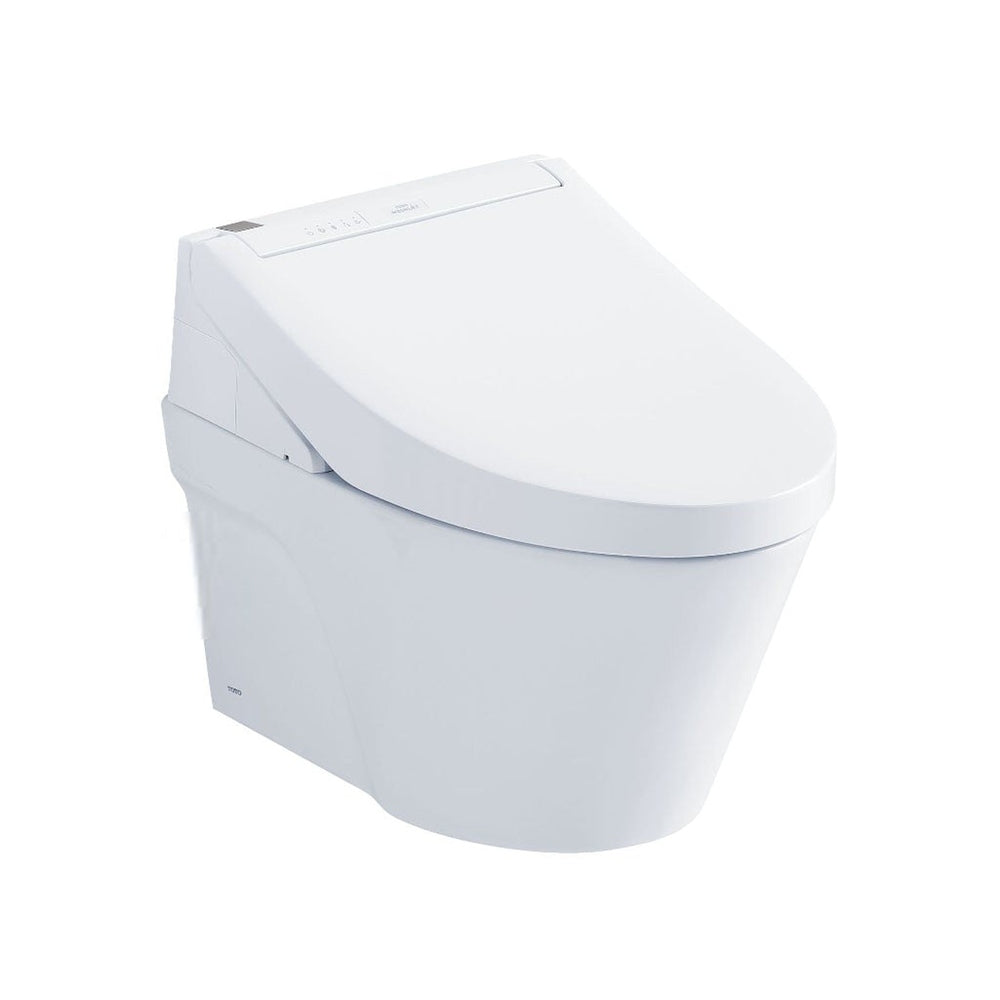

TOTO AP White Elongated Wall-Mounted 1.28 GPF & 0.9 GPF Dual-Flush Toilet With Washlet+ C5 and Matte Silver Push Plate CWT4263084CMFG#MS
TOTO AP White Elongated Wall-Mounted 1.28 GPF & 0.9 GPF Dual-Flush Toilet With Washlet+ C5 and Matte Silver Push Plate CWT4263084CMFG#MS
Couldn't load pickup availability
TOTO AP White Elongated Wall-Mounted 1.28 GPF & 0.9 GPF Dual-Flush Toilet With Washlet+ C5
TOTO's award-winning toilets are engineered with you in mind. They perform reliably for years because they must meet our rigorous quality standards, the highest in the industry. That's why our TOTO toilets are universally recognized as the best in the world.
The bidet seat WASHLET C5 includes an easy-to-use remote control with an illuminated touchpad. The PREMIST ® function sprays the bowl before each use, helping to keep your toilet bowl clean. The C5 provides a satisfying cleansing experience every time.
Complete Wall-Hung toilet package with bidet seat WASHLET and dual flush in-wall tank system.
What's Included
AP Wall-Hung Toilet, In-Wall Tank System (Copper Pipe), C5 WASHLET, WASHLET connection kit, Matte Silver Basic Round Push Plate
Features
- High-tech Electronic Bidet Seat and Toilet Combination
- Concealed supply connection for seamless installation
- DYNAMAX TORNADO FLUSH ® system, high efficiency (1.28 GPF/0.9 GPF)
- CEFIONTECT ® Glaze prevents debris from sticking to ceramic surfaces, making them easier to clean
- Matte Silver Basic Round Push Plate
- Premist of the bowl before each use
- Dual Action spray with oscillating and pulsating feature
- Heated seat with temperature control
- Automatic air deodorizer
- Warm air drying with 3 variable temperature settings
- 2 User Memory
- Adjustable 15" - 19" mounting height
- Saves up to 9" of floor space compared to standard floor mounted toilet
- Support for up to 880 lbs.
- Commercial 2" x 6" or optional residential installation with 2" x 4" wall studs with waste outlet kit
- 1-pc blow molded polyethylene tank to prevent leaks
- 2" x 6" Polyethylene outlet included
- Copper supply line with the WASHLET Connection
![]() Toto People-Centered Design Smart Fact
The AP-Wall-Hung toilet can save you up to nine inches of floor space. It's easy to clean too, giving you more time to relax and enjoy your bath space. |
Toilet Technologies
CEFIONTECT ®
CEFIONTECT is an ultra-smooth ceramic glaze that coats the toilet bowl. Its microscopic surface ridges are far smaller than waste particles, leaving no place for waste to gain a foothold. Extremely durable, CEFIONTECT is designed for enduring beauty and cleanliness.
DYNAMAX TORNADO FLUSH ®
DYNAMAX combines powerful bowl cleaning and waste evacuation using water that is 100% projected from the rim creating 360 ° cleaning power. Using only 1.0/0.8 or 1.28/0.8 gallons per flush, coupled with a 25% larger trapway diameter, this high-efficiency system uses 20% less water with improved performance while also creating a quieter flush.
Skirted Design
The skirted design, available in many modern TOTO toilet collections, offers clean lines, minimal flourishes and geometric precision. This style is elegant and smooth, concealing the trapway, and features a base that is easy to clean and maintain.
Click to learn more about Cefiontect ®
|
Click to learn more about Dynamax Tornado Flush ®With conventional siphon jet flushing systems, the water volume is split between the rim and jet hole, with each responsible for bowl cleaning or waste evacuation. DYNAMAX TORNADO FLUSH ® however sends 100% of the water through the rim so all of it is used to clean the bowl and to evacuate waste. This makes it possible to use less water more efficiently. Drake’s innovative DYNAMAX system generates a vortex that uses a pushing force to send the waste out first, allowing it to travel longer distances than older systems. The combination of the waste discharge and powerful bowl wash using swirling water has dramatically improved the amount flushed away. This new evacuation design also allows for a quieter, more powerful bowl evacuation. With a modern RIMLESS DESIGN, DYNAMAX uses 360 ° cleaning power to reach every spot leaving no place for waste or grime to hide, making it easy to clean.
|
Warranty
One-Year Limited Warranty
TOTO warrants its vitreous china products ("Product") to be free from defects in materials and workmanship during normal use when properly installed and serviced, for a period of one (1) year from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
Codes/Standards
- Meets or exceeds:
- Bowl: ASME A112.19.2/CSA B45.1, ASME A112.19.14
- Carrier System: ASME A112.6.2
- Tank Trim: IAPMO PS50, CSA B125.3, ASSE1002
- Certifications: IAPMO (cUPC), EPA WaterSense State of Massachusetts, City of Los Angeles and others
- Legislative compliance: California AB715, California Green Building Code, City of Los Angeles Water Efficiency Ordinance
- Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
- Complies with CA Prop 65 warning requirements

Downloads
- Toilet CAD Drawing
- Toilet Specification Sheet
- Toilet Spare Parts Manual
- Cefiontect Cleaning Instructions
- Installation and Owner's Manual
- Installation Guide
-
Duofit In-Wall Tank CAD Drawing
- Duofit In-Wall Tank Revit Model
- Duofit In-Wall Tank Spare Parts Manual
- Duofit In-Wall Tank System Specification Sheet
- Duofit In-Wall Tank System Installation & Owner's Manual
- WASHLET CAD Drawing
- WASHLET Specification Sheet
- WASHLET Installation Guide
- WASHLET Instruction Manual
- WASHLET Parts Manual
- Push Plate CAD Drawing
- Push Plate Specification Sheet
- Wall-Hung Toilets Brochure
