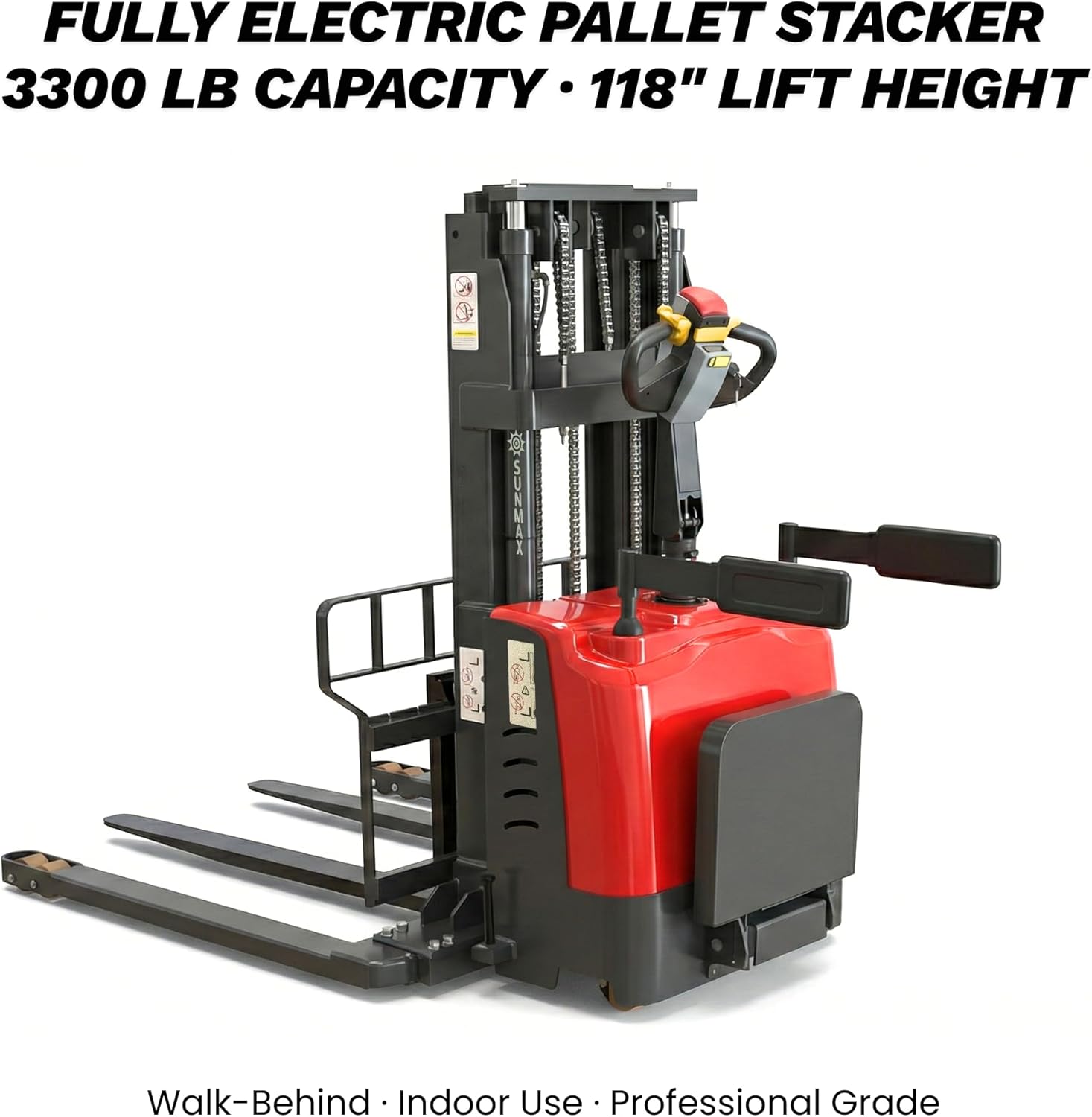

SUNMAX Electric Pallet Stacker

Elevate your material handling capabilities with this robust SUNMAX Full-Electric Pallet Stacker. Featuring an impressive 118-inch maximum lift height and a substantial 3,300-pound load capacity, this electric stacker is engineered for efficient warehouse operations.

Full Electric Pallet Stacker

3300 lbs (1500 kg) Capacity
118" (3000 mm) Lifting Height
3 HP Lifting Motor Power
Up to 3.1 MPH Travelling Speed
63" (1600 mm) Turning Radius
Ground Clearance: 1.2" (30 mm)
21.7" (500 mm) Load Center Distance

Outstanding Performance and Reliability in Material Handling

Designed with adjustable support legs with the adjustable width from 42" to 55", it adapts to a wide range of pallet sizes and warehouse configurations, providing added versatility and stability during operation.

Specifications

Rated Load Capacity	3300 lbs (1500 kg)
Max Lifting Height	118 in (4,000 mm)
Load Center Distance	21.7 in (500 mm)
Forks Fully-Lowered Height	2.0 in (50 mm)
Fork Size (L × W × Thickness)	48 × 3.9 × 1.4 in (1220 × 100 × 35 mm) Each

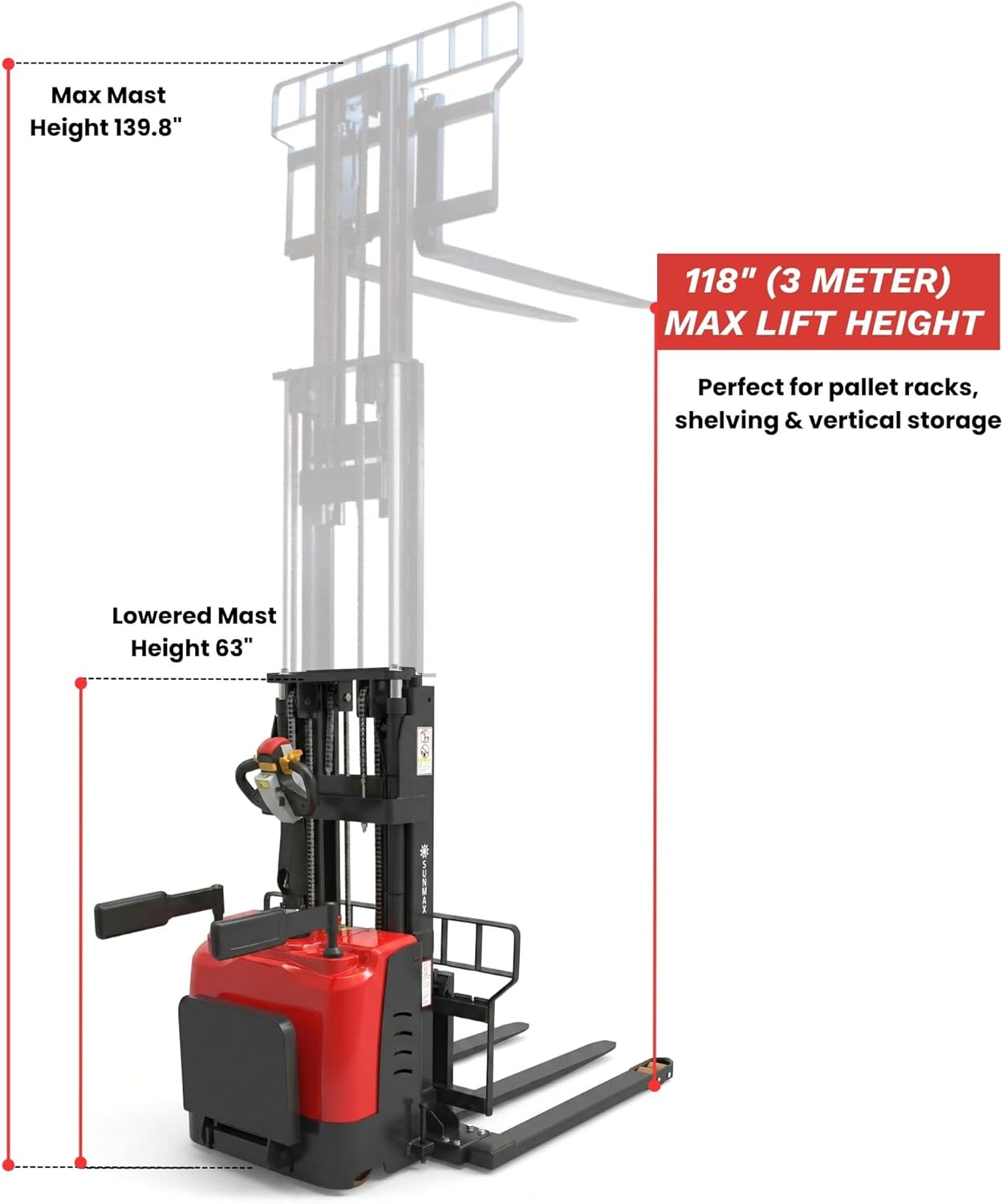

Overall Demensions	82.7"51.2"63"(Mast Lowered)/139.8"(Mast Lifted)

Machine Weight	1748 lbs
Ground Clearance	1.2 in (30 mm) (Center Wheelbase)
Turning Radius	63 in (1600 mm)
Travel Speed	1.9/3.1 mph (3.0/5.0 km/h) (Loaded/Unloaded)
Lift Speed (Loaded / Unloaded)	0.41 ft/s (125 mm/s)

Lowering Speed	0.33 ft/s (100 mm/s) (Loaded/Unloaded)
Max Gradeability	5% / 8% (Loaded/Unloaded)

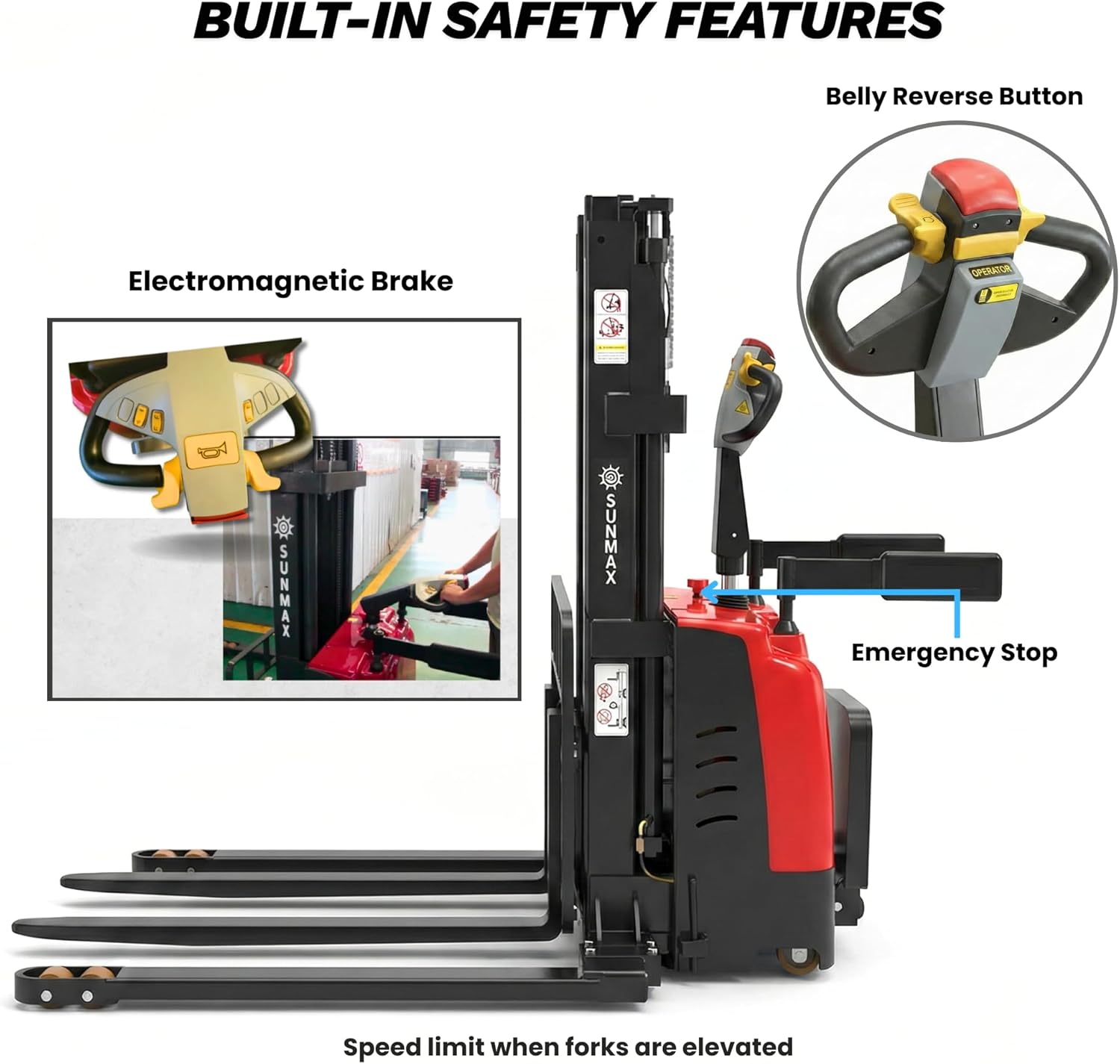

Brake Type	Electromagnetic
Drive Motor Power	1.6 HP (1.2 kW)
Lift Motor Power	3.0 HP (2.2 kW)
Battery Voltage / Capacity	24V/73Ah

Wheel Material	Polyurethane
Front Wheel Size	Ø8.3 × 3.1 in (Ø210 × 80 mm)
Rear Wheel Size	Ø2.8 × 3.1 in (Ø70 × 80 mm)
Additional Wheel Size	Ø3.9 × 2.0 in (Ø100 × 50 mm)
Wheel Arrangement	1/2/4

	Full Electric Pallet Stacker	Semi-Electric Pallet Stacker	Full-Electric Pallet Jack Truck with Built-in Scale	Full-Electric Pallet Stacker	Full Electric Pallet Stacker	Full Electric Pallet Stacker
		Buying Options
Customer Reviews	1	—	—	—	—	—
Price	$4,299.00	— no data	$2,399.00	$3,599.00	$6,297.99	$5,399.00
Capacity	3300 lbs	3300 lbs	4400 lbs	3300 lbs	3300 lbs	3300 lbs
Max Lifting Height	118 inches	78 inches	7.87 inches	78 inches	157 inches	118 inches
Turning Radius	63 inches	56.1 inches	48 inches	56.1 inches	72.8 inches	63 inches
Battery Capacity	24V/70Ah	12V/100Ah	54.6V/16Ah	12V/100Ah	24V/73Ah	24V/73Ah
Straddle Legs	Fixed	Fixed	no data	Fixed	Adjustable	Adjustable
Pallets Compatible	Open-bottom only	Open-bottom only	Open-bottom and Closed-base	Open-bottom only	Open-bottom and Closed-base	Open-bottom and Closed-base

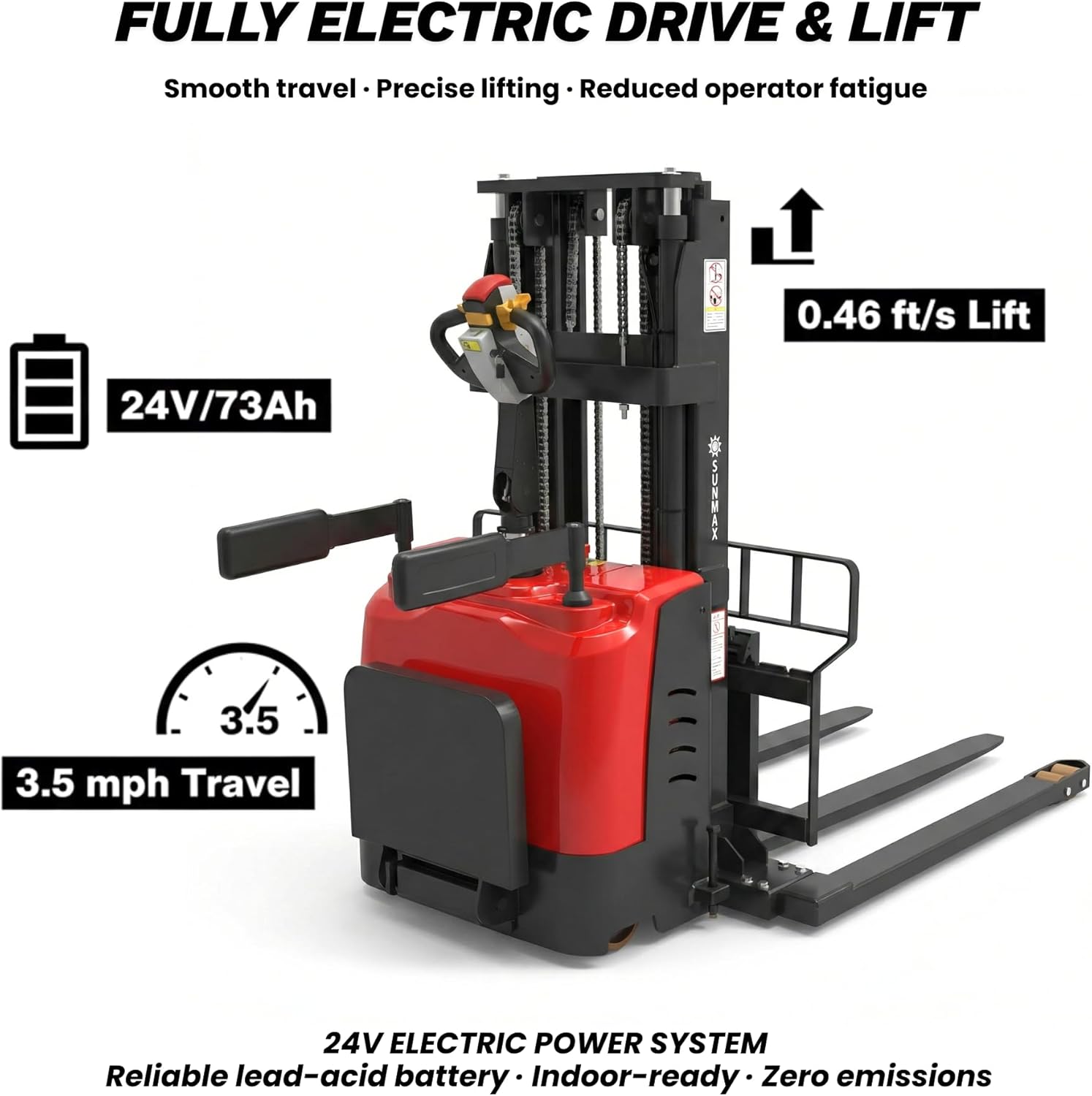

Fully Electric Operation: Electric drive and electric lift reduce operator fatigue and improve productivity compared to manual or semi-electric stackers.

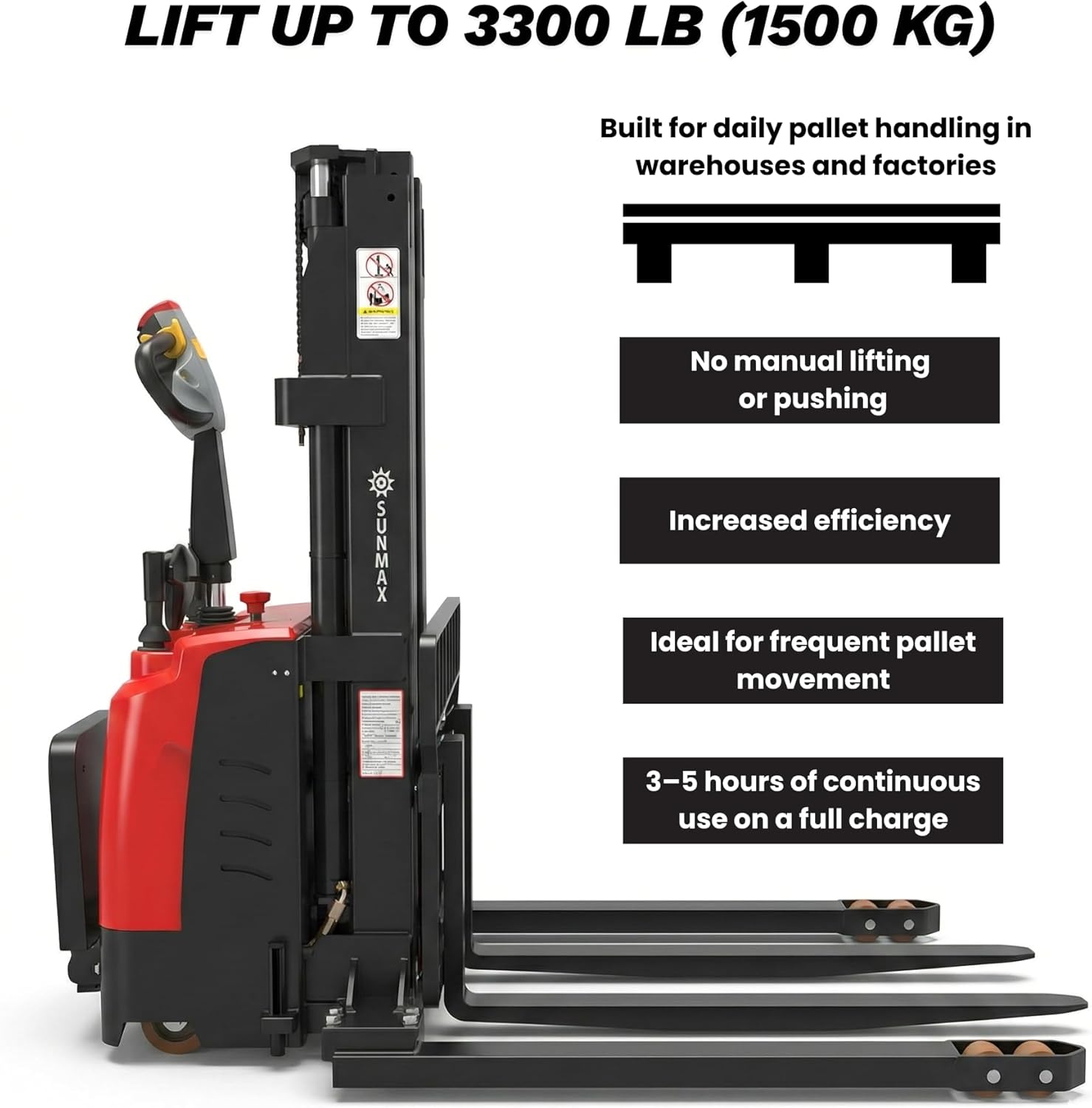

3300 lb (1500 kg) Load Capacity: Handles standard pallets, heavy cartons, and industrial loads with confidence. Indoor use only. Flat, dry surfaces required.

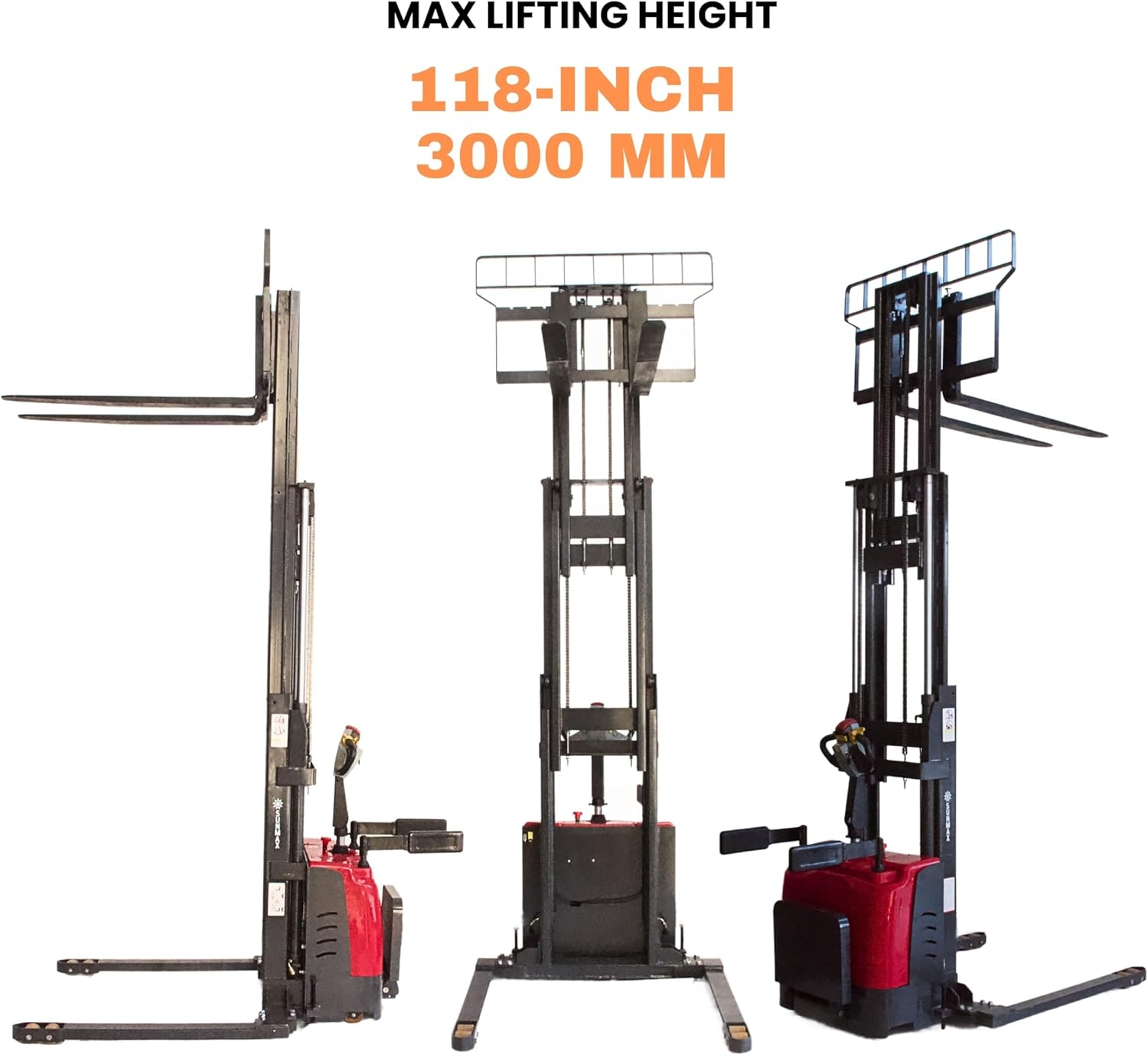

118" (3 m) Lift Height: Ideal for pallet racking, shelving, and vertical storage optimization.

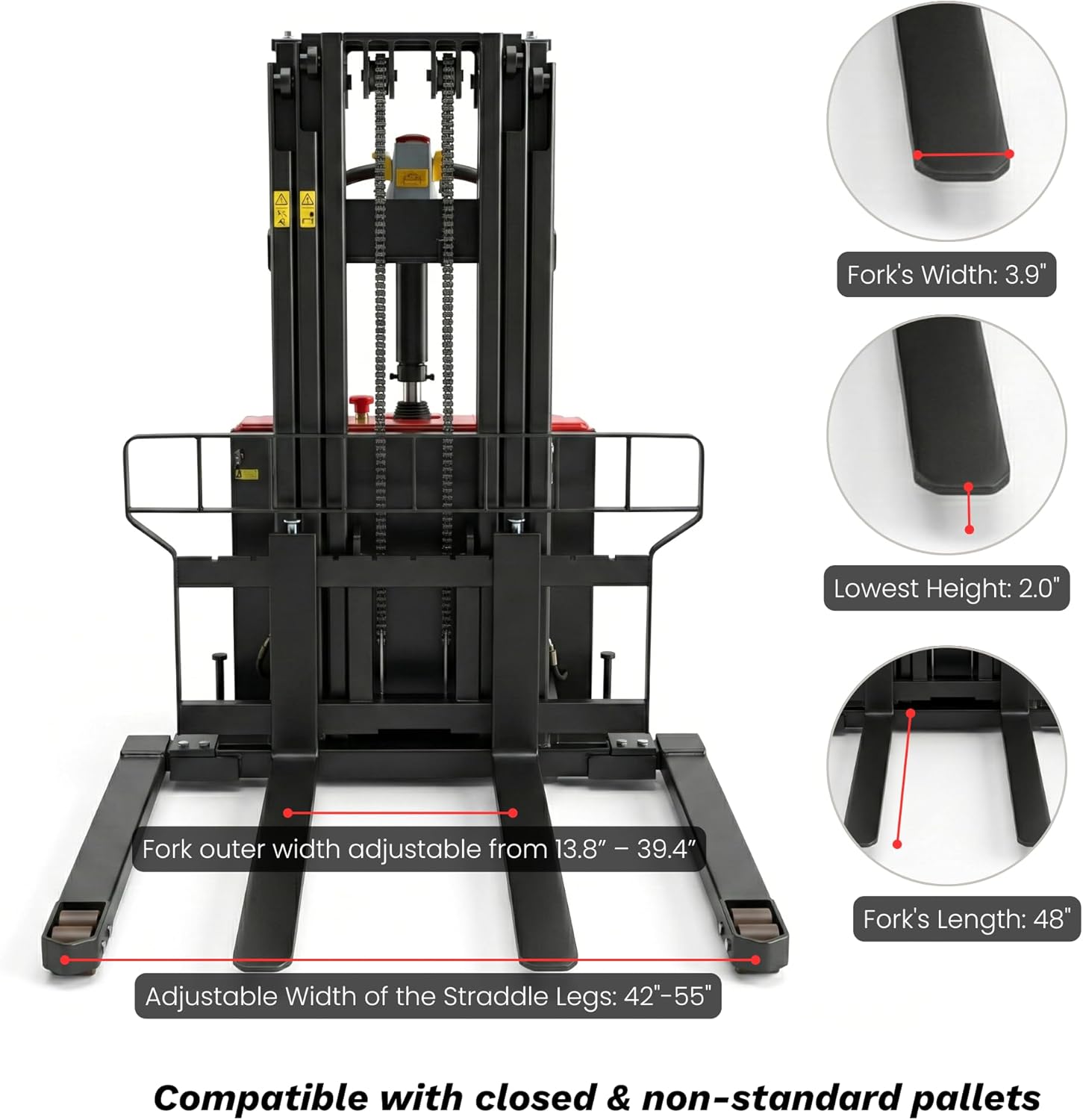

Adjustable Straddle Legs: Fork outer width adjustable from 13.8" to 39.4", compatible with open and close case pallets, oversized pallets, and non-standard pallet designs.

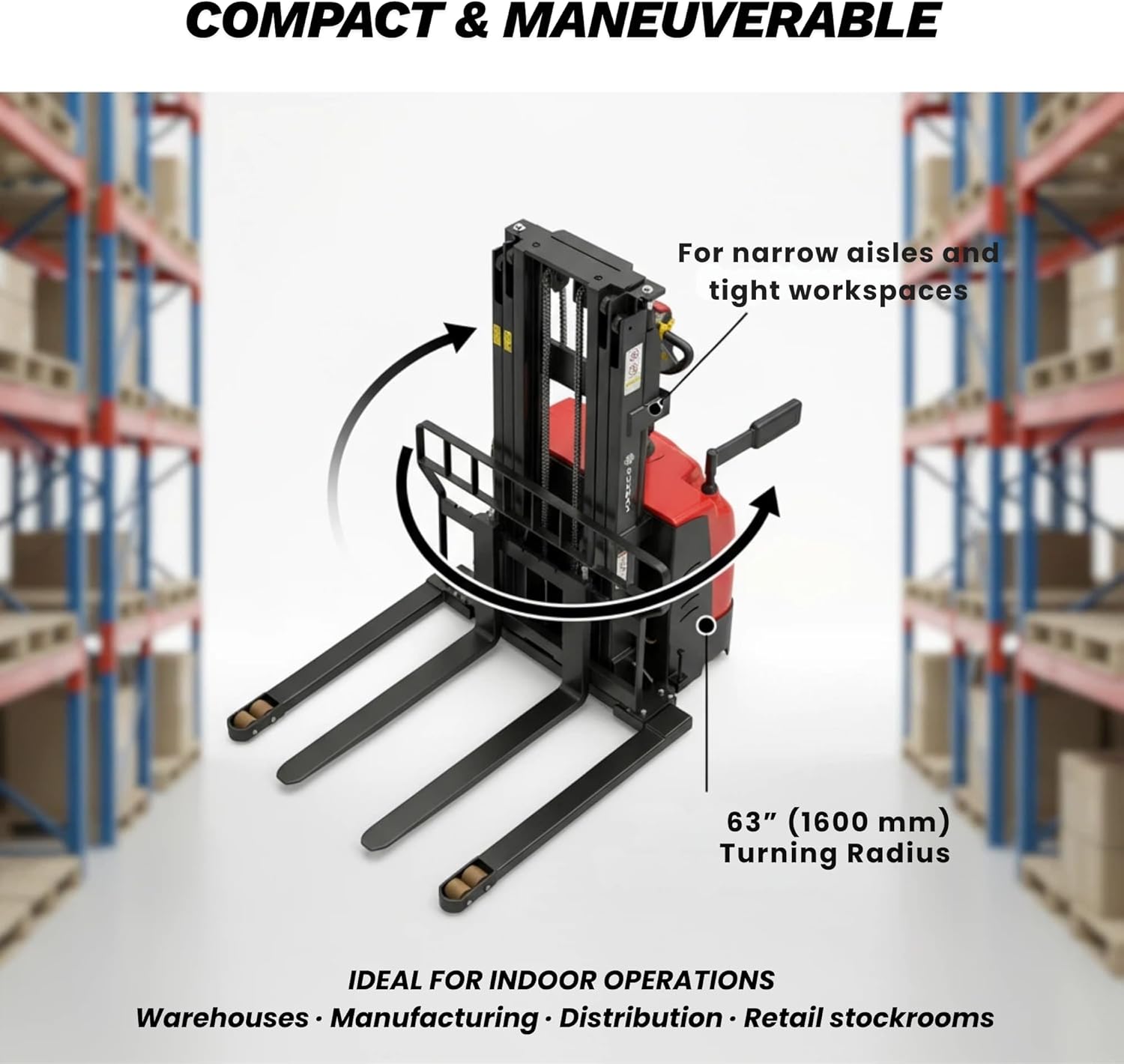

Compact & Maneuverable: 63" turning radius allows operation in narrow aisles and confined warehouse spaces where forklifts are impractical.
