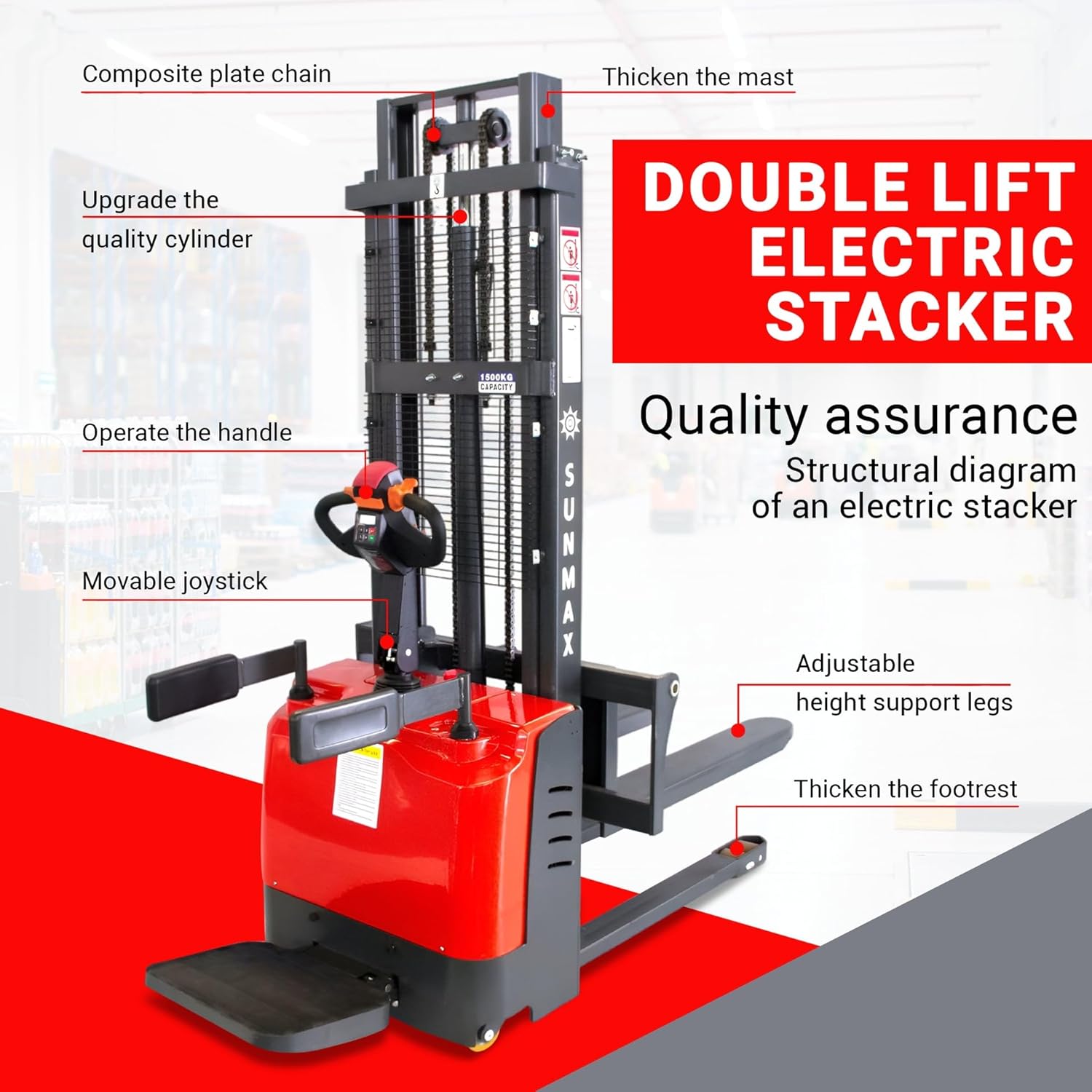

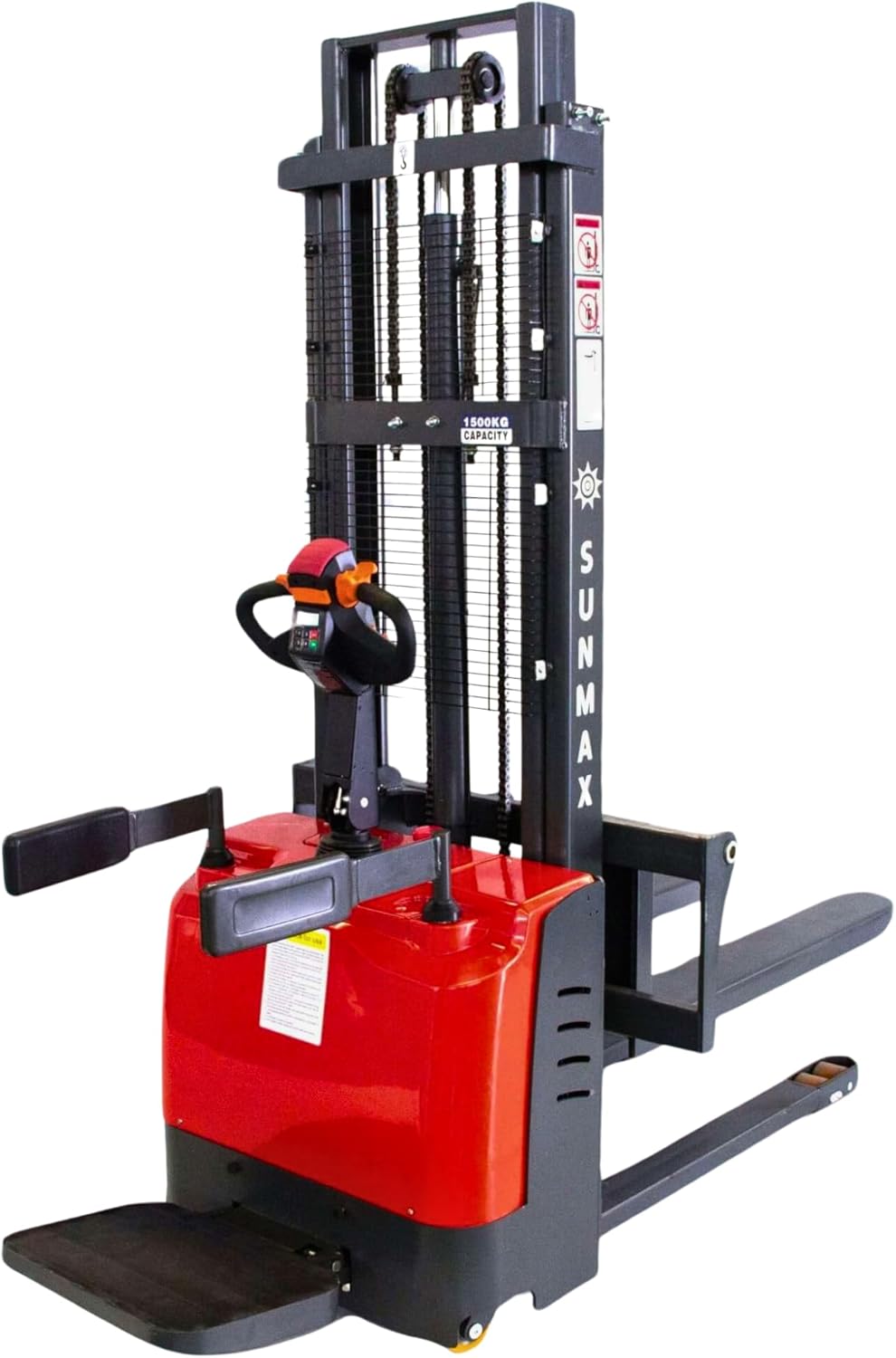

SUNMAX Full Electric Pallet Stacker, 3300 lb Capacity, 118" Lift Height, Powered Drive & Lift, Electromagnetic Brake, Walk-Behind Warehouse Stacker for Open-Bottom Pallets

SUNMAX Full Electric Pallet Stacker, 3300 lb Capacity, 118" Lift Height, Powered Drive & Lift, Electromagnetic Brake, Walk-Behind Warehouse Stacker for Open-Bottom Pallets

$4,943.85 USD
$4,299.00 USD $4,943.85 USD
Sale Sold out
Shipping calculated at checkout.
floor scrubber machine

Full Electric Pallet Stacker

4400 9.8 feet electric pallet stacker
  • 3300 lbs (1500 kg) Capacity
  • 118-inch (3000 mm) Lifting Height
  • 3 HP Lifting Motor
  • 63.0 inches Turning Radius
  • Up to 3.5 MPH Travelling Speed
  • Up to 7% Gradeability Loading
  • Ground Clearance: 1.6 inches (40 mm)

Outstanding Performance and Reliability in Material Handling

Ensures efficient, safe, and hassle-free operation for all your stacking needs. Perfect for warehouses, factories, and distribution centers.

Please be noted the straddle legs are fixed for stability, and the machine works with open-bottom pallets only!

Works with Open-bottom and Single-face (Non-Reversible) Pallets

various pallets

Great for cost-sensitive, light-duty facilities

  • Small warehouses & stockrooms
  • Retail backrooms
  • Workshops & factories with standardized pallets
  • Import/export operations
  • Customers upgrading from manual pallet jacks

Specifications

Rated Load 3300 lbs (1500 kg)
Load Center Distance 19.7 inches (500 mm)
Front Wheel Size φ8.3 x 2.8 inches (φ210 x 70 mm)
Rear Wheel Size φ3.1 x 2.8 inches (φ80 x 70 mm)
Additional Wheel Size φ3.9 x 2.0 inches (φ100 x 50 mm)
Max Lifting Height 118 inches (9.8 ft, 3000 mm)

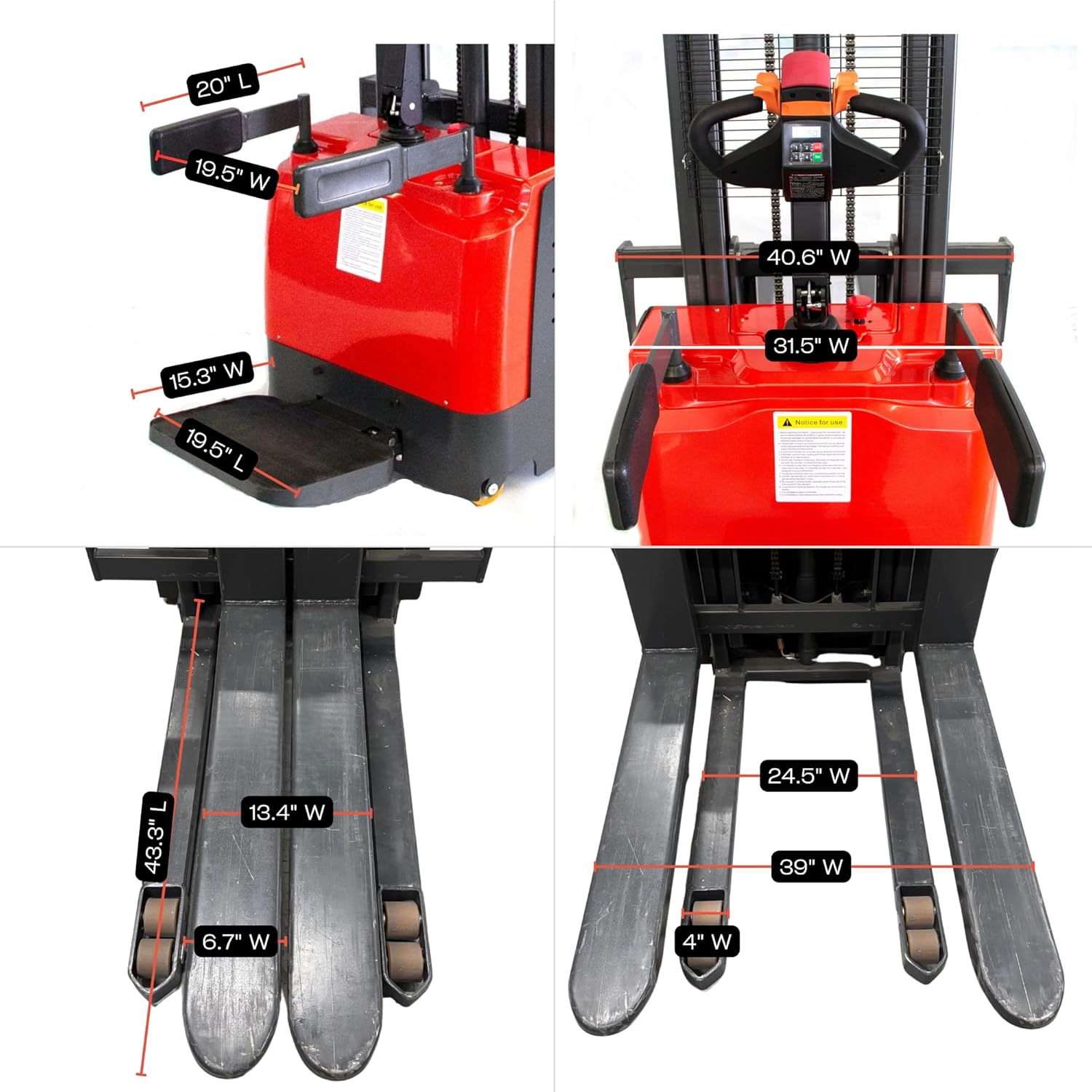

Fork Size 43.3 x 6.7 x 2.4 inches
Turning Radius 63.0 inches (1600 mm)
Travel Speed Full/No Load 2.5/3.5 mph (4/5.6 km/h)
Gradeability Loading/Unloading 3%/7%
Drive Motor Power 1 HP (0.75 KW)
Lifting Motor Power 3 HP (2.2 KW)
Battery Voltage/Capacity 24V/70Ah
Self-weight (with battery) 1371 lbs (622kg)

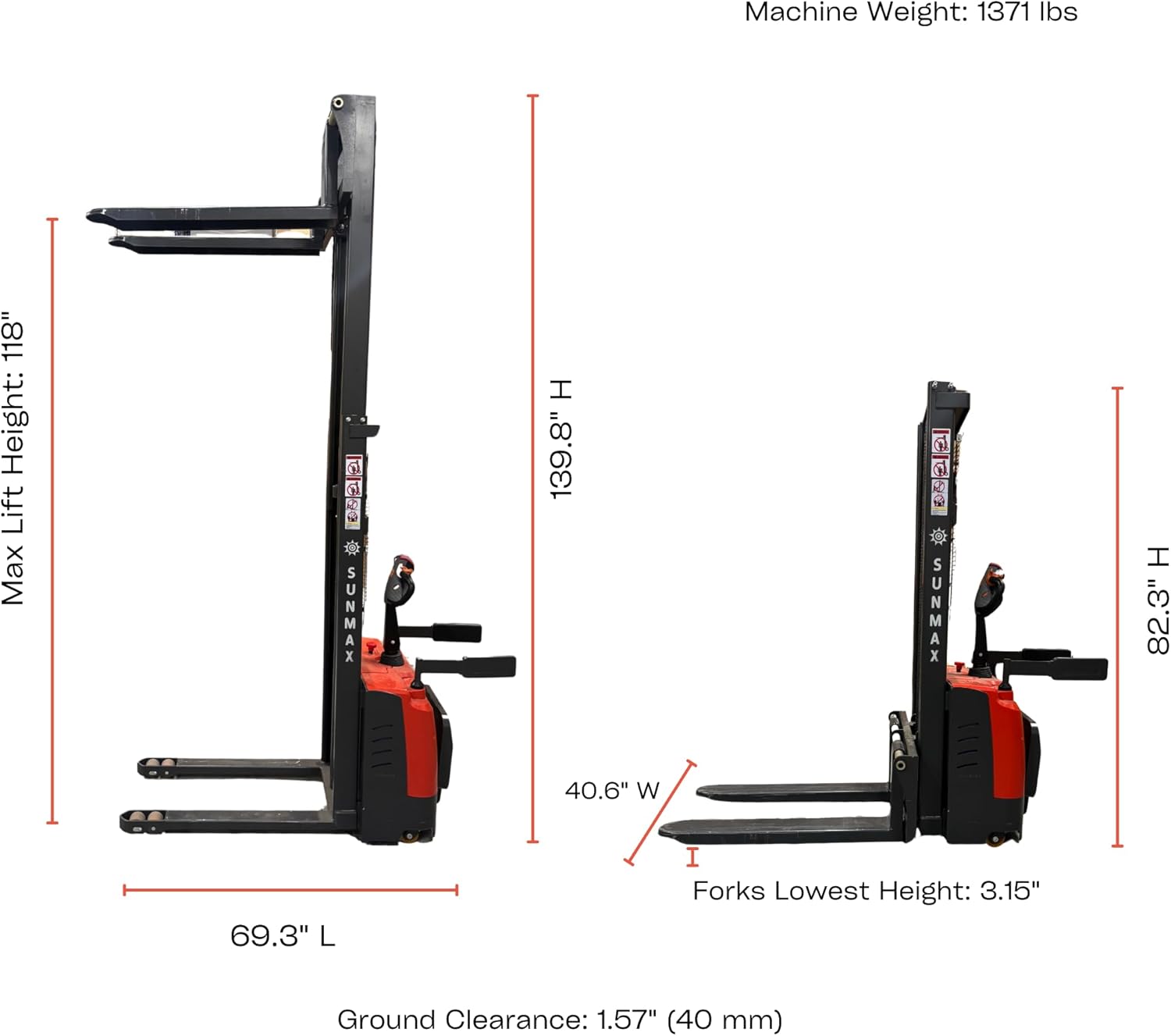

Demensions 69.3"(L)*40.6"(W)*82.3"(Height when Retracted)
Forks Lowest Height 3.15" (80 mm)
Full Electric Pallet Stacker
Semi-Electric Pallet Stacker
Full-Electric Pallet Jack Truck with Built-in Scale
Full-Electric Pallet Stacker
Full Electric Pallet Stacker
Electric Reach Truck
Buying Options
Buying Options
Customer Reviews
5.0 out of 5 stars 1
—
—
—
—
—
Price $4,299.00 — no data $2,399.00 $3,599.00 $6,297.99 — no data
Capacity 3300 lbs 3300 lbs 4400 lbs 3300 lbs 3300 lbs 4400 lbs
Max Lifting Height 118 inches 78 inches 7.87 inches 78 inches 157 inches 118 inches
Turning Radius 63 inches 56.1 inches 48 inches 56.1 inches 72.8 inches 74.8 inches
Battery Capacity 24V/70Ah 12V/100Ah 54.6V/16Ah 12V/100Ah 24V/73Ah 24V/210Ah
Straddle Legs Fixed Fixed N/A Fixed Adjustable N/A
Pallets Compatible Open-bottom only Open-bottom only Open-bottom and Closed-base Open-bottom only Open-bottom and Closed-base Open-bottom and Closed-base
  • Built for Warehouse Stacking and Heavy Pallet Handling: Designed for warehouses, stockrooms, factories, distribution centers, and loading areas that need to lift and move palletized loads up to 3,300 lb. The 118" max lift height helps place open-bottom pallets onto racks, trucks, shelving levels, and staging areas without using a full-size forklift

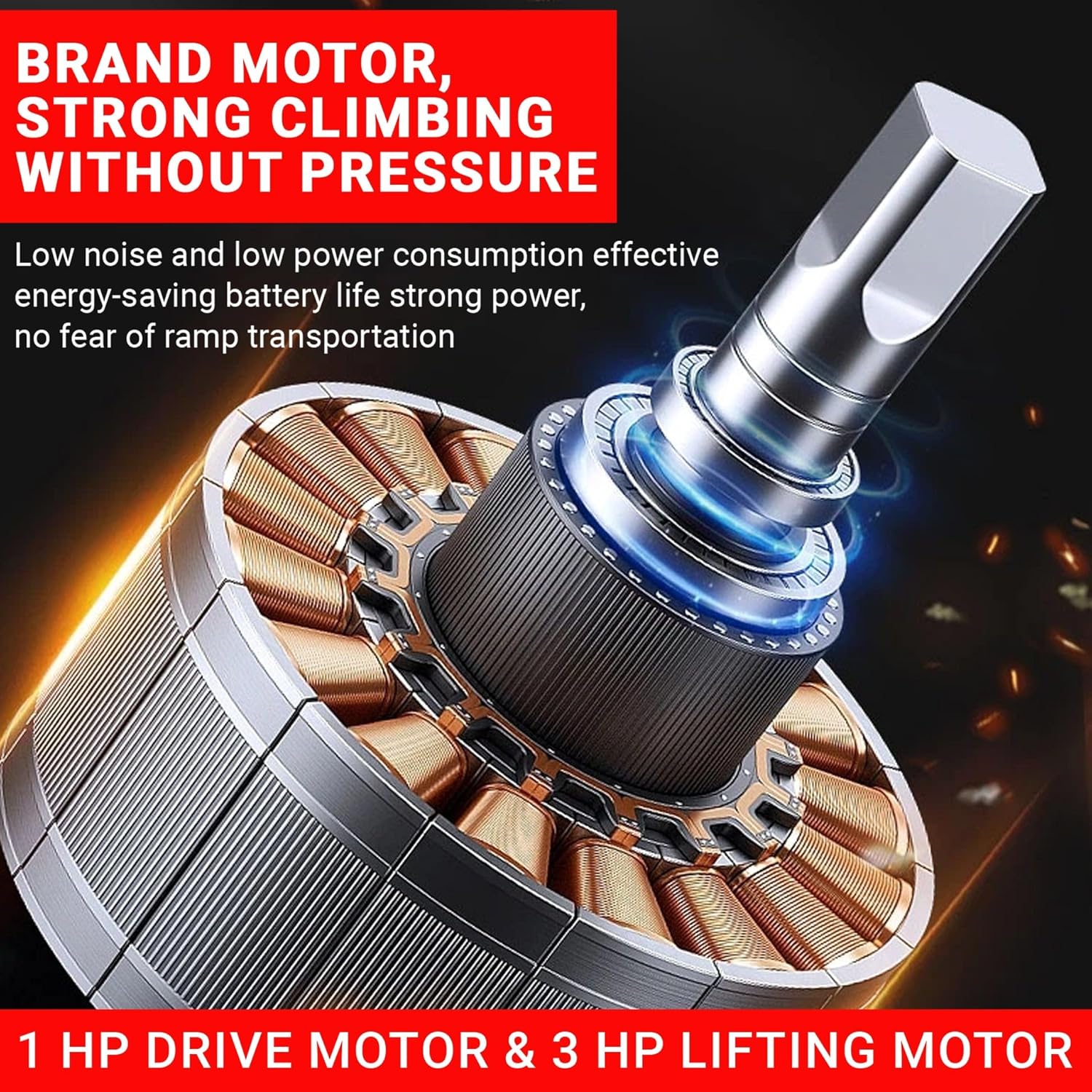

  • Full Electric Drive and Lift for Faster Material Handling: The PS3300FE-3M uses a 1 hp drive motor for powered travel and a 3 hp lifting motor for electric raising and lowering. Operators can drive, lift, lower, and position loads from the ergonomic control handle, reducing the effort required compared with manual or semi-electric stackers.

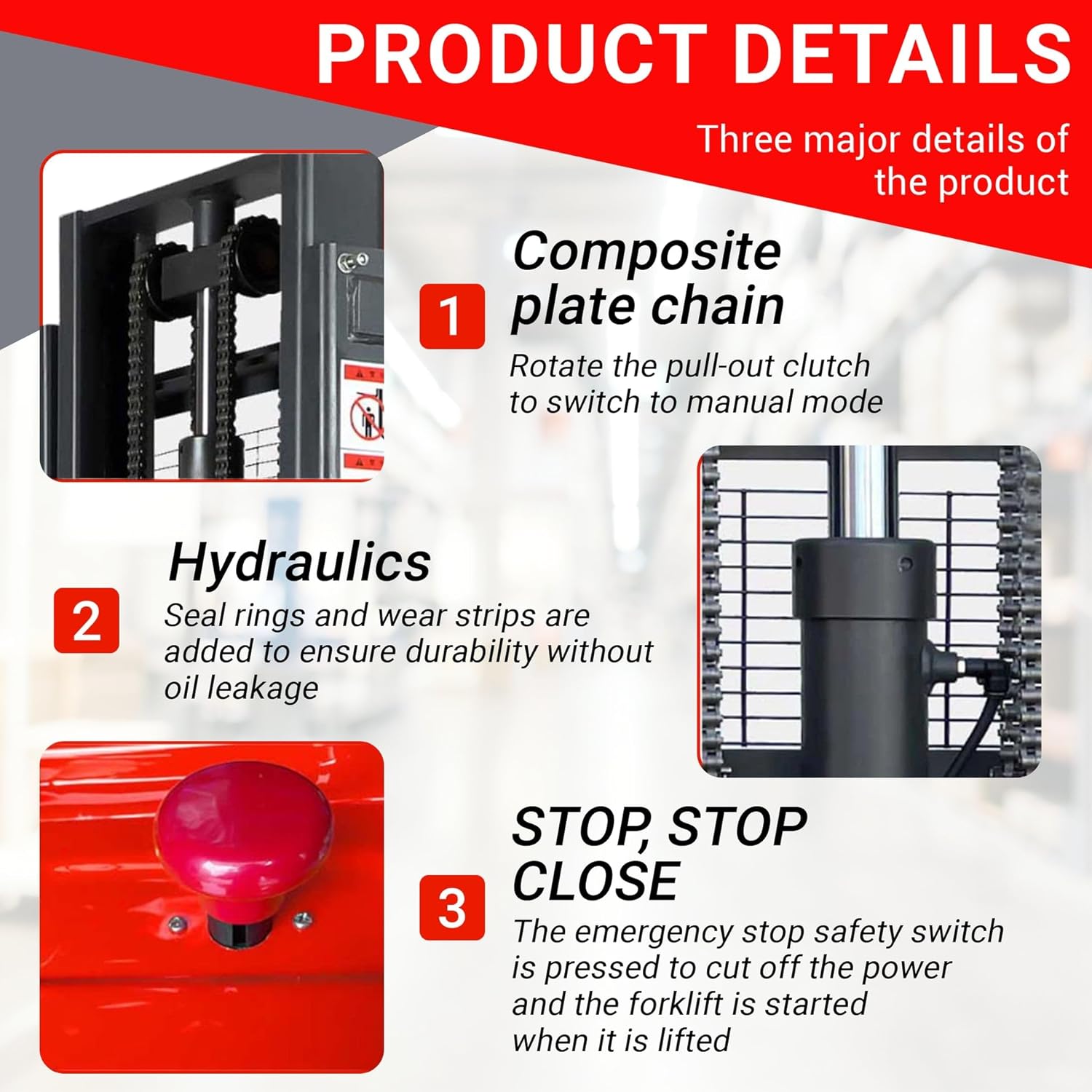

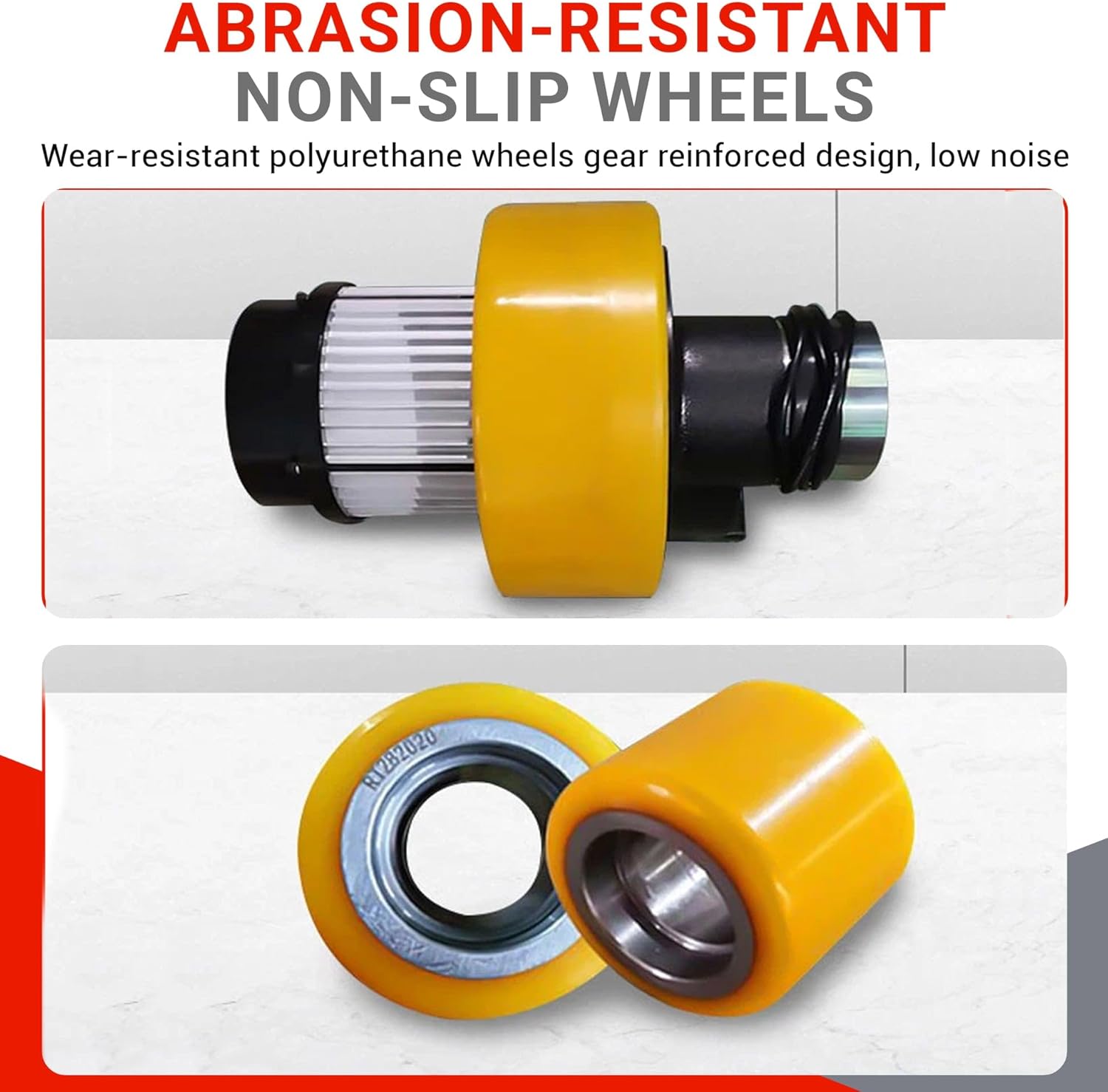

  • Easier Operation for Daily Warehouse Routes: Powered movement, polyurethane wheels, intuitive handle controls, and a noise level of ≤70 dB(A) help operators move loads more smoothly on flat indoor warehouse floors. The electromagnetic service brake and emergency stop switch add control during routine pallet handling and staff training. The stacker supports about 3–4 hours of operation with a 6–7 hour recharge time.
  • Check Pallet and Aisle Compatibility Before Ordering: This stacker has fixed straddle legs and is designed for open-bottom pallets only. It is not suitable for closed-bottom pallets, standard pallets with bottom deck boards in the leg path, uneven outdoor surfaces, slopes, or sloped driveways. Key fit specs: 43.3" fork length, 3.15" lowered fork height, 63" turning radius, and machine dimensions about 69.3" L x 40.6" W x 82.3" H with mast lowered.
  • Freight Delivery, Warranty Support, and Use Reminder: Ships by freight and includes support for business users, 2-year warranty. For safe operation, use only on flat, level floors, keep loads centered, follow the manual, charge the battery properly, and do not move loads while raised higher than necessary.
