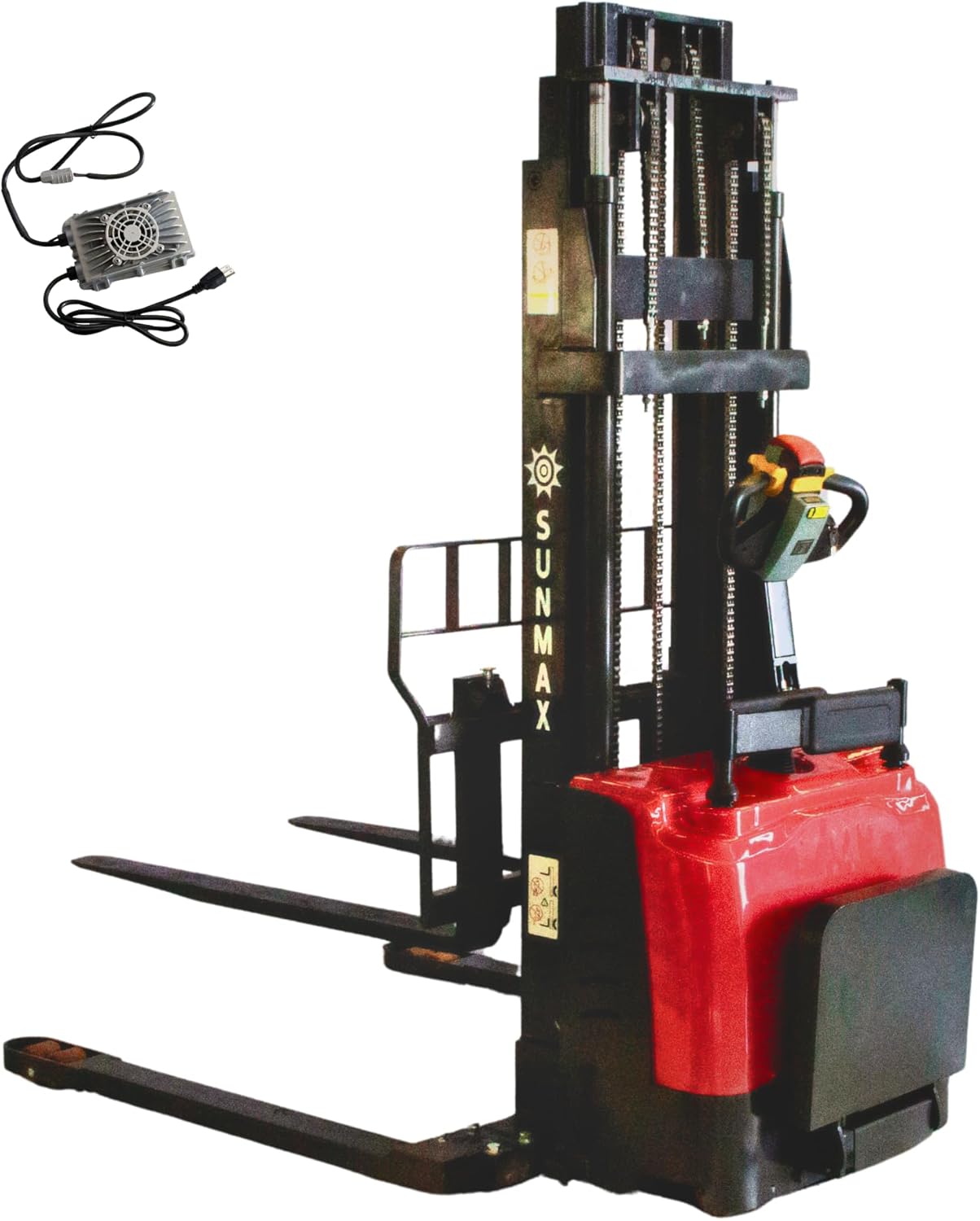

SUNMAX Electric Straddle Stacker, 3300 lbs Capacity, 157 inch Lift Height, Steel Frame, Red and Black

Name: SUNMAX Electric Straddle Stacker, 3300 lbs Capacity, 157 inch Lift Height, Steel Frame, Red and Black
Brand: Manu
Price: 7242.69 USD
Availability: InStock

$7,242.69 USD

~~$6,297.99 USD~~ $7,242.69 USD

Sale Sold out

Shipping calculated at checkout.

SUNMAX Electric Pallet Stacker

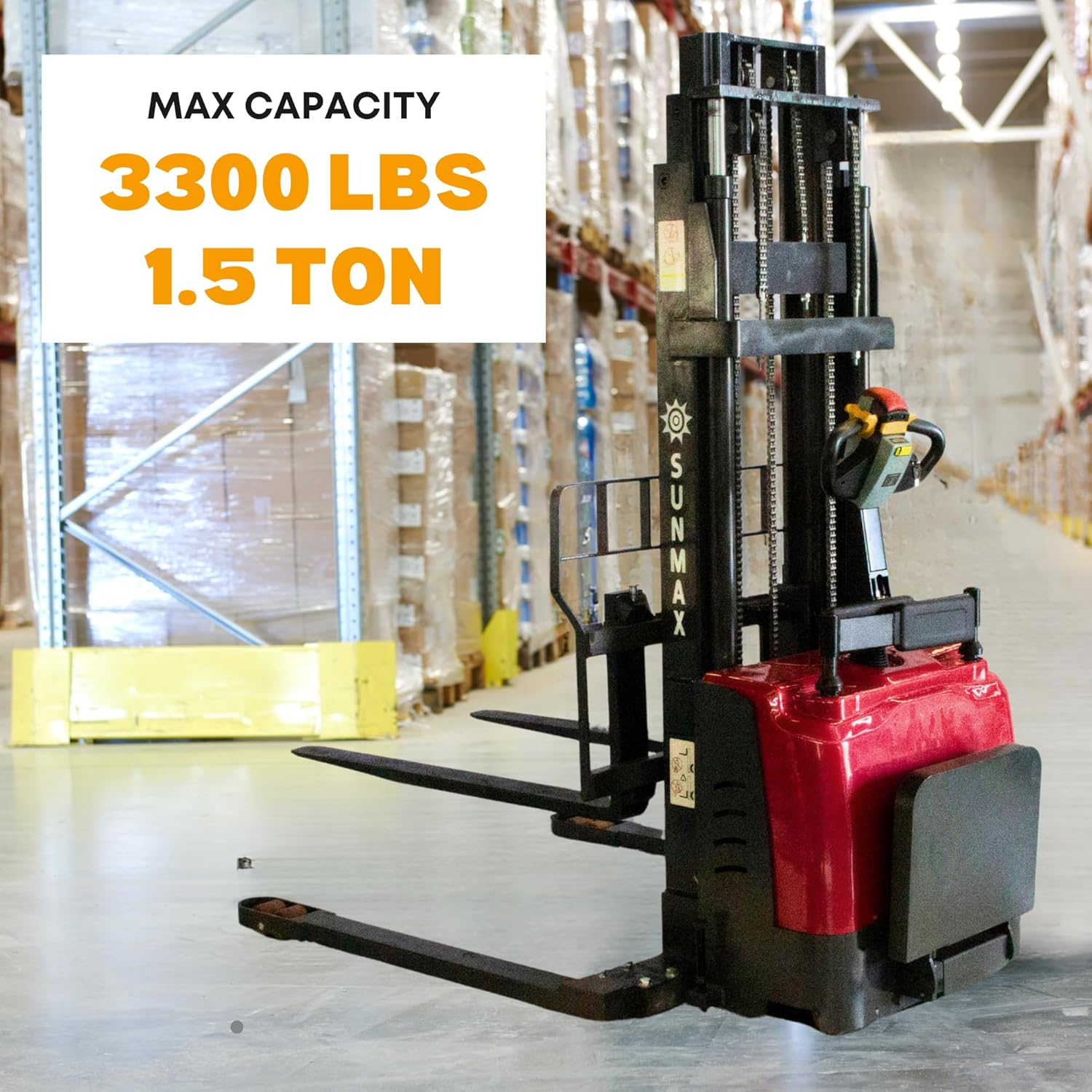

Elevate your material handling capabilities with this robust SUNMAX Full-Electric Pallet Stacker. Featuring an impressive 157-inch maximum lift height and a substantial 3,300-pound load capacity, this electric stacker is engineered for efficient warehouse operations.

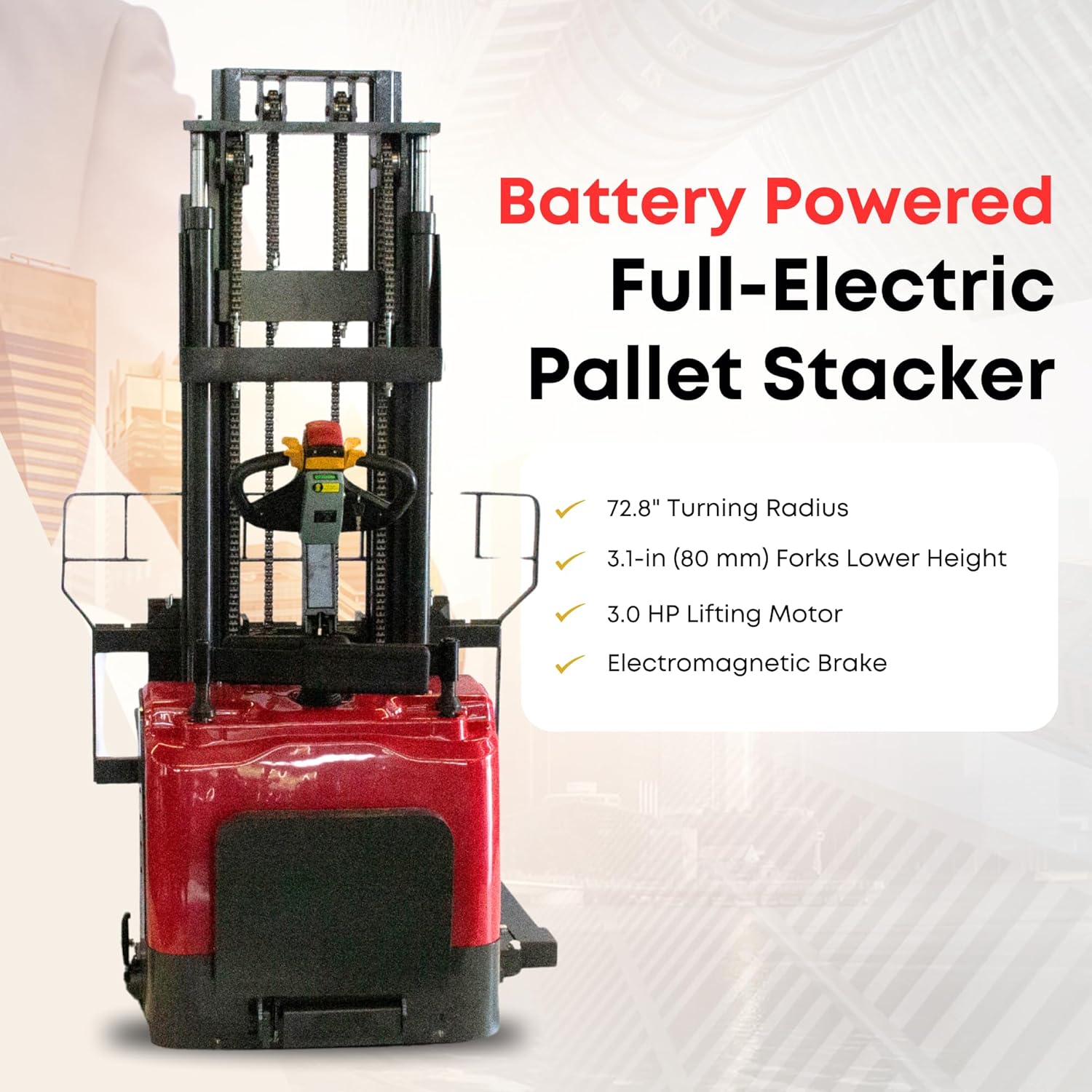

Full Electric Pallet Stacker

3300 lbs (1500 kg) Capacity

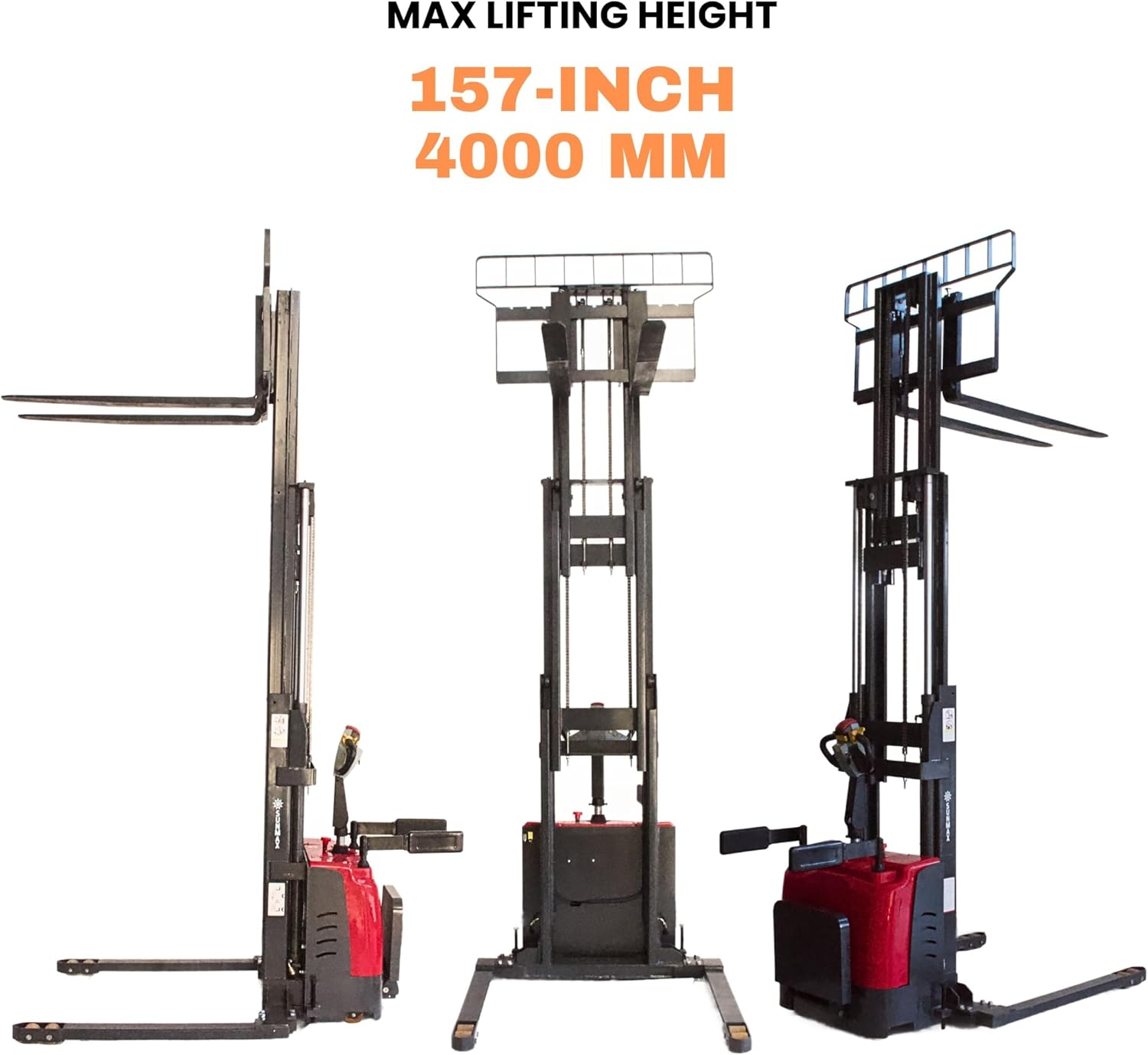

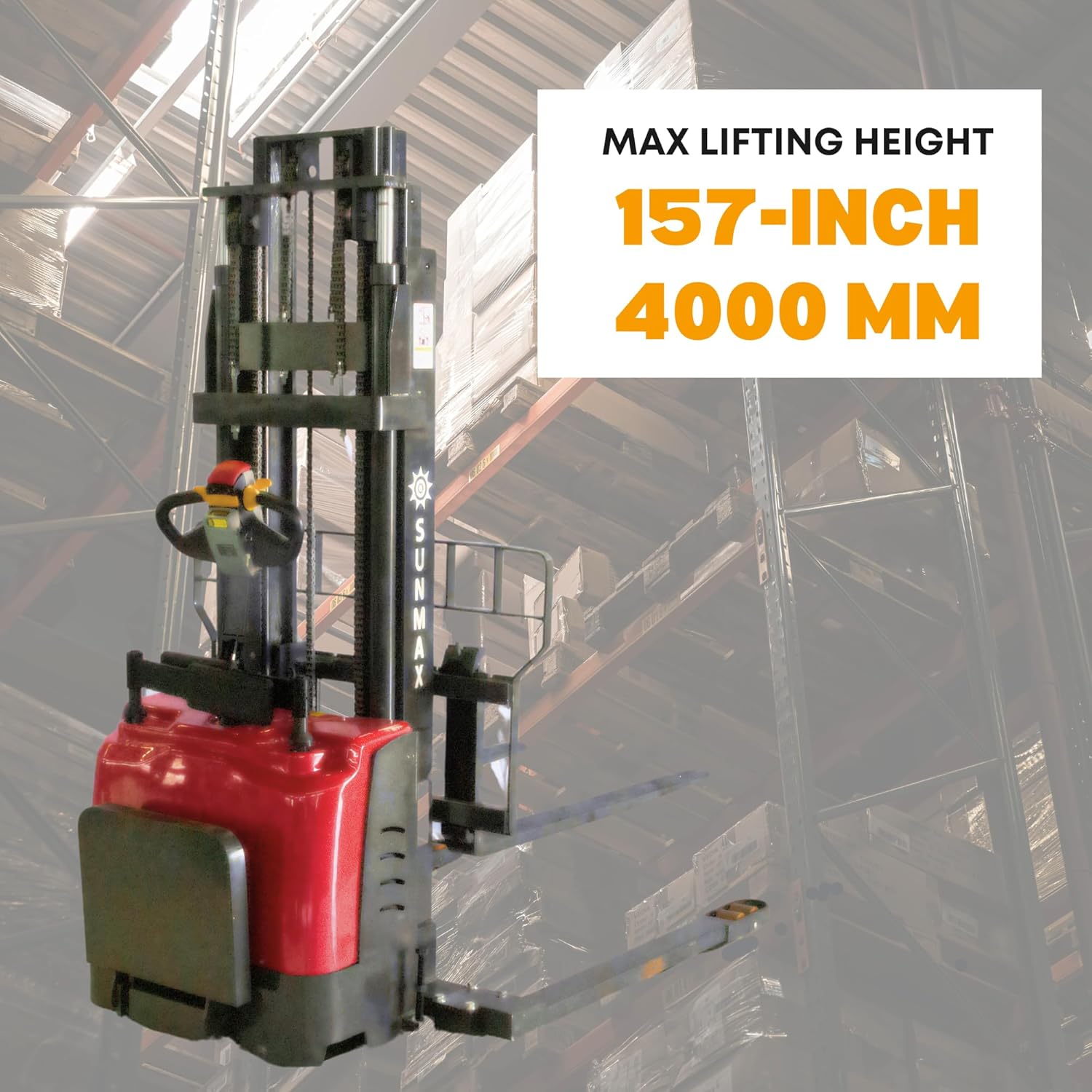

157-inch (4000 mm) Lifting Height
3 HP Lifting Motor
Up to 3.5 MPH Travelling Speed
Up to 7% Gradeability Loading
Ground Clearance: 1.18 inches (30 mm)

Outstanding Performance and Reliability in Material Handling

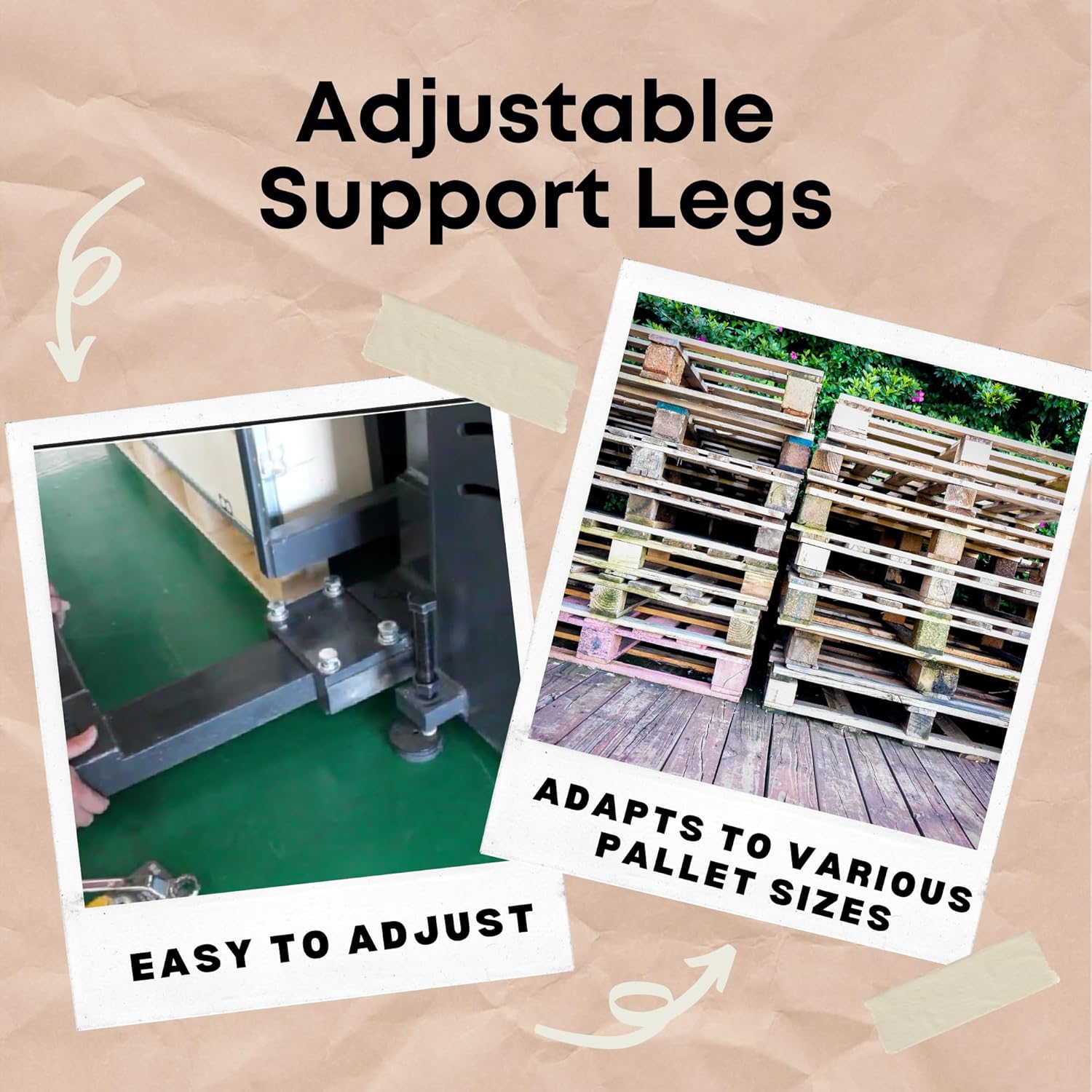

Designed with adjustable support legs with the adjustable width from 42" to 58", it adapts to a wide range of pallet sizes and warehouse configurations, providing added versatility and stability during operation.

Specifications

Rated Load Capacity	3300 lbs (1500 kg)
Max Lifting Height	157 in (4,000 mm)
Load Center Distance	24 in (610 mm)
Forks Fully-Lowered Height	3.1 in (80 mm)
Fork Size (L × W × Thickness)	48 × 3.9 × 1.4 in (1220 × 100 × 35 mm) Each
Overall Demensions	75.6"59.8"76.8"(Mast Lowered)/179.1"(Mast Lifted)

Machine Weight	2275 lbs (1032kg)
Ground Clearance	1.2 in (30 mm) (Center Wheelbase)
Turning Radius	72.8 in (1,850 mm)
Travel Speed	2.5/3.5 mph (4/5.6 km/h) (Loaded/Unloaded)
Lift Speed (Loaded / Unloaded)	0.46 ft/s (140 mm/s)

Lowering Speed	0.33 ft/s (101 mm/s) (Loaded/Unloaded)
Max Gradeability	3% / 7% (Loaded/Unloaded)
Brake Type	Electromagnetic
Drive Motor Power	1.0 HP (0.75 kW)
Lift Motor Power	3.0 HP (2.2 kW)
Battery Voltage / Capacity	24V/73Ah
Wheel Material	Polyurethane

Drive Wheel Size	Ø8.3 × 2.8 in (Ø210 × 70 mm)
Rear Wheel Size	Ø3.1 × 2.8 in (Ø80 × 70 mm)
Additional Wheel Size	Ø3.9 × 2.0 in (Ø100 × 50 mm)
Wheel Arrangement	1× (drive) + 4/2
Front Wheel Track	34.9 in (886 mm)
Rear Wheel Track	40.4 in (1,025 mm)

	Full Electric Pallet Stacker	Semi-Electric Pallet Stacker	Full-Electric Pallet Jack Truck with Built-in Scale	Full-Electric Pallet Stacker	Full Electric Pallet Stacker	Full Electric Pallet Stacker
		Buying Options
Customer Reviews	1	—	—	—	—	—
Price	$4,299.00	— no data	$2,399.00	$3,599.00	$6,297.99	$5,399.00
Capacity	3300 lbs	3300 lbs	4400 lbs	3300 lbs	3300 lbs	3300 lbs
Max Lifting Height	118 inches	78 inches	7.87 inches	78 inches	157 inches	118 inches
Turning Radius	63 inches	56.1 inches	48 inches	56.1 inches	72.8 inches	63 inches
Battery Capacity	24V/70Ah	12V/100Ah	54.6V/16Ah	12V/100Ah	24V/73Ah	24V/73Ah
Straddle Legs	Fixed	Fixed	no data	Fixed	Adjustable	Adjustable
Pallets Compatible	Open-bottom only	Open-bottom only	Open-bottom and Closed-base	Open-bottom only	Open-bottom and Closed-base	Open-bottom and Closed-base

LIFTING CAPACITY: Heavy-duty electric pallet stacker capable of lifting up to 3300 lbs with a maximum lift height of 157 inches for versatile warehouse operations
CONSTRUCTION: Durable steel frame construction with polyurethane wheels provides stability and smooth operation during material handling tasks

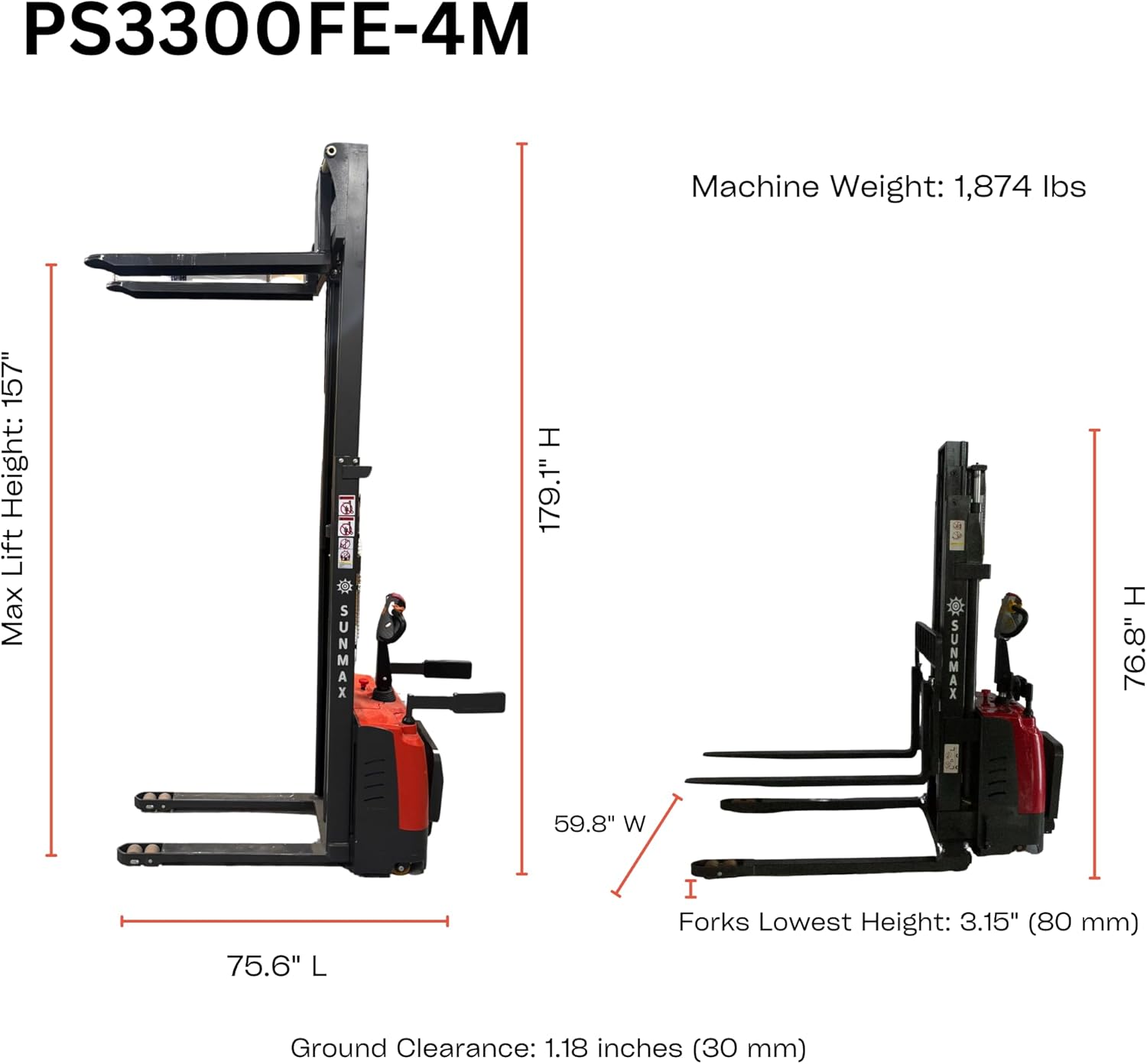

DIMENSIONS: Overall size of 75.6 inches in length, 59.8 inches in width, and 76.8/179.1 inches in height, featuring adjustable legs (42"-58") for enhanced flexibility
POWER SYSTEM: Full-electric operation lifts and moves pallets entirely using electricity, without requiring manual effort for lifting or driving.
MOBILITY: Polyurethane wheels ensures excellent maneuverability and stability while protecting warehouse floor surfaces
