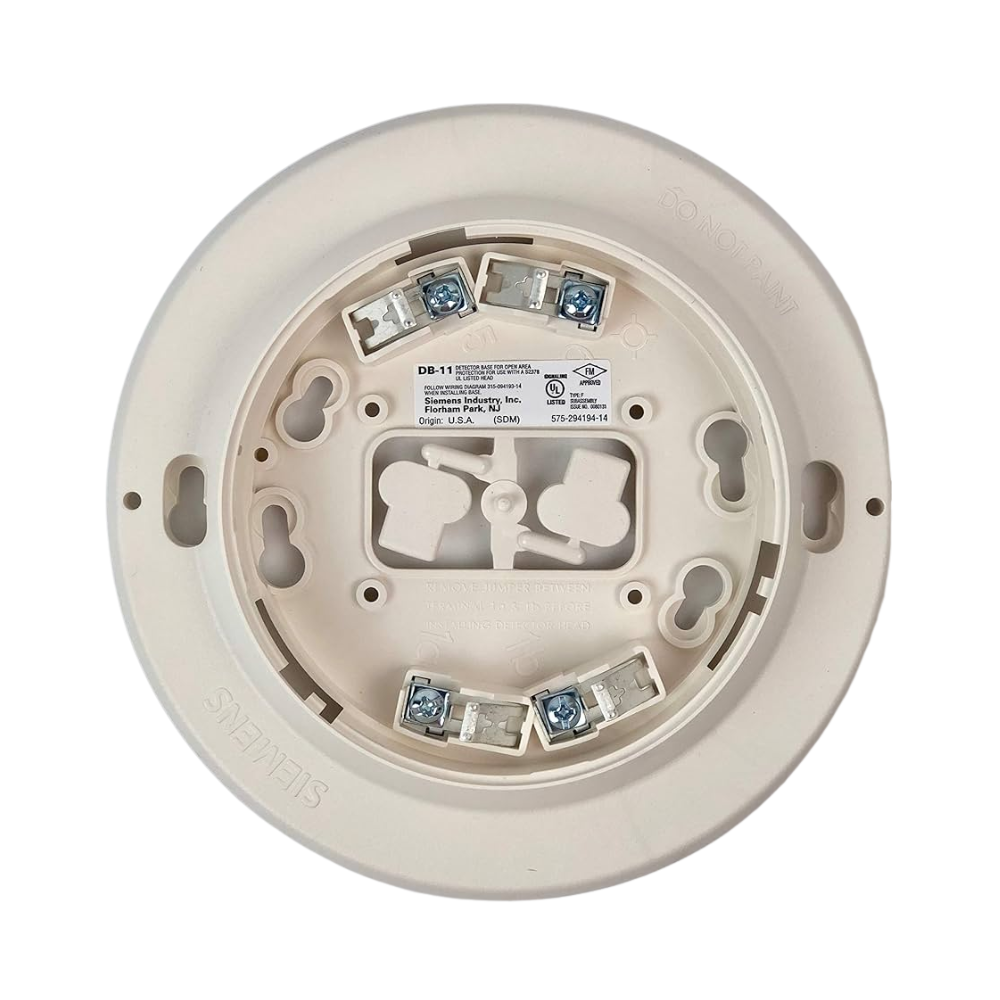

Siemens DB-11 Low-Profile Surface Mount Base

Siemens DB-11 Low-Profile Surface Mount Base

$13.99 USD
$13.99 USD
Sale Sold out
Shipping calculated at checkout.

All Series 11 Smoke Detectors use the low-profile surface mounting base, DB-11, which mounts on a 4-inch octagon, square or a single gang electrical box. The base utilizes screw clamp contacts for electrical connections and self-wiping contacts for increased reliability. The base can be used with the optional LK-11 detector locking kit which contains 50 detector locks and an installation tool, to prevent unauthorized removal of the detector head. The DB-11 base has integral decorative plugs to cover the outer mounting screw holes. UL and ULC Listed, and CSFM, FM, NYMEA Approved.

Features

  • Each detector base is compatible with Model ‘H’, “11” and “121” series of conventional detectors
  • Each detector base also functions with the addressable Model ‘H’ series, as well as Models FD0421, FDOT421, FDOOT441, FDOOTC441 and FDT421 intelligent devices
  • Models DB-11 and DB-11E amount on a 4-inch square, octagon or single-gang electrical box
  • Model DB2-HR mounts on a 4″-square, double-gang electrical box
  • UL 268 Listed, ULC-S529 Listed; FM, CSFM and NYC Fire Department Approved
View full details
