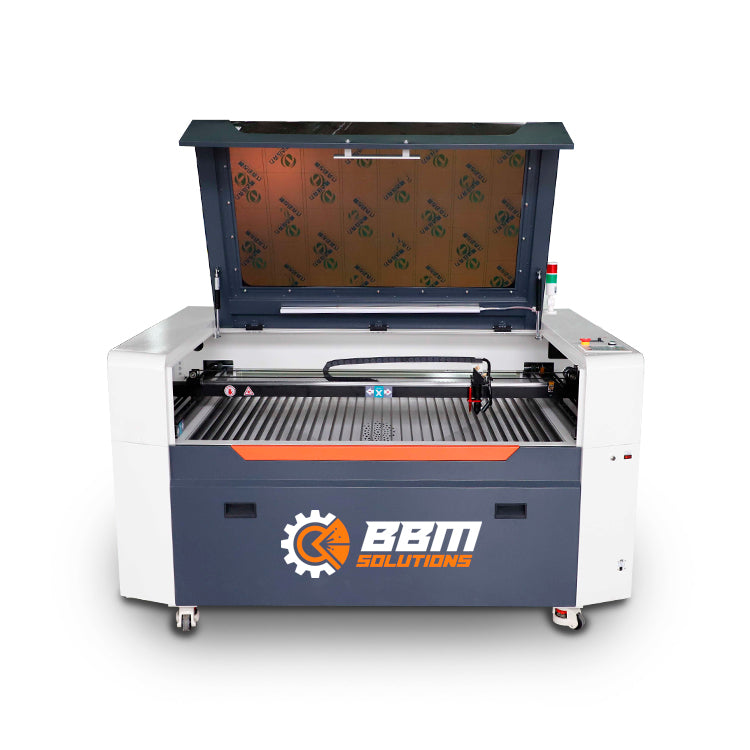

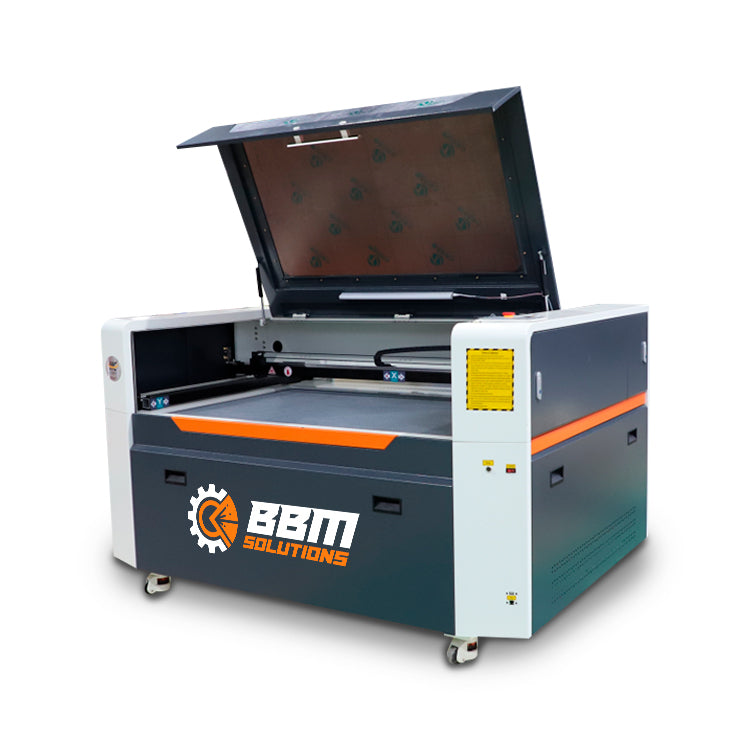

Model 5540 - CO2 Laser Engraver - 55" x 40" Work Area

Model 5540 - CO2 Laser Engraver - 55" x 40" Work Area

$9,200.00 USD
$9,200.00 USD
Sale Sold out
Shipping calculated at checkout.

MOTOR FOCUS FUNCTION

This machine does not need to adjust the focal length by hand, saving much time and has higher accuracy.

Technical Specifications
Work Area
55 inch x 40 inch		 Machine Size
74.8 inch x 59 x 42.12 inch

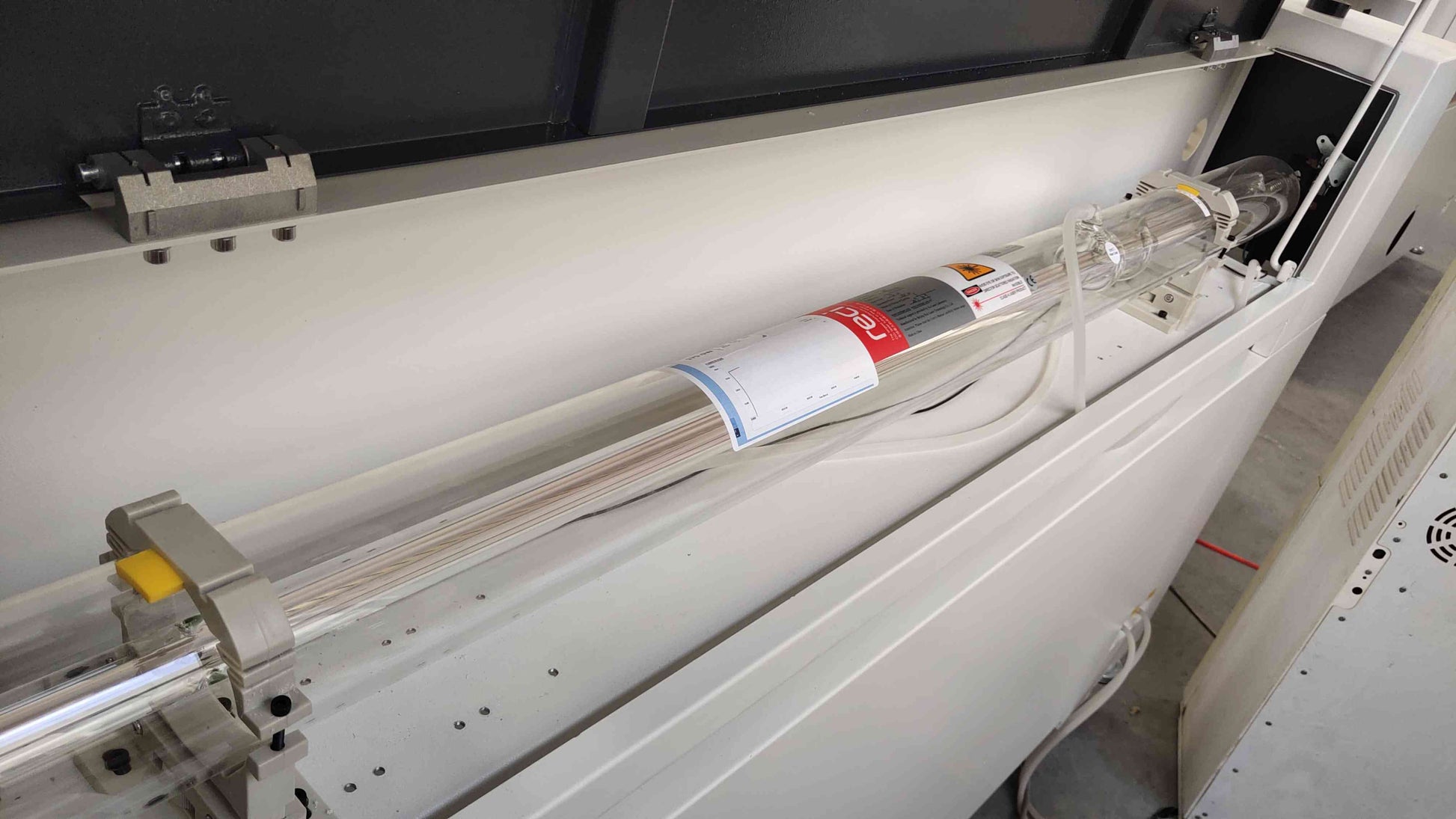

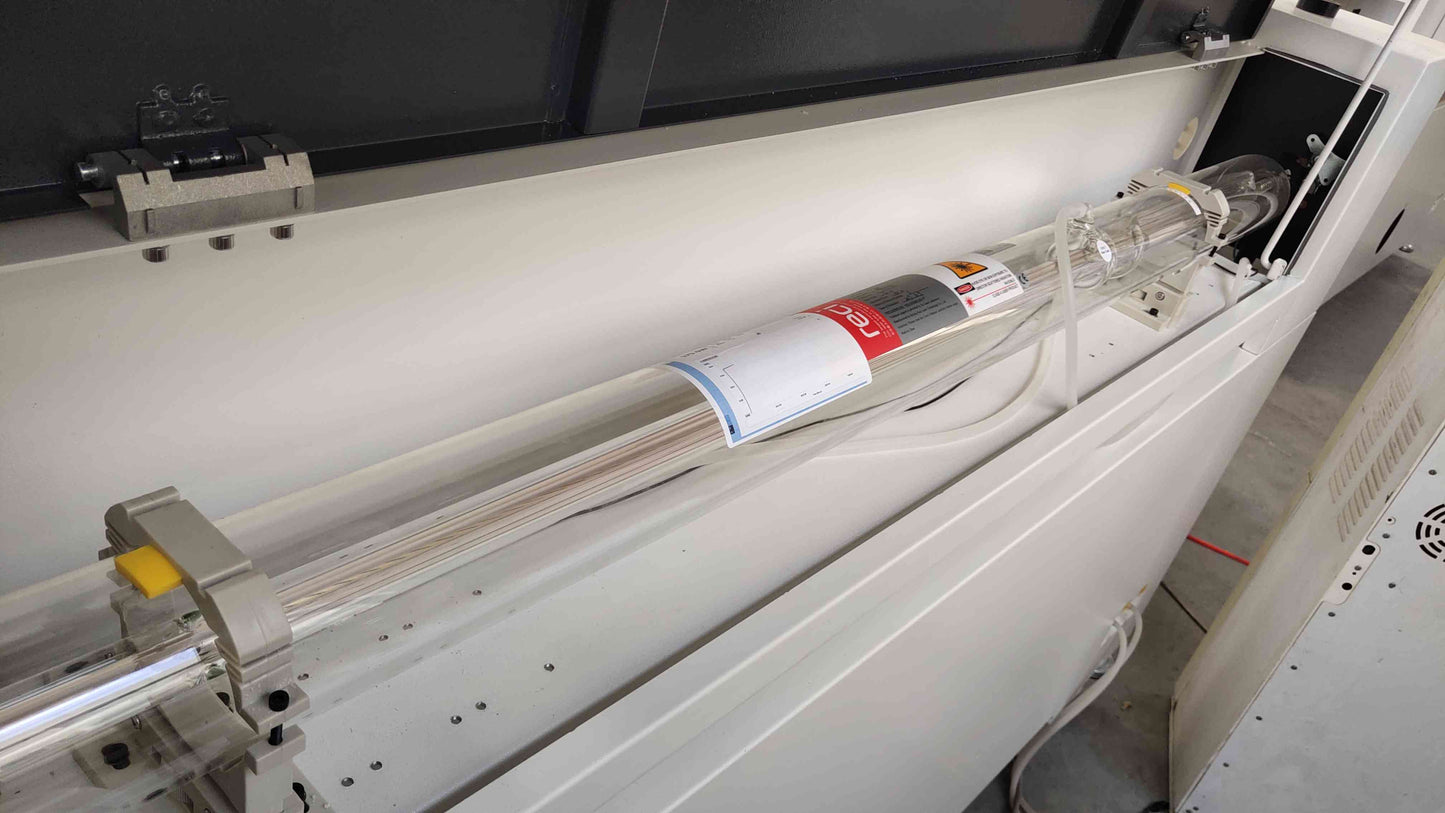

Laser Output
SPT C100 (100w) - 12 Month Warranty / Upgrade SPT C130 (150W PEAK)		 Packaging Size
78.74 inch x 59 inch x 49.21 inch
Net Weight
340 Kg		 Cooling Unit
S&A CW5202 Chiller
Compatible Software
Corel / AutoCad / Photoshop / RdWorks V8, Inventor, Aspire, etc.		 Voltage
110VAC +/- 10%
Maximum Movement Speed
1574.80 inch/min		 Interface
USB
Engraving Resolution
1000 dpi		 Cutting Precision
0.0003937 inch

Supported Materials:

  • Acrylic
  • Wood
  • Paper
  • PVC
  • Polyester Film
  • Mylar Stencils
  • Bamboo
  • Felt
  • Fabric
  • Leather
  • Wool
  • Fur
  • Resin
  • Rubber
  • Carbon
  • Glass
