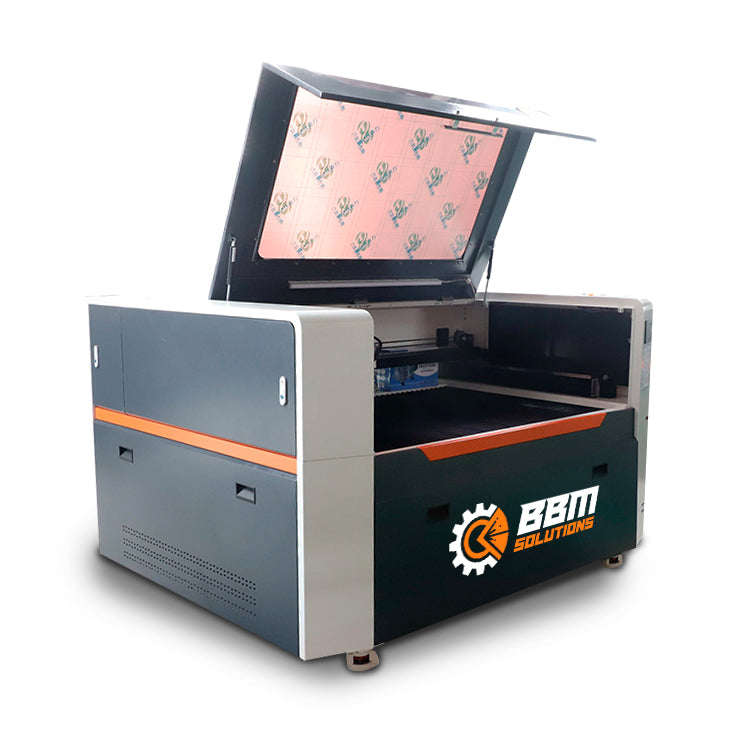

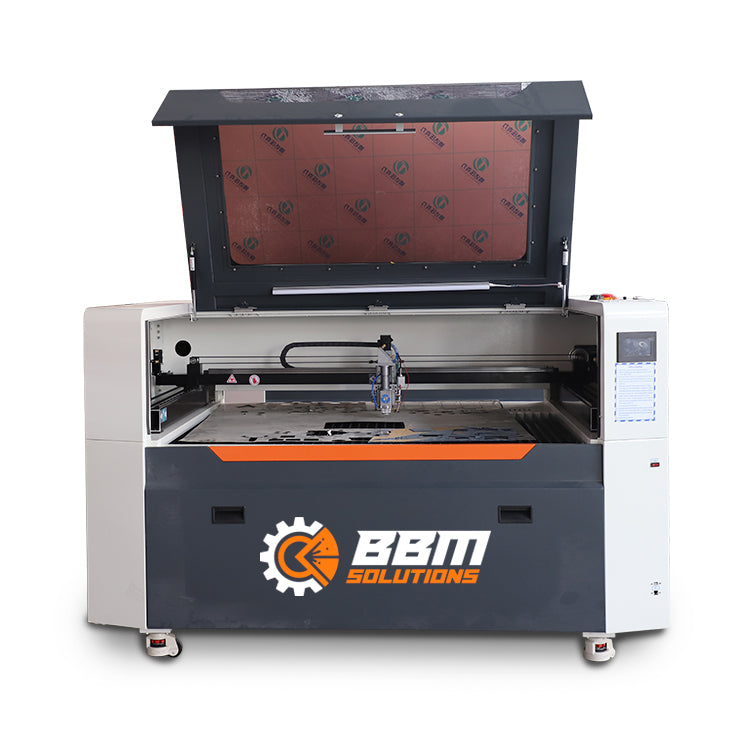

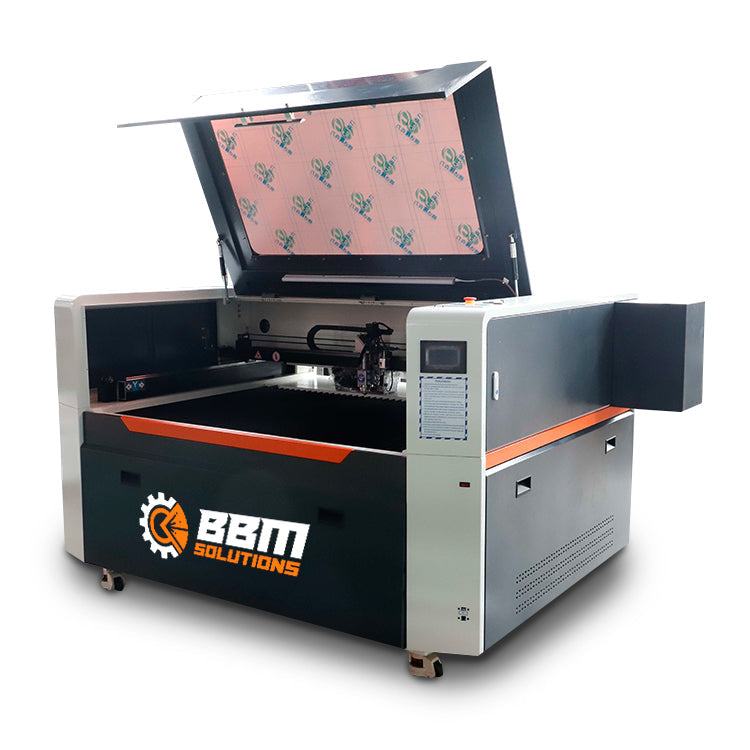

Model 5335 MC - CO2 Laser Metal Cutter - 53" x 35" Work Area
Model 5335 MC - CO2 Laser Metal Cutter - 53" x 35" Work Area
Regular price
$14,900.00 USD
Regular price
$15,900.00 USD
Sale price
$14,900.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

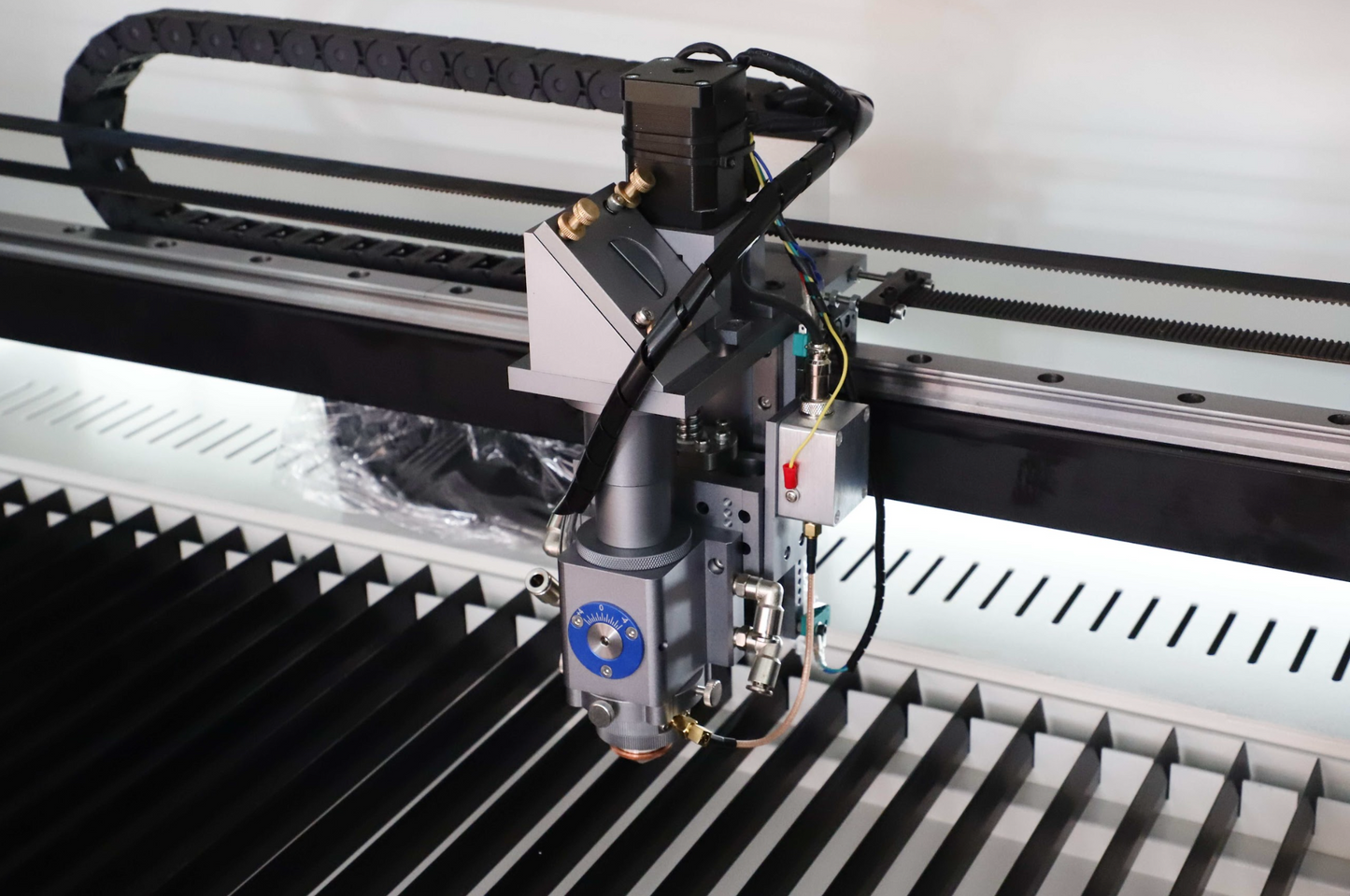

MOTOR FOCUS FUNCTION
This machine does not need to adjust the focal length by hand, saving much time and has higher accuracy.
MOTOR FOCUS FUNCTION
This machine does not need to adjust the focal length by hand, saving much time and has higher accuracy.
MOTOR FOCUS FUNCTION
This machine does not need to adjust the focal length by hand, saving much time and has higher accuracy.
| Technical Specifications | |||
|---|---|---|---|
|
Processing Area 53inch x 35.43 inch |
Product Dimension 128.35 inch x 84.65 inch x 46.85 inch |
||
|
Laser Output 180w PEAK - 12 months Warranty |
Package Dimension 133.86 inch x 90.16 inch x 54.72 inch |
||
|
Net Weight 1102 lb to 1323 lb |

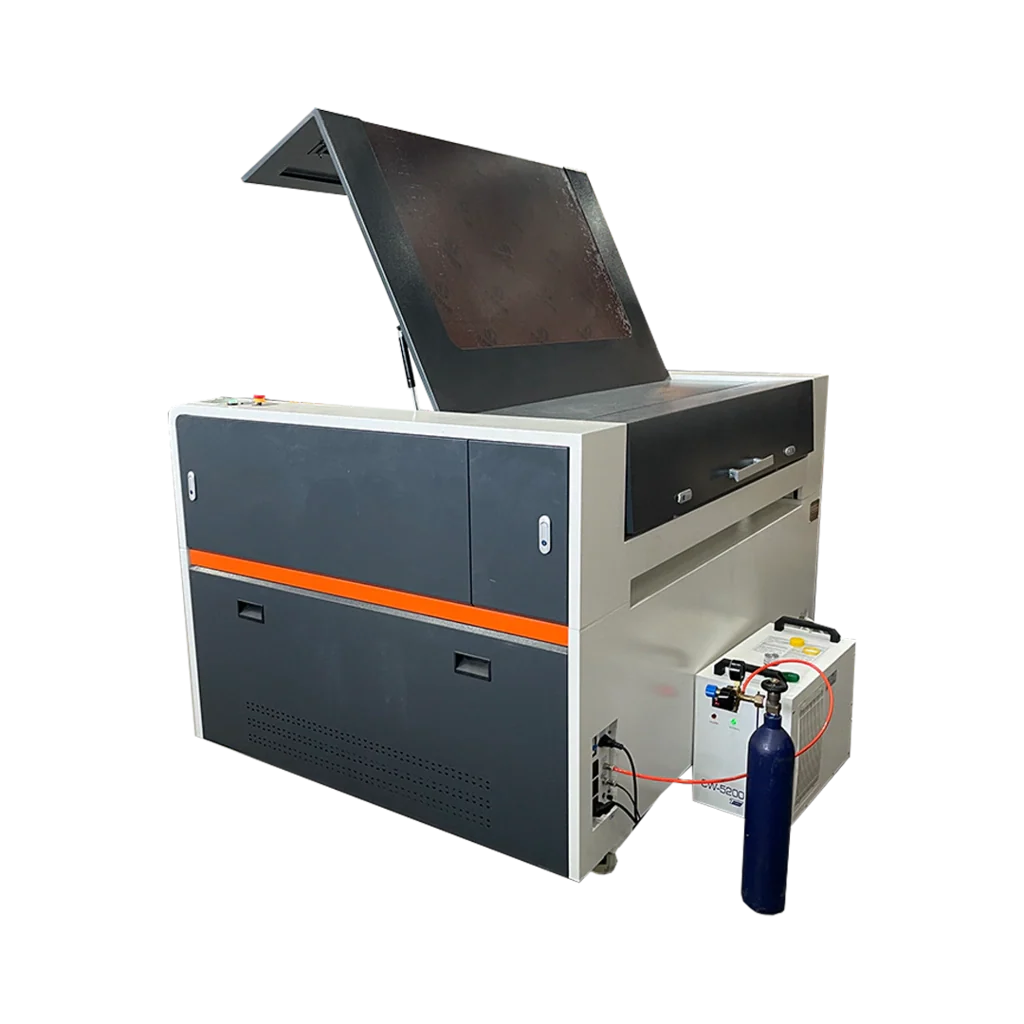

Cooling Unit S&A CW5200 |
||
|
Software Corel / AutoCad / Photoshop / RdWorks V8, Inventor, Aspire, etc. |
Voltage 220V +/- 10% |
||
|
Maximum Processing Speed 1181.1 inch/min |
Connection USB / NET |
||
|
Resolution Ratio 1000 dpi |
Precision 0.0003937 inch |
||
|
Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, etc. |
|||
Supported Materials:
METALS:
- STAINLESS STEEL
-
CARBON STEEL
NON METALS: -
Acrylic
-
Wood
-
Paper
-
PVC
-
Polyester Film
-
Mylar Stencils
-
Bamboo
-
Felt
-
Fabric
-
Leather
-
Wool
-
Fur
-
Resin
-
Rubber
-
Carbon
-
Glass
