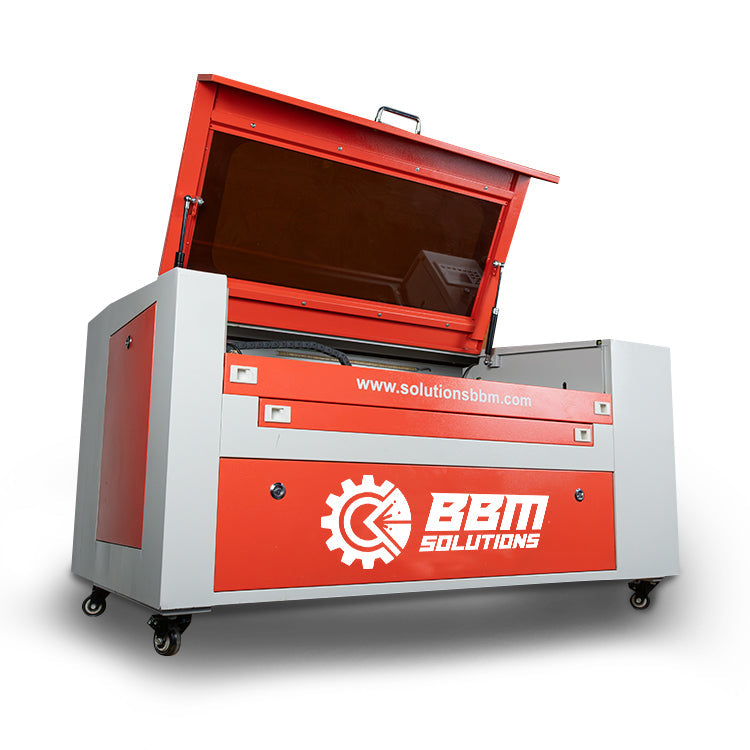

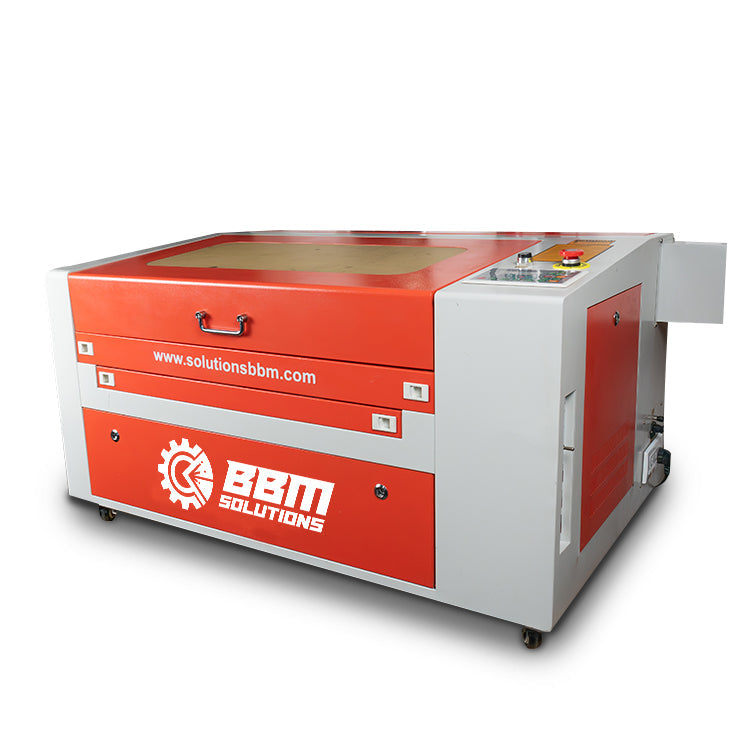

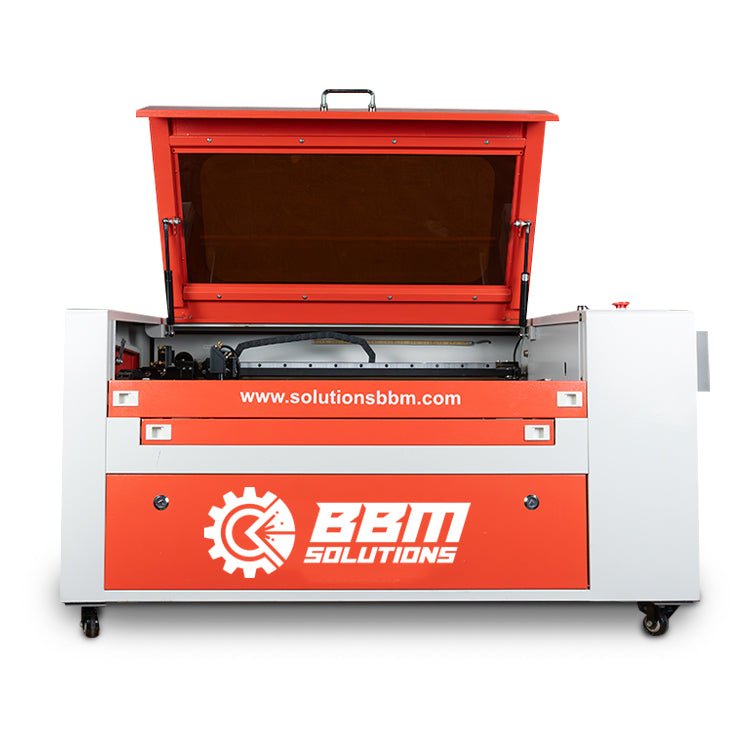

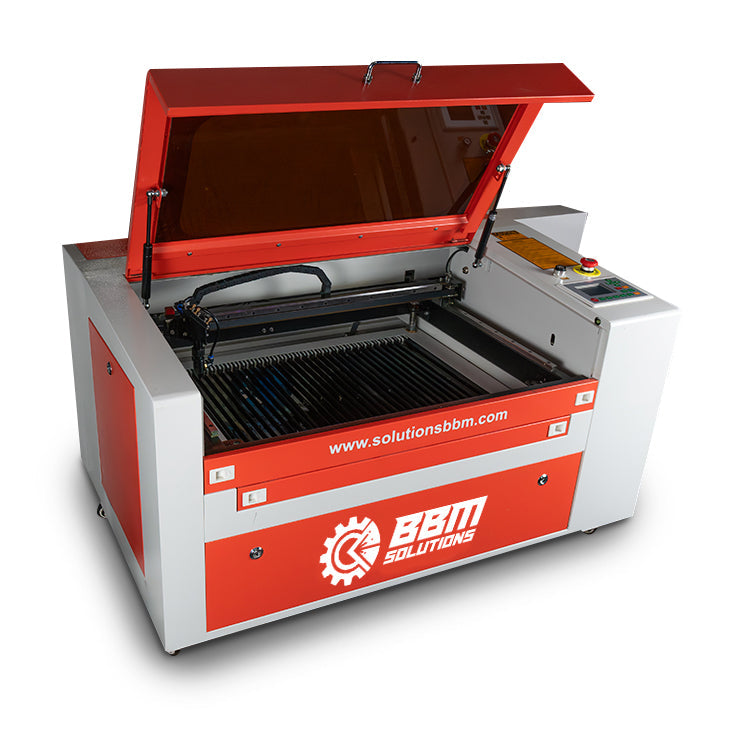

Model 1624 - CO2 Laser Engraver - 60W/80W - 16" x 24" Work Area
Model 1624 - CO2 Laser Engraver - 60W/80W - 16" x 24" Work Area
Regular price
$5,700.00 USD
Regular price
Sale price
$5,700.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
MOTOR FOCUS FUNCTION
This machine does not need to adjust the focal length by hand, saving much time and has higher accuracy.
MOTOR FOCUS FUNCTION
This machine does not need to adjust the focal length by hand, saving much time and has higher accuracy.
MOTOR FOCUS FUNCTION
This machine does not need to adjust the focal length by hand, saving much time and has higher accuracy.
| Technical Specifications | |
|---|---|
|
Work Area 15.748 inch x 23.62 inch |
Z Axis Motorized 7.87 inch |
|
Power 60 Watts (Standard) / Upgrade to 80 Watts |
Machine Dimensions 44.88 inch x 33.07 inch x 35.43 inch |
|
Machine Weight 130 Kg |
Consumption 800 Watts |
|
Packaging Dimensions 63.78 inch x 33.07 inch x 35.43 inch |
Packaging Weight 150 Kg |
|
Laser Type CO2 Glass Laser Tube |
Cooling Mode CW3000 Cooling Unit (Standard) / Upgrade to CW5000 |
|
Compatible Software Corel / AutoCad / Photoshop / RdWorks V8, Inventor, Aspire, etc. |
Controller Ruida Technology |
|
Working Speed 1-400 mm/s |
Resolution Range ≤0.01mm |
|
Interface USB |
Equipment Power 500 Watts |
|
Operating Voltage 220 VAC, 50-60Hz |
Smoke Extractor Included in the equipment |
|
Maximum Engraving Quality 1000 DPI |
Table Type Honeycomb and removable swords |
|
Total parts Warranty 1 year |
Rotary Device Optional |
Supported Materials:
-
MDF
-
EVA FOAM
-
FABRIC
-
LEATHER
-
CARDBOARD
-
ACRYLIC
-
METAL ENGRAVES WITH PASTE APPLICATION
- DOES NOT CUT METALS
