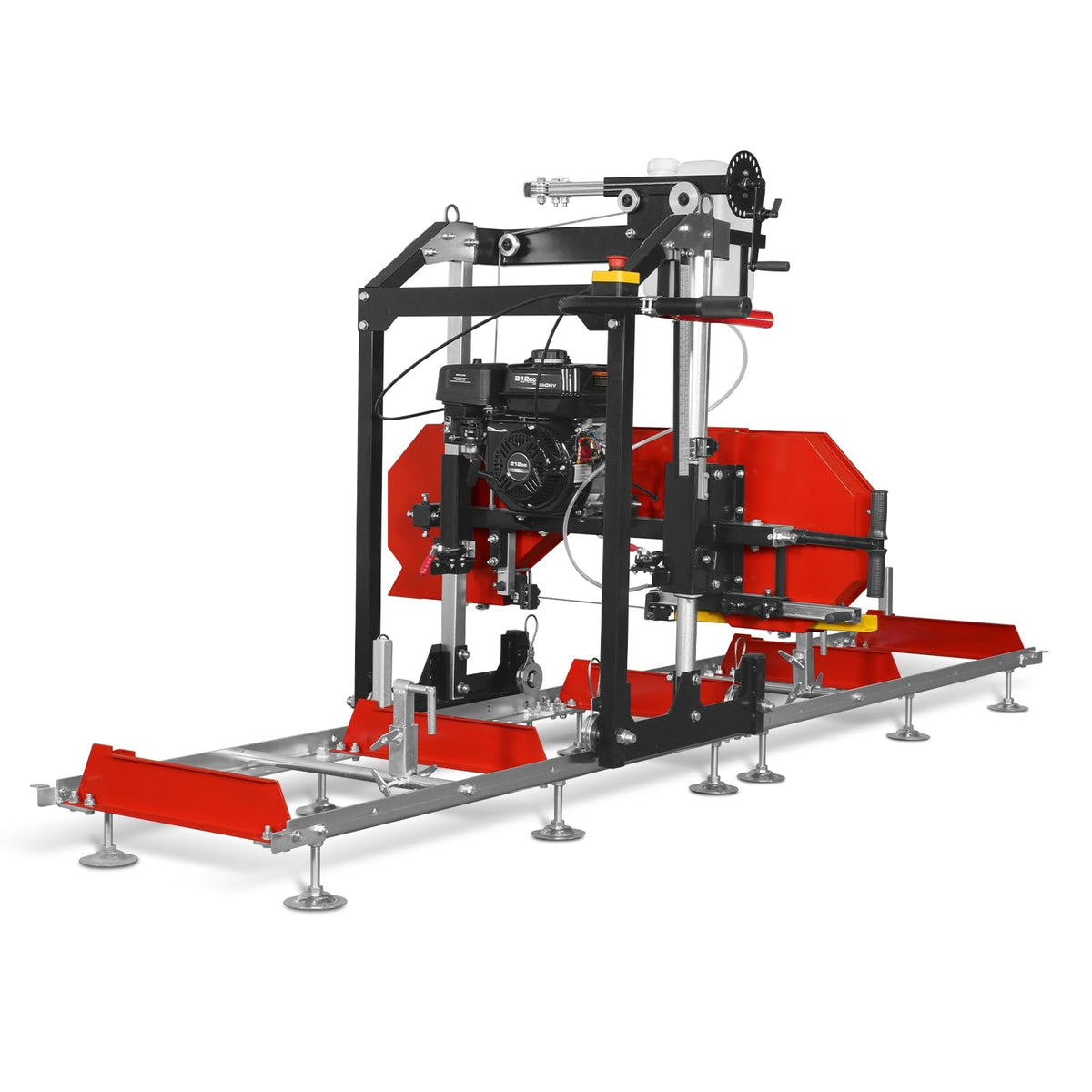

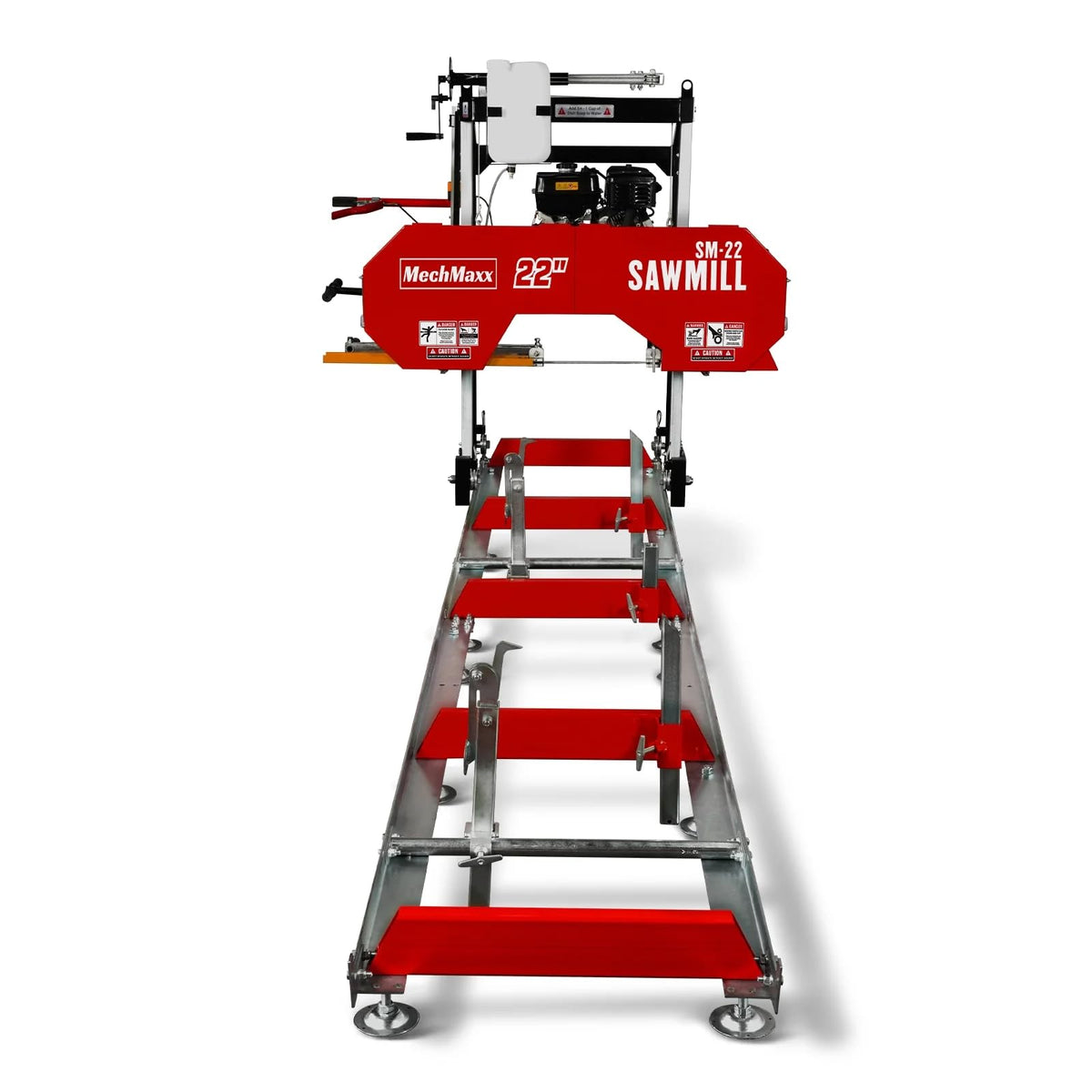

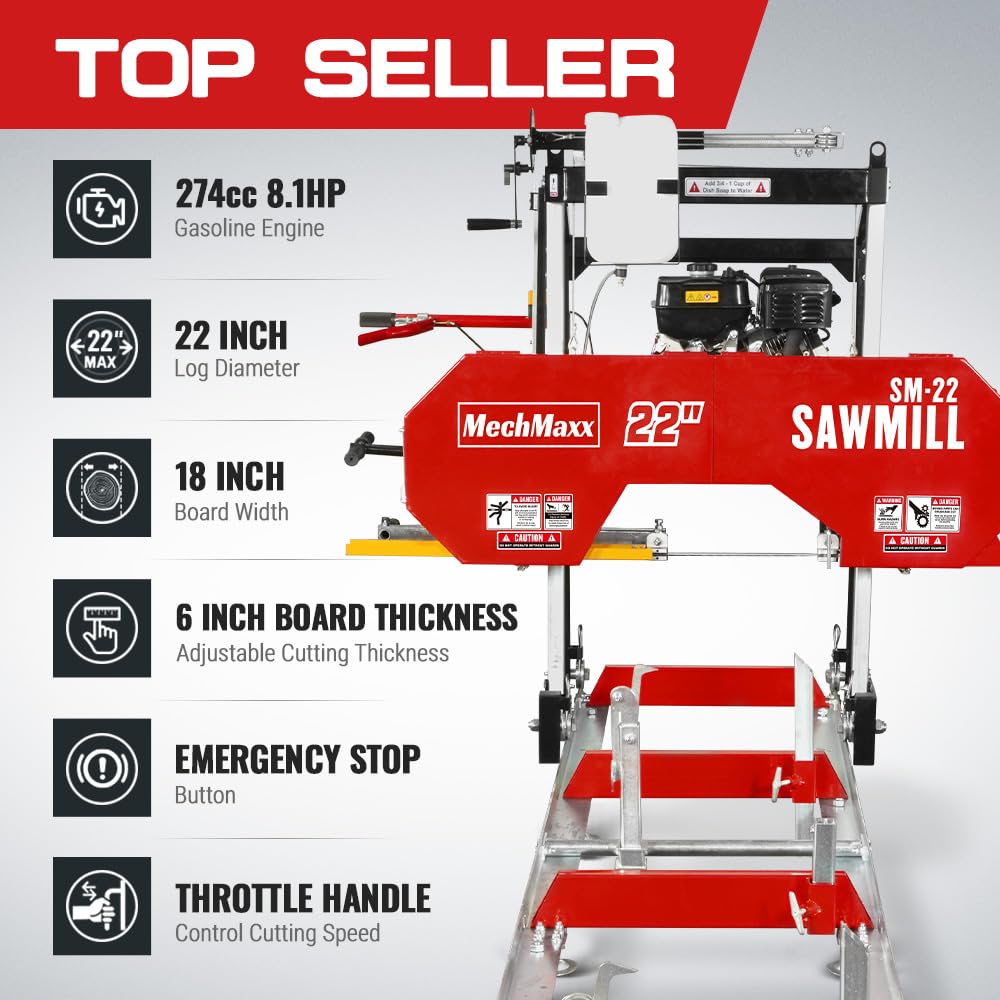

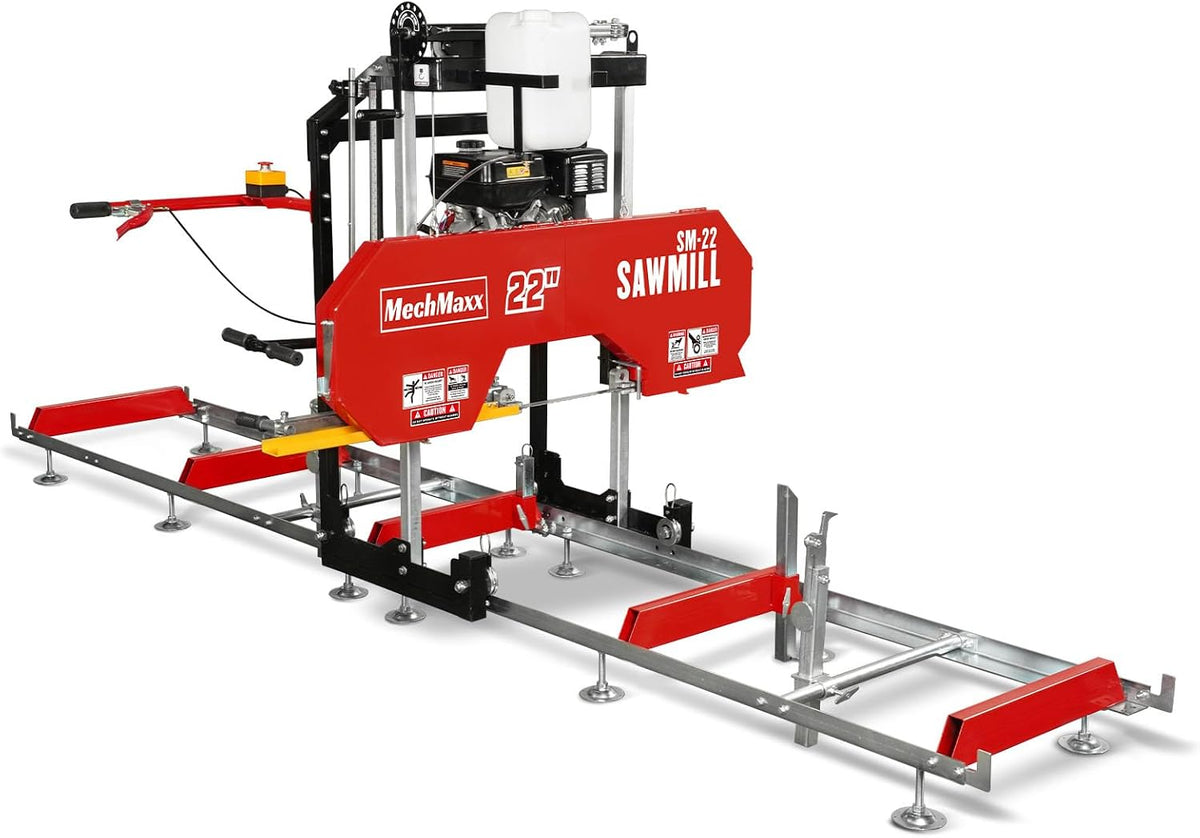

MechMaxx 22" Portable Sawmill, 13' Track Length, 18" Board Width, SM-22

Name: MechMaxx 22" Portable Sawmill, 13' Track Length, 18" Board Width, SM-22
Brand: Manu
Price: 1806.87 USD
Availability: InStock

$1,806.87 USD

~~$1,599.00 USD~~ $1,806.87 USD

Sale Sold out

Shipping calculated at checkout.

Available in 18''-36" with optional track extension for custom cutting. Complete parts availability ensures easy maintenance and after-sales support. One-stop shop with guaranteed compatibility. The machine includes 2-year after-sales support and the engine 1-year support.

Engine	DUCAR DH275
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV
Engine Displacement	274 cc
Horsepower	8.1 HP
Start	Recoil

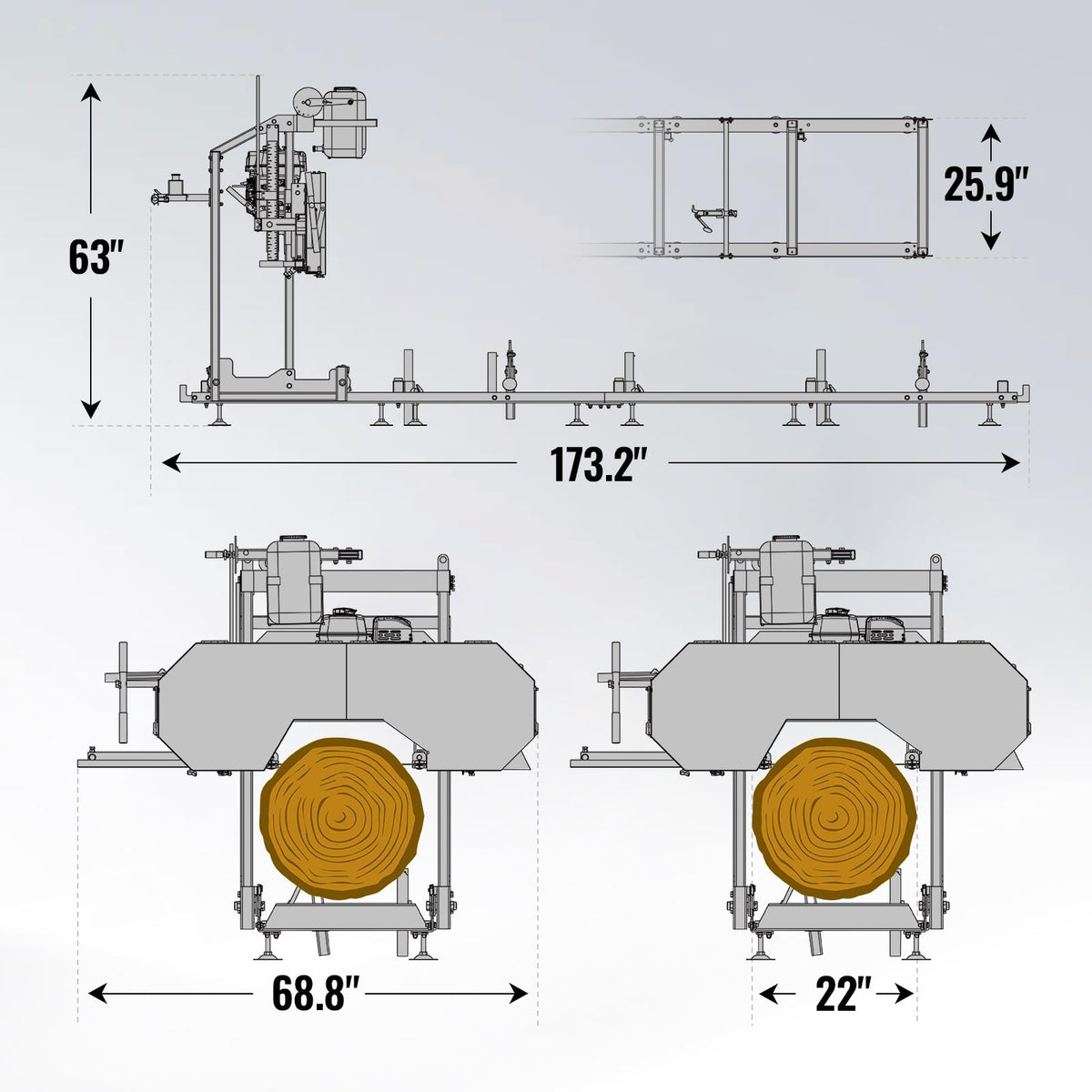

Log Diameter	22 in

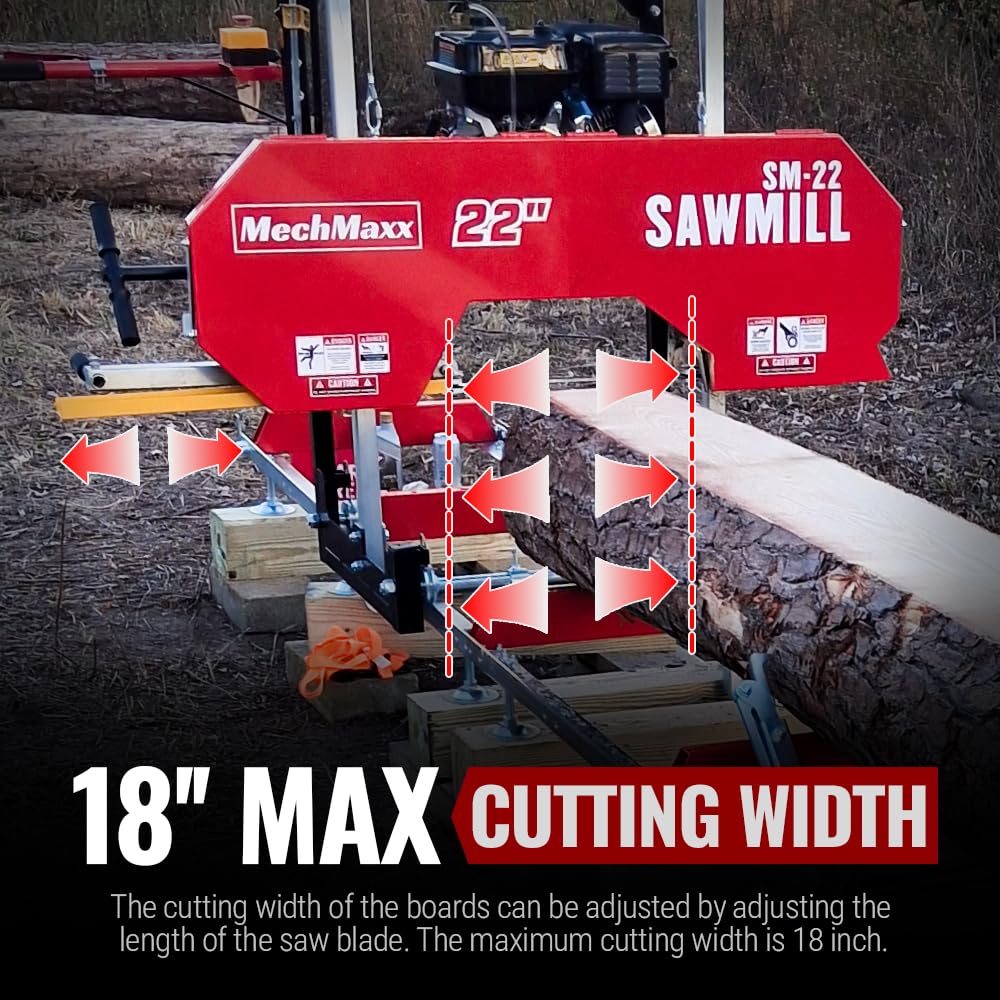

Max Live Edge Width	18 in
Standard Cutting Length	10 ft 5 in
Max Board Thickness	6 in
Blade Engagement System	Centrifugal Clutch
Cast Iron Bandwheel Diameter	16.5 in
Blade Wheel Engagement	Belt Drive
Blade Guide	By Roller
Blade Tension	By Adjustable Lever
Blade Size	127 x 1.3 in
Blade Pitch	7/8 in

Blade Lubrication	Water Lube - Manual Valve
Lubricant Tank Size	2.6 gal
Track Load-Bearing	2 ton
Track Width	2 ft 2 in

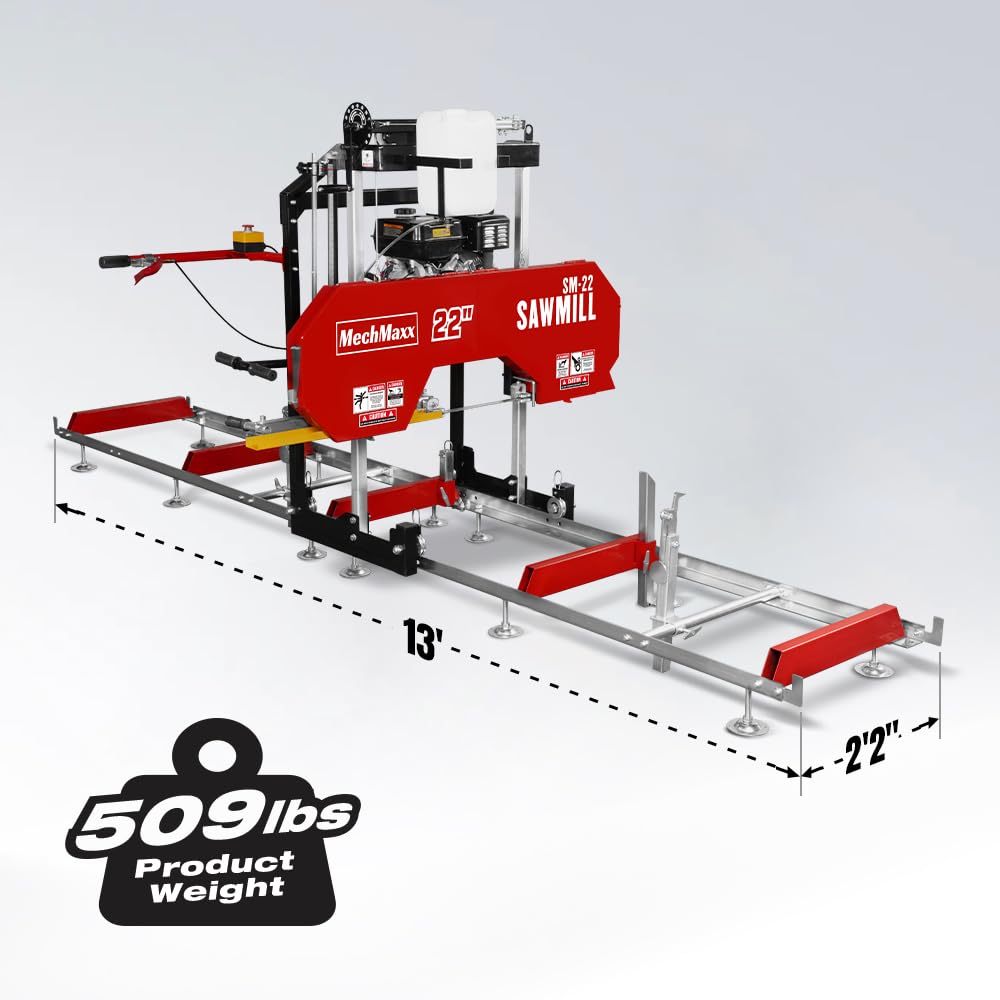

Track Length	13 ft
Levelling Feet	12
Log Rests	2 Long and 2 Short Rests

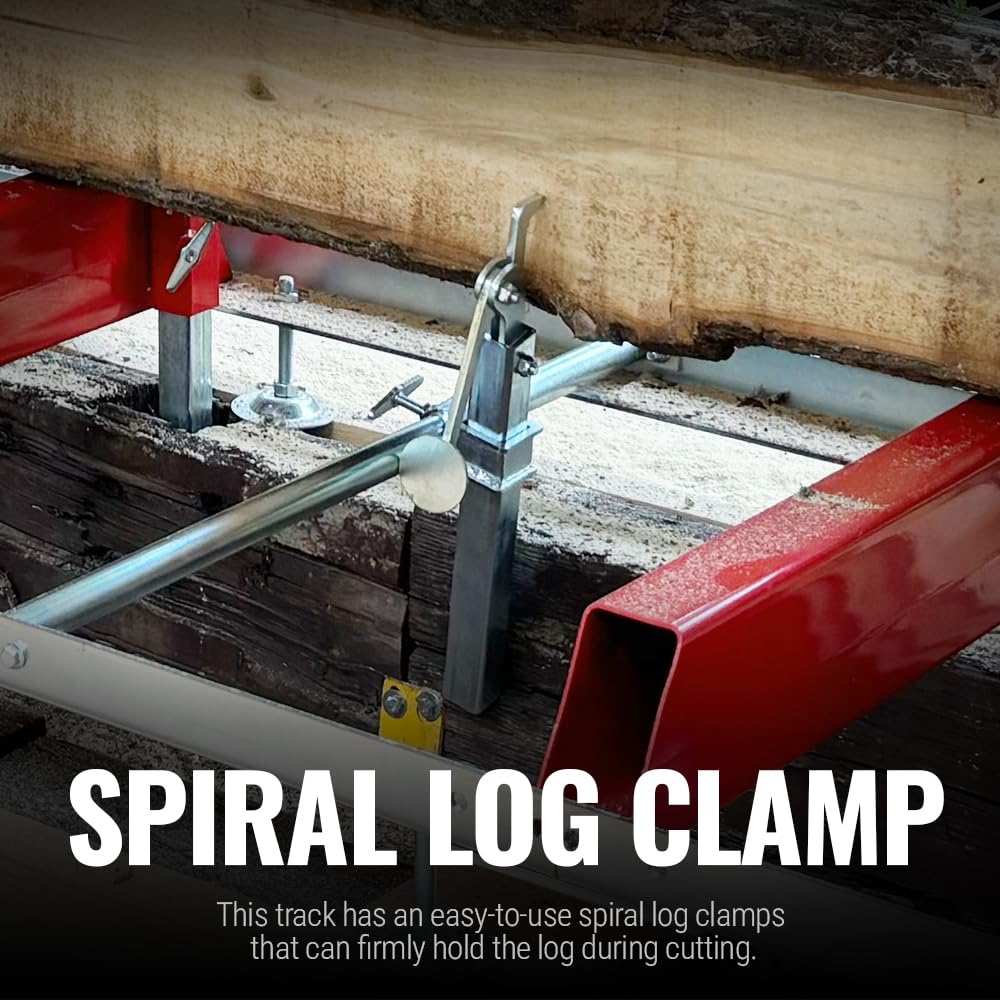

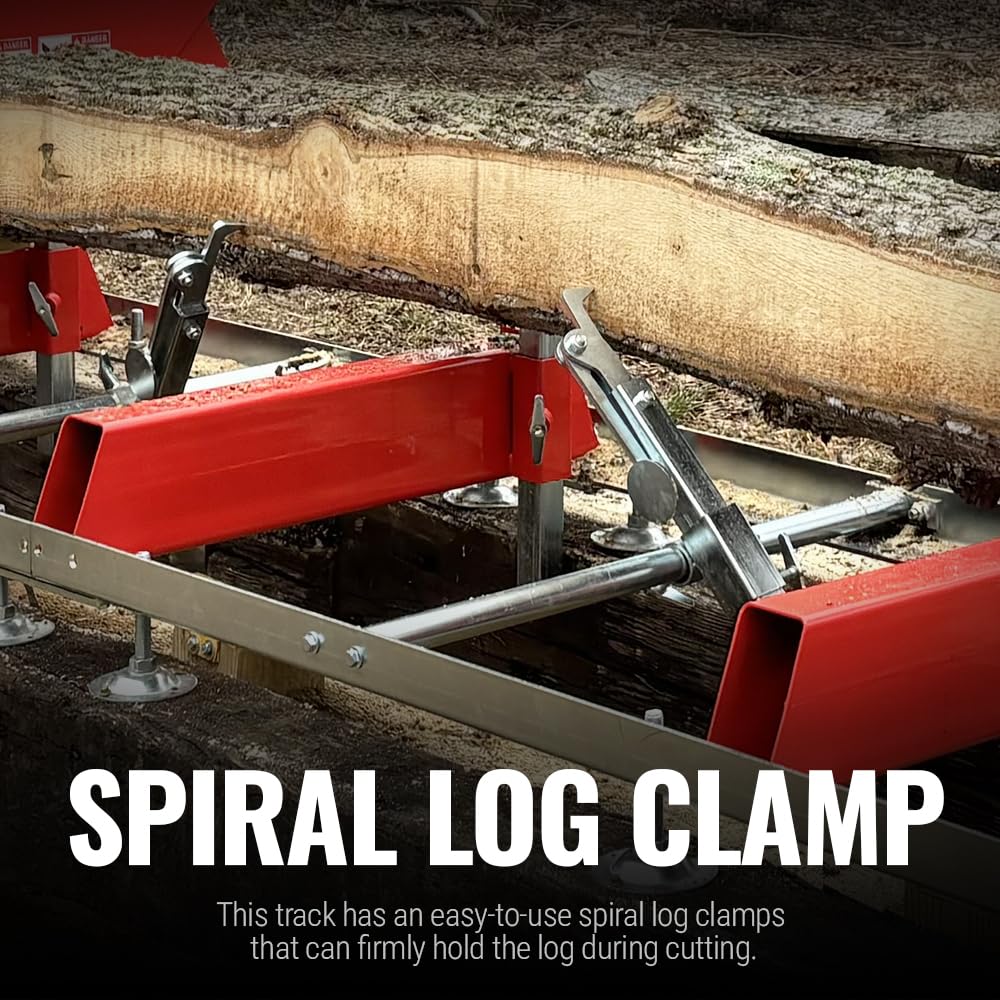

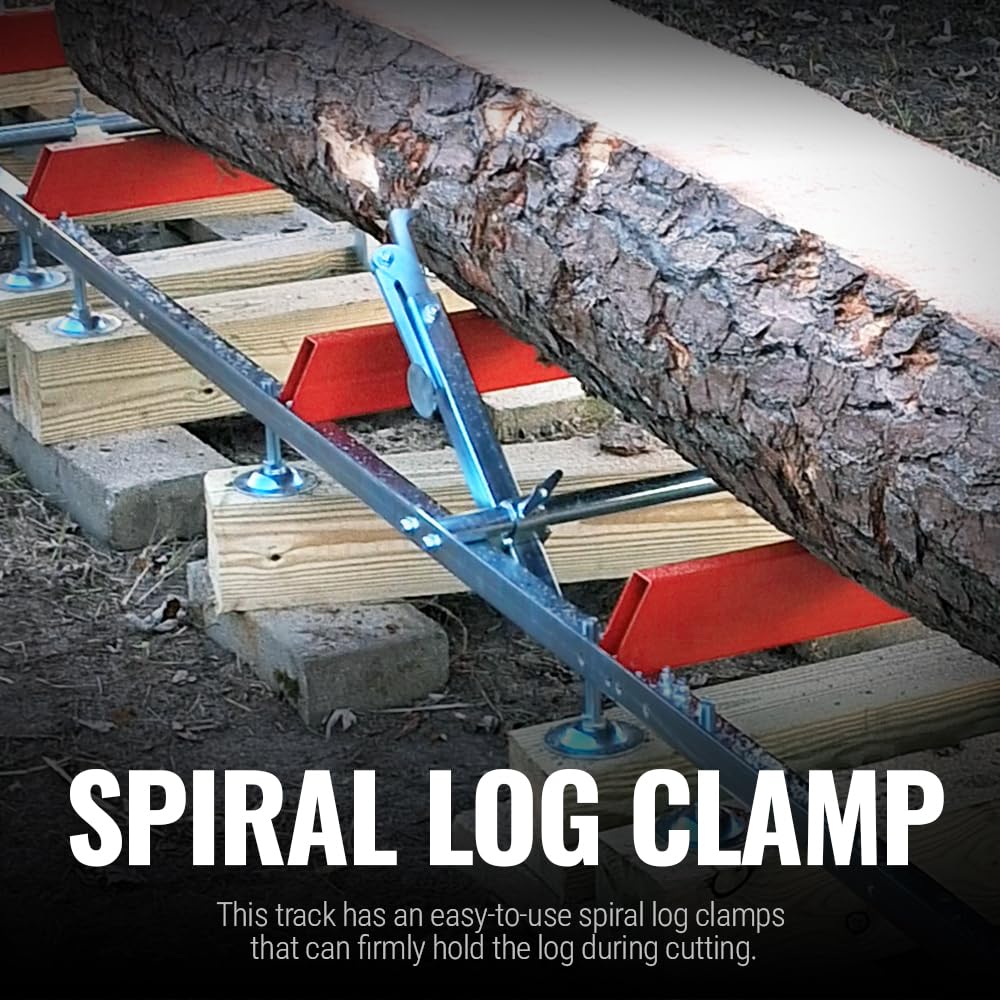

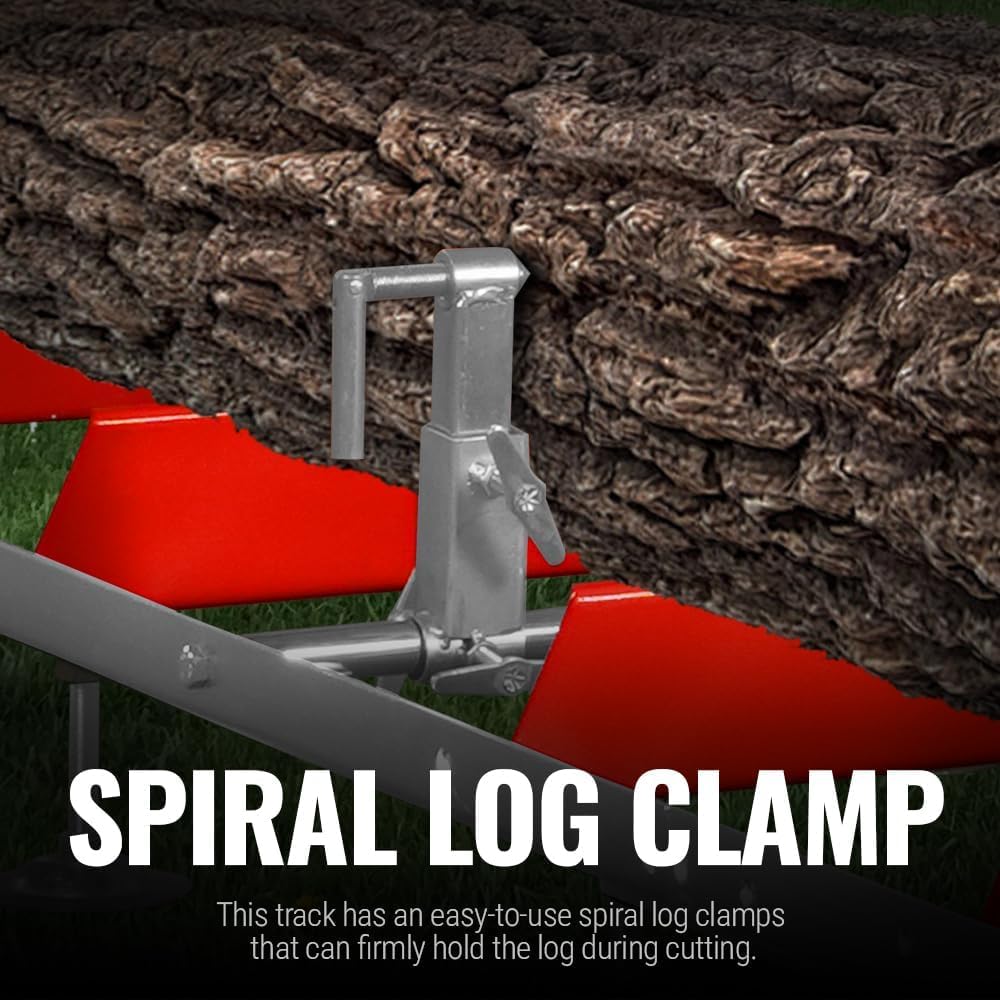

Log Clamps	2 x Quick Lock
Track Bunks	1.6 x 3.9 in
4 Post Head Design	Yes
Finish	Powder Coat Paint Galvanized Steel
Package Method	Wood
Packing Size	87 x 19 x 32 in
Weight (N.W./G.W.)	509/600 lbs

Recommended for you

	SM-22(13')	Trailer for SM-22(13') Buying Options	Track Extension for SM-22	Trailer Track Expansion	Blades for SM-22	Cover for SM-22	Belt for SM-22
Customer Reviews	50	—	4	—	10	—	1
Price	$1,599.00	—	$259.99	$299.00	$169.99	$72.99	$36.99
Engine	DUCAR	—	—	—	—	—	—
Engine Power	274cc；8.1HP	—	—	—	—	—	—
Engine Type	Single Cylinder, 4 Stroke, OHV	—	—	—	—	—	—
Start	Recoil	—	—	—	—	—	—
Log Diameter	22 in	—	—	—	—	—	—
Standard Cutting Length	10 ft 5 in	—	—	—	—	—	—
Max Board Width	18 in	—	—	—	—	—	—
Max Board Thickness	6 in	—	—	—	—	—	—
Track Width	2 ft 2 in	—	—	—	—	—	—
Track Length	13 ft	—	—	—	—	—	—

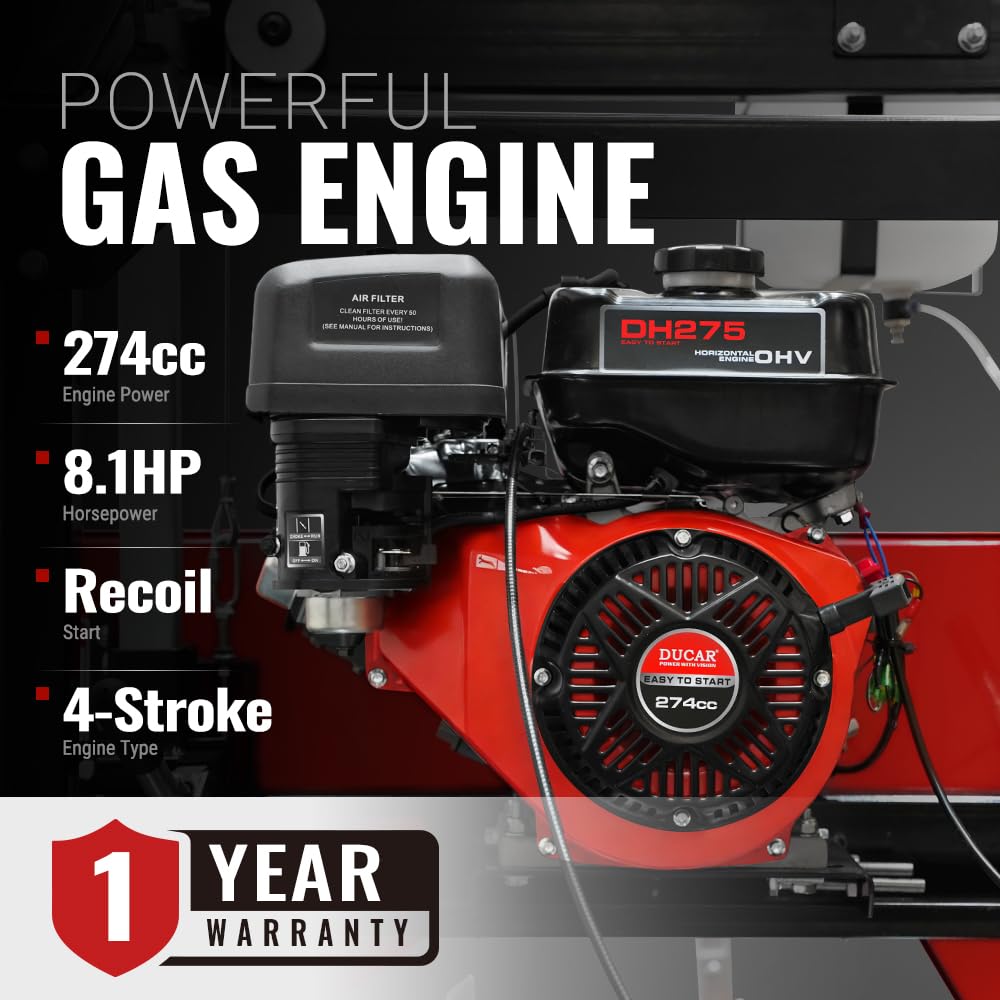

【Power】❶SM-22 sawmill adopts recoil starting DUCAR 274cc 8.1HP 4-stroke single cylinder air-cooled OHV gasoline engine. ❷It can be set up in minutes and stored directly in your garage or workshop.Can withstand heavy work and long hours even in remote areas.

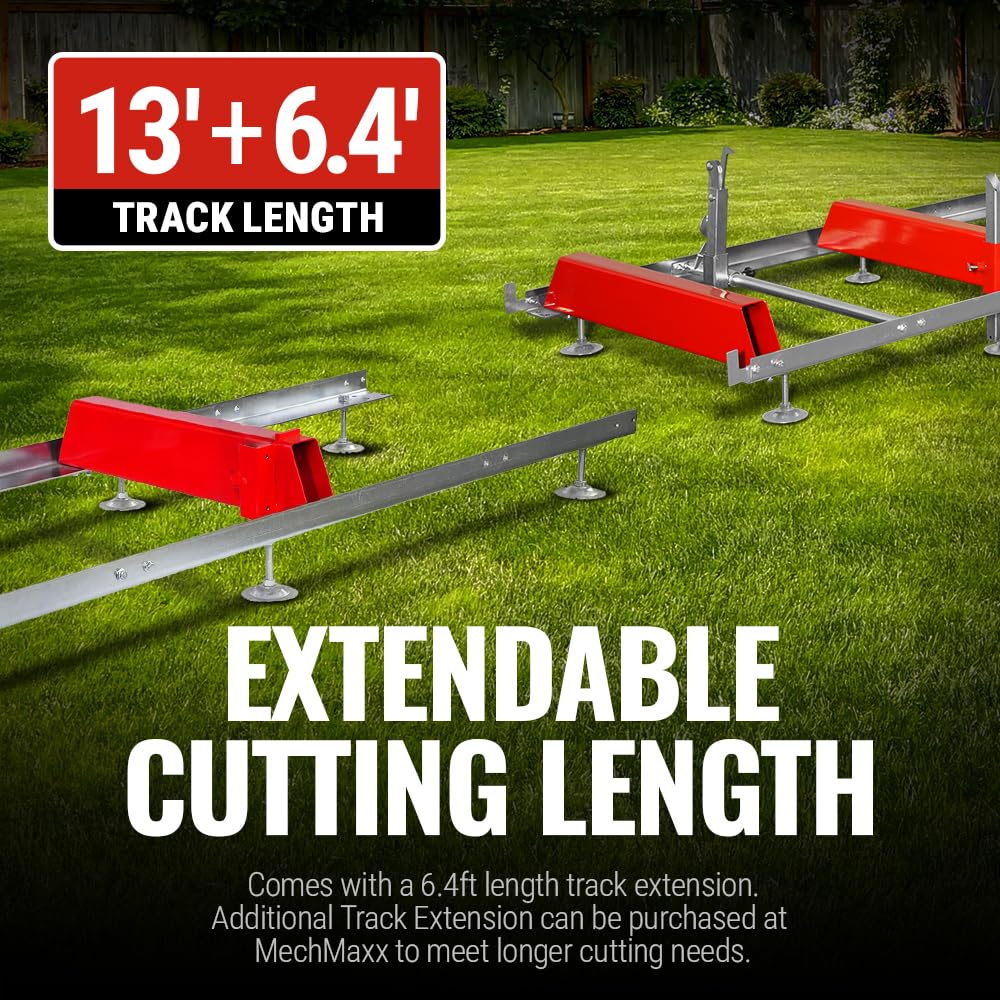

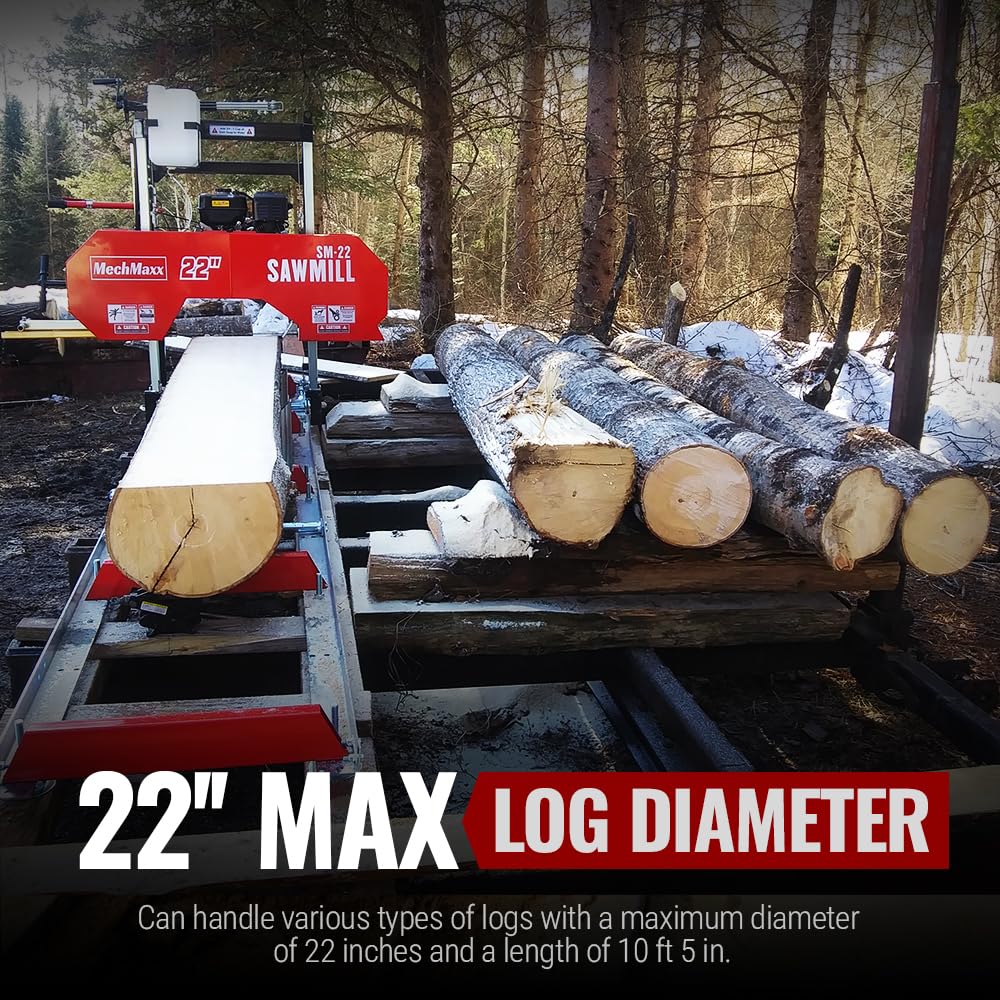

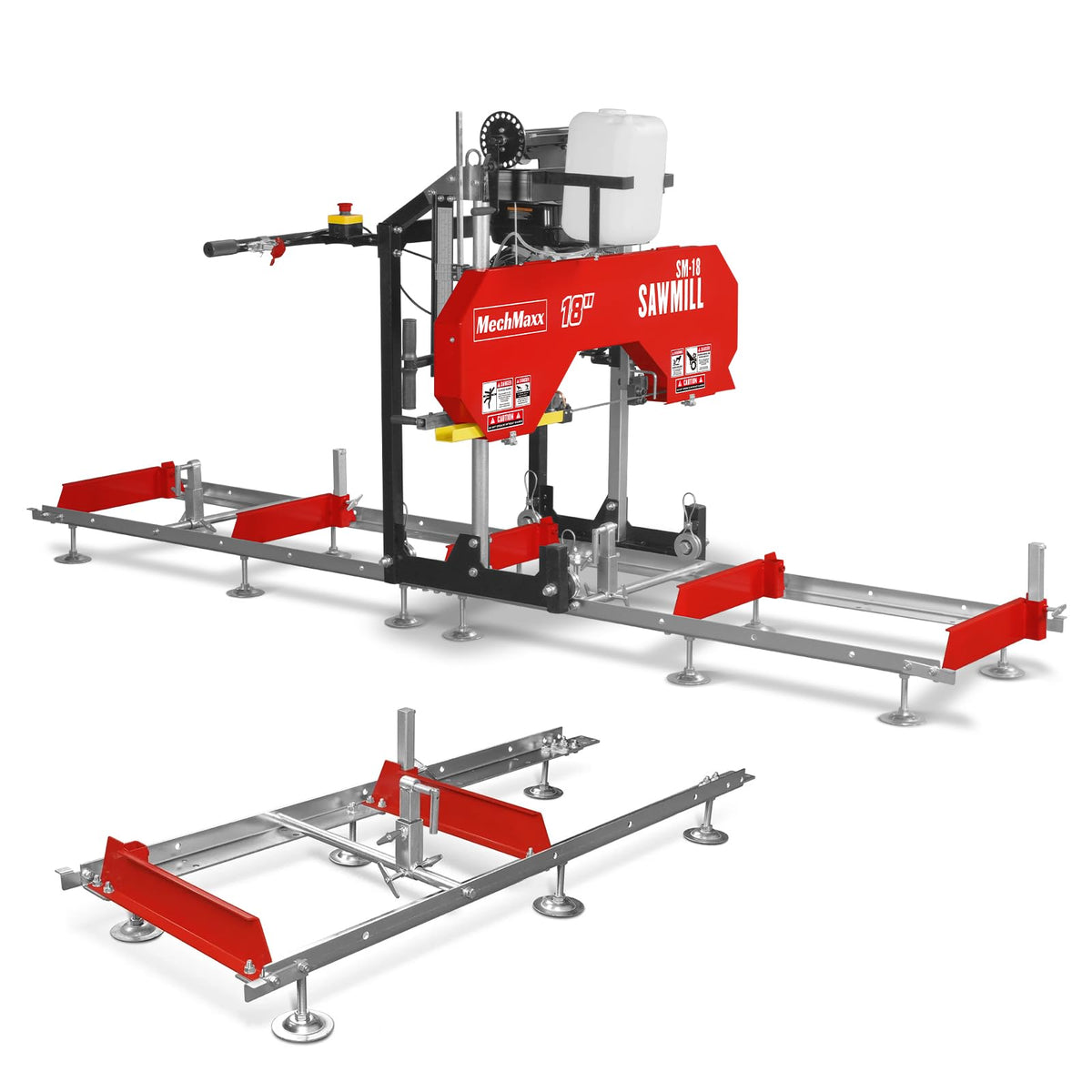

【Capacity】❶Can handle logs with a maximum diameter of 22 inch and a length of 10.4 ft. ❷2 ft 2 in track width,13 ft track length,can cut out boards with a maximum width of 18 inch and a maximum thickness of 6 inch. ❸Additional sawmill bed extensions are available, providing enhanced flexibility.Easily convert rough logs into beautiful slabs.

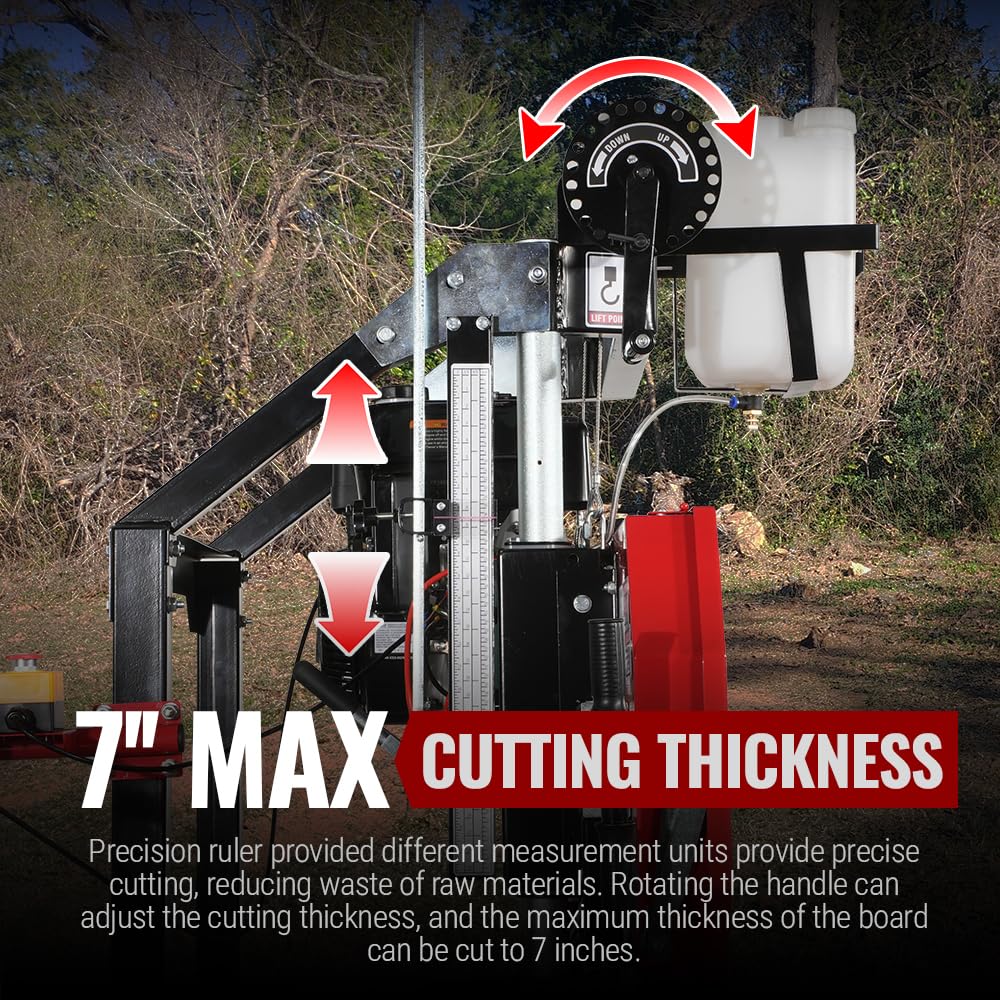

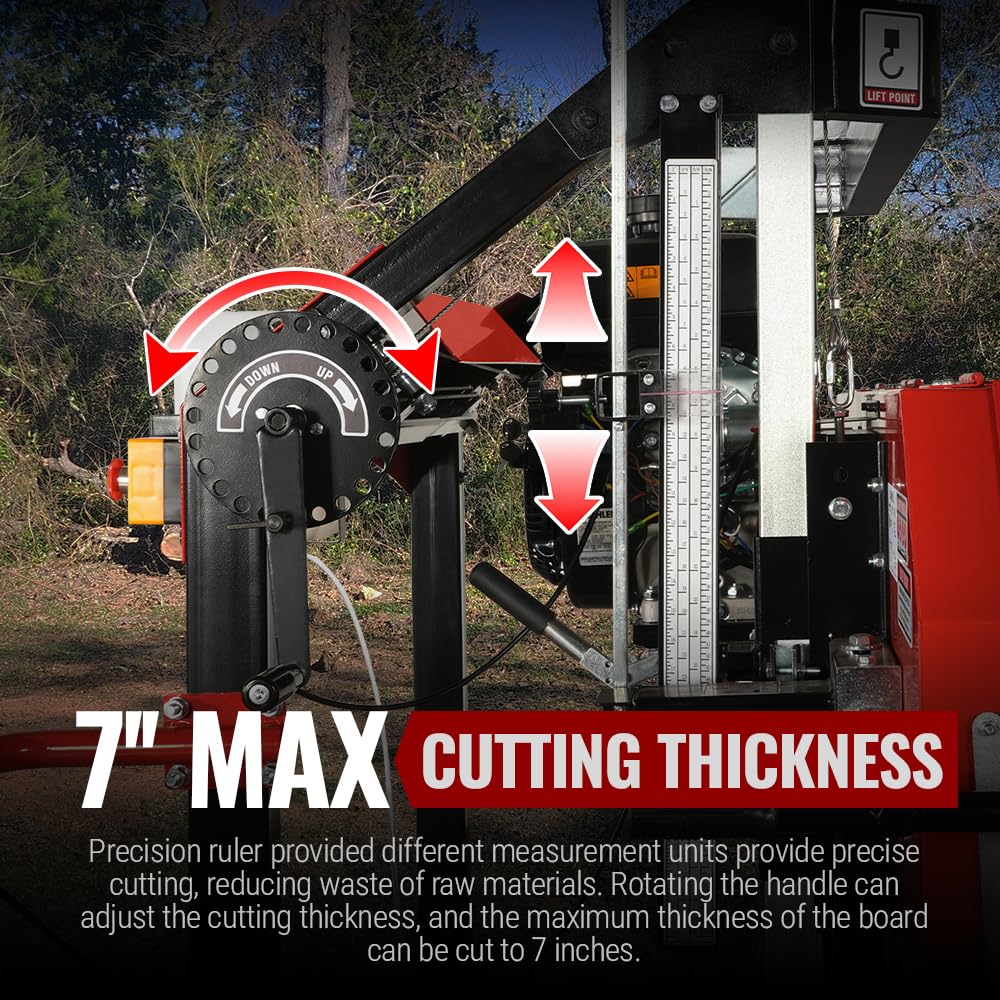

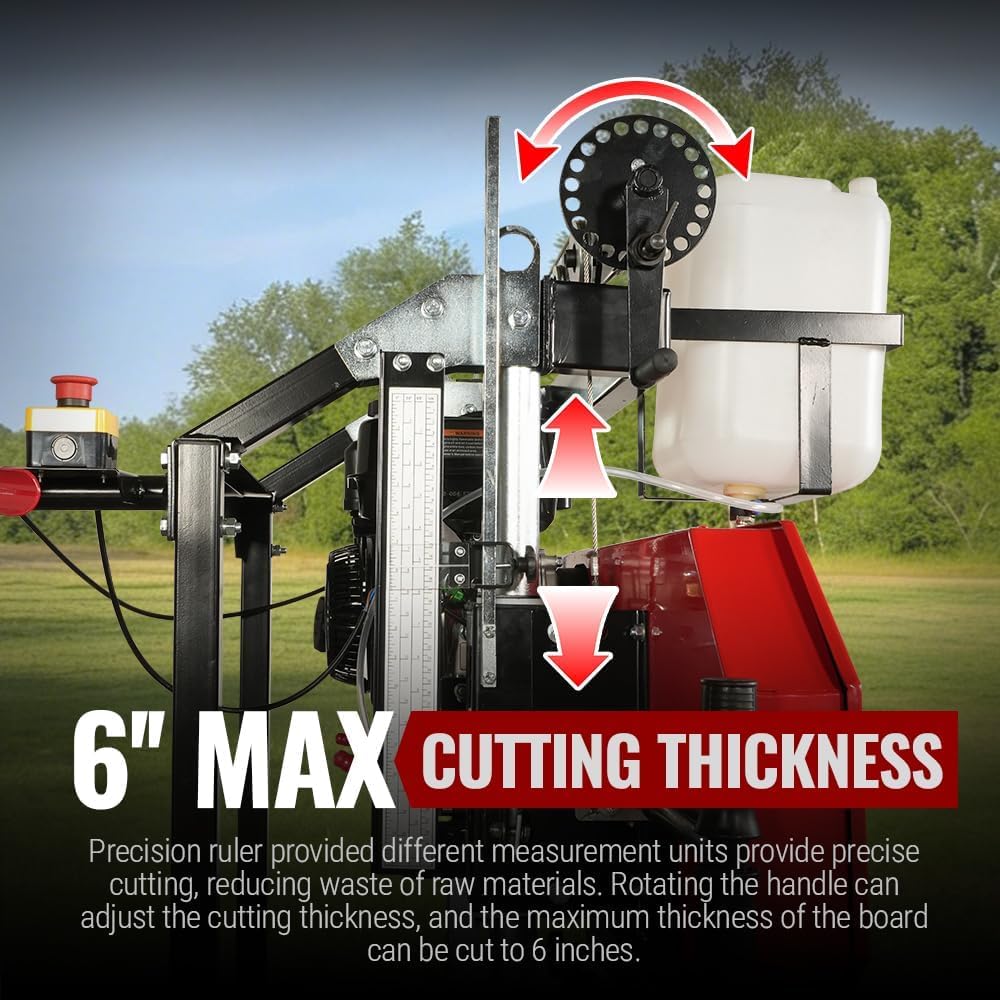

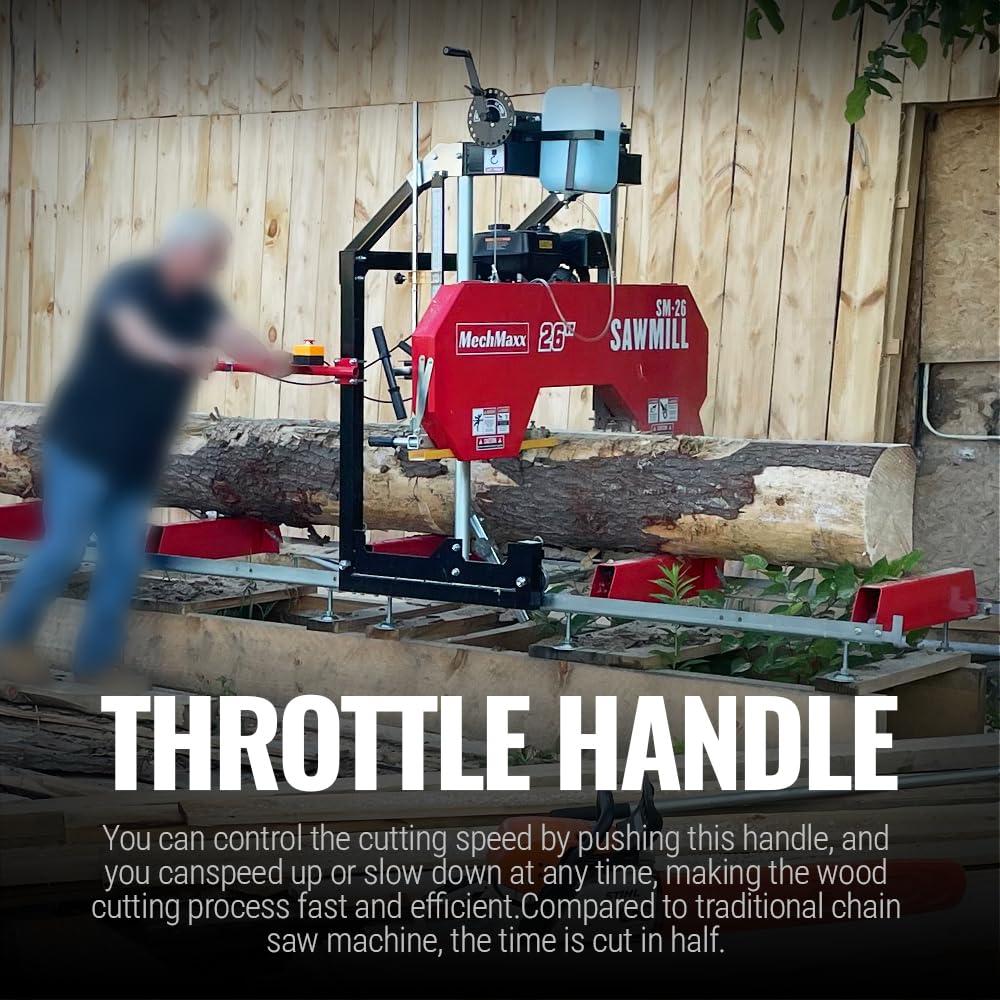

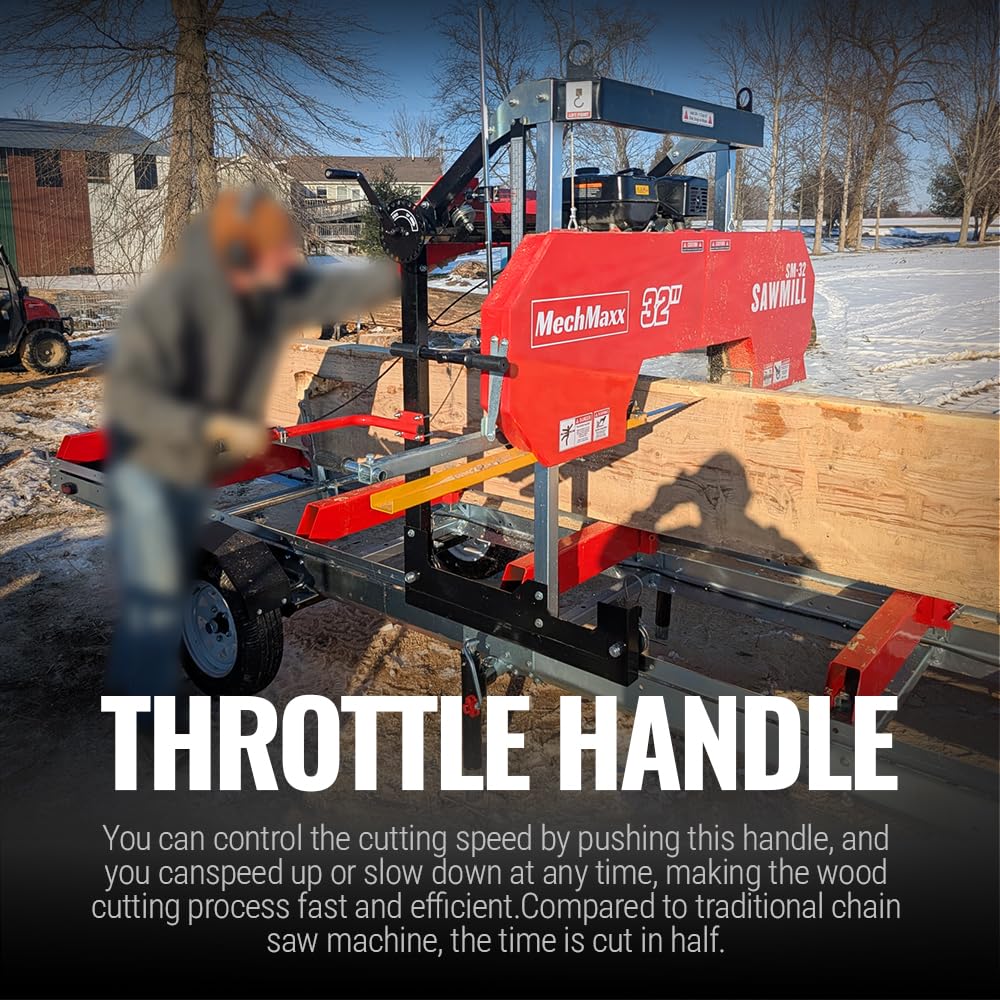

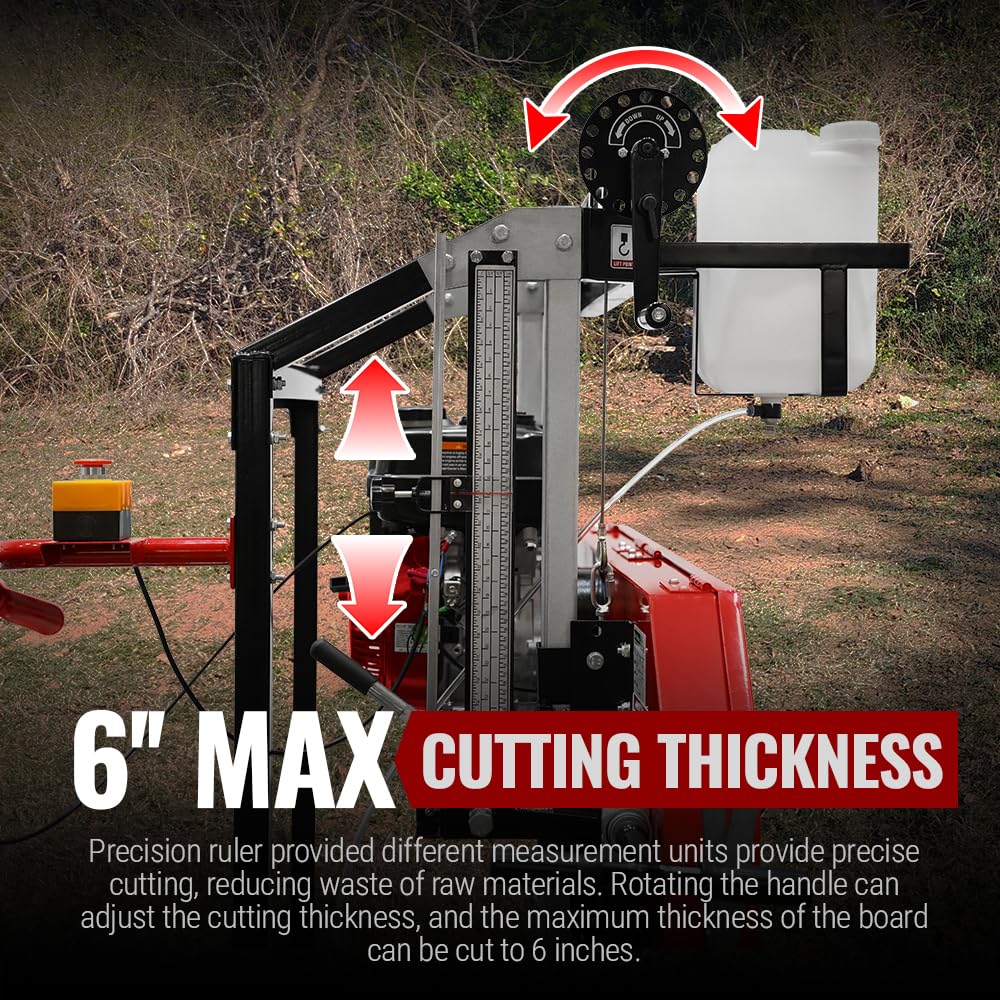

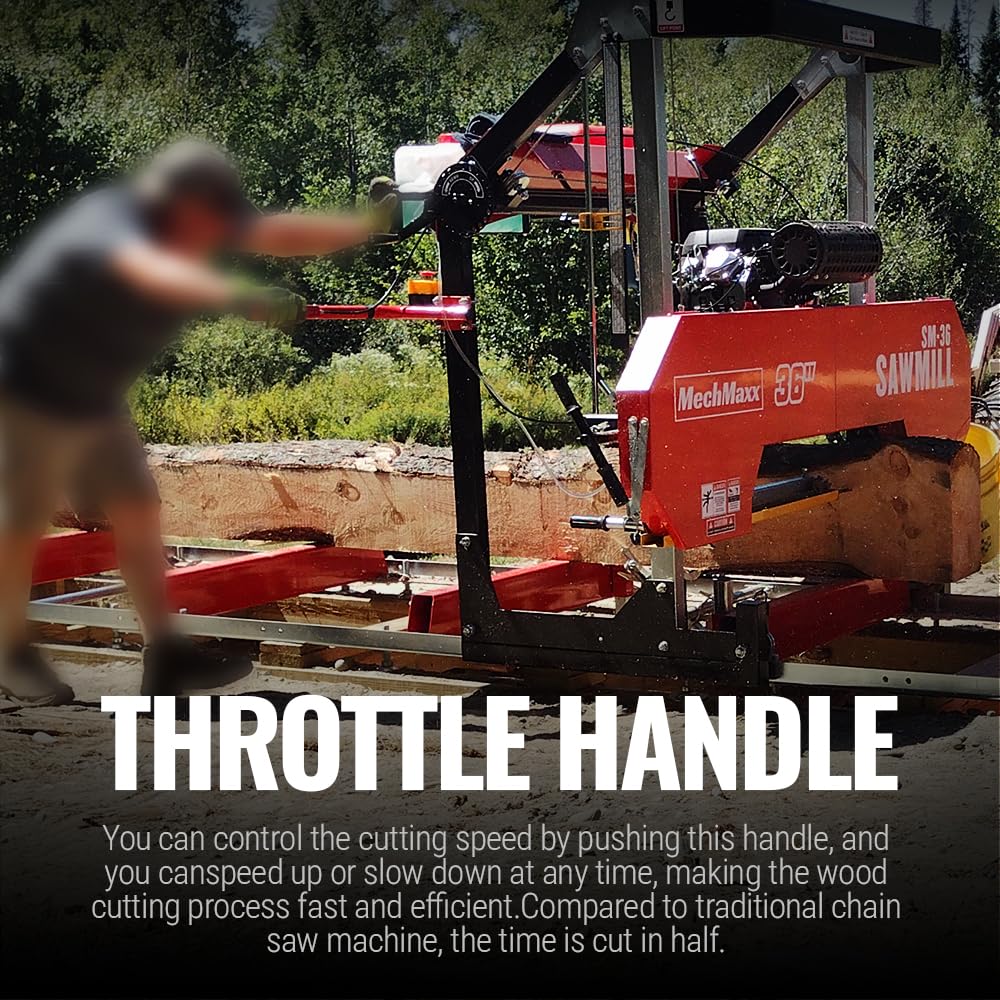

【Efficient&Convenient】❶You can control the cutting speed by pushing handle, speed up or slow down at any time. Compared to traditional chain saw machine, the time is cut in half. ❷Precision ruler provide different measurement units for precise cutting, reduce the waste of raw materials. ❸The saw blade made of carbonized steel is very strong, rotation speed can be as high as 787’’ per second, reducing wood chips while ensuring smooth cutting.

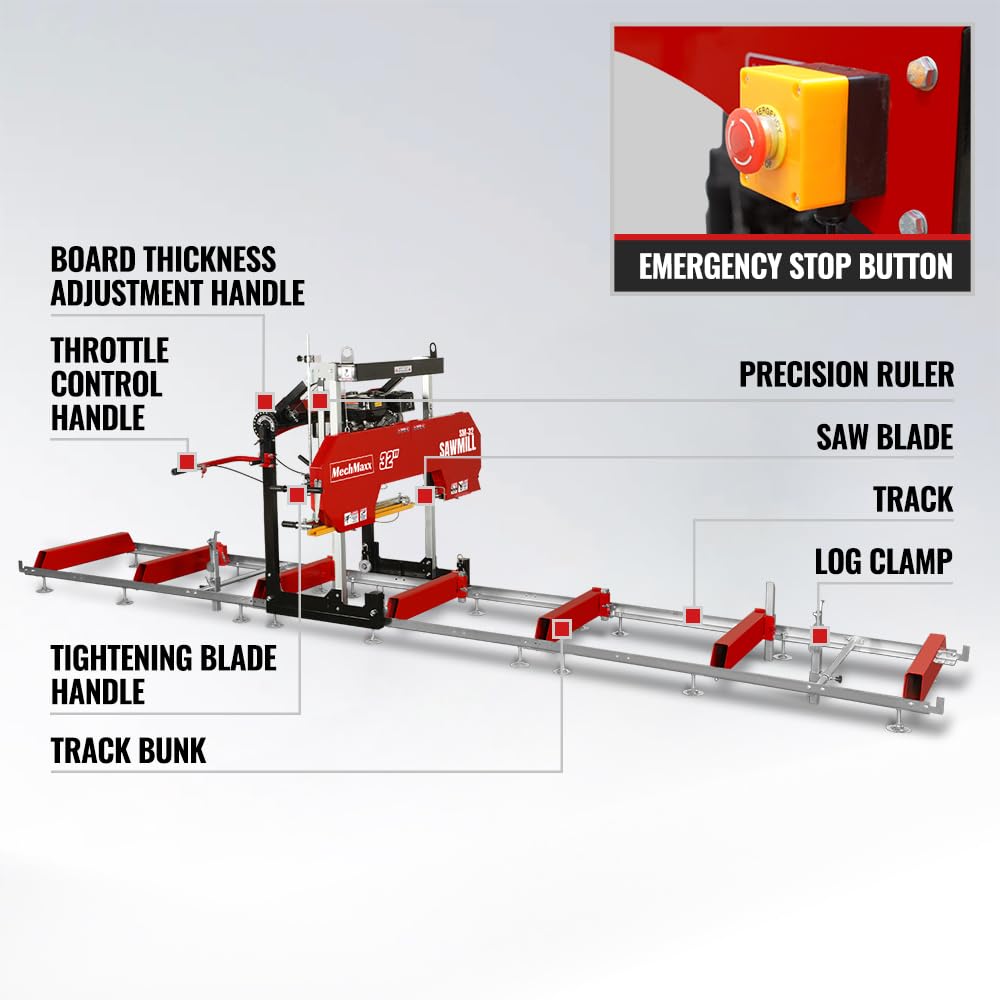

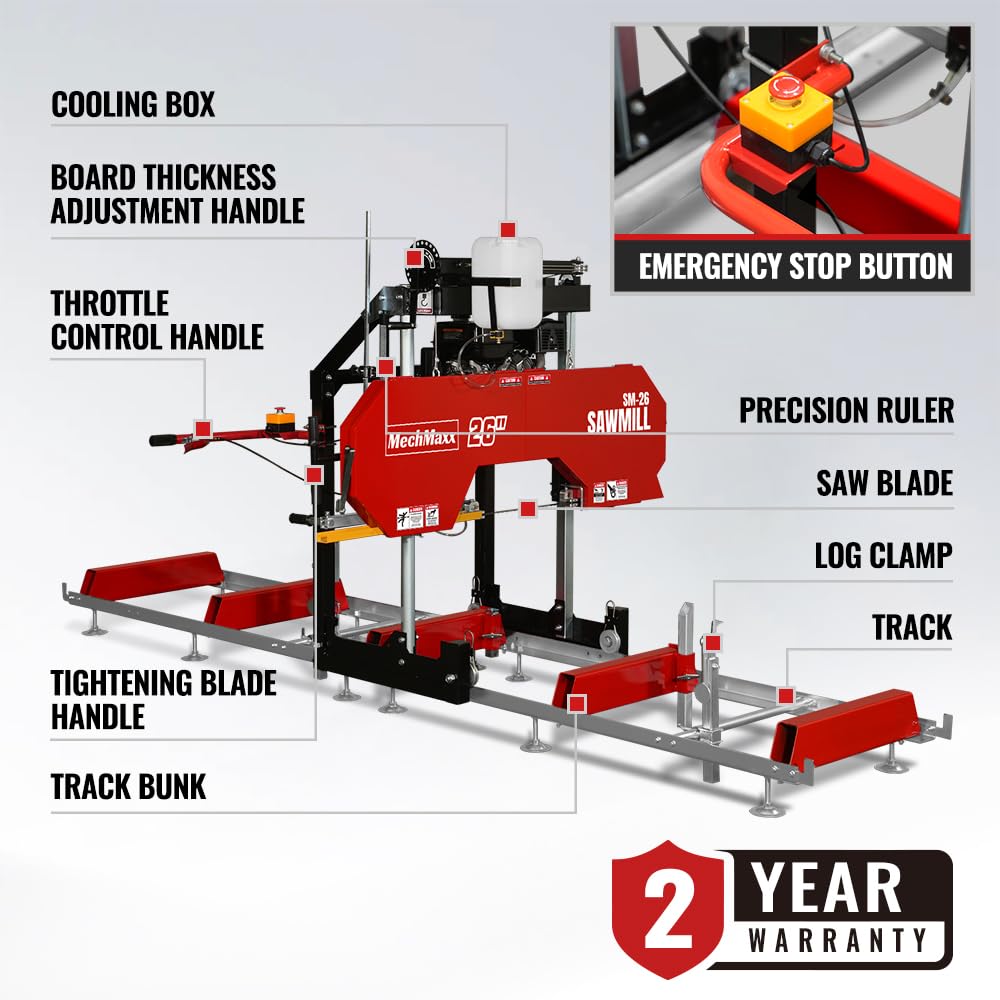

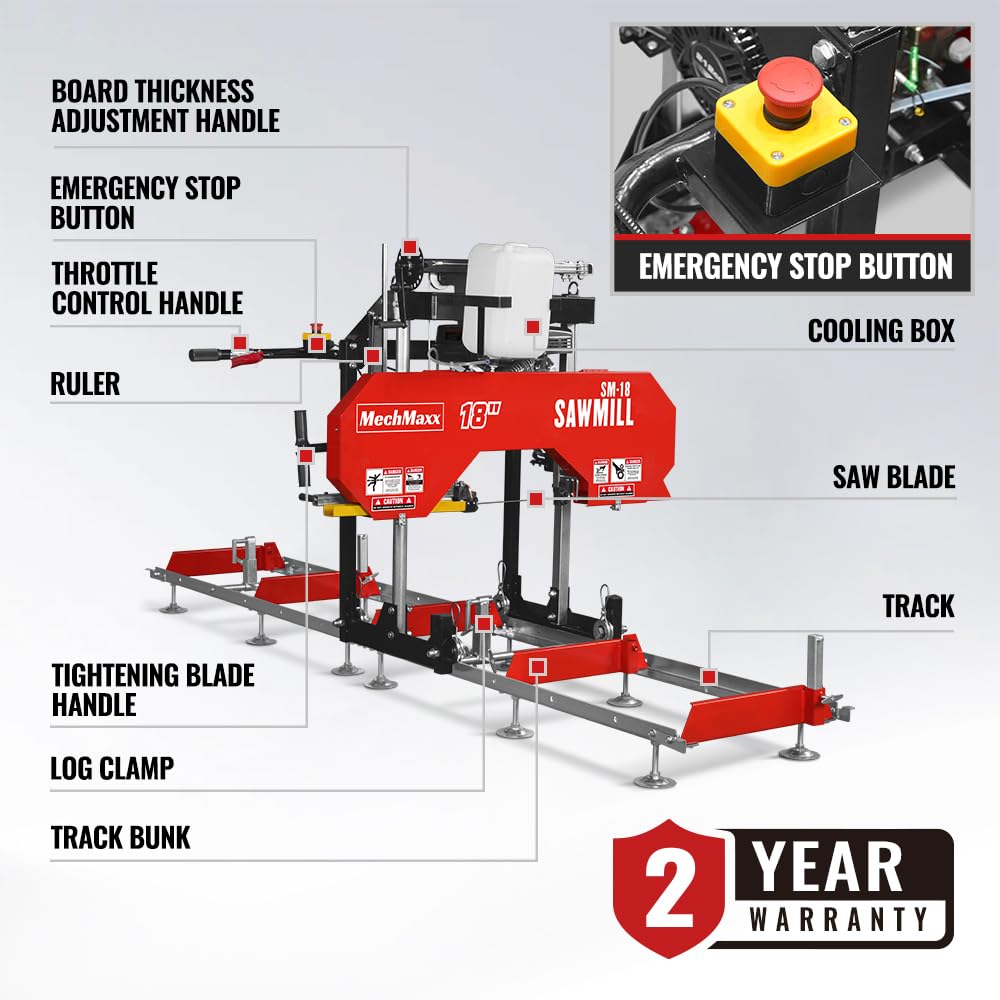

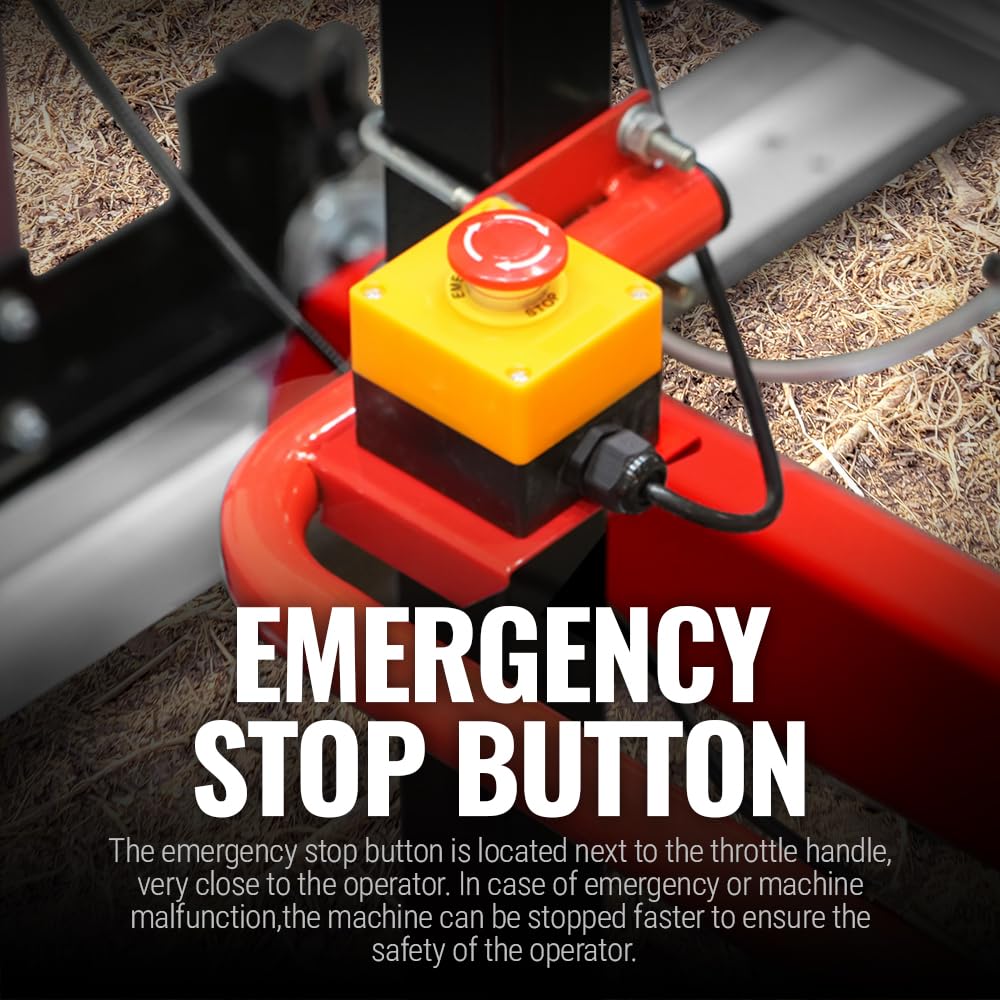

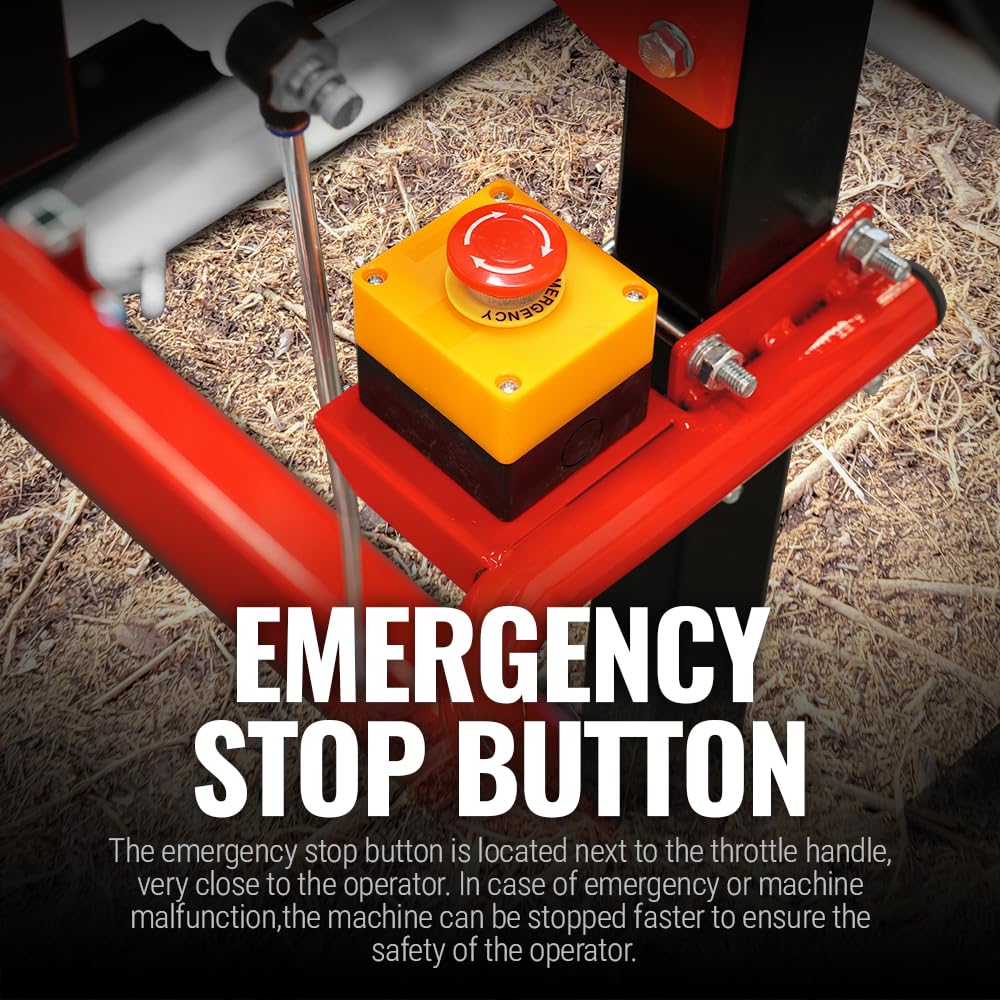

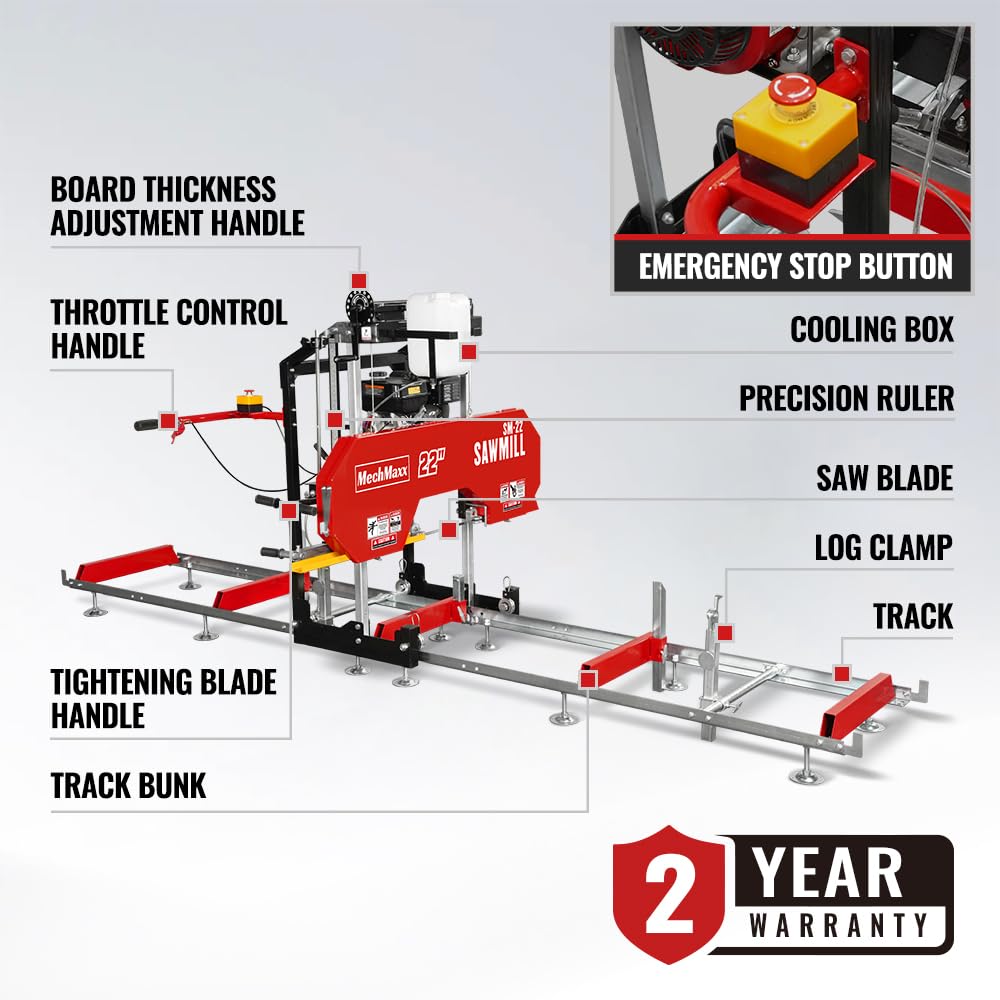

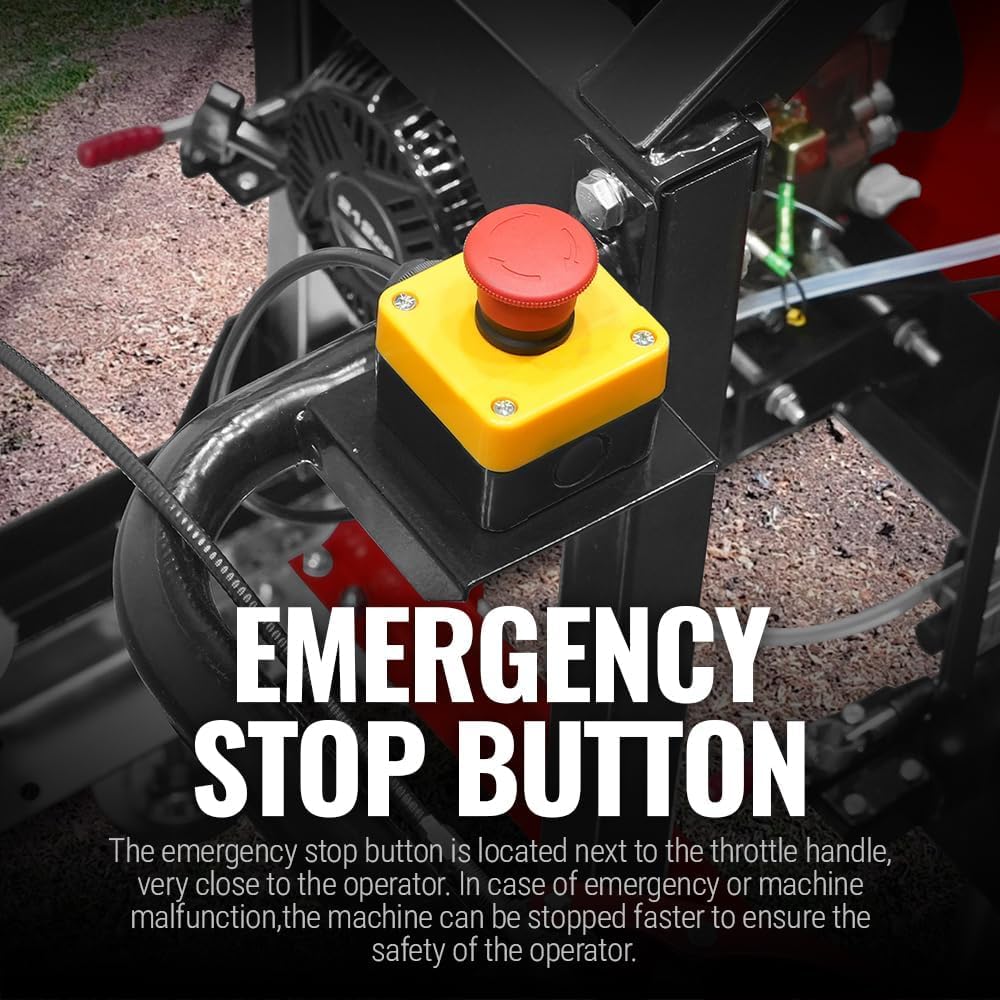

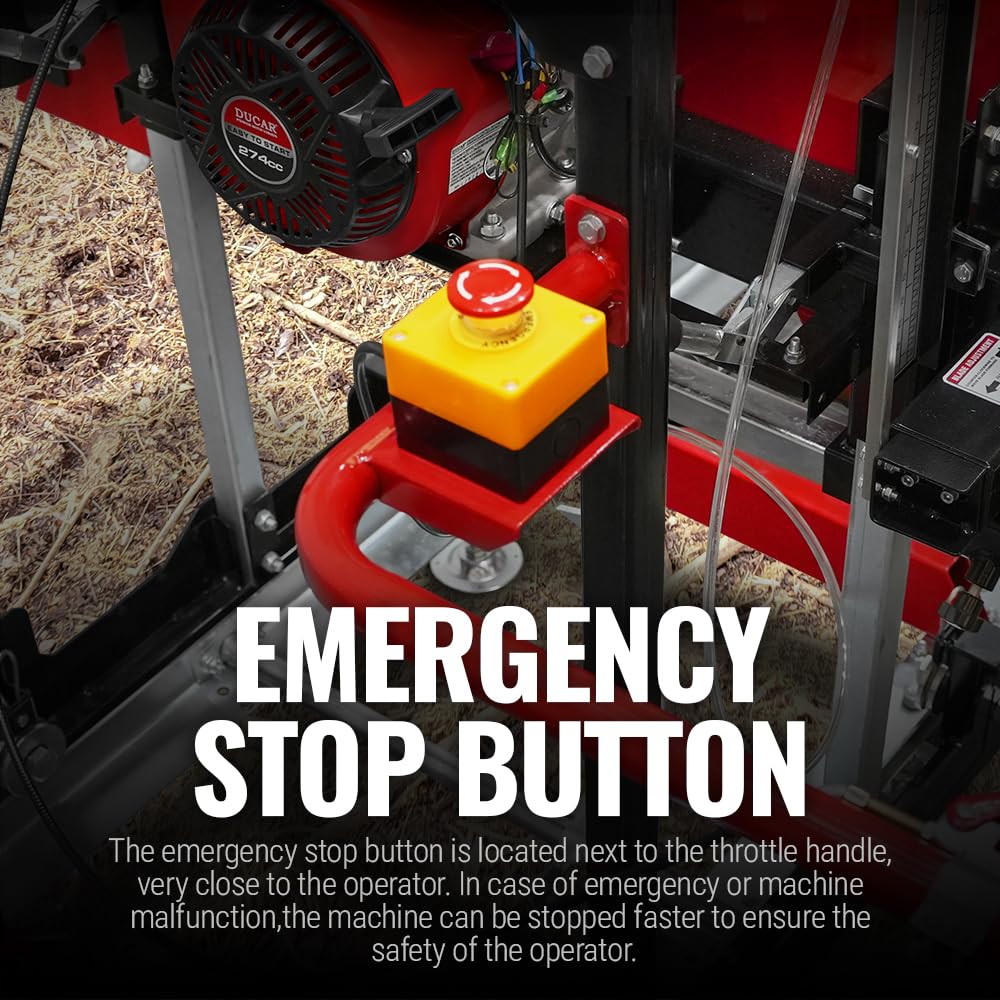

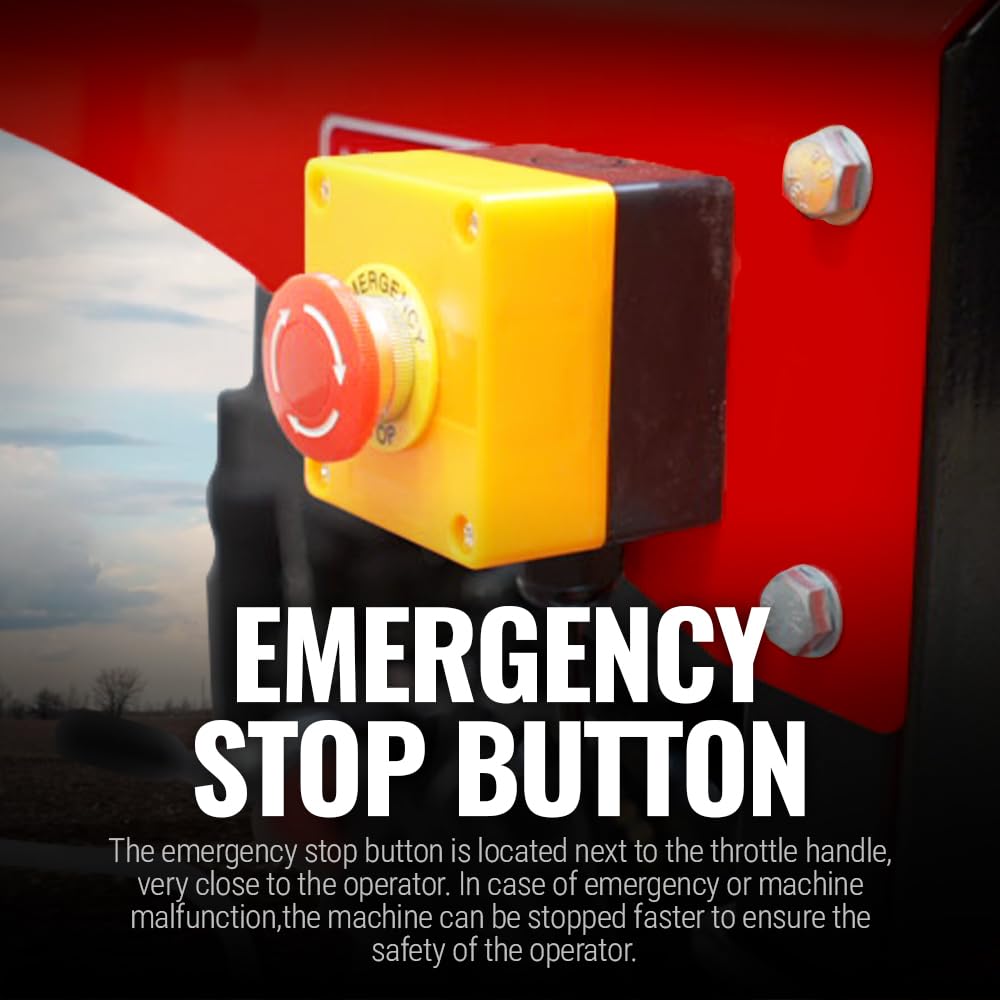

【Safe】The emergency stop button is located very close to the operator.When encountering emergency or equipment malfunctions, the machine can be quickly stopped to protect the safety of the equipment and operators.
【Application】Can handle cedar,walnut,oak and other logs.You can mill lumber in remote areas, homes, forests, or where the tree falls.Very suitable for carpentry, homeowners, builders,arborists,woodworkers,arborists and sawyers.

› See more product details
