LiftMaster LA500PKGUL Dual Swing Gate Operator Kit – Includes Primary & Secondary Arms, Control Box, KPW250, 811LM, 828LM, LMRRUL, LA Ornamental 42" Aluminum Pedestal - Gate Openers and More

LiftMaster LA500PKGUL Dual Swing Gate Operator Kit – Includes Primary & Secondary Arms, Control Box, KPW250, 811LM, 828LM, LMRRUL, LA Ornamental 42" Aluminum Pedestal - Gate Openers and More

$4,404.50 USD
$3,830.00 USD $4,404.50 USD
Sale Sold out
Shipping calculated at checkout.

The LA500PKGUL is a dual-arm swing gate operator kit engineered for residential, commercial, and light industrial use. Designed for heavy-duty swing gates up to 18 ft long or 1,600 lbs per leaf, it features a powerful 24VDC motor with battery backup capability, myQ connectivity, and UL325 safety compliance. Custom fabricated by L.A. Ornamental - Gate Openers and more

With soft start/soft stop technology, weather-resistant construction, and high reliability, the LA500PKGUL dual kit ensures smooth and secure operation. It comes complete with remotes, wireless keypad, safety devices, and pedestal for a ready-to-install solution.

  • Key Features
  • Dual Gate Operation – Includes both primary and secondary LA500DC arms
  • Heavy-Duty Design – Handles gates up to 18 ft / 1,600 lbs per leaf
  • Smart Connectivity – Built-in myQ technology with 828LM Gateway
  • Battery Backup – Ensures access even during power outages
  • Smooth Operation – Soft start/soft stop, easy set limits
  • Safety First – UL325 compliant, includes LMRRUL photo eye
  • Durability – Commercial-grade components for continuous use

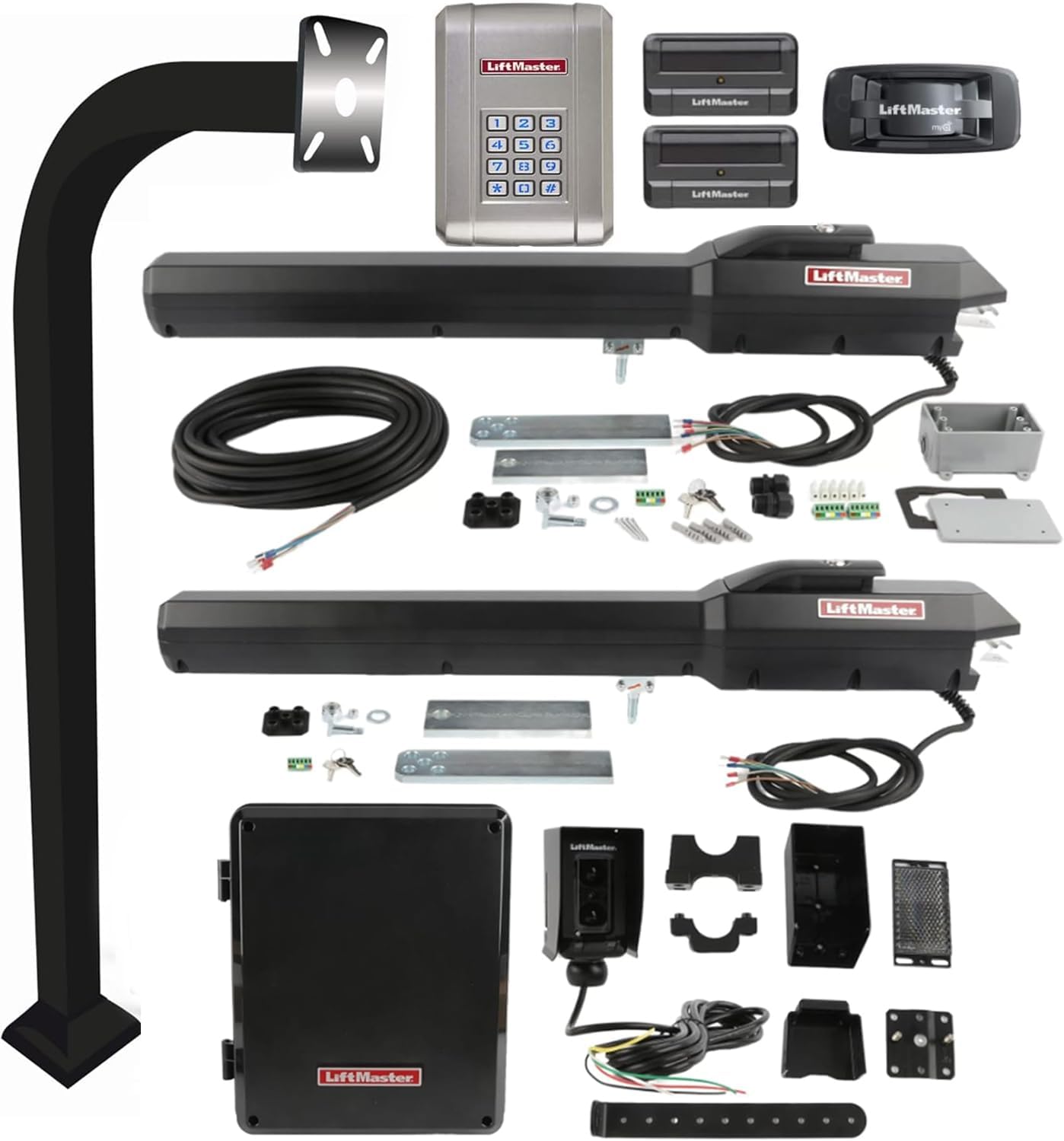

  • Included in This Kit
  • (1) LA500DC Primary Arm Operator
  • (1) LA500DCS Secondary Arm Operator
  • (1) LA500CONTUL Control Box
  • (1) LMRRUL Retro-Reflective Safety Photo Eye with Reflector
  • (2) 811LM Single-Button Remotes (Security+ 2.0)
  • (1) KPW250 Wireless Keypad (Commercial-grade, weather-resistant)
  • (1) 828LM MyQ Internet Gateway

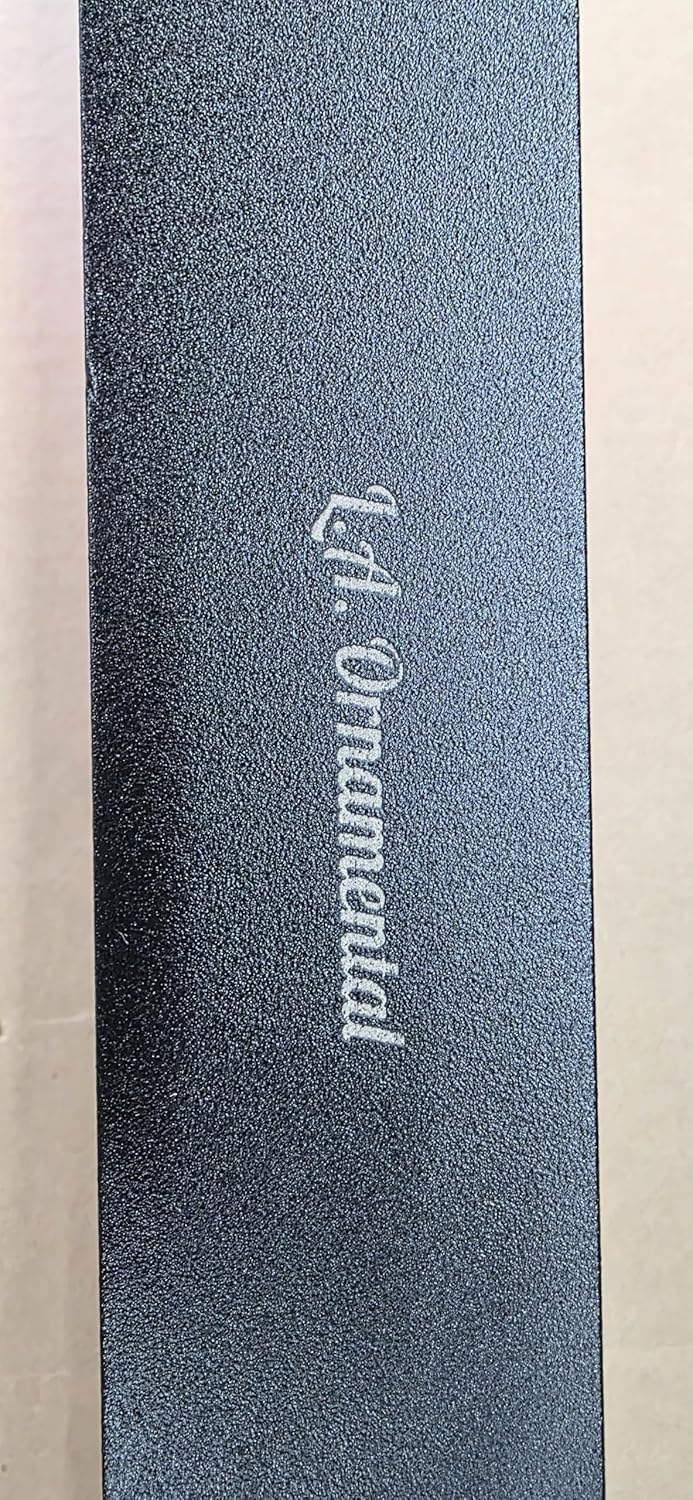

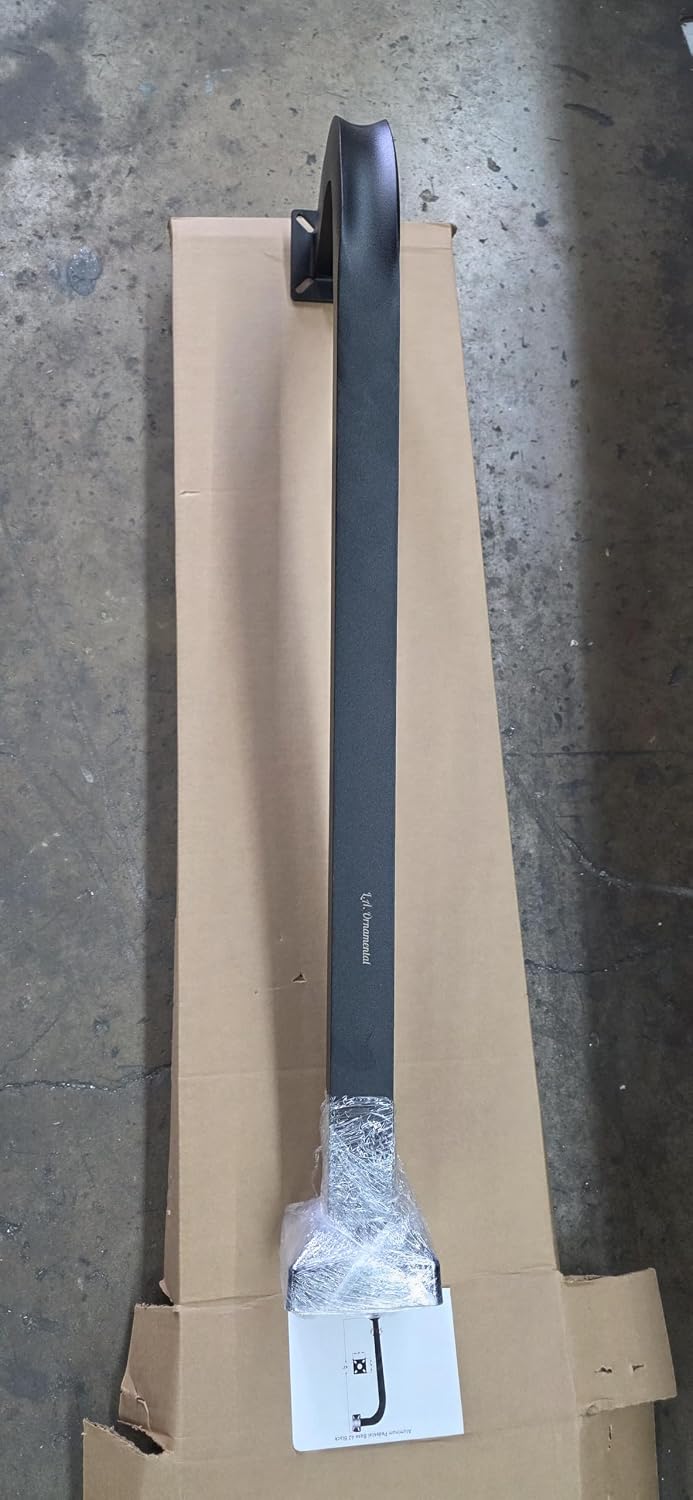

  • (1) Heavy Wall Aluminum Gooseneck Pedestal, 42" (LA Ornamental, black finish)
  • Installation hardware & user manuals

  • Technical Specifications
  • Motor: 24VDC, Continuous Duty, ½ HP equivalent
  • Maximum Gate Length: 18 ft per leaf
  • Maximum Gate Weight: 1,600 lbs per leaf
  • Power Supply: AC or solar (up to 30W solar panels)
  • Accessory Power Output: 24VDC, 500mA
  • Gate Speed: ~15–17 seconds (90° opening)
  • Safety Compliance: UL325
  • Mounting: Pad mount

  • The LA500PKGUL is a dual-arm swing gate operator kit engineered for residential, commercial, and light industrial use. Designed for heavy-duty swing gates up to 18 ft long or 1,600 lbs per leaf, it features a powerful 24VDC motor with battery backup capability, myQ connectivity, and UL325 safety compliance. Custom fabricated by L.A. Ornamental - Gate Openers and more
  • Included in This Kit: (1) LA500DC Primary Arm Operator, (1) LA500DCS Secondary Arm Operator, (1) LA500CONTUL Control Box, (1) LMRRUL Retro-Reflective Safety Photo Eye with Reflector, (2) 811LM Single-Button Remotes (Security+ 2.0), (1) KPW250 Wireless Keypad (Commercial-grade, weather-resistant), (1) 828LM MyQ Internet Gateway, (1) Heavy Wall Aluminum Gooseneck Pedestal, 42" (LA Ornamental, black finish), Installation hardware & user manuals
