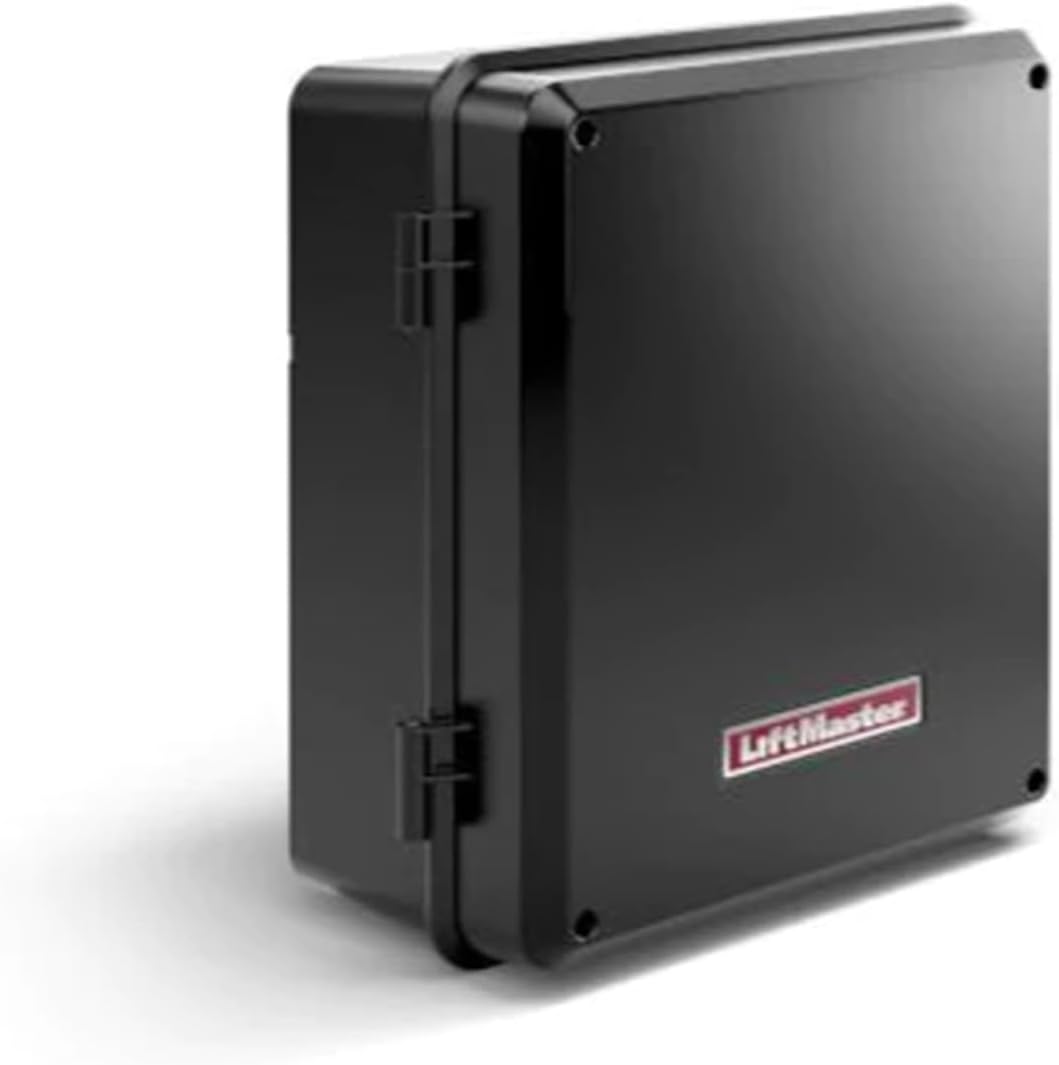

LiftMaster LA500CONTUL 24VDC Standard Control Panel – Complete Control Box for LA500 Swing Gate Operators

The LA500CONTUL is a standard 24VDC control panel engineered for use with LA500 series swing gate operators. This complete control box houses all essential electronic components required to manage gate movement, safety inputs, accessories, and system logic in commercial and high-traffic installations.

Designed for reliability and ease of service, the control panel includes a main control board, expansion board, battery backup system, piezo alarm, and toroidal transformer, all secured inside a durable plastic enclosure. The LA500CONTUL provides stable power distribution, advanced gate control functionality, and dependable performance, making it an ideal replacement or upgrade control panel for LA500 gate operator systems.

• Special Features:
• 24VDC gate control platform
• Battery backup capability
• Integrated audible piezo alarm
• Expansion board support for added functionality
• Factory-assembled standard control box

• Specifications:
• Part Number: LA500CONTUL / LA500CONTUL-MC
• Operating Voltage: 24VDC
• Application: Swing gate operator control panel
• Enclosure Type: Standard plastic control box
• Battery Backup: Included
• Usage: Commercial and high-duty applications

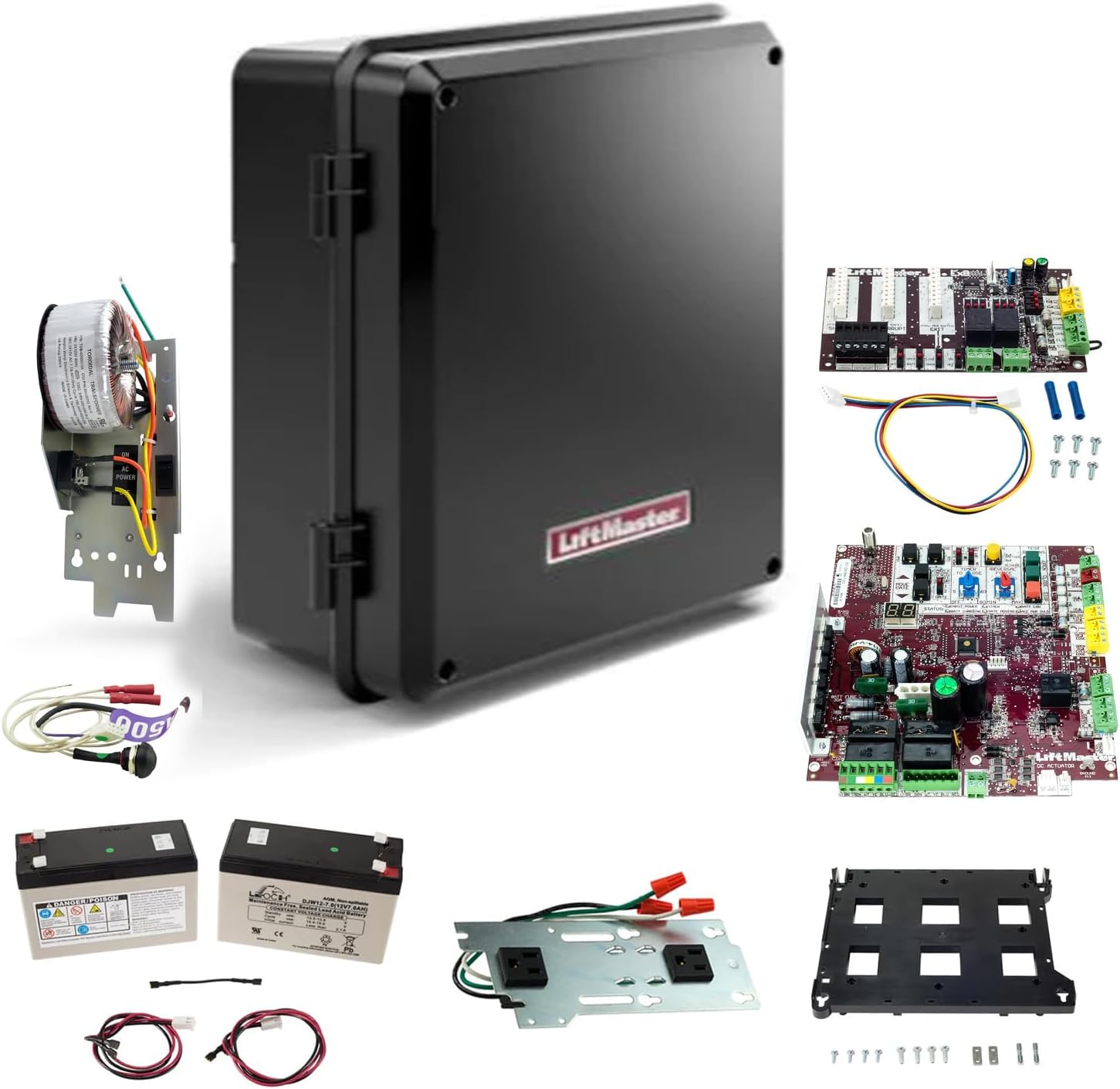

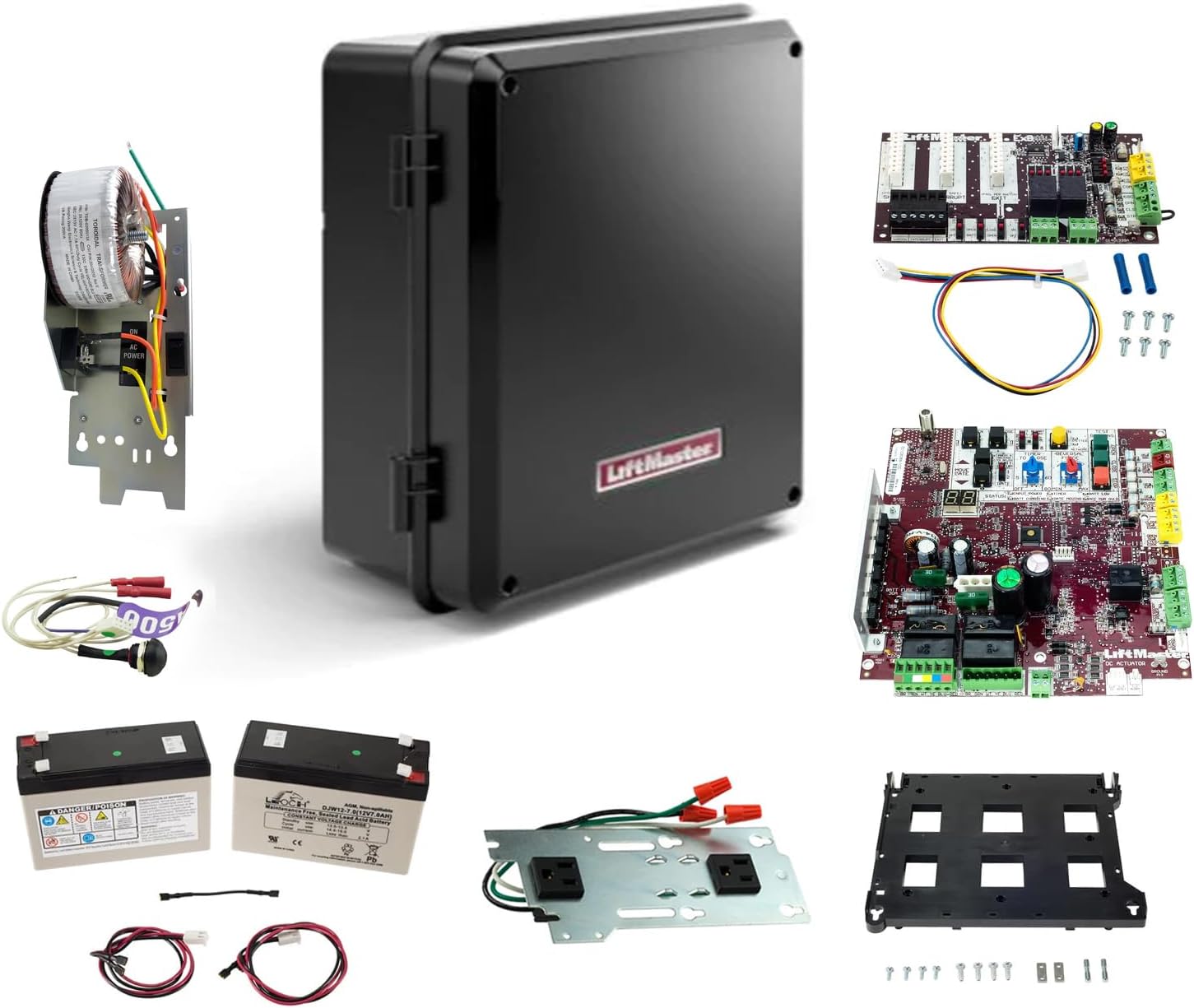

• What’s Included:
• K74-34582-1 Standard Plastic Control Box
• K76-36296-1 Power Outlet
• K75-36635 Control Board Bracket
• K1D8388-1CC Control Board Assembly
• K1D8387-1CC Expansion Board
• K94-36411 Piezo Alarm
• K94-36408-1 Reset Switch
• K74-36596 Battery Set
• LA500HDTKITSTD Toroidal Transformer
