LA412PKGUL Solar-Powered Dual Swing Gate Operator Kit Includes Primary, Secondary Arms, Control Box, 10W Solar, Batteries, LMRRUL, 811LM, KPW250, 828LM, 42" Aluminum Pedestal L.A. Ornamental

LA412PKGUL Solar-Powered Dual Swing Gate Operator Kit Includes Primary, Secondary Arms, Control Box, 10W Solar, Batteries, LMRRUL, 811LM, KPW250, 828LM, 42" Aluminum Pedestal L.A. Ornamental

$3,720.24 USD
$3,234.99 USD $3,720.24 USD
Sale Sold out
Shipping calculated at checkout.

The LA412PKGUL is a solar-powered dual swing gate operator kit engineered for residential and light commercial applications. Designed with eco-efficiency in mind, this system runs on a 12VDC continuous-duty motor with included battery backup and supports solar panels up to 30W. Custom fabricated by L.A. Ornamental - Gate Openers and more

The kit includes both the primary and secondary LA412DC arms, ensuring synchronized dual-leaf operation. With advanced myQ connectivity, smooth 23–24 second gate opening speed, and UL325 safety compliance, it offers security, reliability, and convenience in one complete package.

  • Key Features
  • Dual Gate Operation – Includes primary and secondary LA412DC arms for dual-leaf swing gates
  • Solar-Powered Efficiency – Operates with up to 30W 12V panels, includes 10W solar panel kit
  • Battery Backup – Dual 7Ah batteries ensure reliable performance during power outages
  • Smart Connectivity – myQ technology for smartphone monitoring & control
  • Smooth Performance – Soft start/soft stop with 23–24 second opening speed
  • Commercial Safety – UL325 compliant, includes LMRRUL monitored photo eye
  • Durable & Weather-Resistant – Designed for exterior mounting, long-lasting components

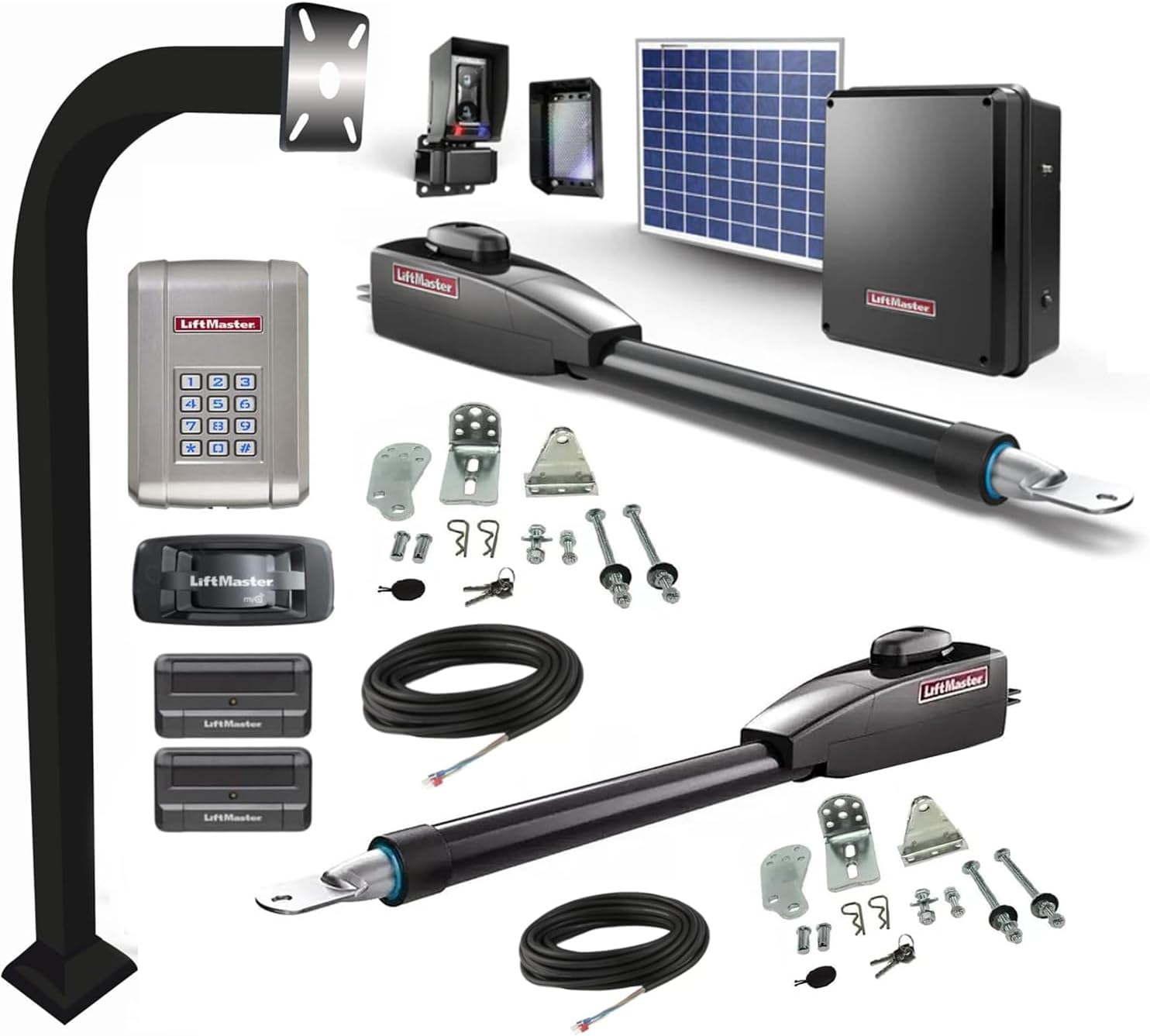

  • Included in This Kit:
  • (1) LA412DC Primary Arm Operator
  • (1) LA412DCS Secondary Arm Operator
  • (1) LA412CONTUL Control Box
  • (1) LMRRUL Retro-Reflective Safety Photo Eye with Reflector
  • (1) 10W Solar Panel Kit
  • (2) 12V 7Ah Batteries (for battery backup)
  • (2) 811LM Single-Button Remotes (Security+ 2.0)
  • (1) KPW250 Wireless Keypad (Weather-Resistant, Commercial-Grade)
  • (1) 828LM MyQ Internet Gateway

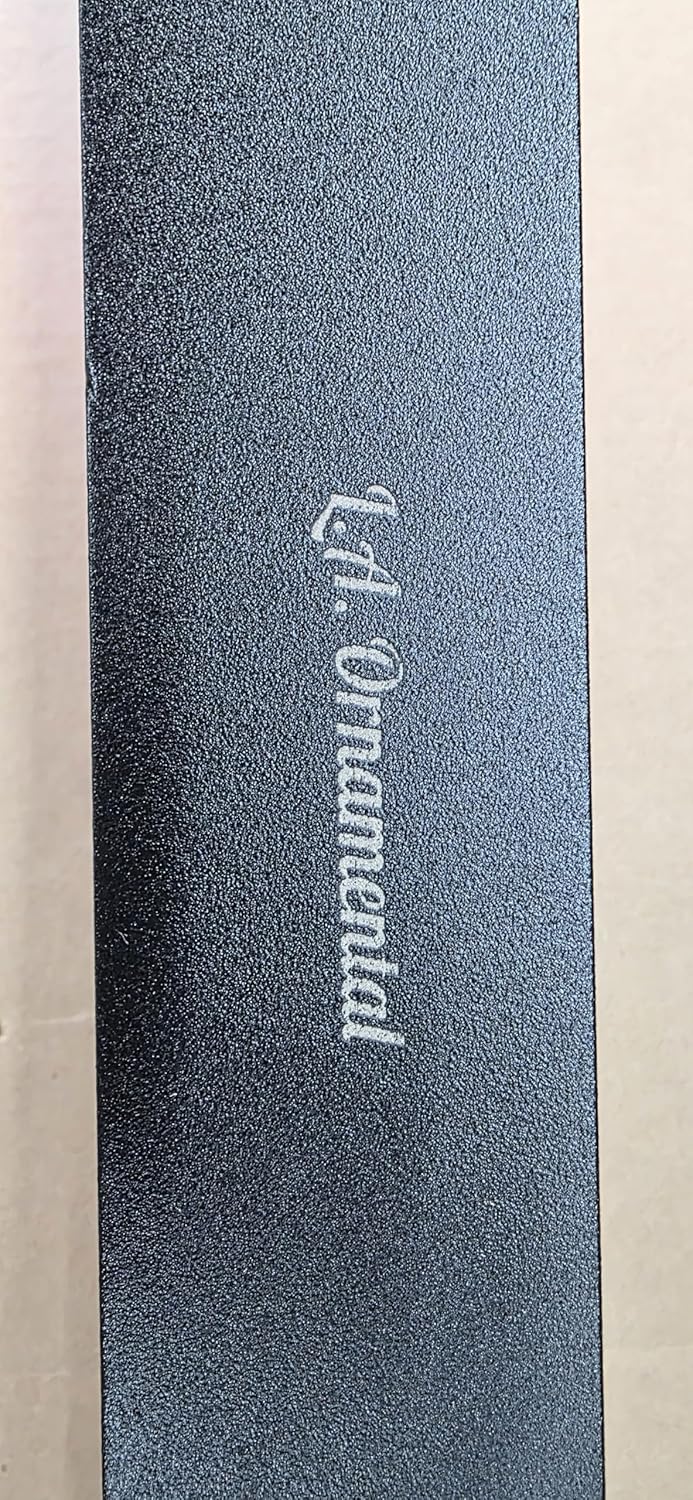

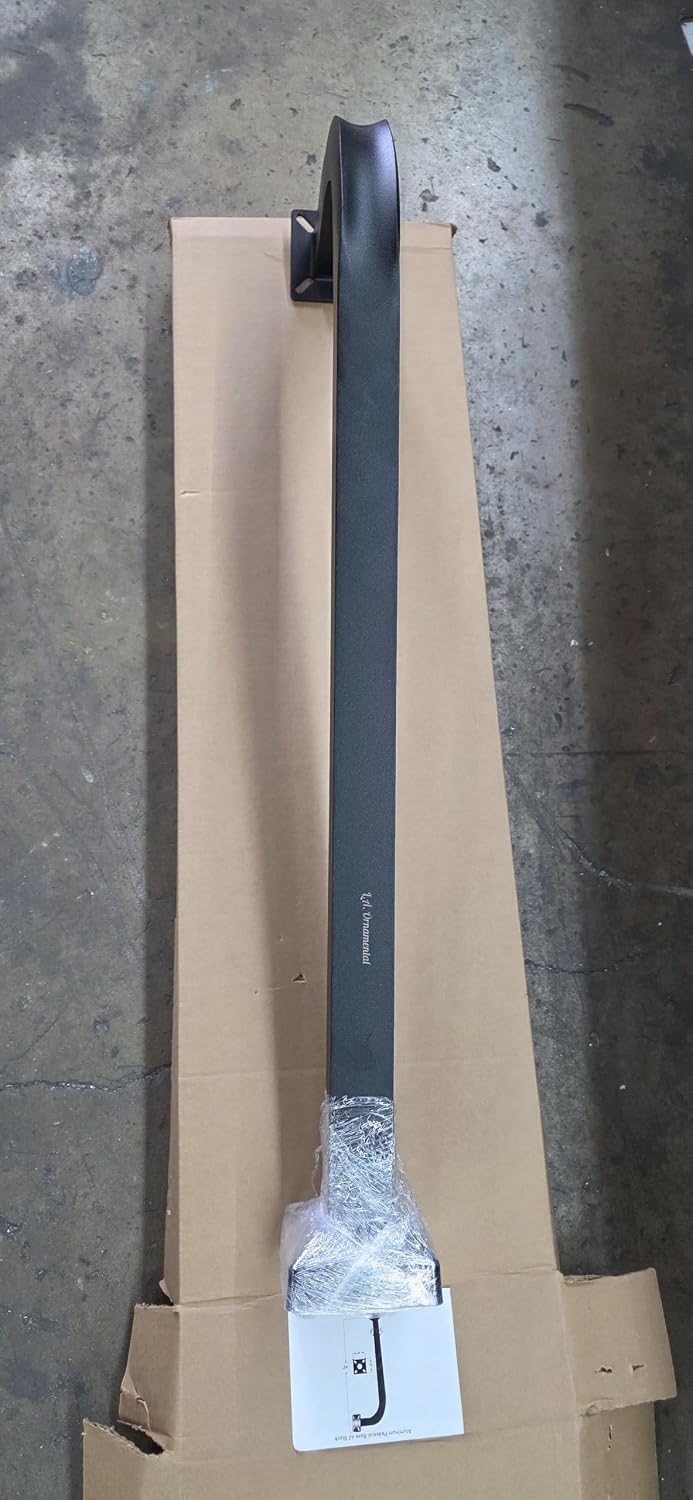

  • (1) Heavy Wall Aluminum Gooseneck Pedestal, 42" (LA Ornamental, black finish)
  • Installation hardware & user manuals

  • Technical Specifications
  • Motor: 12VDC Continuous Duty (½ HP equivalent)
  • Maximum Gate Length: 16 ft per leaf
  • Maximum Gate Weight: 550 lbs per leaf
  • Gate Speed: 23–24 seconds (90° opening)
  • Power Source: Solar-powered with dual 7Ah batteries
  • Accessory Power Output: 24VDC, 500mA
  • Connectivity: myQ with 828LM Gateway
  • Safety Compliance: UL325
  • Mounting: Pad mount

  • The LA412PKGUL is a solar-powered dual swing gate operator kit engineered for residential and light commercial applications. Designed with eco-efficiency in mind, this system runs on a 12VDC continuous-duty motor with included battery backup and supports solar panels up to 30W. Custom fabricated by L.A. Ornamental - Gate Openers and more
  • The kit includes both the primary and secondary LA412DC arms, ensuring synchronized dual-leaf operation. With advanced myQ connectivity, smooth 23–24 second gate opening speed, and UL325 safety compliance, it offers security, reliability, and convenience in one complete package.
  • Included in This Kit: (1) LA412DC Primary Arm Operator, (1) LA412DCS Secondary Arm Operator, (1) LA412CONTUL Control Box, (1) LMRRUL Retro-Reflective Safety Photo Eye with Reflector, (1) 10W Solar Panel Kit, (2) 12V 7Ah Batteries (for battery backup), (2) 811LM Single-Button Remotes (Security+ 2.0), (1) KPW250 Wireless Keypad (Weather-Resistant, Commercial-Grade), (1) 828LM MyQ Internet Gateway, (1) Heavy Wall Aluminum Gooseneck Pedestal, 42" (LA Ornamental, black finish), Installation hardware & user manuals
