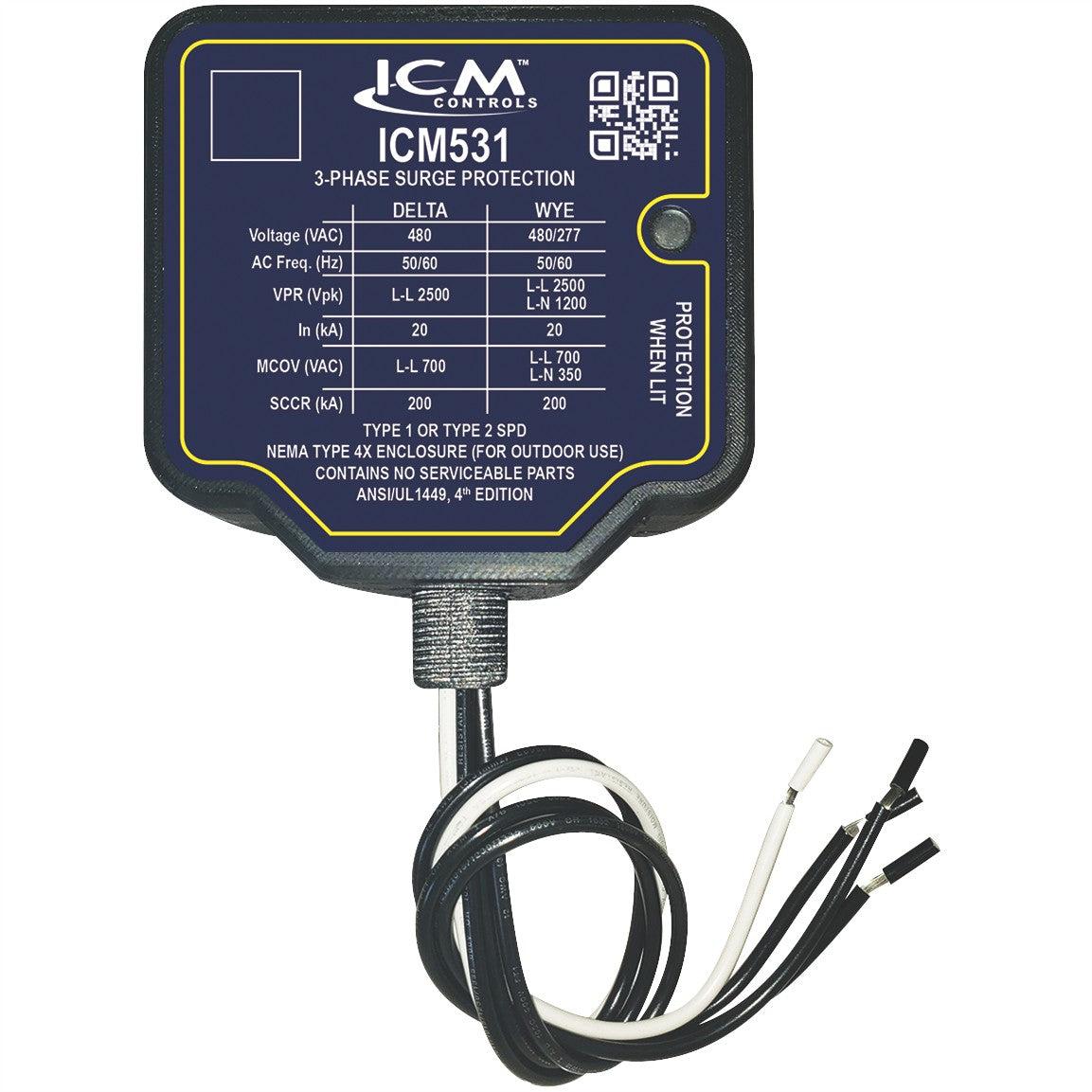

ICM531 3-Phase Surge Protective Device for 480VAC (Delta) or 277/480VAC (Wye)

365-Day Warranty!

Part Type: Surge Protector

Part Number: ICM531

Location: 01A3

3-Phase Surge Protective Device, 480VAC (Delta) or 277/480VAC (Wye)
Delta or Wye Configuration
NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
Green LED indicates surge protection present
Easily connects to electrical panel or disconnect for indoor and outdoor applications
UL Listed Type 1 or Type 2 SPD
Limited lifetime product, up to a 3-year $10,000 connected equipment warranty

SPECIFICATIONS:
Service Voltage (3-Phase): 480 VAC Delta or 277/480 VAC Wye
Short Circuit Current Rating (SCCR): 200 kA
Nominal Discharge Current (In):20 kA
Maximum Surge Current: 150,000 amps
Protection Mode:
3 for Delta configuration
6 for Wye configuration (neutral tied to ground)
Maximum Continuous Operation Voltage (MCOV):
L-L: 700 VAC
L-N: (for Wye configuration only): 350 VAC
VPR:
Delta L-L: 2500 VAC
Wye L-L: 2500 VAC
Wye L-N: 1200 VAC
SPD Type: Type 1 (can also be used in Type 2 applications)
Surge Protection Technology: TFMOV
Input Power Frequency: 50/60 Hz
WEIGHT/DIMENSIONS:

4.30” x 4.10” x 2.30”
