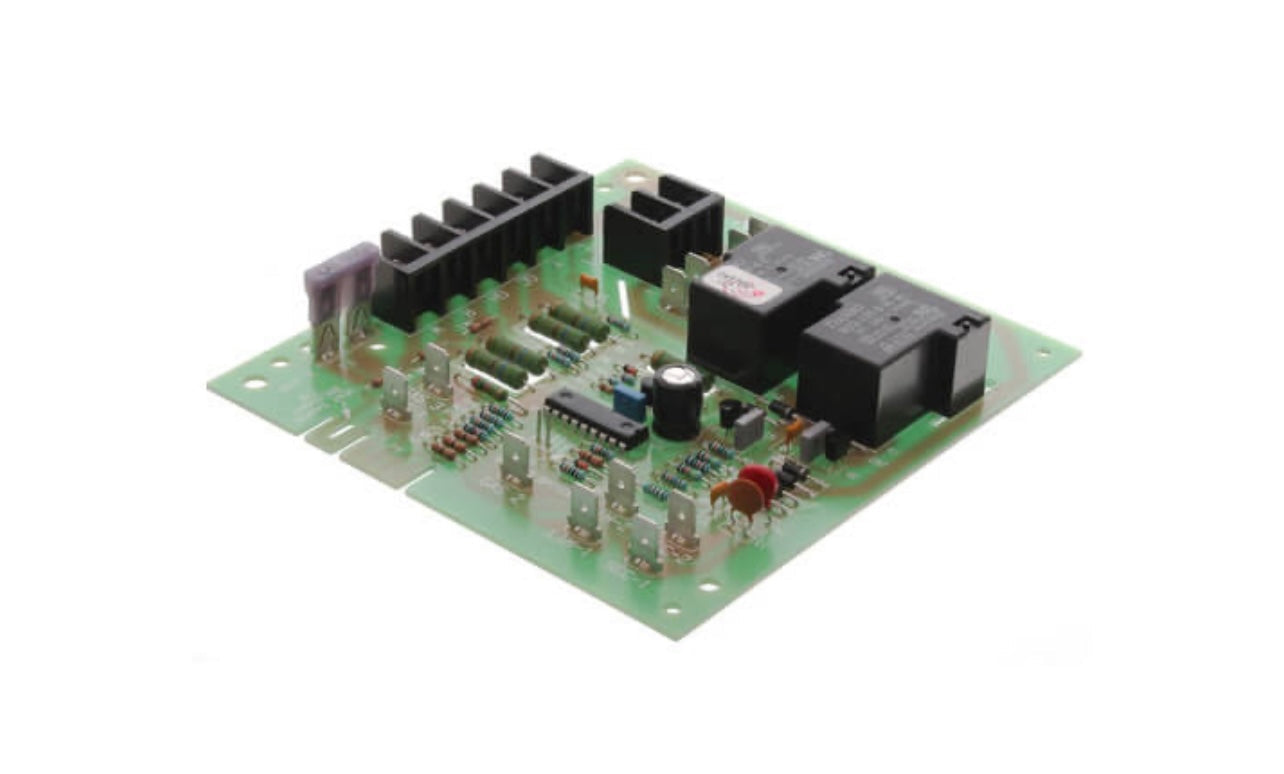

ICM Controls ICM271 Fan Blower Control, Direct OEM Replacement - Dual On/Off Delay Timer

365-Day Warranty!

Part Type: Fan Blower Control

Part Number: ICM271

Location: 01B3

DETAILS:
Reliable solid state fan blower control
Specifically designed to replace popular gas furnace centers
Pin selectable blower delays
High power, relay output
Dual function fan delay timer
Controls the circulating fan in heat pump, A/C and forced air systems
OFF delay purges ducts for residual air
ON delay allows air to reach the proper comfort level prior to energizing the fan

SPECIFICATIONS:
Input:
– Voltage: 18-30 VAC
Contact Ratings:
– N.O.: 20 amps
– N.C.: 10 amps
Fixed Time Delays:
– Heat ON: 75 seconds
– Heat OFF: 105 seconds
– Cool OFF: 90 seconds
WEIGHT/DIMENSIONS:
Weight: 0.45
Height: 1
Width: 5
Length: 5.25

REPLACES:
Carrier: 302075-3, CES0110017, CES0110018, HH84AA010, HH84AA011, HH84AA012, HH84AA013, HH84AA020, P771-7002

Robertshaw: 695-100
