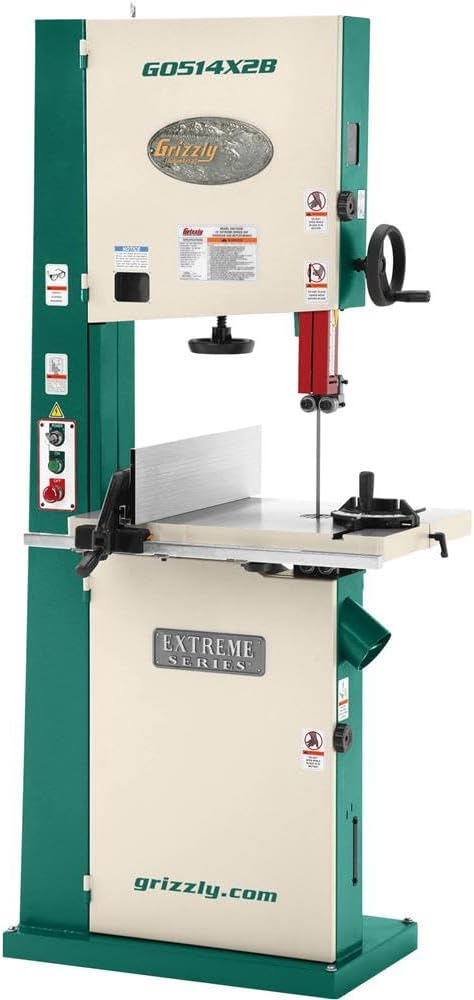

Grizzly Industrial G0514X2B - 19" 3 HP Extreme-Series Bandsaw w/Motor Brake

Grizzly Industrial G0514X2B - 19" 3 HP Extreme-Series Bandsaw w/Motor Brake

$3,418.25 USD
$3,025.00 USD $3,418.25 USD
Sale Sold out
Shipping calculated at checkout.
G0514X2B

Feature-Packed Extreme Series 19" Wood Bandsaw with Motor Brake!

We took our rock-solid G0514X 19" Heavy-duty Extreme Series Bandsaw, added a few more features and came up with a new line of ultimate 19" Bandsaws. This saw features an lightning-fast electronic motor brake, a cast iron table trunnion, rack and pinion table tilt control with extra table support, and an innovative resaw fence. The electronic motor brake stops the blade in approximately 3 seconds—all with the simple push of a switch. Now that's fast and easy!

wheeels

Fully Balanced Cast-Iron Wheels with Urethane Tires

table

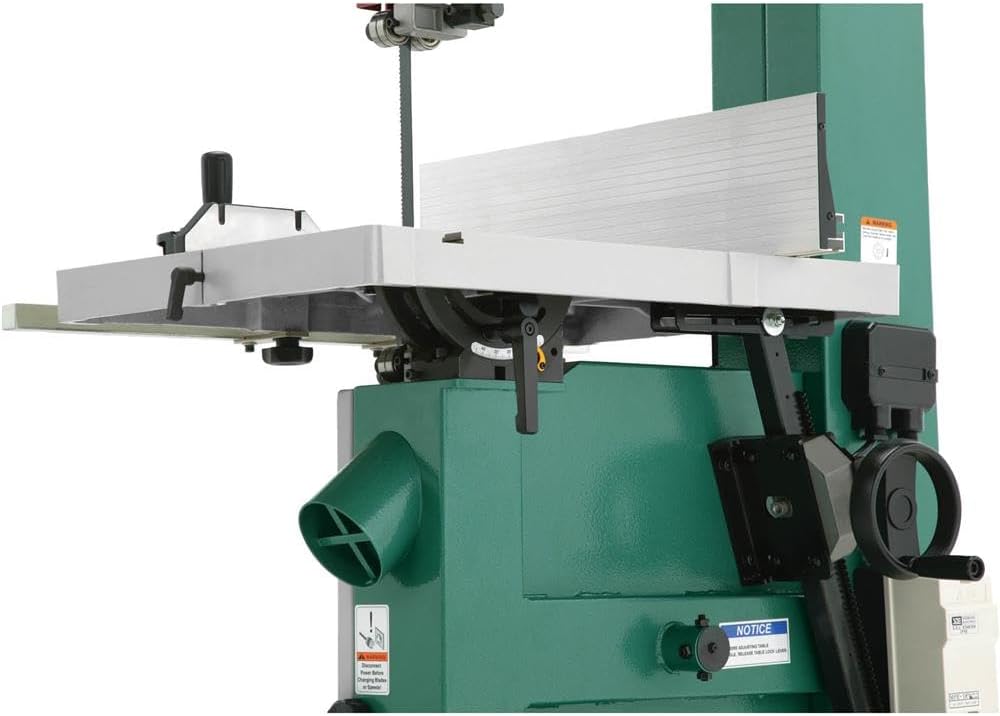

Rack-and-Pinion Table Tilt with Support Post

GUIDES

Double Ball Bearing Blade Guides

FENCE

Cast-Iron Fence with Extruded-Aluminum Resaw Fence

main

Features:

  • Blade Tension Indicator
  • Two 4" Dust Ports
  • Quick-Release Blade Tensioning
  • Micro-Adjusting Geared Table Tilting Mechanism
  • Height Scale Measurement
  • Cast-Iron Fence with Extruded Aluminum Resaw Fence Included
  • Includes 143" x 3/4" 6-TPI Hook Blade
  • Motor Brake

Specifications:

  • Motor: 2 HP, 110V/220V, single-phase, TEFC capacitor start induction, 60 Hz, 1725 RPM, pre-wired to 220V
  • Motor: 3 HP, 220V, single-phase, 12A, TEFC, 60 Hz RPM: 1725
  • Table size: 26-3/4" x 19" x 1-1/2"
  • Cutting capacity/throat: 18-1/4"
  • Maximum cutting height: 12"
  • Blade size: 143" long
  • Blade widths available: 1/8" - 1-1/4"
  • 2 Blade speeds: 1700, 3500 FPM

detail

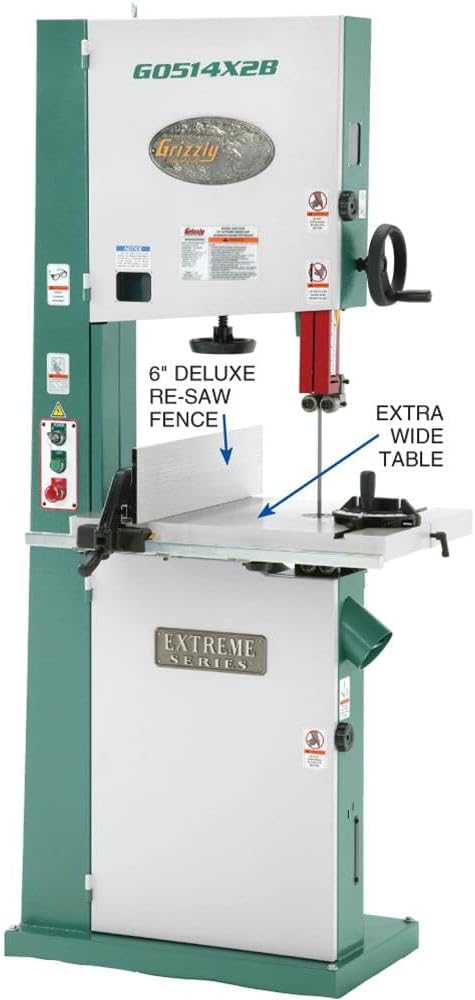

Deluxe 6" Resaw Fence

Fence can be filipped flat for veneers

Extra Wide Table

Rack & Pinion Guide Adjustment

Quick-Release Blade Tension

Cast-Iron Trunnion

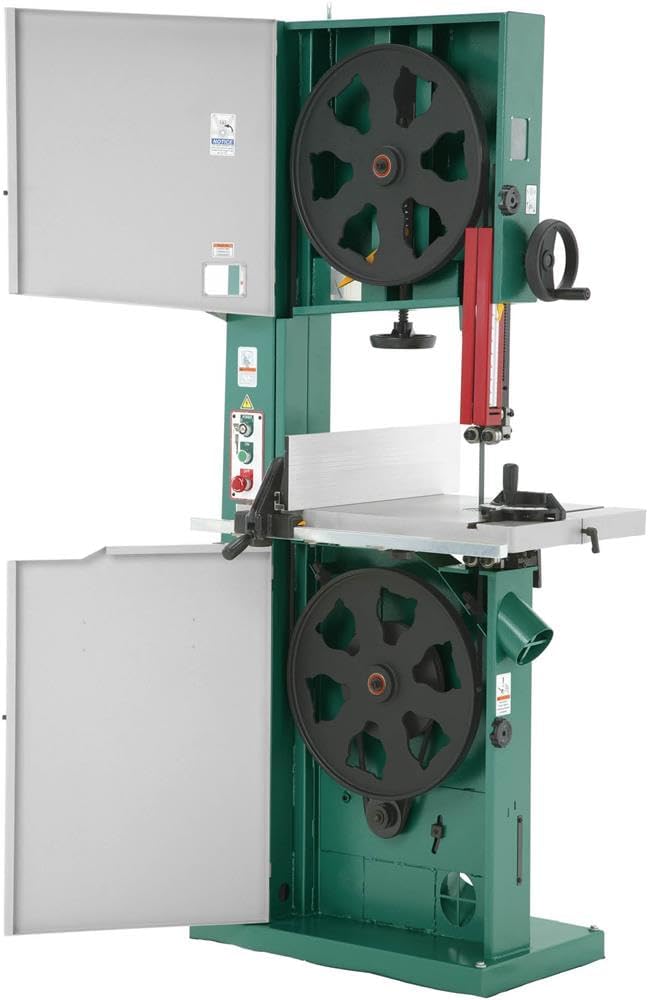

Fully-Balanced Cast Iron Wheels with Urethane Tires

Fence with Scale and Magnifying Window

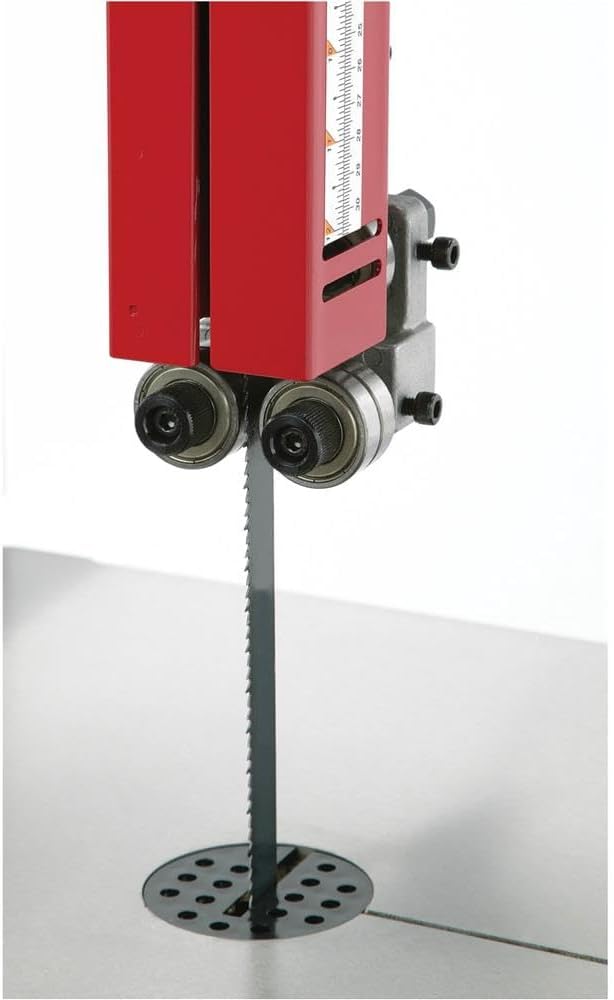

Dual Ball Bearing Blade Guides

G0514X2B
G0514X2
G0514X
G0701
Buying Options
Buying Options
Buying Options
Customer Reviews
5.0 out of 5 stars 2
—
4.2 out of 5 stars 7
4.3 out of 5 stars 2
Price $3,025.00 — no data — no data — no data
Size: 19" 19" 19" 19"
Horsepower: 3 HP 3 HP 3 HP 5 HP
Voltage: 220V 220V 220V 230V
Phase: Single Single Single Single
Blade Speeds: 1700, 3500 FPM 1700, 3500 FPM 1700, 3500 FPM 4975 FPM
Maximum Cutting Height: 12" 12" 12" 19-1/2"
Maximum CuttIng Width: 18-1/4" 18-1/4" 18-1/4" 18-3/8"
  • Motor: 3 HP, 220V, single-phase, or 3 HP, 220V/440V*, 3-phase, TEFC, 60 Hz
  • Table size: 26-3/4" x 19" x 1-1/2" thick; Floor to table height: 37-1/2"; Table tilt 5� left, 45� right
