Goodman 2.5 Ton 13.4 SEER2 80% AFUE 40,000 BTU R-32 Air Conditioner & Gas Furnace System (GLXS3BN3010, CAPTA3022A3, GD9S800403AN)

Goodman 2.5 Ton 13.4 SEER2 80% AFUE 40,000 BTU R-32 Air Conditioner & Gas Furnace System (GLXS3BN3010, CAPTA3022A3, GD9S800403AN)

$4,330.16 USD
$3,832.00 USD $4,330.16 USD
Sale Sold out
Shipping calculated at checkout.

This Goodman R-32 equipment package is a matched central cooling and gas-heating system using the GLXS3BN3010 outdoor unit, CAPTA3022A3 evaporator coil, and GD9S800403AN gas furnace. The 2.5-ton, 13.4 SEER2 cooling rating applies to this complete matched combination and is certified by AHRI under certificate number 215277336. The furnace is rated at 40,000 BTU/h input and 80% AFUE. Due to local regulations, this furnace is not for sale in Colorado. Equipment selection, controls, accessories, and installation must be completed by a qualified HVAC professional. Due to Federal efficiency regulations, this system also cannot be sold in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Hawaii, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia. It also cannot be sold in the District of Columbia or U.S. territories.

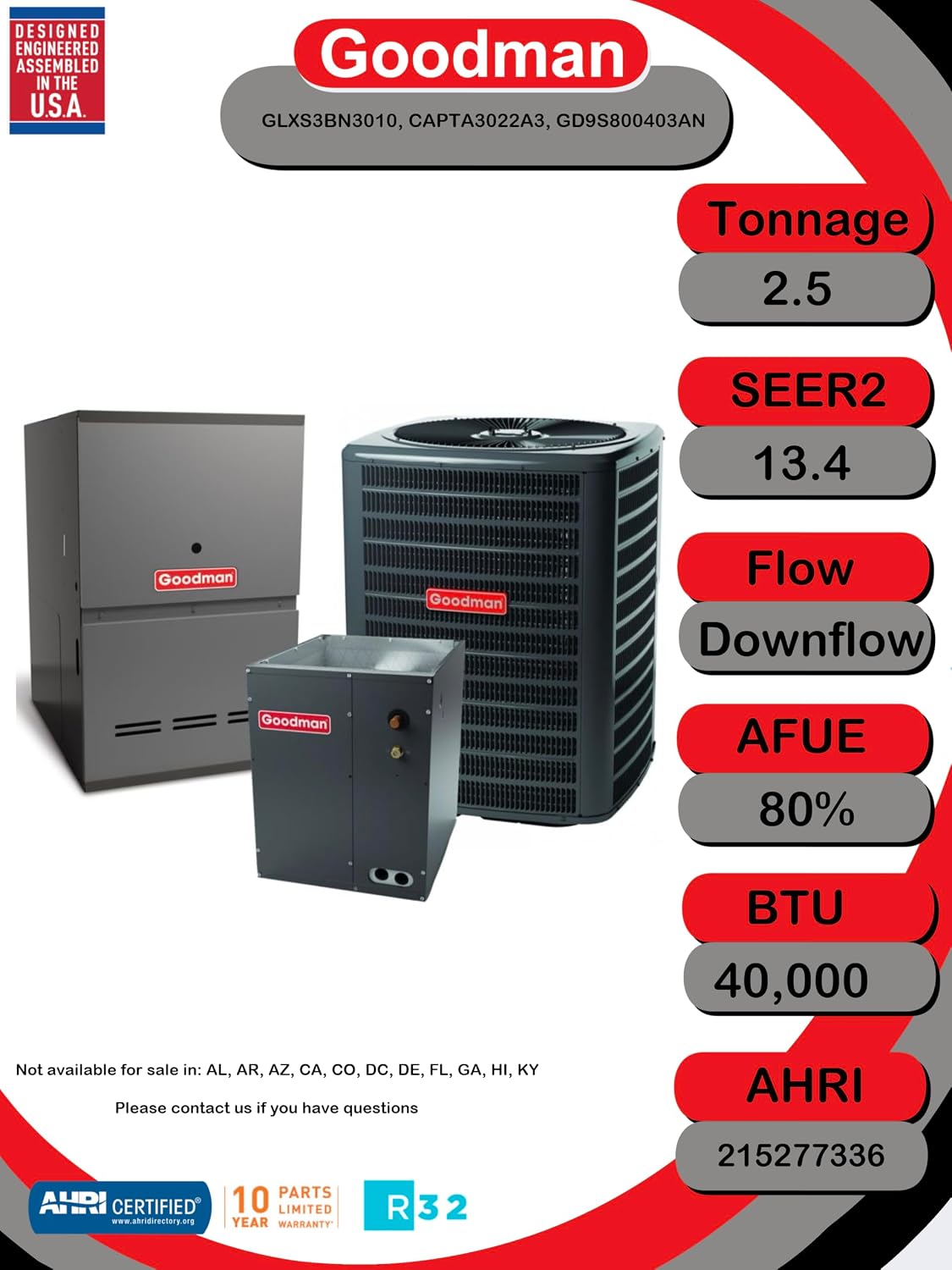

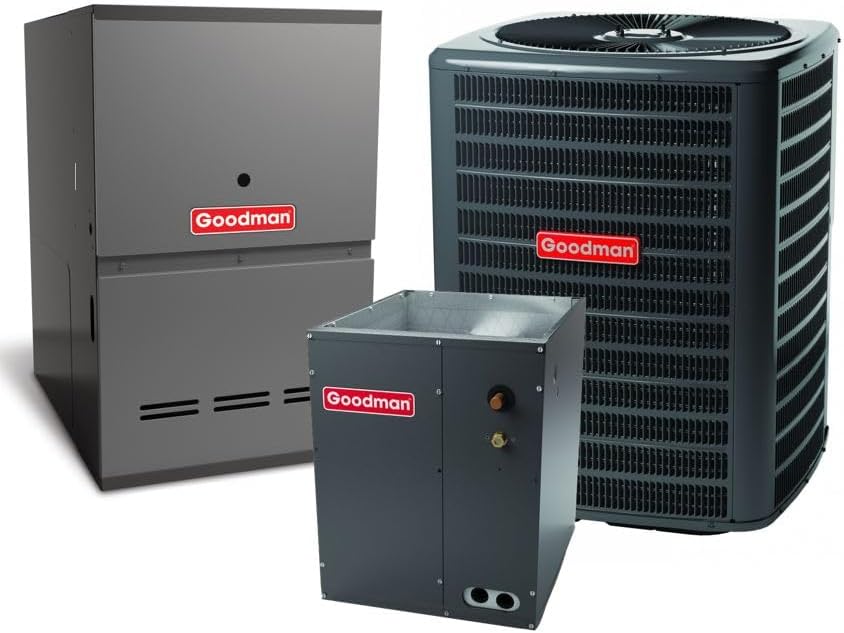

  • Complete Matched Equipment Package: Includes the GLXS3BN3010 R-32 air conditioner condenser, CAPTA3022A3 cased evaporator coil, and GD9S800403AN gas furnace. The 2.5-ton and 13.4 SEER2 cooling rating applies to the complete matched combination under AHRI certificate 215277336, not to any component by itself; 80% AFUE and 40,000 BTU describe the included furnace.

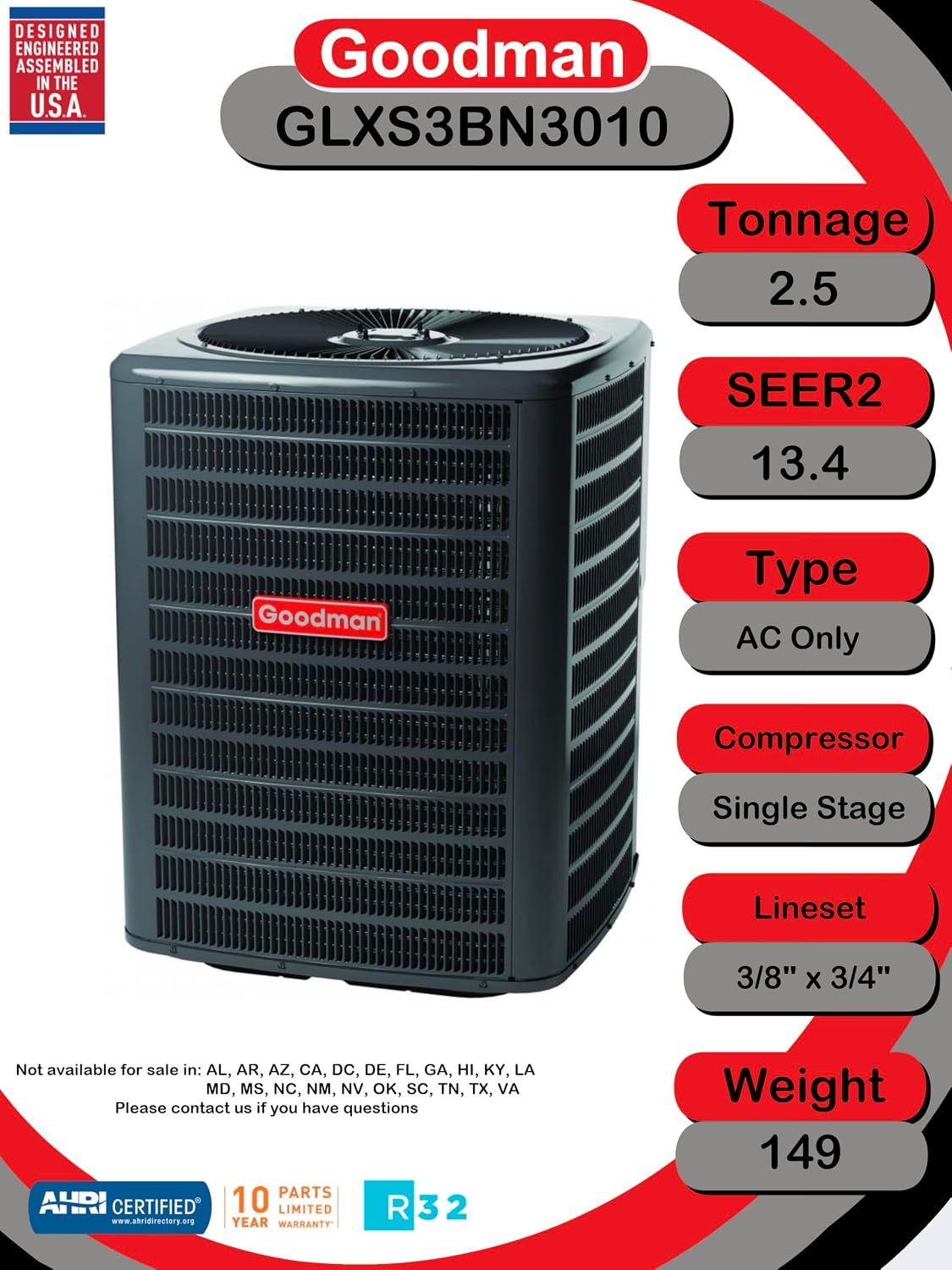

  • Outdoor Cooling and Regional Restriction: The GLXS3BN3010 is an R-32 single-stage cooling-only condenser. Due to Federal efficiency regulations, this system cannot be sold in Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Hawaii, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, or Virginia; nor in the District of Columbia or U.S. territories.
  • Matched Indoor Coil: The CAPTA3022A3 is an R-32 cased upflow/downflow evaporator coil with a factory-installed TXV that adjusts refrigerant flow as operating conditions change. Its all-aluminum coil construction is designed for heat transfer and corrosion resistance, while the cabinet orientation helps align the coil with the selected furnace or blower.

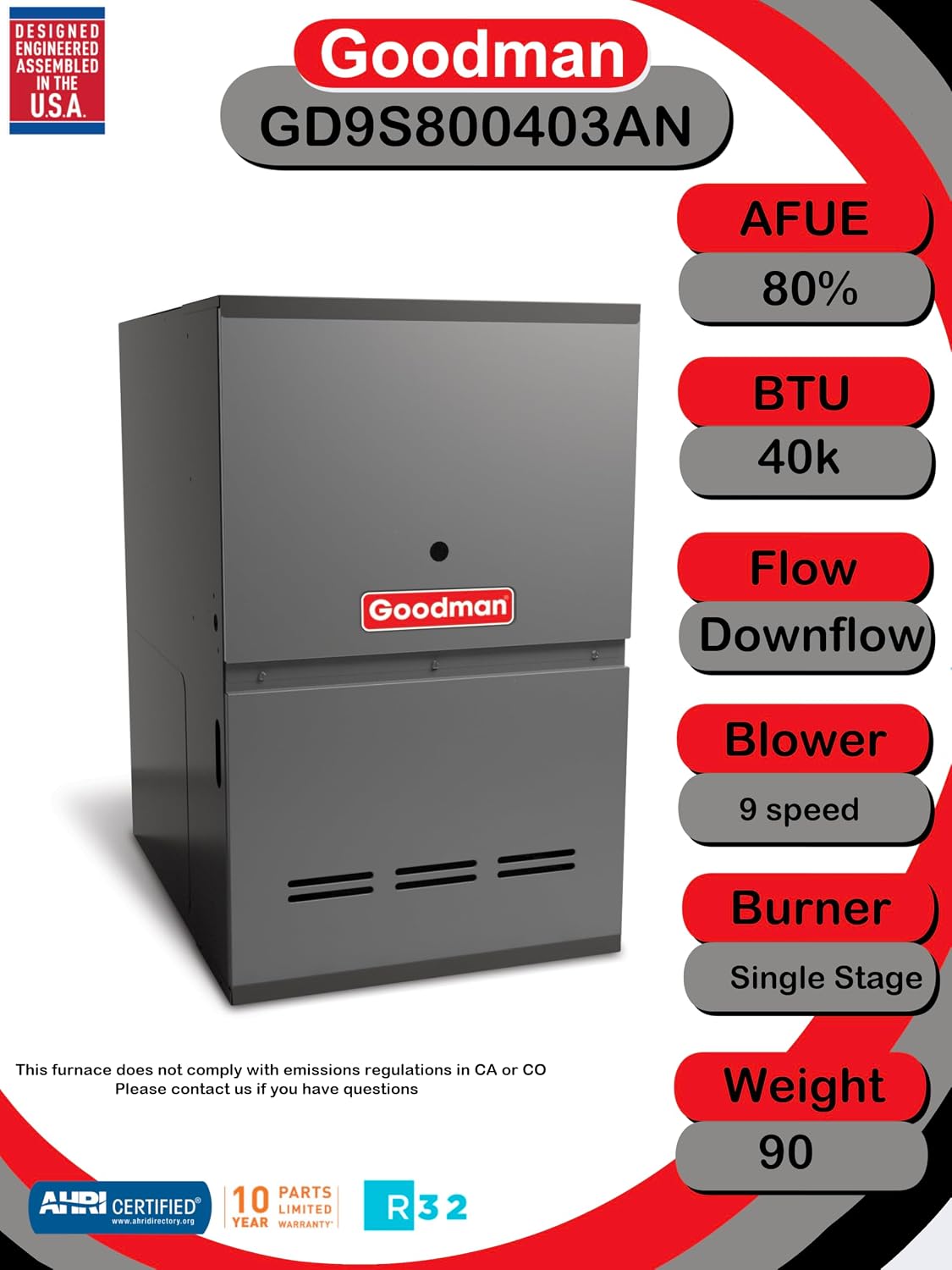

  • Gas Heating, Airflow, and Emissions: The GD9S800403AN provides 40,000 BTU/h input at 80% AFUE with single-stage heating and a multi-speed ECM blower. Due to local regulations, this furnace is not for sale in Colorado.
  • Installation, Warranty, and Exclusions: Professional sizing and installation are required. Verify ductwork, line set/charge, electrical and gas service, venting, combustion air, condensate, controls, clearances, and R-32/local-code compliance. Included equipment is eligible for a 10-year parts limited warranty with timely online registration where required; terms and location exceptions apply. Labor, thermostat, line set, and field accessories are not included.
