Full Electric Pallet Stacker, 3300 lb Capacity, 78" Lift Height, Walk-Behind Material Lift for Open-Bottom Pallets, Warehouse Stacker

Full Electric Pallet Stacker, 3300 lb Capacity, 78" Lift Height, Walk-Behind Material Lift for Open-Bottom Pallets, Warehouse Stacker

$4,138.85 USD
$3,599.00 USD $4,138.85 USD
Sale Sold out
Shipping calculated at checkout.
floor scrubber machine
full electric pallet stacker

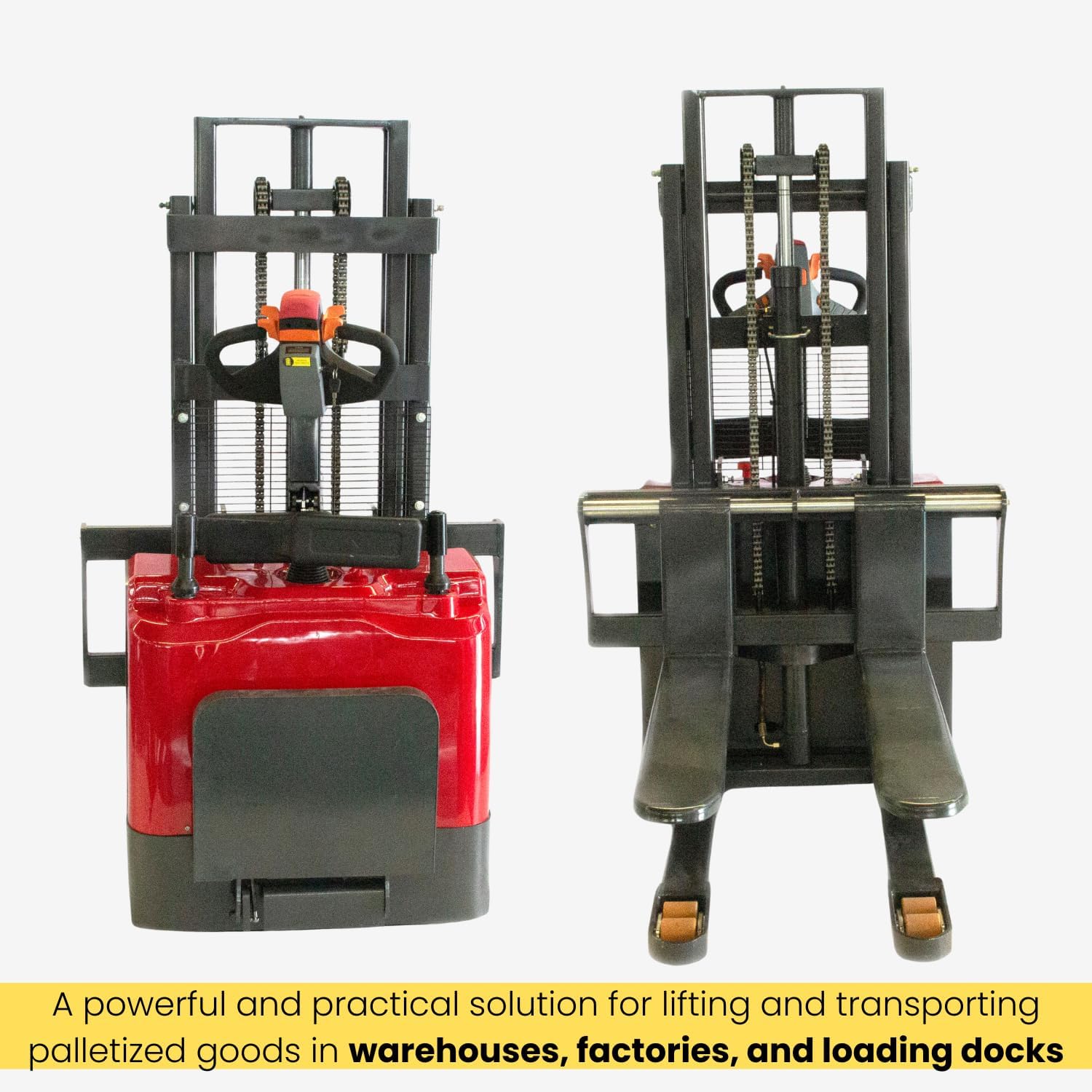

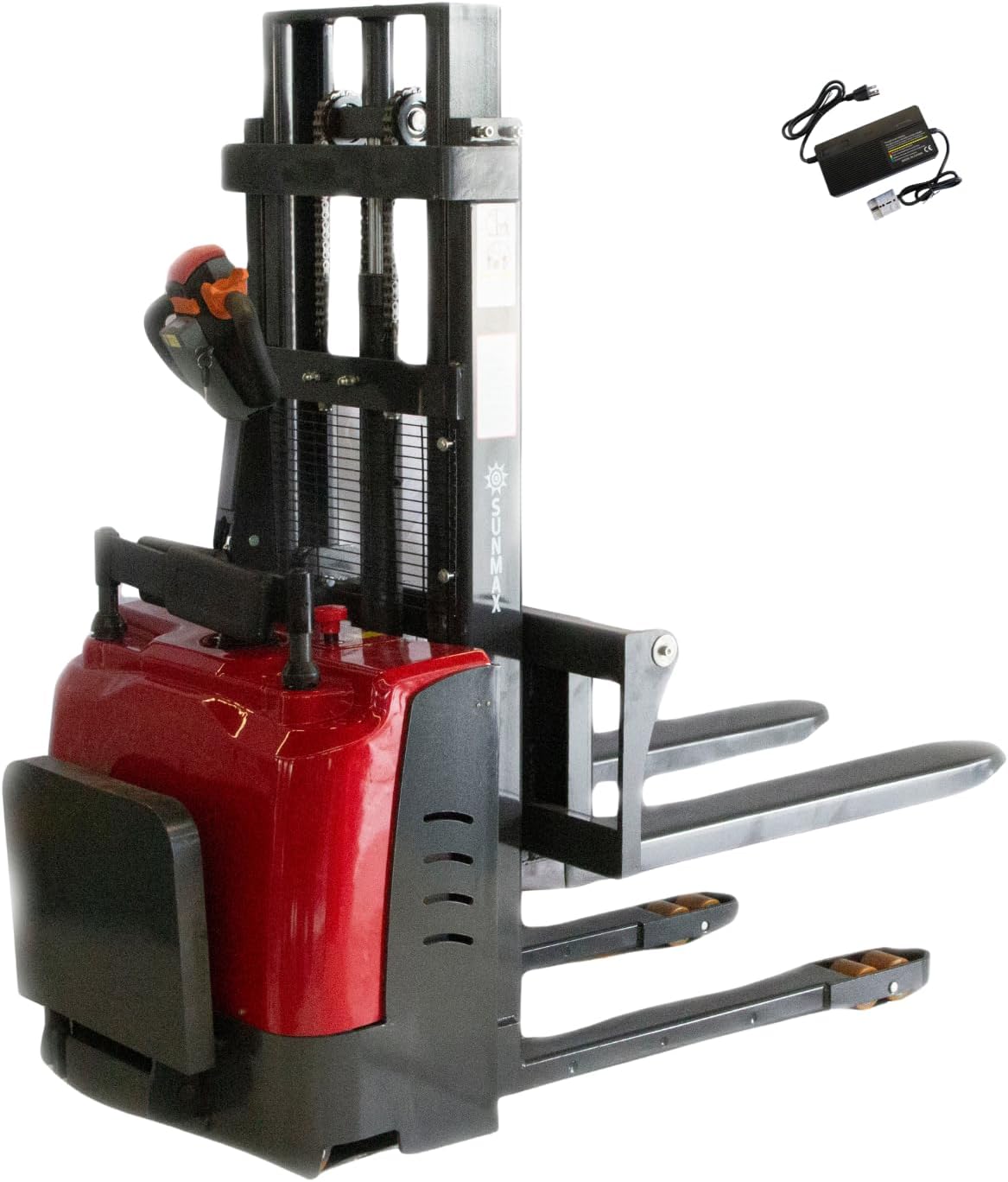

Full-Electric Pallet Stacker for Open-Bottom Pallets

Experience superior material handling efficiency with this Full-Electric Pallet Stacker. The design is specially crafted for handling open-bottom pallets, ensures smooth lifting and transportation while reducing operator fatigue.

Full-Electric Pallet Stacker

electric pallet stacker
  • 3300 lbs (1500 kg) Capacity
  • 78-inch (2000 mm) Lifting Height
  • Electromagnetic Braking
  • 56.1 inches Turning Radius
  • Motor Power: 2.15 HP (1.6 KW)
  • Forks Length: 26.2 inches (665 mm)
  • Forks Lowest Height: 3.15 inches (80 mm)
  • Ground Clearance: 1.18 inches (30 mm)

Ideal solution for efficient and safe material handling in various industrial settings.

The ideal solution for medium-duty material handling tasks. Its compact frame and electromagnetic brake system ensure both maneuverability and safety in tight warehouse environments.

Whether you prioritize cost-efficiency or convenience, SUNMAX gives you the flexibility to choose the stacker that fits your workflow.

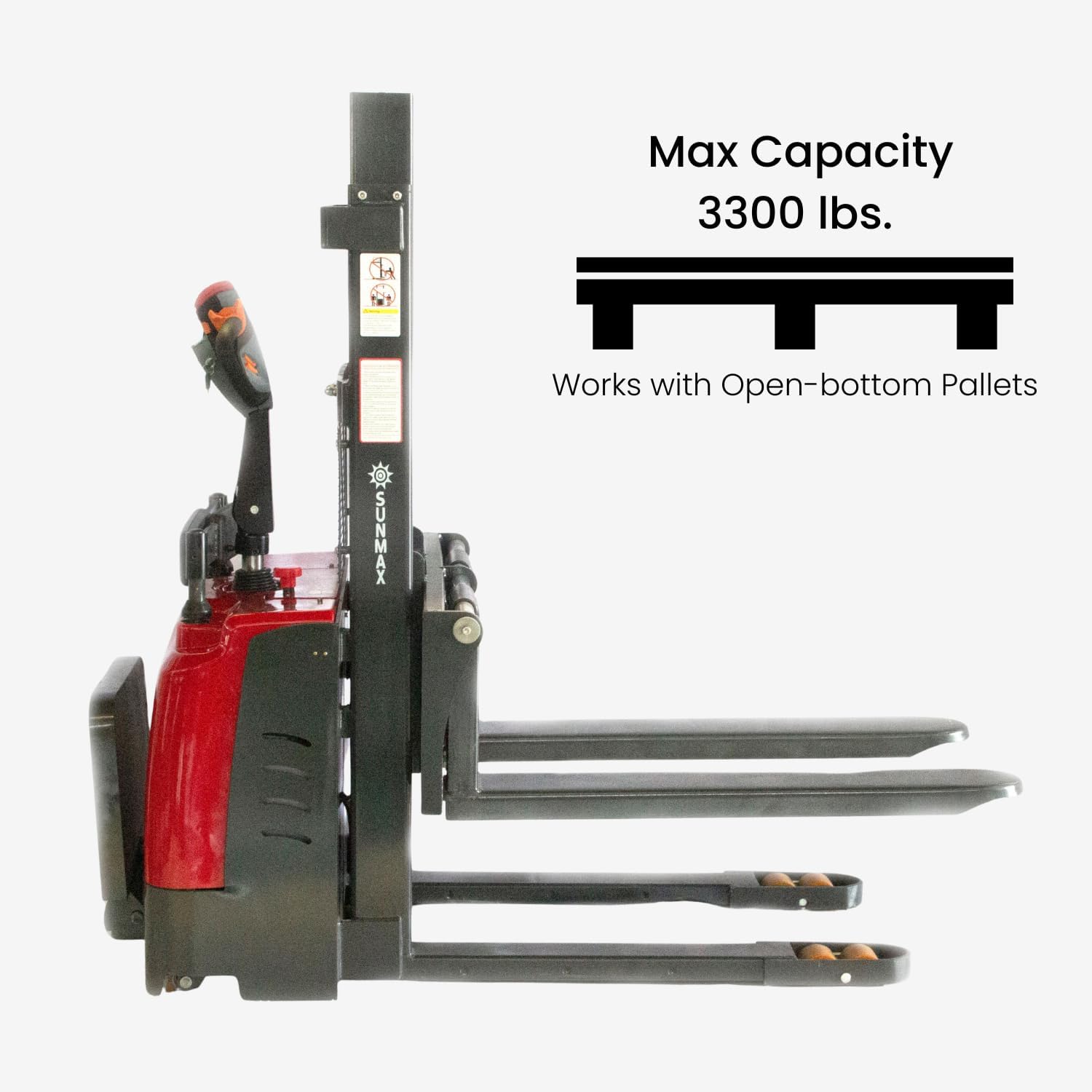

Works with Open-bottom and Single-face (Non-reversible) Pallets

various pallets

Great for cost-sensitive, light-duty facilities

  • Small warehouses & stockrooms
  • Retail backrooms
  • Workshops & factories with standardized pallets
  • Import/export operations
  • Customers upgrading from manual pallet jacks

Specifications

Rated Load 3300 lbs (1500 kg)
Load Center Distance 19.7 inches (500 mm)
Front Wheel Size Φ7.1 x 2.0 inches (Φ180 x 50 mm)
Rear Wheel Size Φ3.1 x 2.8 inches (Φ80 x 70 mm)
Additional Wheel Size Φ5.9 x 2.4 inches (Φ150 x 60 mm)
Max Lifting Height 78 inches (6.6 ft, 2000 mm)
Fork Size 2.4 x 6.7 x 42.1 inches (60 x 170 x 1070 mm)
Turning Radius 56.1 inches (1425 mm)
Lifting Speed (full/no load) 0.26/0.33 ft/s (0.08/0.1 m/s)
Service Braking Electromagnetic Braking
Motor Power 2.15 HP (1.6 KW)
Noise Level 70 dB(A)
Battery Voltage/Capacity 12V/100Ah

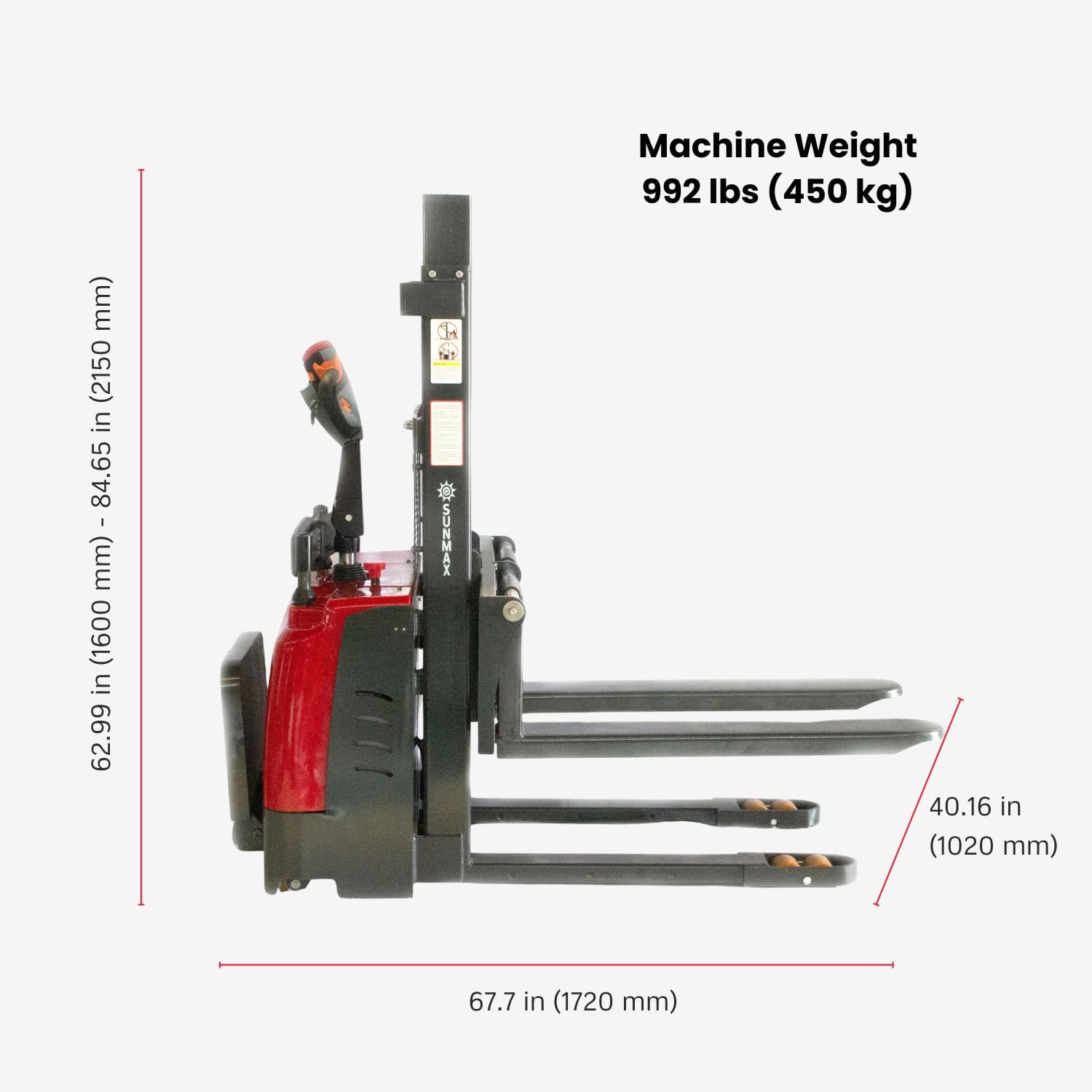

Self-weight (with battery) 992 lbs (450 kg)
Demensions 67.7"(L)*40.16"(W)*62.99"(Height when Mast Retracted)/84.65(Max Mast Height)
Ground Clearance 1.18 inches (30 mm)
Full-Electric Pallet Stacker
Semi-Electric Pallet Stacker
Full-Electric Pallet Jack Truck with Built-in Scale
Full-Electric Pallet Stacker
Full-Electric Pallet Stacker
Electric Forklifts
Buying Options
Buying Options
Customer Reviews
5.0 out of 5 stars 1
—
—
—
—
—
Price $4,299.00 — no data $2,399.00 $3,599.00 $6,297.99 — no data
Capacity 3300 lbs 3300 lbs 4400 lbs 3300 lbs 3300 lbs 4400 lbs
Lifting Height 118 inches 78 inches 7.87 inches 78 inches 157 inches 118 inches
Turning Radius 63 inches 56.1 inches 48 inches 56.1 inches 72.8 inches 100.39 inches
Battery Capacity 24V/70Ah 12V/100Ah 54.6V/16Ah 12V/100Ah 24V/73Ah 60V/200Ah
Straddle Legs Fixed Fixed N/A Fixed Adjustable N/A
Pallets Compatible Open-bottom Only Open-bottom Only Open-bottom and Closed-base Open-bottom Only Open-bottom and Closed-base Open-bottom and Closed-base

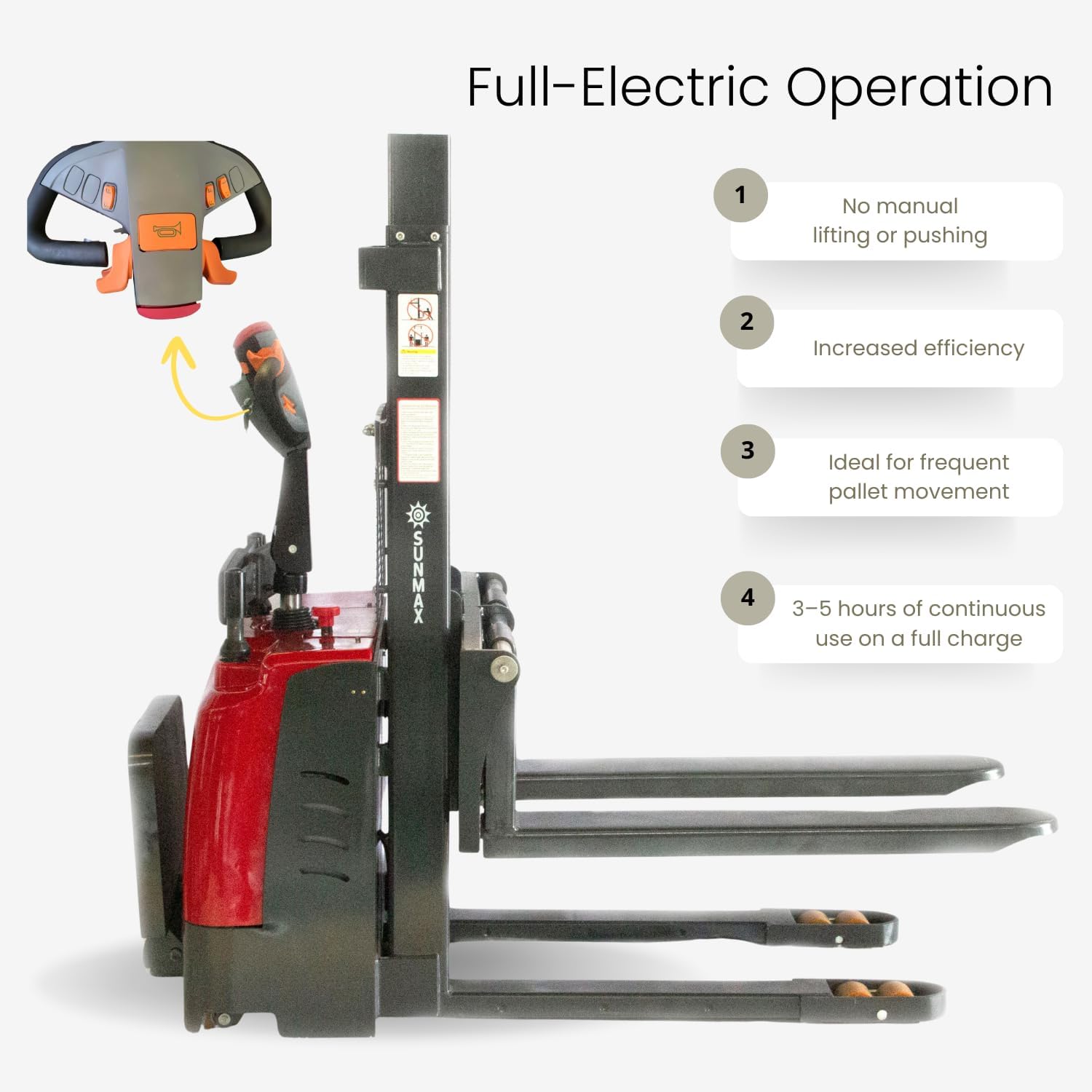

  • Full Electric Lifting and Driving: This full-electric pallet stacker is designed for powered lifting and powered travel, helping reduce operator effort compared with manual or semi-electric stackers.
  • 3300 lb Capacity with 78" Lift Height: Built for warehouse material handling, this stacker lifts up to 3300 lbs and reaches up to 78 inches, making it a practical fit for stockrooms, backrooms, and lower stacking applications.
  • Works with Open-Bottom Pallets Only: This model is designed for open-bottom pallets only, an important fit requirement that should be checked before purchase.
  • Better Choice When 78" Lift Is Enough: Compared with taller 118" stackers, this model is a strong choice for buyers who need full electric operation but do not need extra mast height for higher racking.
  • Built for Warehouse and Backroom Handling: A good fit for warehouses, stockrooms, backroom inventory movement, and general material handling where operators want powered movement and lifting for pallet handling.
