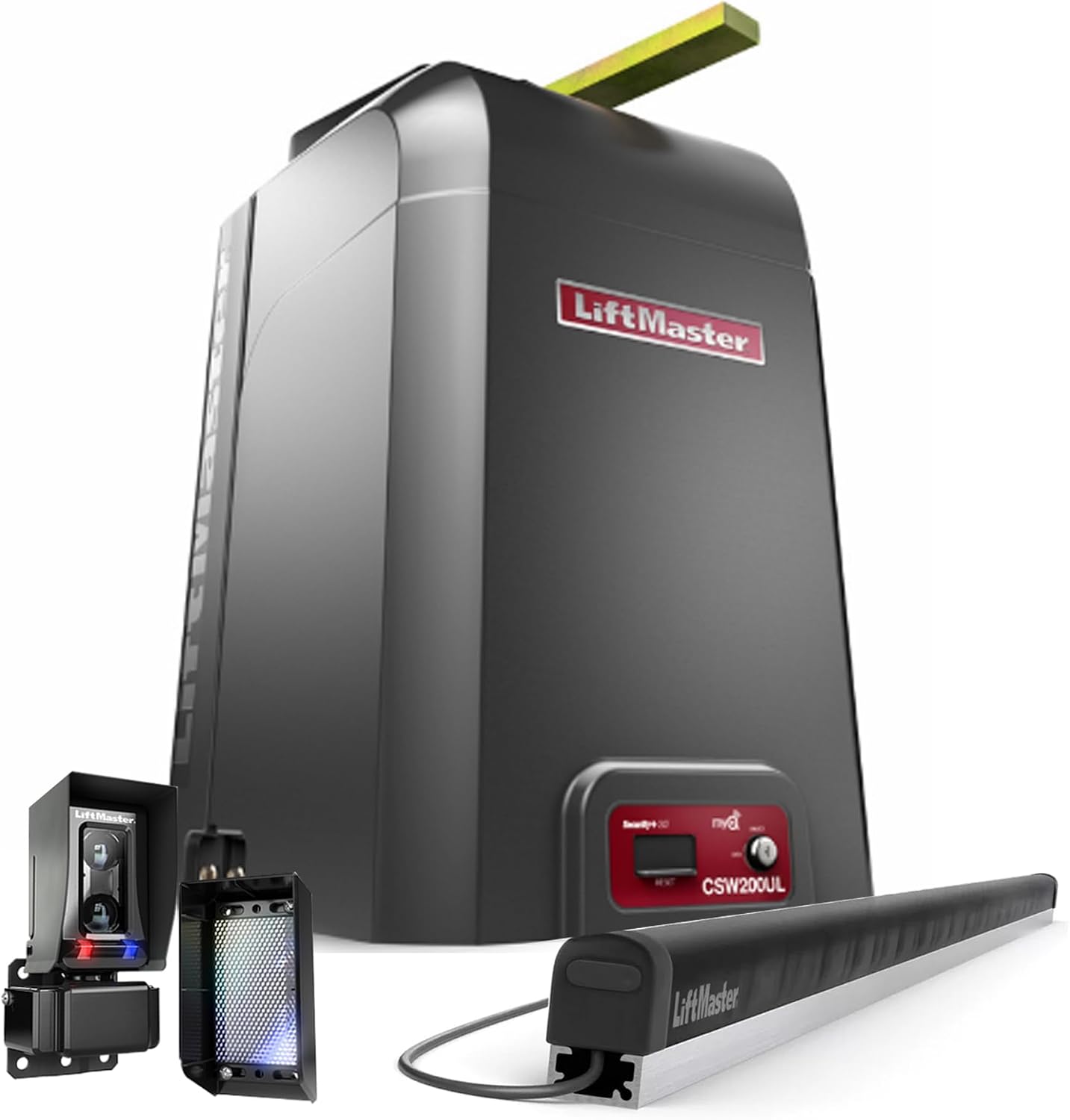

CSW200101UL 1 HP AC High Traffic Commercial Swing Gate Operator Heavy-Duty Gates up to 22 feet in Length and 2,000 lbs

The CSW200101UL-MC 1 HP AC High-Traffic Commercial Swing Gate Operator is a powerful and reliable solution designed for large gated communities, commercial sites, and industrial properties. Built to handle heavy-duty gates up to 22 feet in length and 2,000 lbs, this continuous-duty gate operator ensures smooth, secure, and efficient access control in high-traffic areas.

This model includes advanced safety and security features, such as Security+ 2.0 encryption, inherent reversing sensors, and safety sensors to prevent entrapment. The myQ smart technology allows property managers to monitor and control multiple access points remotely, improving security and operational efficiency.

The CSW200101UL-MC model is UL 325 compliant and comes with a robust 1 HP continuous-duty motor, ensuring long-term performance for residential and commercial applications.

• Included Components:
• (1) LMRRUL Retro Reflective Safety Photocell for added security
• (1) 1 HP Continuous-Duty Motor for smooth and reliable operation
• (1) Q104 Gate Arm Assembly
• (1) 5’ Resistive Safety Edge (Model S505AL)
• 25 ft. Chain #41 Black Oxide
• Power Supply: 115V Single-Phase
• Accessory Power: 24VDC 500mA output
• UL Usage Classification: I, II, III, IV
• Warranty: 5 years commercial, 7 years residential

• Specifications:
• Model: CSW200101UL-MC
• Supplier Part #: CSW200101UL
• Motor Power: 1 HP AC Continuous Duty
• Maximum Gate Length: 22 feet
• Maximum Gate Weight: 2,000 lbs
• Power Supply: 115V Single-Phase
• Accessory Power: 24VDC 500mA output
• Security Technology: Security+ 2.0
• Compliance: UL 325 safety standard (Class I, II, III, IV)
• Smart Connectivity: myQ Community & myQ Facility compatible
• Safety Features: Inherent reversing sensors, quick close function, LMRRUL Retro Reflective Safety Photocell
• Warranty: 5 years for commercial use / 7 years for residential use
