A+B Nailer Plunger Valve Trigger Valve Assembly Kit SP-P2 Compatible with Hitachi Framing Nailer NR83A Coil Nailer NV83A2

A+B Nailer Plunger Valve Trigger Valve Assembly Kit SP-P2 Compatible with Hitachi Framing Nailer NR83A Coil Nailer NV83A2

$9.78 USD
$8.50 USD $9.78 USD
Sale Sold out
Shipping calculated at checkout.
ZTUOAUMA
Plunger Valve

Plunger Valve

NR83A Plunger Valve Trigger Valve Assembly

Set of Accessories

  • Part Number: 875-643 884-039 874-820 875-638 878-266 875-642 949-866 878-734 875-645 875-644 877-335 878-121
  • Applications:
  • for Hitachi Framing Nailer Air Locker NR83A Coil Nailer NV83A2
  • for Hitachi Framing Nailer A+B
  • for AL83 Spotnails NPR90 Supco SDF-88 Pneu Tools SN2283H Amigo’s NR83
  • Package contains all parts needed to rebuild or repair the old valve

Plunger Valve

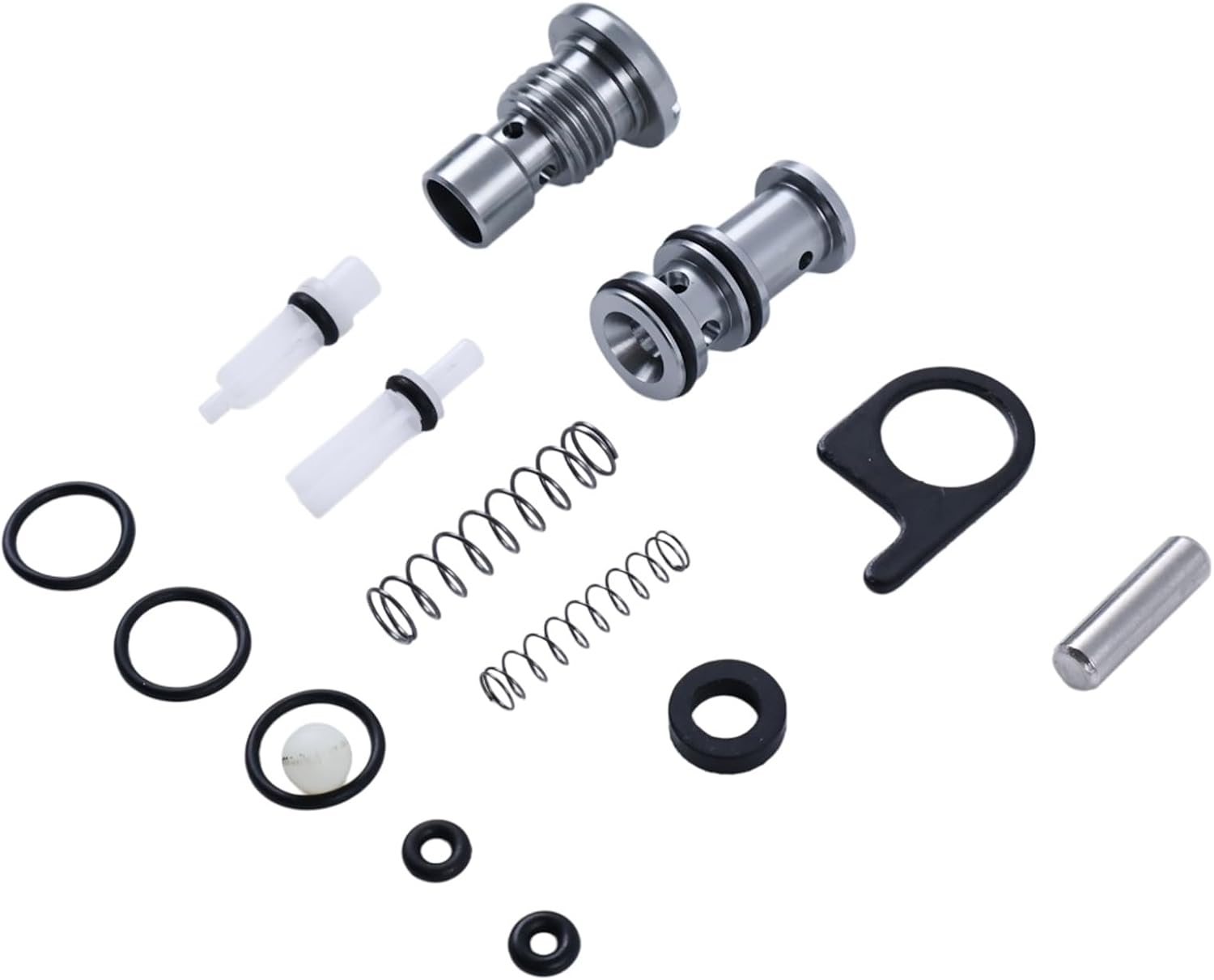

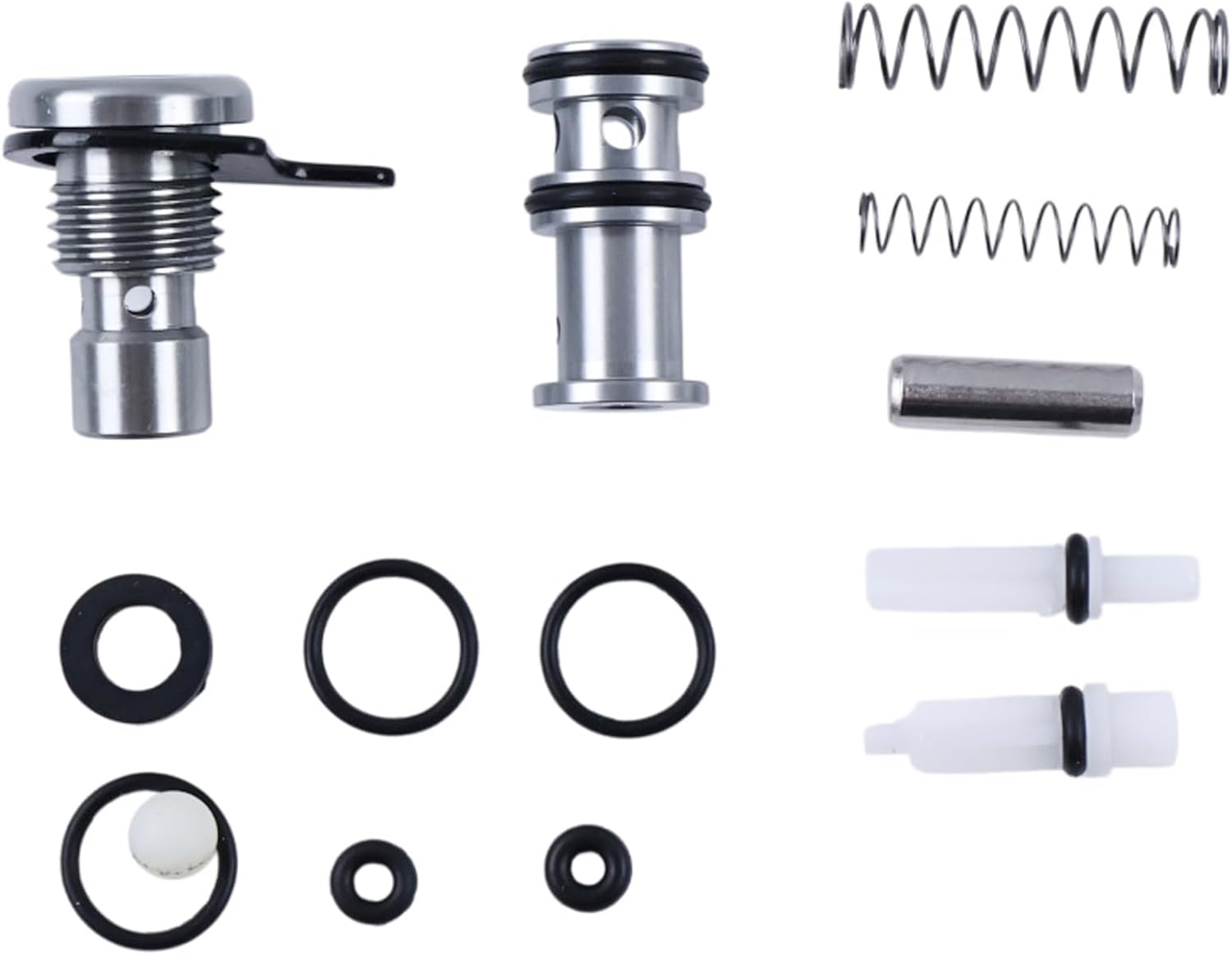

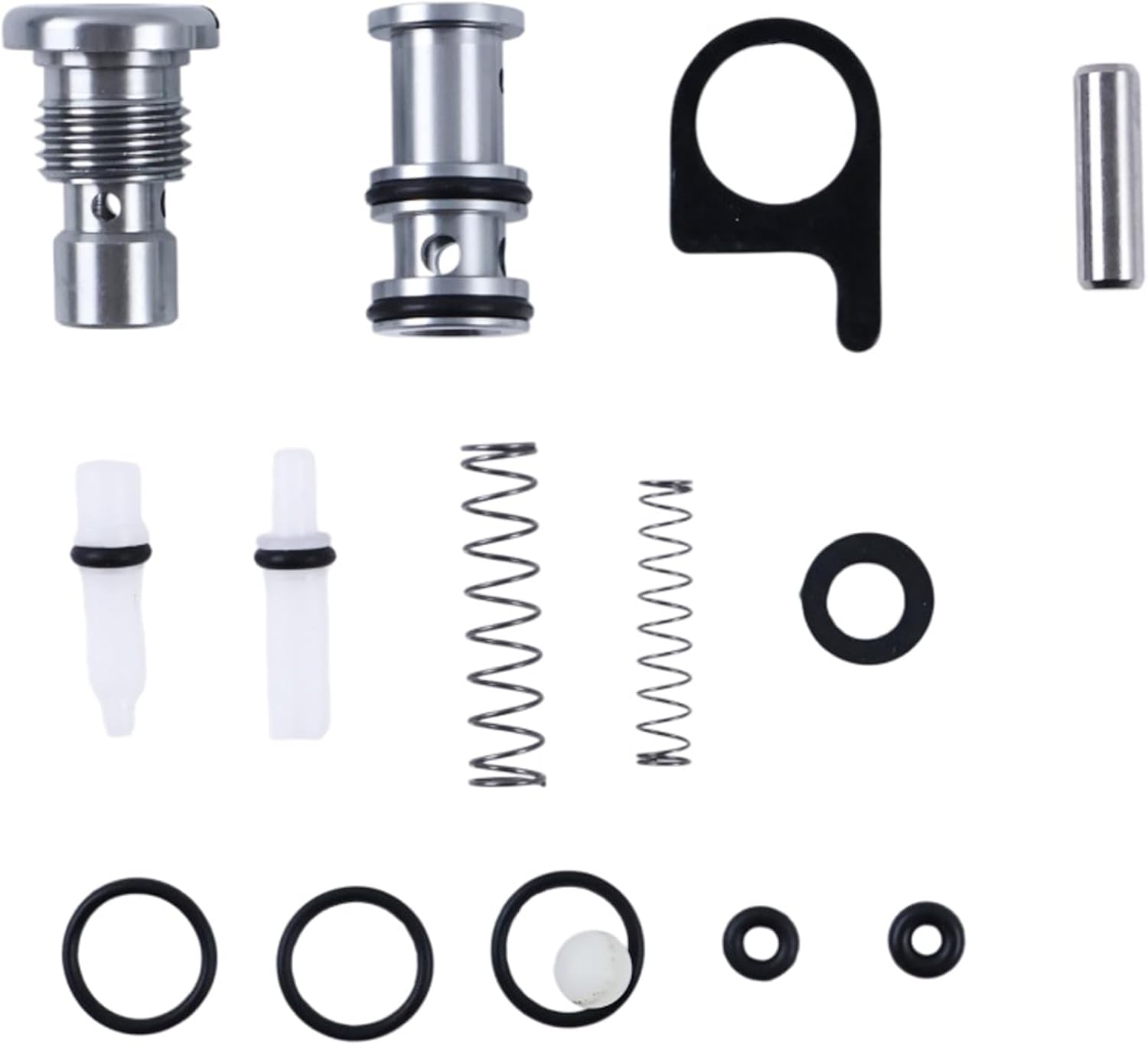

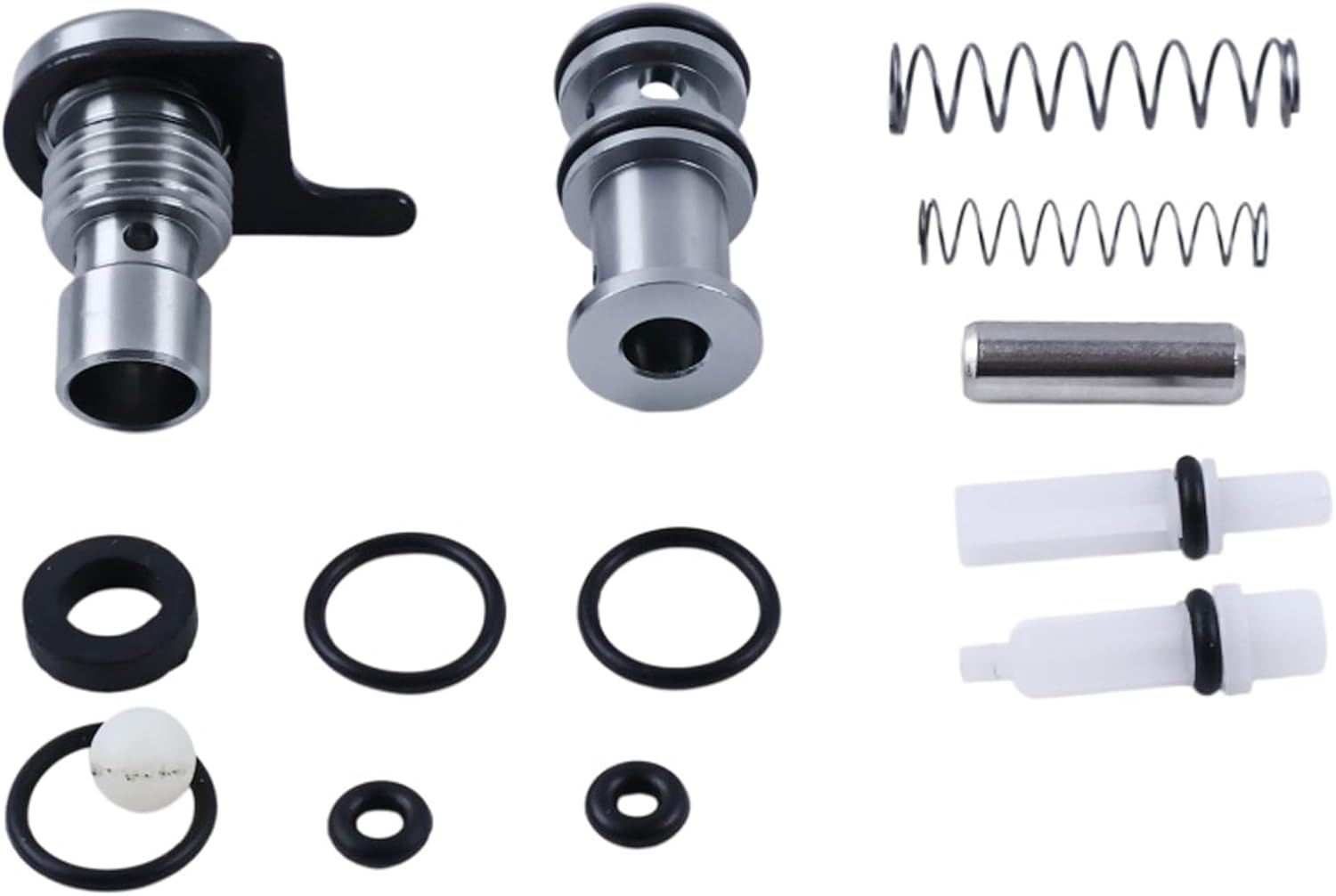

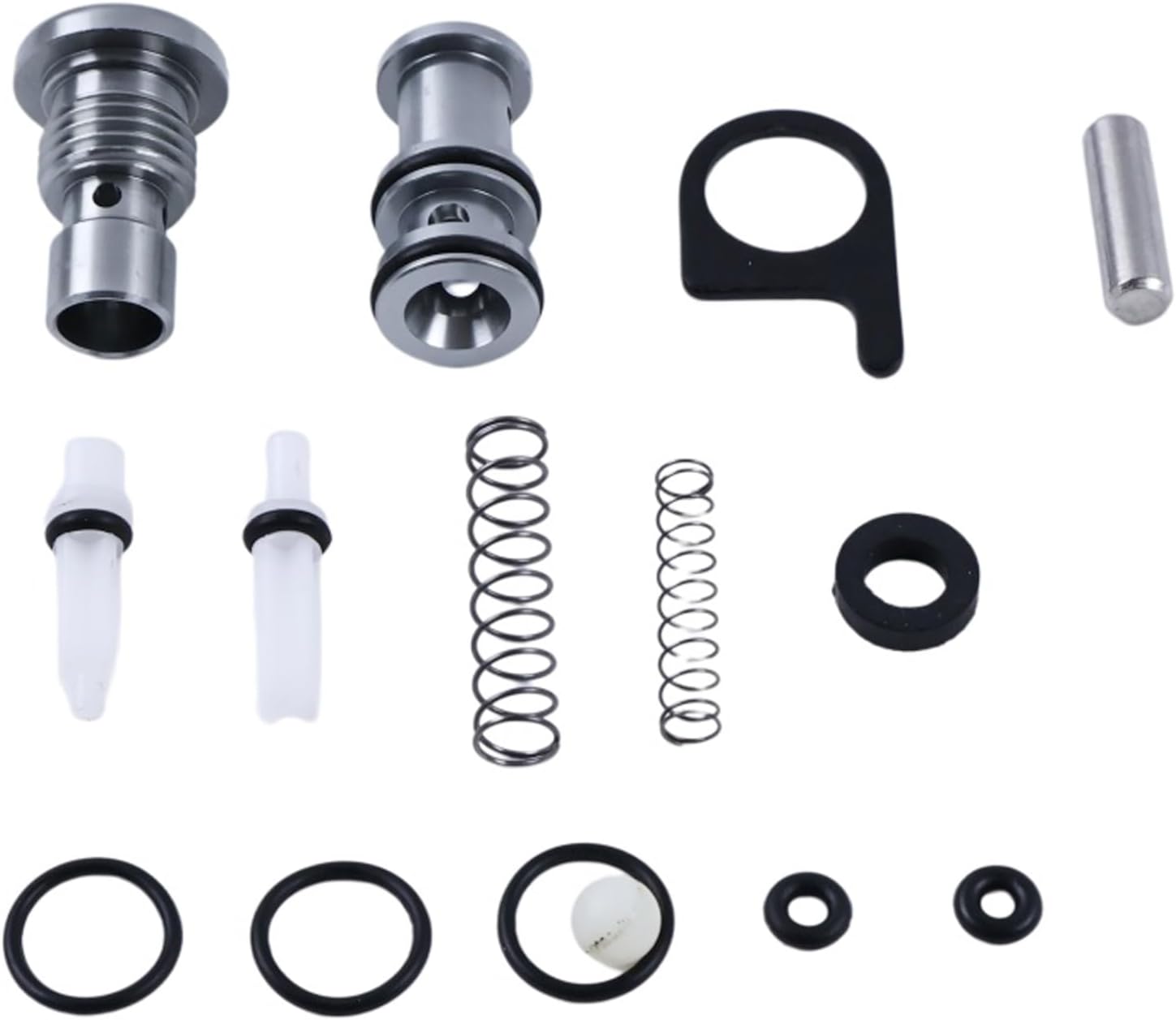

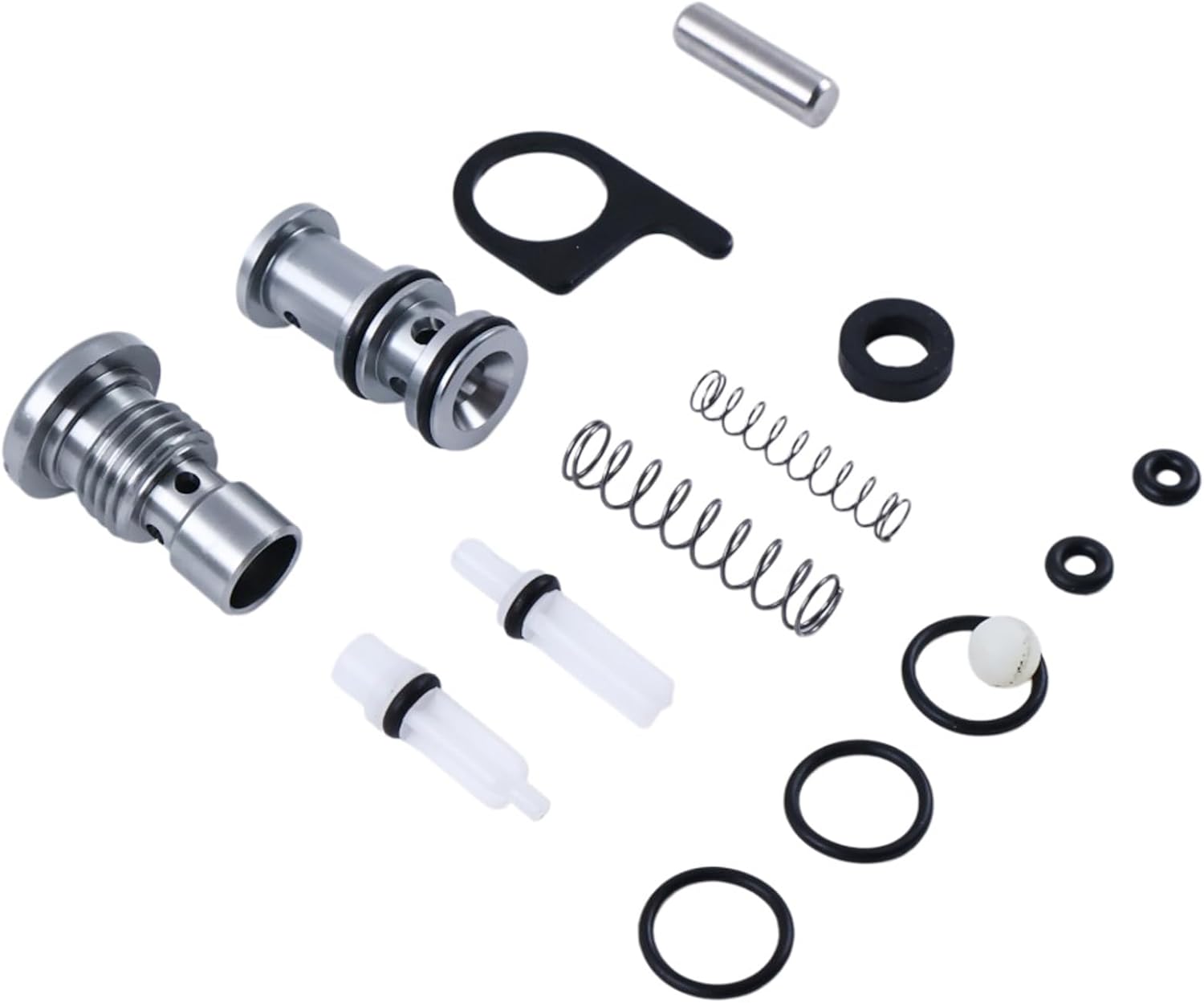

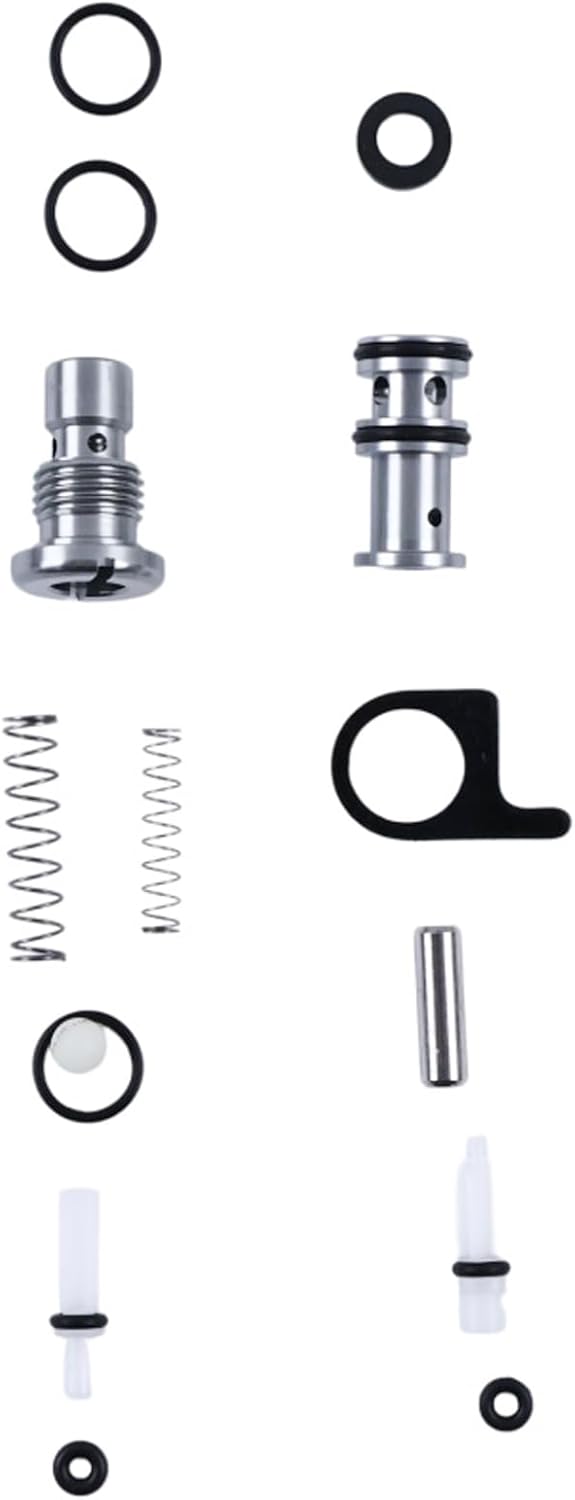

Detailed Components:

  • #56: 875-643 Plunger Spring.
  • #57: 884-039 Plunger (A)
  • #58: 874-820 Plunger O-Ring
  • #59: 875-638 O-Ring (S-12)
  • #60: 878-266 Valve Bushing
  • #61: 875-642 Safety Plunger (B)
  • #63: 949-866 Roll Pin
  • #64: 878-734 Valve Packing
  • #65: 875-645 Urethane Ball
  • #66: 875-644 Valve Plate
  • #67: 877-335 Trigger Valve Bushing
  • #68: 878-121 Trigger Plunger

Plunger Valve

Functions:

  1. This assembly kit can soonly replace you old trigger valve and pluger valve, you can replace any parts of it or the assembly.
  2. It controls the air flow and the firing of the nails:

  • Pluger (A) is the main part of the power tool
  • Safety plunger (B) is the secondary part that prevents accidental firing when the trigger is not pressed.

  • Part Number: 875-643 884-039 874-820 875-638 878-266 875-642 949-866 878-734 875-645 875-644 877-335 878-121
  • Application Models: Compatible with Hitachi Framing Nailer Air Locker NR83A Coil Nailer NV83A2 A+B Models
  • Compatible with AL83 Spotnails NPR90 Supco SDF-88 Pneu Tools SN2283H Amigo’s NR83
  • Package Includes: 1X #56 Plunger Spring; 1X #57 Plunger (A); 1X #58 Plunger O-Ring; 1X #59 O-Ring (S-12); 1X #60 Valve Bushing; 1X #61 Safety Plunger (B); 1X #63 Roll Pin; 1X #64 Valve Packing; 1X #65 Urethane Ball; 1X #66 Valve Plate; 1X #67 Trigger Valve Bushing; 1X #68 Trigger Plunger
  • Functions: This assembly kit can soonly replace you old trigger valve and pluger valve, you can replace any parts of it or the assembly, it controls the air flow and the firing of the nails. Pluger (A) is the main part of the power tool, safety plunger (B) is the secondary part that prevents accidental firing when the trigger is not pressed.
  • Warranty: Returnable for 6 Months and Changeable for 1 Year(return and change for free)
