55-59 Truck Air Ride Backhalf

55-59 Truck Air Ride Backhalf - #110-8100-BH-A

**This product will have a lead time; please call to verify expected wait**

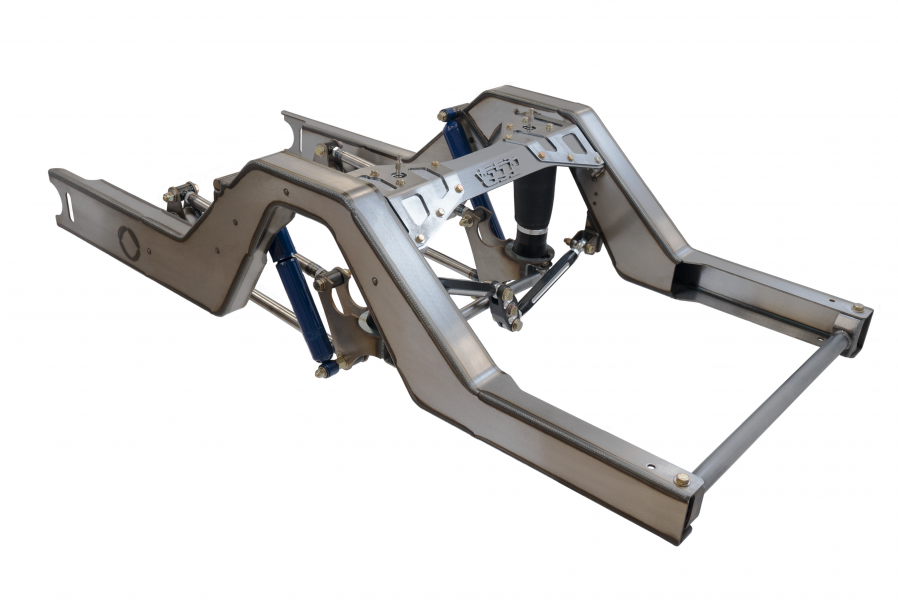

This air ride back half kit replaces the factory rear frame and suspension on 1955-1959 Chevy and GMC trucks. It is designed to pair with the GSI 1955-1959 front clip to create a complete, modern chassis capable of laying frame while maintaining proper suspension geometry and drivability.

The kit requires removal of the stock rear chassis section and uses an Inboard Parallel 4-Link with Billet Watts Links to control axle movement and accommodate wide wheel fitment. Firestone F9000 sleeve-style air bags are mounted behind the axle for consistent suspension travel and ride control.

Key Features

• Complete air ride backhalf system

• Designed to lay frame on up to a 31” tall tire

• Inboard-mounted air bags and 4-link for 15” wide wheel clearance

• Updated suspension geometry for improved drivability

• Uses Firestone F9000 air bags

• Designed for performance, stance, and reliability

Design & Manufacturing

• OEM chassis laser-scanned for accurate fitment


• Components laser cut on Amada CNC laser equipment

• CNC press brake formed for consistent fit

• Machined components produced in-house for strict quality standards

Fitment

• 1955-1959 Chevy & GMC Trucks

What’s Included

• (1) Welded Rear Frame Rails

• (1) Bridge Assembly

• (2) Billet Watt’s Links (With Jam Nuts, Heim's & Misaligns)

• (1) Watt's Link Center Pivot

• (1) Watt's Link Mount Bar

• (2) Frame Reinforcement Plates

• (4) Adjustable 4-Link Bars

• (8) Rod Ends (With Jam Nuts, Crush Sleeves, Bushings, & Zerk Fittings)

• (2) 4-Link Axle Mounts (x1 Circle, x1 Oval)

• (2) Firestone F9000 Air Bags

• (2) Shocks


• (1) Hardware Bag & Instructions

Notes

• ASSEMBLY REQUIRED and ships on a pallet

• Designed for air ride applications only

• This will convert a long bed to short bed

• Professional installation and welding recommended

• Intended for custom rear frame replacement setups
