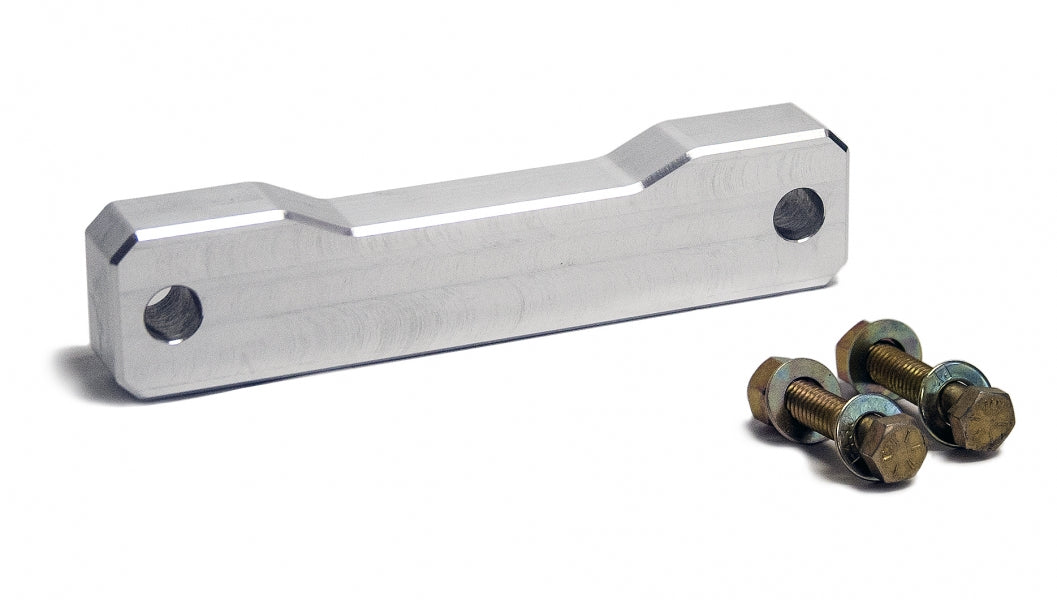

1 Inch Billet Aluminum Carrier Bearing Spacer

GSI 1" Billet Aluminum Carrier Bearing Spacer | P/N: 174-7031

The GSI 1" Carrier Bearing Spacer provides a solid mounting spacer for carrier bearing setups that require a change in bearing position. Machined from billet aluminum, it weighs 1.15 lb and includes the 1/2" Grade 8 hardware needed to mount it.

Its profile measures 7.75" long and 1.75" tall at the ends, with a recessed center measuring 1.50" tall. Check these dimensions and your required carrier bearing position before ordering. View the GSI 63-72 Bolt-On Carrier Bearing Crossmember

Key Features & Benefits

• Billet aluminum construction

• 1" spacer width

• Recessed center profile, 1/4" lower than the ends

• Two mounting holes for the included 1/2" hardware

• Spacer and mounting hardware included together

Dimensions & Specs

• Material: Billet aluminum

• Weight: 1.15 lb

• Overall length: 7.75"

• Width: 1.00"

• Height at ends: 1.75"

• Height at recessed center: 1.50"

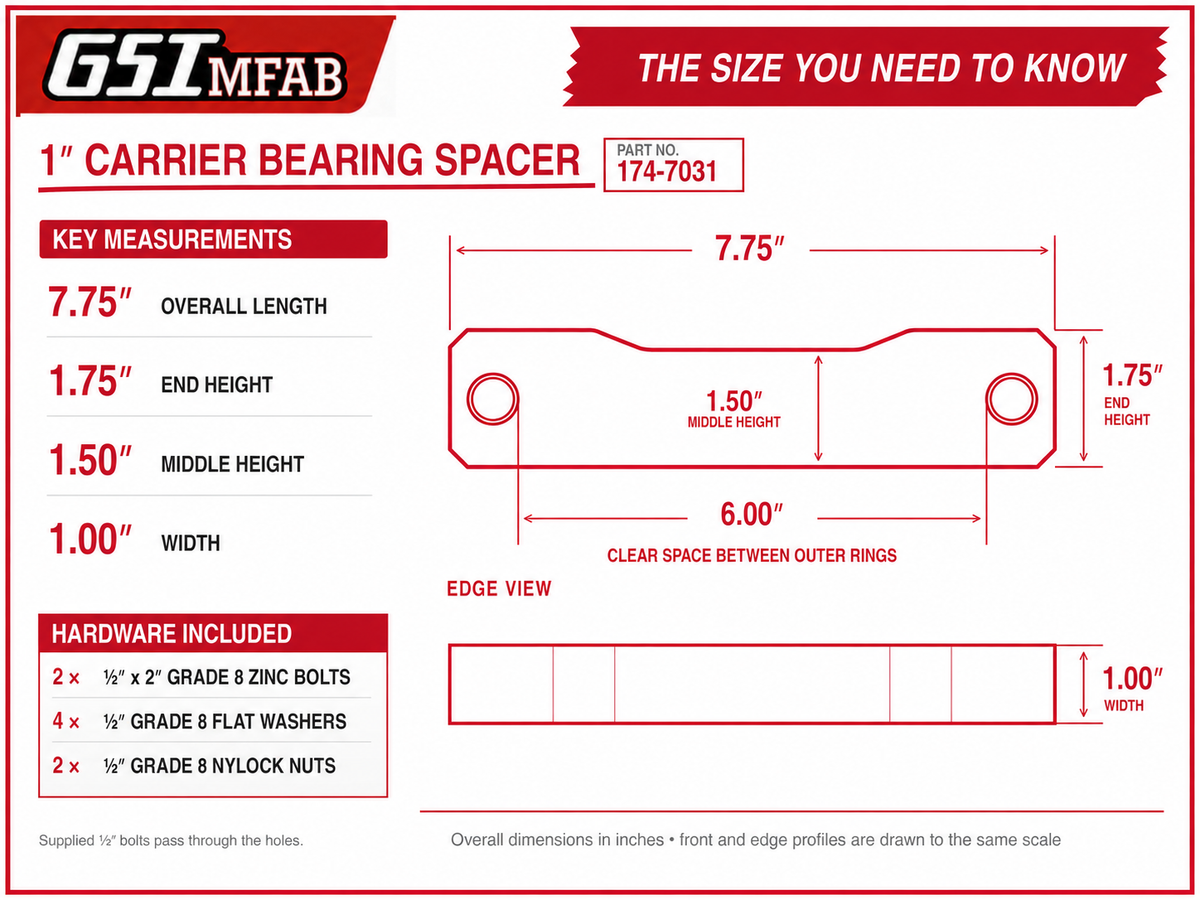

• Clear space between the facing outer hole rings: 6.00" (see dimension diagram)


Fitment & Installation Notes

Designed for carrier bearing mounting setups that call for a 1" spacer. Verify the mounting-hole positions, available clearance, and required bearing position for your truck and driveshaft setup before ordering. The 6.00" dimension is measured between the facing edges of the outer hole rings, not from hole center to hole center.

What’s Included

• (1) GSI 1" Carrier Bearing Spacer

• (2) 1/2" x 2" Grade 8 Zinc Bolts

• (4) 1/2" Grade 8 Flat Washers

• (2) 1/2" Grade 8 Nylock Nuts
